Understanding the Autotransformer Starter Wiring Schematic Step by Step
Use a three-tap auxiliary winding reducer when starting high-power induction motors to limit inrush current to 3–5 times the nominal rating. Tap selection (50%, 65%, 80%) depends on motor torque requirements–50% tap suffices for light loads, while 80% is necessary for machines with starting torque exceeding 70% of full load.
Connect the winding reducer in an open transition configuration during the brief starter engagement phase: neutral terminal tied to the motor’s common winding, while the selected tap bridges the supply via a contactor. This arrangement prevents voltage spikes by ensuring the motor never experiences full line potential before reaching near-synchronous speed.
Size the contactor coils for 120% of the calculated tap current to accommodate transient surges. Include a thermal overload relay set to trip at 115% of nominal tap current for sustained overload protection–adjustable delay should match the motor’s thermal time constant.
For frequent start-stop cycles, integrate a soft-start bypass contactor that disengages the reducer once acceleration completes. Monitor acceleration time; if exceeding 10 seconds, verify tap selection or investigate mechanical loading.
Key Components and Connections in Voltage-Reducing Motor Launch Circuits
Begin wiring by identifying the primary coil taps–typically 50%, 65%, and 80% of line voltage–to match motor inrush current limits. Connect the common terminal to the supply line, then route the selected tap to the motor via a three-pole contactor rated for 125% of full-load current. Ensure the neutral point of the autotransformer remains floating to prevent circulating currents during starting; grounding it risks tripping protective relays at 3–5 times nominal current. Use class 20 overload relays for motors up to 50 HP, adjusting trip curves to 110–120% of tap current to avoid nuisance trips during acceleration.
| Motor HP | Optimal Tap (%) | Contactor Size (A) | Wire Gauge (AWG) |
|---|---|---|---|
| 10 | 65 | 30 | 10 |
| 25 | 65 | 60 | 6 |
| 50 | 80 | 100 | 3 |
| 100 | 80 | 200 | 1/0 |
After engaging the initial contactor, delay closing the run contactor for 3–4 seconds to allow motor speed stabilization–use a pneumatic timer with ±10% accuracy for 60 Hz systems. Terminate the autotransformer coil immediately after switching to line voltage to minimize overheating; sustained operation at partial taps can exceed 160°C in dry-type units. Validate all connections with a megohmmeter at 500 VDC, targeting ≥1 MΩ between phases and ground; values below 0.5 MΩ indicate moisture ingress in oil-immersed units or insulation breakdown in air-cooled types. Replace any relay showing operation time variance greater than 15% during bench testing.
Core Elements and Representations in a Voltage-Reducing Startup System
Prioritize selecting taps matching motor voltage requirements–typically 50%, 65%, or 80% of line voltage–to limit inrush current while ensuring smooth acceleration. Use heavy-duty contactors rated for at least 150% of motor full-load current; size them based on IEEE Std 141 guidelines to prevent overheating during prolonged startup sequences. Replace open-transition designs with closed-transition types if voltage dips exceeding 10% occur, as these maintain circuit continuity during tap switching, reducing mechanical stress. Include thermal overload relays with Class 10 trip curves for motors below 50 HP; for larger units, opt for Class 20 to accommodate extended acceleration times without nuisance tripping.
Label line connections with phase identifiers (L1, L2, L3) and motor terminals (T1, T2, T3) in compliance with NEMA MG-1 standards; mismatched wiring causes torque imbalance exceeding 15%, increasing bearing wear. Integrate current-limiting reactors if harmonics distort voltage waveforms beyond 5%, as autotransformer windings amplify distortion under partial-voltage conditions. Verify control circuit wiring uses 14 AWG conductors for runs under 100 ft; increase to 12 AWG for longer distances to minimize voltage drop in auxiliary relays and pushbuttons.
Key Wiring Steps for Voltage-Reducing Motor Initiator
Start by securing the main power lines to the input terminals of the variable-ratio coil–L1, L2, and L3–for three-phase systems. Ensure each line corresponds to its designated terminal; misalignment risks phase imbalance or equipment damage. Use 6 AWG copper wire for currents up to 50A, upgrading to 4 AWG for higher loads. Tighten connections to 25 Nm torque using a calibrated wrench to prevent loosening under vibration.
Connecting Motor and Auxiliary Circuits
Attach the motor leads–U, V, and W–to the coil’s secondary terminals, matching the winding configuration (delta or wye) with the nameplate specifications. For wye-start delta-run setups, add a transition relay between the coil’s tap point and the motor’s delta terminals. Wire the relay coil to the control circuit at 110V or 220V, depending on the auxiliary supply. Test continuity with a multimeter before energizing; resistance should mirror the motor’s rated impedance within ±5%.
Integrate overload protection by placing thermal or electronic relays between the coil’s output and the motor. Set the trip class to Class 10 for standard applications, adjusting to Class 20 for heavy inertia loads. Connect the relay’s normally closed (NC) contacts in series with the control circuit’s start pushbutton. Verify the relay’s reset function manually before final activation–stuck contacts can cause nuisance tripping during operation.
Ground the system’s metallic frame and coil core using 8 AWG green/yellow wire, linking to a dedicated earth busbar with
Voltage Tap Selection and Its Impact on Motor Inrush Current
Select 65% voltage tap for motors rated up to 50 HP to limit starting current to 2.5–3× full-load amps while maintaining torque above 40% of nominal. Higher HP ratings demand proportionally lower taps: 50% for 100 HP, reducing inrush to 1.8–2.2× but requiring verification of load inertia. Misalignment here risks stall conditions–calculate locked-rotor torque against reflected load torque before finalizing tap setting.
- 80% tap: 3.5–4× starting current, 60% torque–use only for light loads like centrifugal pumps.
- 65% tap: 2.5–3× current with 40% torque–optimal for most industrial fans and compressors.
- 50% tap: 1.8–2.2× current, 25% torque–reserved for high-inertia loads after inertia verification.
- 40% tap: 1.5× current but
Measure line current during first 0.5 seconds of start-up; spikes exceeding 4× nameplate amps indicate tap selection error. Replace insufficient tap percentage with next lower setting only after confirming reduced-voltage torque meets load requirements–overcompensation here leads to prolonged acceleration times and overheating. Record acceleration duration; ideal range is 5–12 seconds for NEMA B motors at rated voltage. Deviations outside this window suggest tap misconfiguration or mechanical binding.
Coordinate tap choice with upstream protection: fuse curves must intersect starting current-time profile at no less than 80% of tap-selected current to prevent nuisance trips. For 65% tap, select Class 20 fuses at 225% of motor FLA; verify coordination with time-current curves using manufacturer software. Document thermal limit: transformer winding temperature rise should not exceed 80°C above ambient during three consecutive starts spaced 30 minutes apart.
Change tap settings in 5% increments only after cooling periods–ambient + winding temperature differential should remain below 10°C before next trial. Re-torque all connections between adjustments; 10 lb-ft minimum for clamp-type terminals ensures consistent impedance. Use 1% accuracy clamp meter to monitor secondary voltage during start; discrepancies above ±2% indicate tap contact degradation–replace contacts if resistance exceeds 5 milliohms per connection.

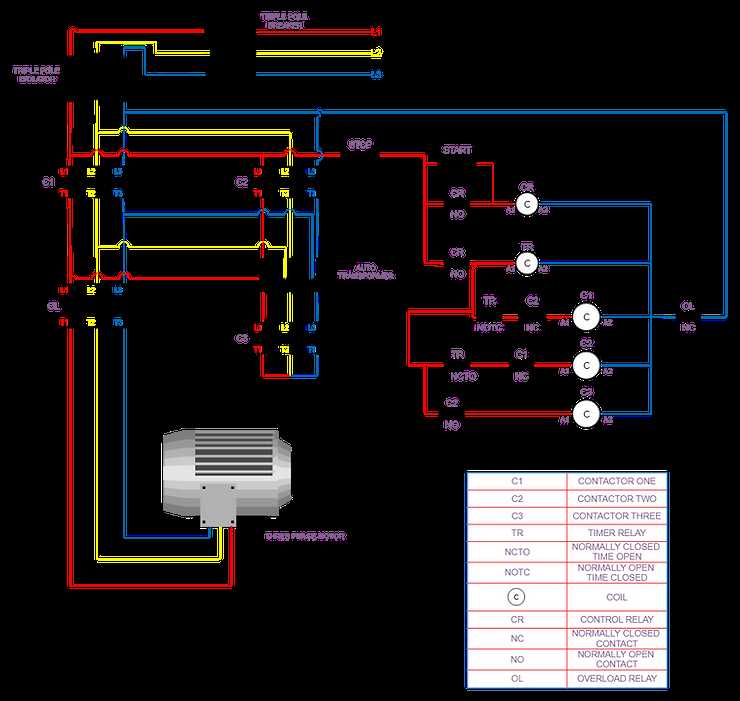

Control Circuit Integration: Contactors and Timers in Voltage-Reducing Motor Launch Systems
Integrate AC-3 rated contactors with coil voltages matching control supply–typically 230V or 400V–to prevent overheating during repeated inrush cycles. Select models featuring silver-cadmium oxide contacts, as these withstand arcing from inductive loads better than standard copper. Size each contactor for 110-120% of motor full-load current to accommodate transient overcurrents during step transitions.
Use off-delay timers (type TD) with 0.1s timing accuracy to sequence voltage steps precisely. Program initial step duration for 2.5-3.5s to limit inrush to 300-350% of nominal current, balancing start smoothness against mechanical stress. Pair each timer with auxiliary contacts rated for 10A minimum to ensure reliable coil energization through interlocking circuits. Avoid pneumatic timers in dusty environments; opt for digital counterparts with ±2% repeatability.
- Wire start contactor coils through normally closed thermal overload relay contacts to enable immediate de-energization on fault.
- Include a hand-off-auto selector switch with spring return to “off” for fail-safe operation during maintenance.
- Mount timers adjacent to contactors, reducing wiring capacitance that can delay response by 50-80ms in 24V control circuits.
- Install snubber circuits (0.1μF, 275VAC capacitors) across contactor coils to suppress transient voltages exceeding 1.8kV.
Critical Timing Adjustments
For motors above 75kW, extend intermediate voltage step to 4-5s to prevent torque dips below 70% of nominal during transition. Verify timing by measuring current with a clamp meter; peak should not exceed 4.2× rated current for any step. If current spikes persist, reduce initial voltage step from 65% to 55%, accepting longer acceleration time but minimizing winding stress.
Connect timer outputs to auxiliary relays when control circuit current exceeds 5A to prevent contactor coil dropout during heavy switching. Use relays with gold-plated contacts for circuits below 10mA to avoid oxidation-induced failures. Position all control components within 3m of motor terminals to limit voltage drop below 3% in 1mm² copper cabling.
