Complete Guide to Wiring a Cat 5 Wall Jack with Diagram
Use T568B straight-through pinout for standard network connections across residential and commercial installations. This arrangement–orange-white, orange, green-white, blue, blue-white, green, brown-white, brown from pins 1 to 8–ensures compatibility with nearly all gigabit equipment without crossover adapters. Verify pin integrity with a cable tester before securing contacts.
Strip 1–1.5 inches of outer jacket to expose individual conductors, avoiding nicks on insulation that degrade signal integrity. Separate twisted pairs just enough to straighten each wire but maintain as much twist as possible up to the termination point–pair mismatch beyond 0.5 inch introduces crosstalk noticeable at gigabit speeds.
Insert wires into the keystone module until you feel slight resistance, then press firmly with an impact tool for consistent termination. Check that no copper strands protrude beyond the contact pads; exposure can short adjacent pins and introduce intermittent connectivity issues. Label each port immediately with port number and corresponding patch panel identifier for accurate documentation.
For high-density installations, maintain identical termination standards across all outlets and patch panels to prevent performance mismatches. Shielded outlets require grounding continuity to the rack’s busbar–omitting this connection leaves the system vulnerable to electrical noise from adjacent power circuits.
Standardized Connector Pinout for Ethernet Ports
Use the T568B standard for terminating twisted-pair cables in network outlets to ensure compatibility with most existing infrastructure. Match conductor colors to the pin positions exactly as shown below–swapping even one pair can degrade signal integrity and prevent gigabit speeds.
| Pin | T568B Color | Pair Number |
|---|---|---|
| 1 | White/Orange | 2 |
| 2 | Orange | 2 |
| 3 | White/Green | 3 |
| 6 | Green | 3 |
| 4 | Blue | 1 |
| 5 | White/Blue | 1 |
| 7 | White/Brown | 4 |
| 8 | Brown | 4 |
Strip the outer sheath 1 inch back, untwist each pair only enough to insert wires into the outlet terminal–excessive untwisting increases crosstalk. Secure conductors by pressing them firmly into the IDC slots until the tool’s blade cleanly cuts insulation without nicking copper. Tighten mounting screws evenly to prevent housing strain; uneven pressure can misalign contacts and cause intermittent connectivity.
Essential Gear for Setting Up an Ethernet Access Point
Begin with a punch-down tool featuring a 110-type blade–non-negotiable for clean terminations. Opt for models with ergonomic grips if handling multiple ports daily; the Klein Tools VDV224-068 or IDEAL Networks 30-698 prevent hand fatigue. Avoid generic tools; inconsistent blade angles damage conductors and degrade signal integrity.
For stripping outer sheaths, use a dedicated cable stripper calibrated for twisted pairs. Klein VDV220-501 or Fluke Networks DSP-FTK strip precisely without nicking copper. Manual tools require steady hands–practice on scrap cable first. Never use a utility knife; microscopic nicks introduce impedance spikes detectable in high-bandwidth applications.
- Modular connector (RJ45 8P8C) of at least Cat 5e standard–look for gold-plated contacts (50 microinches minimum) to prevent corrosion.
- Patch panel or surface-mount box rated for PoE if power delivery is required; Legrand On-Q or Panduit types handle 30W+ without overheating.
- Low-voltage mounting bracket if installing in drywall; Carlon B612A-GY keeps ports firmly aligned with wall plates.
Crimping tools demand precision: Paladin Tools 11270B or Platinum Tools EZ-RJ45 provide secure terminations with minimal insertion loss. Check for a ratcheting mechanism–cheap tools skip this feature, leading to partial crimps and intermittent connections. Always verify crimp integrity with a continuity tester before finalizing installation.
Twisted-pair cable should meet TIA/EIA-568-B standards. Solid copper conductors (24 AWG) support gigabit speeds; copper-clad aluminum (CCA) introduces latency and should be restricted to temporary setups. Measure cable runs accurately–exceeding 90 meters increases bit error rates, especially in environments with electromagnetic interference.
For testing, a basic continuity tester (Fluke Networks DTX Compact) confirms pinouts, but a certification tool (Fluke DSX-5000) validates signal performance metrics like NEXT, PSNEXT, and return loss. Budget-conscious setups can use a tone generator and probe (Klein VDV501-820) to trace cables, though this method lacks performance data.
Adhesive-backed labels (Brady BMP21-PLUS) or a handheld label printer prevent future confusion. Label both ends of each cable immediately after termination–mismatched ports are the primary cause of troubleshooting hours. Use permanent ink resistant to smudging; standard markers fade within months in exposed environments like server closets.
- Safety gear: insulated gloves (rated for 600V) when stripping sheaths near live circuits.
- Flashlight with a focused beam (Streamlight ProTac) for identifying conductors in poorly lit ceiling spaces.
- Fish tape (Klein 56221) for pulling cable through conduit or tight spaces; nylon-coated versions prevent kinking.
- Cable ties (Panduit PLT-6-L) in multiple sizes; avoid metal ties–they can degrade cable shielding.
Final verification requires an end-to-end pressure test. Plug one end into a switch port and the other into a device, then run iperf3 or similar throughput tests. Any deviation below 940 Mbps on a gigabit link indicates improper termination, impedance mismatches, or damaged conductors–re-terminate immediately.
Step-by-Step Guide to Stripping and Preparing Ethernet Cable
Hold the twisted-pair cable firmly 3–4 cm from the end and score the outer jacket with a dedicated stripper or sharp utility knife–never cut deeper than 1 mm to avoid nicking the internal conductors. Rotate the tool 360° once to produce a clean circumferential cut, then gently flex the cable along the scored line until the jacket splits; peel it back and trim the excess flush to the remaining sheath.
Twist Management and Conductor Separation
Unwind only the minimum length of each color-coded pair required for termination–typically ≤ 13 mm (½ inch). Arrange the eight wires in the order specified by T568A or T568B standard; use a precision comb or needle-nose pliers to straighten any kinks, ensuring each conductor lies flat and parallel without crossing adjacent wires. Inspect the exposed copper for oxidation or deformities; lightly abrade any tarnished tips with a fine-grit emery board to ensure reliable electrical contact.
Slide a connector onto the prepared conductors with the gold contacts facing upward, verifying that all eight wires extend fully to the front edge of the connector; crimp with a ratcheting tool until the plastic locking tab emits an audible click, then tug each wire individually with 0.45 kg (1 lb) of force to confirm secure seating–any pull-out indicates incomplete insertion and mandates re-termination.
Color Coding and Connector Termination Standards (T568A vs. T568B)
Use T568B as the default standard for new structured cabling installations–it aligns with most modern enterprise networks, ISP conventions, and equipment defaults (e.g., PoE injectors, switches, patch panels). The sequence is: white/orange (pin 1), orange (2), white/green (3), blue (4), white/blue (5), green (6), white/brown (7), brown (8). Deviate from this only when documenting an existing T568A installation or when required by vendor-specific hardware (e.g., legacy VoIP systems).
Critical Differences and Use Cases
T568A reverses the positions of the orange and green pairs (pins 1-2 and 3-6), resulting in: white/green (1), green (2), white/orange (3), blue (4), white/blue (5), orange (6), white/brown (7), brown (8). This standard remains prevalent in residential retrofits and North American government installations per ANSI/TIA-568-C.2. Never mix both standards within a single link–a straight-through cable must use identical terminations at both ends to avoid crossed pairs, signal degradation, or PoE failure.
Before terminating a port, verify the equipment’s pinout requirements. Modern switches and routers auto-negotiate MDI/MDIX, but edge cases persist: IP cameras often demand T568B for PoE+ power delivery, while older PBX systems may default to T568A. Use a cable analyzer to confirm polarity if in doubt–reversing pairs 1-2 and 3-6 creates a crossover cable suitable only for direct switch-to-switch connections, not endpoint deployments. Always label terminations to prevent future misconfiguration.
Terminating Ethernet Cables in a Facility Connector

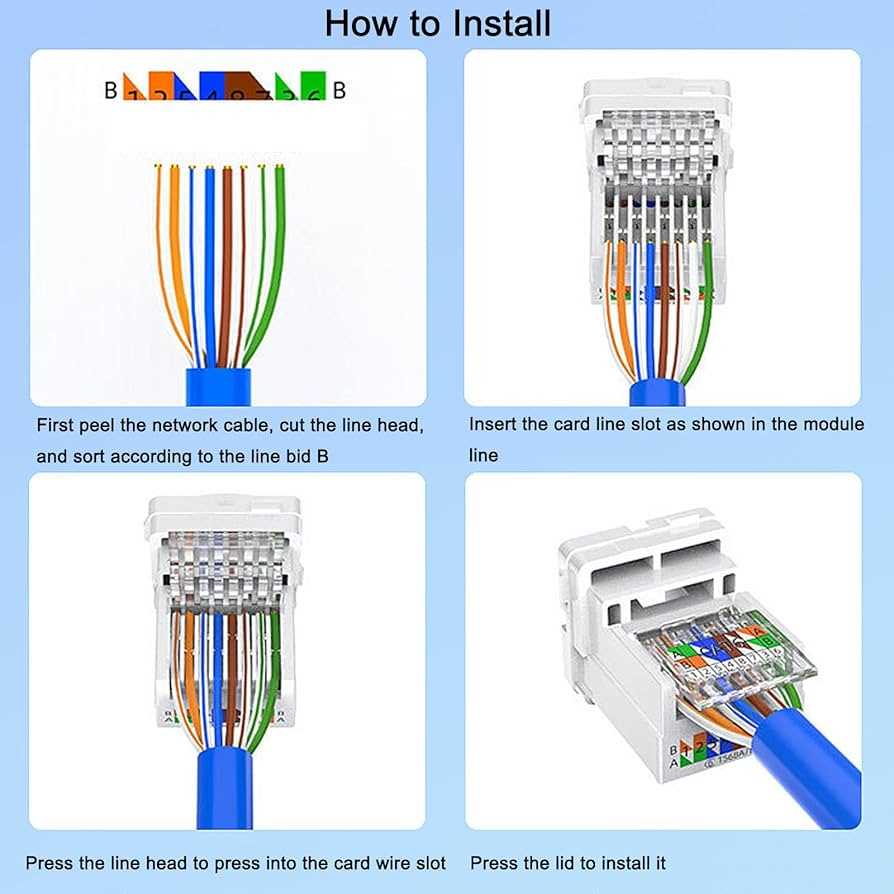

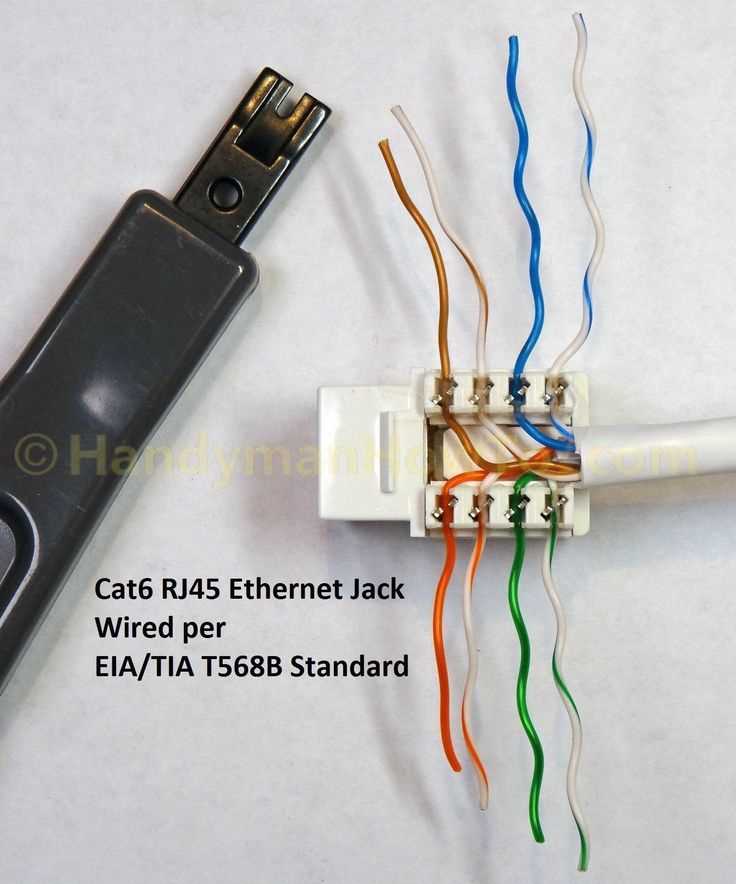

Strip 1.5 inches of the outer sheath from the twisted-pair cable using a cable stripper, ensuring not to nick the internal conductors. Unwind each pair just enough to separate the wires–over-twisting weakens signal integrity. Arrange the conductors in the T568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Maintain consistent pair twisting within 0.5 inches of the termination point.

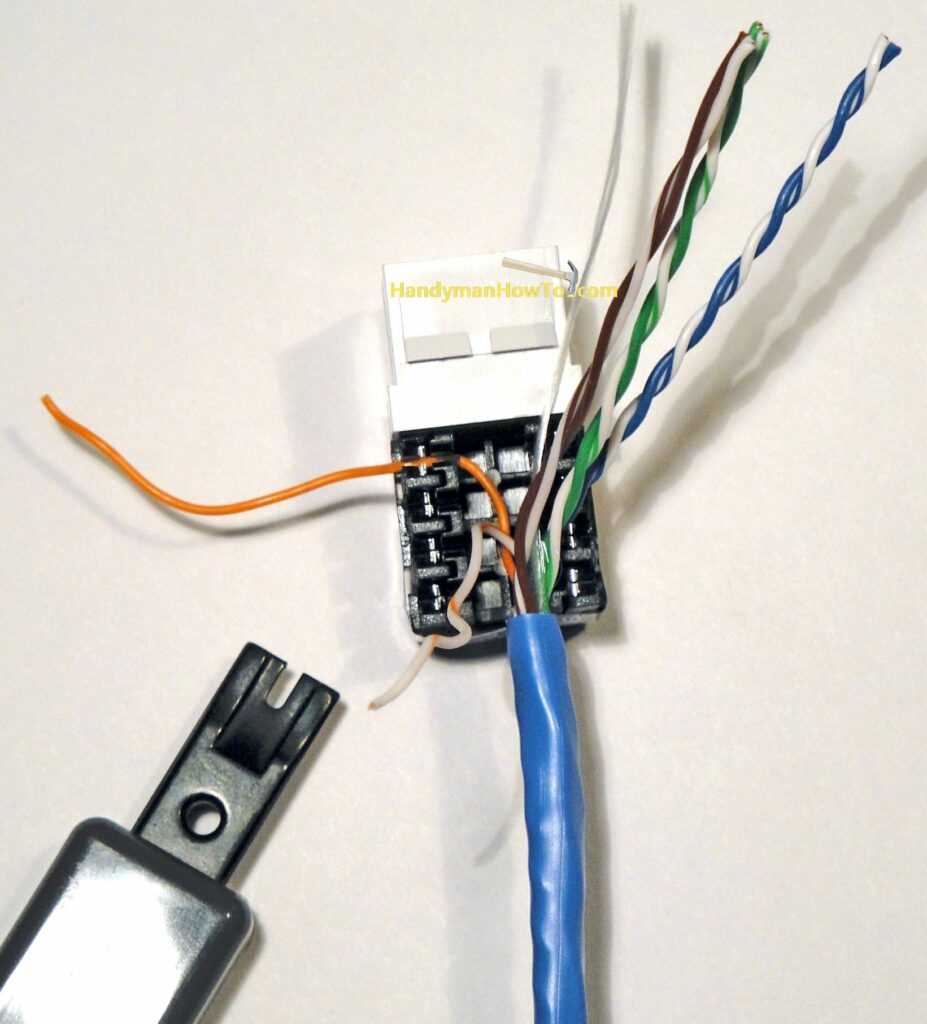

Use a punch-down tool with a 110-blade to secure each conductor into the keystone module’s slots. Apply firm, even pressure until the tool clicks, cutting excess wire flush. Avoid slicing at an angle or leaving stubs longer than 1mm, as this disrupts impedance matching. Verify the color code alignment before punching–no two wires should share a slot.
Inspect each connection under good lighting. Tug lightly on individual wires to confirm mechanical retention; loose strands cause intermittent faults. Test continuity with a network tester set to verify pair mapping and detect split pairs. If resistance exceeds 1Ω or near-end crosstalk surpasses -40dB at 100MHz, reterminate the faulty pair.
Secure the module into the wall plate with the integrated snap tabs, aligning the locking mechanism without forcing it. Misalignment cracks the housing, degrading performance. If the plate mounting screws interfere with termination access, temporarily remove them and reinstall after securing the connector. Do not overtighten screws–2 inch-pounds of torque prevents plate warping.
Label the port with its corresponding patch panel designation using heat-shrink tubing or adhesive tags. Record the termination date and technician initials on the back of the plate–this simplifies troubleshooting later. Store unused keystone modules in anti-static bags to prevent dust or moisture infiltration between projects.
When working in environments exceeding 25°C, allow the terminated cable to acclimate for 24 hours before testing. Thermal expansion alters pair geometry, skewing measurement results. For PoE applications, confirm all connections handle 600mA per conductor without overheating; replace standard punch-down blocks with PoE-rated variants if current limits approach these thresholds.
