Creating and Using Schematic Diagrams in Quartus Prime for FPGA Design

Begin by accessing the Block Diagram Editor through the File > New menu. Select Block Diagram/Schematic File to initiate a blank workspace optimized for hierarchical modeling. Intel’s toolset allows direct placement of predefined logic blocks–use primitive symbols (e.g., AND, OR, flip-flops) from the Symbol Tool library or import custom components via .bdf files for modular reuse.

For precision, assign signal names at connection points using the Node Finder. Labels like clk_50MHz or data_in[7..0] eliminate ambiguity in multi-layer designs. Validate signal paths by right-clicking nets and selecting Properties–check for unassigned or floating nodes before synthesis.

Leverage hierarchical design by grouping related logic into sub-blocks. Right-click an existing block, choose Create Design Block Symbol, then instantiate it in higher-level diagrams. This reduces clutter and simplifies debugging. For complex designs, break functionality into smaller files linked via Design Partitioning in the Project Navigator.

Verify connectivity using Netlist Viewer post-compilation. Cross-reference RTL with the generated netlist to ensure logical equivalence. For timing-critical paths, apply Timing Constraints in the Assignment Editor, specifying clock domains and false paths to avoid setup/hold violations.

Export the final design as a .pdf or .svg for documentation by selecting File > Export. Use Page Setup to adjust scaling–printed representations should maintain legibility, especially for bus labels and intricate routing. For team collaboration, ensure all referenced libraries and custom symbols are included in the project directory to prevent broken links.

Building Functional Block Views in Intel FPGA Tools

Start with a clear module hierarchy in your project. Break down complex designs into reusable components (e.g., counters, FSMs, or arithmetic units) using Quartus’ Block Editor. Each block should have precisely defined inputs, outputs, and parameters. For example, a 32-bit adder should include carry-in/carry-out pins and be instantiated with `module_name #(.WIDTH(32)) instance_name (.clk(clk), .rst(reset), .in_a(a), .in_b(b), .sum(result), .cout(carry))`. This approach minimizes errors during synthesis and accelerates timing closure.

Key steps for efficient block creation:

• Enable “Auto-Connect Bidirectional Pins” in Tools → Options → Block/Symbol Editor to reduce manual wiring.
• Use parameterized blocks (Verilog `generate` or VHDL `generic`) for scalable designs–modify width/depth without redrawing.
• Assign meaningful names to nets; avoid defaults like `n0001`. Quartus Prime Lite/Pro preserves net names in post-synthesis netlists if “Keep Name in Synthesis” is checked.
• Validate block interfaces with simulation stubs before integrating into larger systems. ModelSim integration allows step-through debugging of individual blocks.

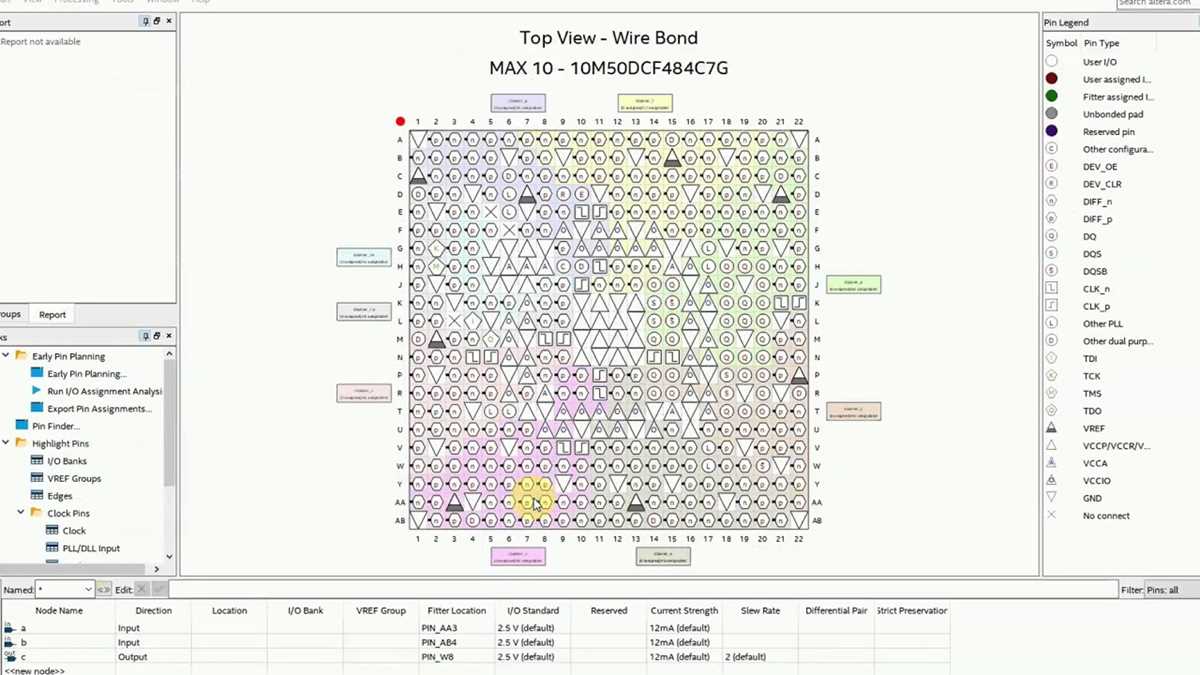

Optimize routing by placing critical blocks (e.g., clock domains, memories) near FPGA primitives. Right-click a block → Properties → Location Constraints to assign specific LABs/DSPs. For high-speed designs, use the Floorplan Editor to visualize congestion and adjust placement before compilation. Post-routing, analyze timing paths with the TimeQuest Timing Analyzer–target slack >0.2ns for reliable operation.

Creating a New Graphical Design File in Quartus Prime

Open the tool and select File > New. Choose Block Diagram/Schematic File from the list under Design Files. Confirm with OK to generate a blank workspace where components can be placed.

Add logic elements by right-clicking the workspace and selecting Insert Symbol. Use the search bar to locate primitives like AND, OR, DFF, or input/output pins. Double-click symbols to place them or drag them directly onto the canvas. Pin types (input, output, bidirectional) must match the intended signal direction to avoid compilation errors.

Connect components using the Orthogonal Node Tool (shortcut: Ctrl+Shift+N). Click the output pin of one element, drag to the input pin of another, then release. Avoid overlapping lines; Quartus enforces strict net connectivity rules during analysis. For busses, use the Bus Tool (shortcut: Ctrl+Shift+B) to bundle related signals.

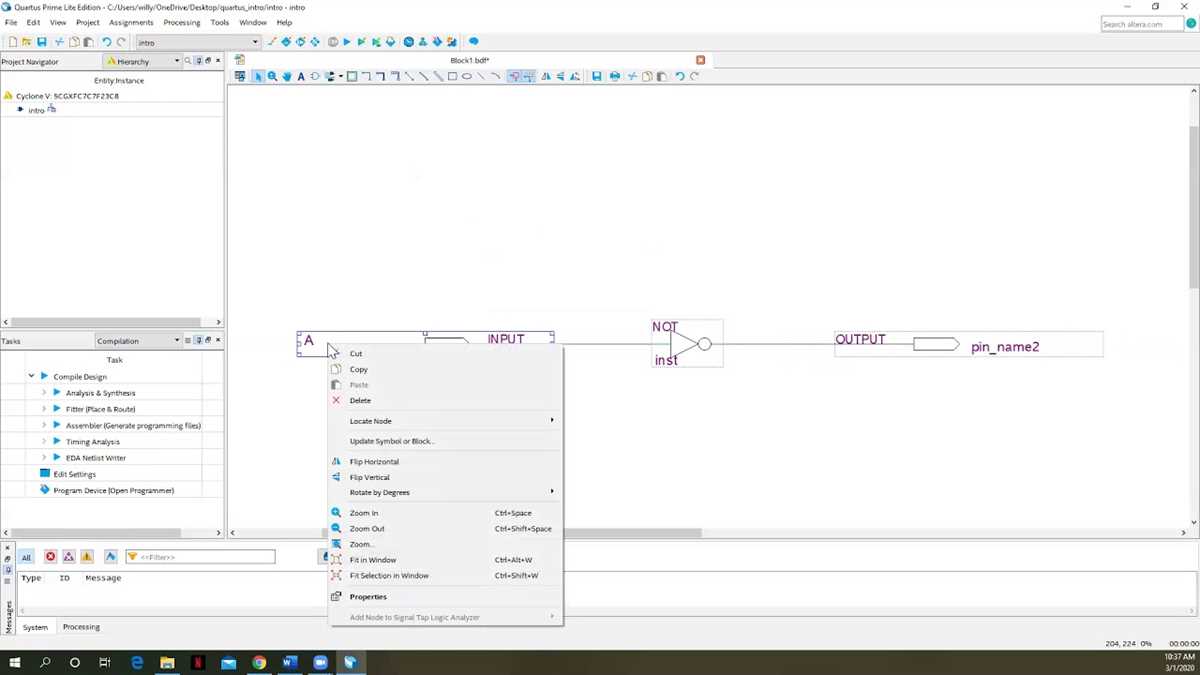

Configure signal properties by double-clicking any placed pin or net. Assign meaningful names to inputs/outputs (e.g., clk_in, data_out) to improve readability. For busses, specify indices in brackets (e.g., addr[7:0]). Quartus will flag unnamed signals as warnings during synthesis.

Key Shortcuts and Settings

Action	Shortcut	Purpose
Orthogonal Node Tool	Ctrl+Shift+N	Draw straight-line connections between components
Zoom In/Out	Ctrl+Mouse Wheel	Adjust view magnification
Toggle Grid	Ctrl+G	Enable/disable snapping for precise alignment
Save	Ctrl+S	Store the file (use .bdf extension)

Validate the design before compilation by running Project > Analyze Current File. Quartus checks for syntax errors, pin constraints, and unconnected ports. Address any highlighted issues–floating inputs or undriven outputs will prevent successful build. Use View > Show Messages to review detailed error logs.

Integrate the design into a project by assigning it as the top-level entity. Right-click the file in the Project Navigator and select Set as Top-Level Entity. Compile (Ctrl+L) to generate a netlist; Quartus will map the graphical elements to hardware resources during synthesis. For large designs, monitor memory usage–complex sheets may require optimization.

Troubleshooting Compilation Errors

Common pitfalls include:

• Undefined pin directions: Explicitly set input/output for all ports.
• Unconnected nets: Delete dangling wires or attach them to logic.
• Bus width mismatches: Ensure source/target busses have identical bit ranges.
• Missing libraries: Verify all custom components are included via Project > Add/Remove Files.

Incorporating and Linking Logic Components in the Visual Design

Begin by selecting the Symbol Tool from the toolbar–its icon resembles a logic gate. Double-click an empty area to open the Symbol Library, where primitives like AND, OR, and NOT gates are categorized under logic. For precise placement, enable Snap to Grid (View → Snap to Grid) to align elements automatically. Use the Bus feature (right-click → Bus) to group related signals, reducing clutter in dense layouts.

To establish connections, activate the Connection Tool (shortcut: W). Click the output pin of a logic element and drag to the input of another; Quartus Prime will auto-generate a wire. For multi-bit signals, draw a bus line and individually route each bit using the Node Finder (View → Node Finder) to avoid floating inputs. Rotate components (Ctrl+R) before placement to optimize signal flow, minimizing crossed wires. Label all critical nets (right-click → Properties) to simplify debugging.

Verify connectivity by compiling the design (Processing → Start Compilation) and analyzing the RPT file for warnings about unconnected pins. For complex designs, split the visual layout into sub-blocks using hierarchical symbols–create a new Block Design File (.bdf) and instantiate it as a symbol. Use Color Coding (View → Color → Element Color) to distinguish power rails (red), grounds (black), and data buses (blue) at a glance.

Simulating Logic Circuits with Timing Analysis in FPGA Tools

Begin simulations by configuring the timing constraints file (.sdc) before launching the analyzer. Specify clock domains with create_clock commands, defining periods, waveforms, and source pins–omitting this step skews propagation delay calculations. For multi-clock designs, assign falsely paths between unrelated domains using set_false_path to prevent false violations. Validate constraints by running Update Timing Netlist under the Processing menu; unresolved errors here invalidate all subsequent timing reports.

Run post-fit timing analysis rather than pre-synthesis checks–synthesis optimizations often rearrange paths unpredictably, rendering early reports misleading. Use the Timing Analyzer GUI to filter critical paths by slack thresholds; prioritize paths with negative slack below -0.5 ns as immediate targets for optimization. Examine net delays and logic levels separately–high fan-out nets typically contribute more to violations than logic depth. For iterative debugging, enable “Show physical delays” to visualize routing contributions.

Leverage Slow Model corners for conservative margin assessment, combining worst-case voltage, temperature, and process variations. For high-speed interfaces, add set_input_delay and set_output_delay constraints to model I/O timing relative to clocks. Avoid relying on default margins–typical vendor defaults assume ideal conditions, ignoring PCB trace delays or voltage drops. Export reports as .rpt files for automated script parsing; extract slack values and net names to track improvements across design revisions.

When slack violations persist, reduce logic levels between registers by pipelining or register duplication. Replace complex combinational blocks with hard IP cores where possible–fixed-function blocks guarantee predictable timing. For asynchronous paths, insert metastability-hardened synchronizers (dual-flop chains) and explicitly constrain their recovery/removal times. Re-run analysis after each optimization, comparing path delays in the Path Details tab to identify regressions.

Advanced Debugging Techniques

Use Report Minimum Pulse Width to detect violations in clock pulses narrower than 100 ps–these are often missed in standard slack reports. For gated clocks, verify enable signal timing with set_clock_groups and ensure gating logic obeys setup/hold requirements of downstream registers. Abnormal slack spikes may indicate unresolved false paths–trace nets in the Netlist Navigator to pinpoint incorrect constraints. Finally, correlate timing reports with power analysis; high-fanout nets violating timing often exhibit elevated dynamic power, compounding reliability risks.
