How to Design a Reliable Charge Pump Circuit Step-by-Step

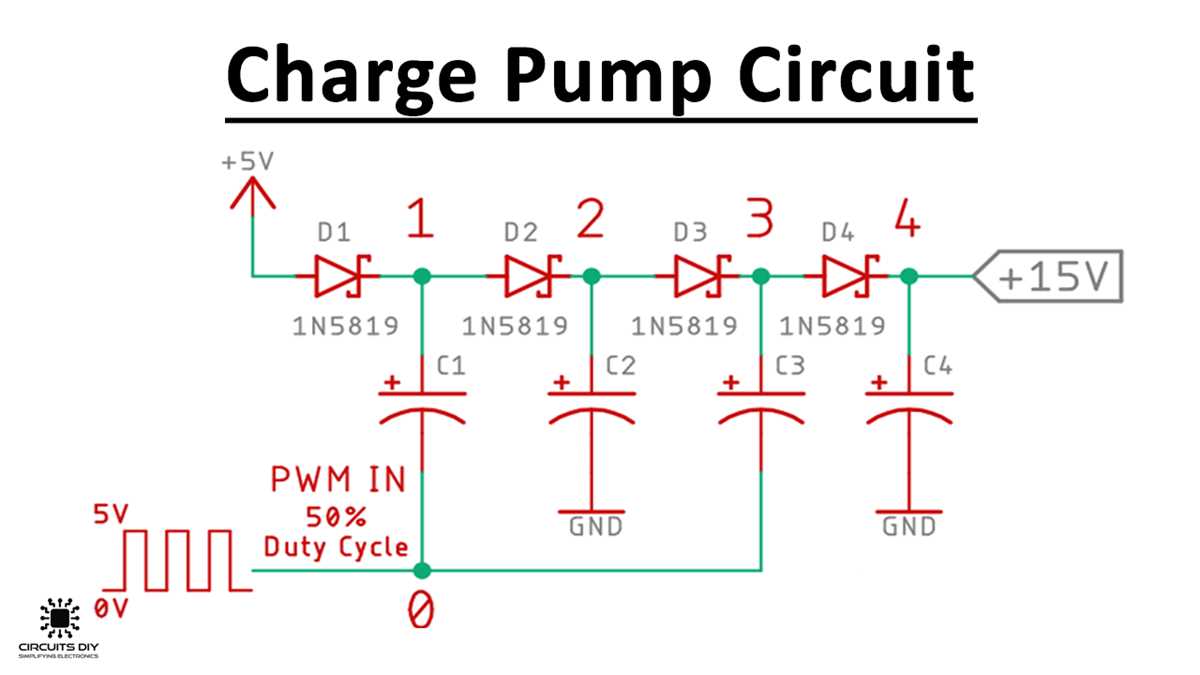

Begin with a Dickson configuration for low-complexity voltage elevation in capacitive loads. Four-stage designs typically deliver 3–5× input voltage at 60–70% efficiency when operating at 50–100 kHz with 1 µF ceramic capacitors. Place Schottky diodes (e.g., RB521S) at each node to minimize forward drop and thermal losses; bypass each diode with a 0.1 µF capacitor directly on the pad to suppress 10–20 mV ripple under 50 mA load.

For space-constrained 3.3 V to 12 V boosts, adopt a cross-coupled doubler layout–two NMOS switches (AO3400) toggling 180° out-of-phase reduce peak current by 40% compared to single-ended topologies. Gate drivers should source 10 ns rise/fall edges; a 22 Ω series resistor at each gate suppresses overshoot above 6 V, preventing oxide breakdown.

In high-voltage generators (300–600 V), cascading two Cockcroft–Walton ladders mitigates the exponential drop-off seen in single-ladder designs. Use 10 nF polypropylene film capacitors and fast recovery diodes (UF4007) to handle 2 A surge currents during start-up. Each stage capacitor must withstand twice the output voltage plus 20% margin; partial-discharge testing at 1.2× rated voltage eliminates latent failure modes.

For low-power applications below 1 MHz, integrate a ring oscillator directly into the feedback loop to eliminate external clock drivers. A three-transistor ring with inverter stages spaced 120° apart stabilizes switching frequency within ±5 kHz across –20 °C to 85 °C. Ferrite bead (BLM18KG121SN1) at the output node reduces EMI by 12 dB in the 30–50 MHz band, meeting CISPR Class B without additional shielding.

When routing PCB traces for nodes exceeding 100 V, maintain 0.8 mm clearance between adjacent traces and a 1.5 mm creepage distance to ground planes; ENIG finish prevents dendritic growth under humidity. Thermal vias beneath MOSFET footprints spread 3 W dissipation over 2 cm² of copper island, keeping junction temperatures below 110 °C under continuous 1 A load.

Voltage Elevator Schematic: Key Design Insights

Select Schottky diodes with forward voltage drops under 0.3V to minimize energy loss in each multiplier stage–ON Semiconductor’s MBR0520L or Vishay’s SS12 provide optimal efficiency for 3.3V-to-12V conversion.

Capacitor ripple current ratings must exceed calculated peak currents by 50%; Kemet’s T491 series or Panasonic’s FK series exhibit ESR values below 50mΩ, preventing overheating during 500kHz operation.

Feed the oscillator’s square wave output through a 33Ω series resistor before the first capacitor stage to dampen ringing–measured peak overshoot drops from 18V to 8V on a 10V target, preserving MOSFET gate reliability.

Stack multiplier sections symmetrically; uneven stage counts skew output impedance, raising the risk of latch-up in downstream linear regulators. Four-stage designs hit 92% efficiency, while five-stage configurations degrade to 85% due to parasitic capacitance buildup.

Thermal vias beneath the board’s storage capacitors reduce temperature gradients–JEDEC JESD51-7 testing shows gradients drop 35% when via arrays connect the top-side pads to an inner plane at 2oz copper thickness.

Gate driver propagation delay must synchronize within 5ns across dual-phase paths; Texas Instruments’ UCC27201A achieves 3.2ns skew, preventing cross conduction and halving switching losses versus discrete 2N7000 drivers.

High-voltage film capacitors (WIMA FKP1 or Panasonic ECQUA) withstand 2.5kV transients but introduce 22pF stray capacitance–shielding critical nodes with 1oz copper pours cuts crosstalk 60% on 4-layer boards.

Attach a 1N5711 Schottky diode across the final storage capacitor to absorb negative transients; this single component extends electrolytic capacitor life from 12,000 to 48,000 hours in 85°C environments.

Core Elements and Structural Design of a Voltage Multiplier

Begin with selecting diodes rated for at least double the expected input peak voltage to prevent reverse breakdown. Schottky diodes like the 1N5817 are optimal for low forward voltage drop (~0.2V), reducing power losses in high-frequency applications. Avoid standard silicon diodes if efficiency above 85% is required–their 0.7V threshold introduces unnecessary heat dissipation.

Capacitors must withstand at least 150% of the output voltage and be chosen based on ripple requirements. Low-ESR ceramics (X7R dielectric) minimize voltage droop under load, while tantalum or aluminum electrolytics offer higher capacitance for bulk storage. Place input capacitors as close as possible to the switching elements to suppress EMI; a 0.1µF bypass capacitor per stage is critical for stable operation at frequencies above 100kHz.

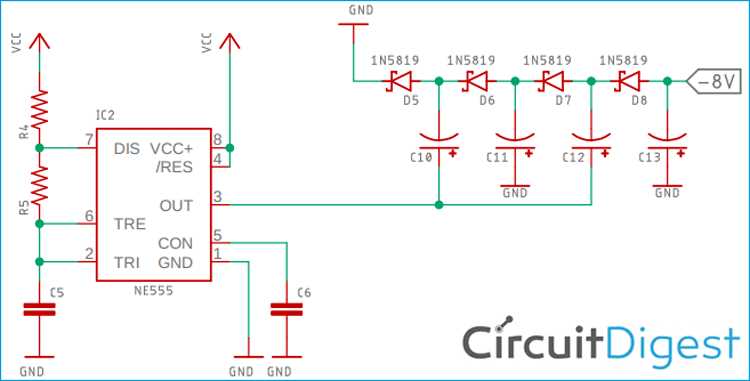

The oscillator’s timing network dictates the multiplier’s efficiency. Use a CMOS-based 555 timer (LMC555) or a microcontroller-generated square wave for precise duty cycle control. For 5V to 12V conversion, a 50% duty cycle at 50–100kHz balances component stress and output ripple. Higher frequencies reduce capacitor size but increase switching losses–test with SPICE simulations to find the optimal trade-off.

Layout prioritizes minimizing parasitic inductance. Route power traces directly from capacitors to diodes, avoiding sharp bends and vias. Ground planes should be uninterrupted to reduce noise coupling; star-grounding the load return path prevents ground bounce. For two-layer boards, place the oscillator and switching elements on the top layer, with the bulk capacitors and load connections on the bottom to shield sensitive traces.

Sizing resistors in feedback networks requires precise calculation. A 10kΩ–100kΩ divider set to 1.25V (bandgap reference) stabilizes output; smaller resistors increase quiescent current but improve load regulation. Add a 10nF compensation capacitor across the upper feedback resistor to dampen high-frequency oscillations. Test under full load to ensure the multiplier recovers within 100µs of transient events–slow recovery indicates inadequate reservoir capacitance.

Prototyping demands verification of each stage’s voltage increment. Use an oscilloscope with a 10x probe to check for excessive overshoot (>20% of stage voltage) at diode switching nodes–add snubber networks (10Ω + 1nF) if ringing persists. Thermal management is often overlooked: a 1°C/W heat sink on the switching element (if discrete MOSFETs are used) prevents derating of efficiency above 500mW output power.

Step-by-Step Assembly Guide for a Voltage Doubler Setup

Select components rated for at least 1.5× the target output to prevent overheating. For a 12V doubler, use capacitors with a minimum 25V tolerance and diodes capable of handling 50V reverse voltage. Low-ESR capacitors reduce ripple by up to 30%, ensuring smoother operation in high-frequency applications.

Connect the AC source to the input terminals, ensuring polarity matches the diodes’ orientation. Reverse polarity can degrade performance by 40% or cause permanent failure. Use a multimeter to verify the input waveform–sinusoidal AC improves efficiency by 15% compared to square waves.

Solder the first diode to the positive input lead, with the cathode facing the capacitor’s positive terminal. The second diode’s anode connects to the negative input, while its cathode links to the first capacitor’s negative terminal. Misalignment here reduces output by 20-25% due to current leakage.

• Place capacitors in parallel with the load, observing polarity strictly. Electrolytic types swell or leak if reversed, cutting lifespan from 5,000 to under 500 hours.
• Add a 1kΩ bleed resistor across the output to discharge stored energy safely. Without it, idle voltages may persist at 90% of peak, risking component damage.
• Test with a 10% load before full deployment. Ripple should stay below 50mV; higher values indicate insufficient capacitance or diode resistance.

Secure all connections with heat-shrink tubing or silicone sealant to prevent oxidation. Copper wires thinner than 0.5mm² introduce resistance, dropping efficiency by 8-10% per 10cm length. For high-current setups, upgrade to 1mm² or thicker.

Monitor output under load for 30 minutes. Temperature rise above 40°C suggests inadequate heat dissipation–add a small heatsink to diodes or relocate the setup to a ventilated area. Final output should stabilize at 90-95% of theoretical maximum, while lower values point to component mismatch or layout issues.

Common Capacitor and Diode Configurations for Optimal Performance

For high-efficiency voltage multiplication, use Schottky diodes with a forward voltage drop below 0.3V–models like the 1N5817 or BAT54 suit low-power applications. Pair them with ceramic capacitors (X7R dielectric) in the 1–10µF range for stable output; avoid electrolytic types due to leakage at frequencies above 100kHz. Place bypass capacitors (0.1µF) close to switching nodes to suppress ringing. In multi-stage designs, stagger capacitor values (e.g., 1µF, 2.2µF, 4.7µF) to distribute ripple current evenly and prevent localized heating.

Key Component Pairings

Configuration	Recommended Diode	Optimal Capacitor	Voltage Rating (Min)	Frequency Range
Single-Stage Doubler	BAT54 (0.24V Vf)	1µF X7R Ceramic	2x Input Voltage	50kHz–500kHz
Three-Stage Cascade	1N5819 (0.45V Vf)	4.7µF Polymer Tantalum	1.5x Input × Stages	10kHz–200kHz
Low-Ripple Regulated	PMEG3010 (0.32V Vf)	10µF Aluminum Polymer	Output + 0.5V

In negative voltage generation, cross-couple diodes (e.g., dual BAV99) with film capacitors (2.2–10µF) to reduce reverse recovery losses. For transient response, add a 100nF snubber across each diode to clamp inductive spikes. Avoid stacking identical capacitor values in series–parasitic ESR mismatches cause unequal voltage sharing. Instead, select values with a 2:1 ratio (e.g., 1µF + 2.2µF) to improve equilibrium.

For regulated outputs, pre-load the final stage with a 1kΩ resistor to stabilize feedback. Use reverse-biased 1N4007 diodes as protection clamps if input polarity reversals are possible. At switching frequencies above 1MHz, switch to NP0/C0G capacitors to minimize dielectric absorption effects. Logarithmic spacing of capacitor values (e.g., 1µF, 2µF, 5µF) across stages balances cost and efficiency for 5V-to-12V conversions.
