Step-by-Step Guide to Designing an Instrumentation Amplifier Circuit Schematic

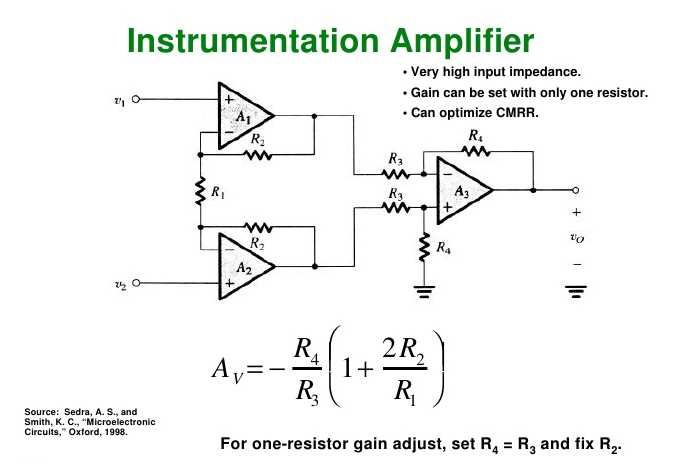

Begin with an operational trio: three identical op-amps configured for balanced differential gain. Place the input pair in non-inverting configuration to preserve high impedance–critical for sensor interfacing. The third stage combines outputs from the first two, subtracting their voltages to eliminate common-mode noise. Ground reference resistors symmetrically between stages to maintain stability under varying loads.

Select resistor values based on desired gain: G = 1 + (2R₁/R₂), where R₁ bridges the input and feedback paths of the first two op-amps, and R₂ sits between their inverting terminals. Standard ratios like 1kΩ/50kΩ yield G ≈ 100V/V. For precision applications, use 0.1% tolerance metal-film resistors to minimize offset errors. Power supply decoupling capacitors (0.1µF ceramics) at each op-amp’s V+ and V- pins suppress high-frequency interference.

The reference node determines output offset. Connect it to ground for bipolar signals or a mid-supply voltage (e.g., 2.5V for single-supply systems) when amplifying unipolar ranges. Bypass this node with a 1µF tantalum capacitor to prevent low-frequency drift. Test input impedance by injecting a 1kHz sine wave with 100Ω source resistance–output distortion below 0.1% confirms proper isolation.

Avoid parasitic capacitance by keeping trace lengths short, especially between the input resistors and op-amps. For high-frequency signals (>10kHz), PC layout requires guard rings around input traces to shield from EMI. Verify performance with a 10mV differential input–common-mode rejection should exceed 100dB across the supply voltage range.

For adjustable gain, replace R₂ with a potentiometer or digitally controlled resistor array. Scale R₁ proportionally to maintain balance. When prototyping, use a dual-supply (±5V for rail-to-rail op-amps) before adapting to single-supply constraints. Measure quiescent current (

Creating a Precision Signal Conditioning Circuit Layout

Start with three operational units arranged in a symmetrical structure: two input stages and one differential stage. Place the first pair with their non-inverting terminals facing the input signals, separated by a resistor network to define gain. Use a single resistor between the inverting terminals of these first two units to control amplification, selecting a value between 1 kΩ and 100 kΩ based on required sensitivity–lower values increase gain non-linearly.

Connect the outputs of the input stages to the differential unit through balancing resistors, ensuring equal impedance paths. The differential stage should use precision components–match the resistor values within 0.1% tolerance to minimize offset errors. For high-impedance sensors, add 10 MΩ bias resistors from each input to ground to prevent floating-node instability.

Critical Component Placement

Position the gain-setting resistor as close as possible to the input operational units, avoiding long traces that introduce parasitic capacitance. Route input traces orthogonally to power rails to reduce coupling, and keep them symmetrical in length–differences beyond 5 mm degrade common-mode rejection. For bandwidth-critical applications, select operational units with slew rates exceeding 1 V/μs to avoid distortion at frequencies above 10 kHz.

Add a 100 nF decoupling capacitor within 2 mm of each operational unit’s power pin, using low-ESR ceramic types to suppress high-frequency noise. Ground these capacitors to a star-point topology rather than a common plane to prevent ground loops. For dual-supply designs, incorporate 10 μF bulk capacitors at the power entry points to handle transient current demands.

Terminate unused operational unit pins by connecting non-inverting inputs to ground via 1 kΩ resistors and shorting outputs to inverting inputs–this prevents oscillation in unused sections. For variable-gain applications, replace fixed resistors with a digital potentiometer, ensuring its wiper resistance remains below 100 Ω to avoid gain errors.

Validation Techniques

Verify the layout by injecting a 1 kHz, 10 mVpp sine wave with 0 V DC offset into one input while grounding the other. Measure the output amplitude; with a 10 kΩ gain resistor, expect a 100× amplification (±10%)–deviations indicate improper resistor matching or parasitic loading. Check common-mode rejection by applying the same signal to both inputs; output should remain below 1 mVpp, confirming proper differential behavior.

Selecting Core Components for a Precision Signal Conditioning Unit

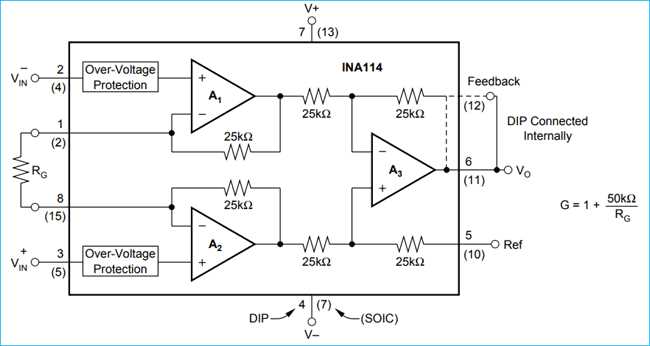

Prioritize operational transconductance amplifiers (OTAs) with an input bias current below 1 nA for low-level sensor interfacing. The AD8221 and INA125 offer sub-microvolt noise density and CMRR exceeding 120 dB at 1 kHz, critical when separating millivolt differential signals from common-mode interference. Match resistor values within 0.1% tolerance; mismatches degrade common-mode rejection and introduce drift. Ensure the gain-setting network uses precision thin-film resistors with a temperature coefficient below 5 ppm/°C.

The reference input must settle to 1 mV accuracy within 10 μs to avoid output overshoot. A buffered voltage reference like the REF5025 provides 3 ppm/°C stability and drives high-capacitance loads without oscillation. Decoupling capacitors should follow a 10 μF tantalum for bulk energy storage and a 0.1 μF ceramic for high-frequency transients, placed within 2 mm of the power pins.

Discrete vs. Monolithic Implementations

For sub-10 Hz bandwidths, discrete designs using matched transistor arrays (LM194) achieve noise levels as low as 0.5 nV/√Hz but demand manual trimming. Monolithic solutions like the LTC2053 eliminate trimming, offering 8 nV/√Hz noise and 0.001% THD yet restrict bandwidth to 1 MHz. Select ceramic capacitors with a dissipation factor below 0.001; X7R dielectric meets requirements, while Z5U introduces unacceptable capacitance shifts under temperature fluctuations.

Three-Stage Op-Amp Circuit Assembly for Precision Signal Handling

Connect the first stage as a differential input pair with a high common-mode rejection ratio (CMRR) by using matched resistors–preferably 1% tolerance–arranged in a standard non-inverting configuration. Ensure the feedback network includes a pair of 10 kΩ resistors for each op-amp, with a gain-setting resistor of 1 kΩ bridging their outputs. This layout achieves an initial gain of 21 V/V while minimizing drift from thermal effects.

For the intermediate stage, wire a single op-amp in an inverting topology with a gain of 10 V/V. Use a 1 kΩ input resistor and a 10 kΩ feedback resistor. Place a 100 nF bypass capacitor directly between the op-amp’s power pins and ground to suppress high-frequency noise. Avoid long trace runs here; keep the capacitor within 2 mm of the chip’s supply pins.

Configure the final stage as a unity-gain buffer unless additional amplification is required. When higher output drive is needed, switch to a non-inverting setup using a 2 kΩ input resistor and a 20 kΩ feedback resistor for a gain of 11 V/V. Ensure the output op-amp can source at least 20 mA to prevent clipping with low-impedance loads.

Grounding discipline: Tie all ground references to a single star point at the circuit’s power entry. Separate analog and digital returns if auxiliary logic is present. Use a 10 μF electrolytic capacitor in parallel with a 0.1 μF ceramic capacitor for each supply rail, positioned adjacent to every op-amp’s power pins.

Stability and Compensation

Install a 33 pF compensation capacitor across the feedback resistor of any stage with a gain below 5 V/V to prevent oscillation. Verify phase margin with a network analyzer; aim for at least 45° at the unity-gain crossover frequency. For bandwidths exceeding 1 MHz, replace standard op-amps (e.g., TL072) with decompensated variants (e.g., LM6172), adjusting the capacitor value downward to 10 pF.

Layout and Testing Protocol

Route high-impedance nodes (input traces, feedback loops) as short, guarded lines. Shield them with dedicated ground traces on inner PCB layers if four-layer construction is used. Test each stage independently: inject a 100 mVpp, 1 kHz sine wave, measure output amplitude and phase shift, then cascade sequentially. Expect cumulative gain of 2310 V/V (±0.5 dB) with less than 2° phase error between stages.

Calculating Resistor Values for Desired Gain Precision

Select resistors with a tolerance of 0.1% or better for differential signal paths to maintain gain accuracy within ±0.1%. For a standard three-op-amp configuration, use the formula G = 1 + (2R1/RG), where R1 is the feedback resistor and RG sets the gain. Standard values like 10 kΩ for R1 and adjustable RG (e.g., 1 kΩ–10 kΩ trimpot) simplify prototyping while ensuring flexibility.

• For gains below 10, use R1 = 10 kΩ with RG ≥ 2 kΩ to avoid parasitic capacitance dominance.
• Above gain 100, reduce RG to ≤ 200 Ω–values smaller than this increase sensitivity to parasitic inductance and thermal noise.
• Pair resistors from the same manufacturer batch to minimize mismatch due to thermal coefficients (e.g., ±5 ppm/°C for Vishay Z-Foil).
• Verify gain using a precision DMM (±0.01% accuracy) at both input terminals; discrepancies >0.05% indicate resistor drift or layout issues.

For high-impedance sensors (e.g., load cells with 350 Ω bridge resistance), ensure RG is at least 10× the source impedance to prevent gain errors. Example: For a 350 Ω sensor and target gain of 1000, calculate RG = (2 × 10 kΩ)/(1000 - 1) = 20.02 Ω. Round to the nearest standard E96 value (20.0 Ω) and confirm with a bridge measurement: Vout = G × (Vin+ - Vin-). If deviation exceeds ±0.2%, check PCB traces for resistance (≤1 Ω/cm for 1 oz copper) and re-evaluate component placement.
