Quick Reference Guide to Circuit Diagram Symbols and Connections

Start with standardized symbols–ANSI or IEC labels save hours of reverse-engineering. Resistors: zig-zag (US) or rectangle (EU). Capacitors: parallel lines; polarized types mark the negative lead. Transistors: arrow points toward emitter; MOSFETs swap arrow for a perpendicular dash. ICs annotate pins counter-clockwise from the notch. Keep lines horizontal/vertical to avoid ambiguity; junctions dot, crossings omit dots.

Annotate every node–V_CC, GND, critical voltages–with values in bold. Slap reference designators (R1, C3, Q5) right beside each component; omit legends risk miswires. Split inverters into NOT gates (triangle+circle). Omit decoupling capacitors at your peril–place them KiCad or Eagle grids; snap symbols to 0.1″ pitch to ensure breadboard compatibility without manual tweaking.

Ground conventions: star configuration beats daisy-chains. Color-code: red = power, black = ground, green = logic low, blue = signals. Ferrite beads squash high-frequency hash; symbolize as inductors with parallel lines. Test points bolt to populated nets; label them TPx and tie them to unused microcontroller pins. Dual-layer schematics stack signals above power rails; off-page connectors sport arrow tails.

Transient protection deserves its own block. TVS diodes straddle lines; symbolize as zener with bidirectional arrows. Relay contacts mirror mechanical switches, but coil pins align vertically. Digital isolators bundle optocouplers inside a dashed box. Heatsinks bond to TO-220 packages via bolt holes; thermal vias dot the pad under the device. Bidirectional buses employ data flow arrows–northbound east of ICs, southbound west.

Quick Reference for Electrical Schematics

Label every component with a unique identifier–R1, C2, U3–to avoid confusion during assembly. Use consistent naming conventions across all projects to streamline troubleshooting. Example: resistors as R1-Rn, capacitors as C1-Cn, integrated circuits as U1-Un. Group related elements (power rails, signal paths) near each other physically on the layout to minimize trace crossings.

Ground symbols should follow a single-point or star topology for sensitive analog sections to prevent noise coupling. Digital grounds can use a separate plane but must connect at one point to the analog ground near the power supply. Avoid daisy-chaining grounds, which creates voltage differentials. For power rails, indicate voltage levels (e.g., VCC=5V, VEE=-12V) next to each line to prevent miswiring.

Common Symbol Shortcuts

Resistors: zigzag line (US) or rectangle (EU). Use Ω values (e.g., 10k) instead of “R” to save space. Capacitors: parallel lines (non-polarized) or curved line with plus sign (electrolytic). Transistors: NPN/PNP arrows always point toward the base; FET arrow points away from the gate. Logic gates: AND (> shaped), OR (≥ shaped), NOT (triangle with dot). Draw diodes with the anode (triangle) pointing toward the cathode (line).

For buses, use a thick line with a slash and number (e.g., “/8”) to denote multiple signals. Label each individual wire where the bus splits (e.g., D0, D1, D7). Use arrows on signal lines to show direction; arrows at both ends indicate bidirectional communication. Power sources should always show polarity (+/-). Batteries: two unequally sized parallel lines (larger line = positive). Voltage regulators: label input, output, and ground pins directly on the symbol.

Keep trace length matched for differential pairs (e.g., USB, Ethernet) to maintain signal integrity. Indicate critical timing paths with hashed lines or color-coding. For microcontroller boards, label all GPIO pins with their actual function (e.g., “PWM Out” instead of just “Pin 5”). Include a bill of materials (BOM) in the corner listing every component with its reference designator, value, and footprint (e.g., “C1: 100nF, 0805”).

Test points should be clearly marked with TPx and placed near connectors or areas prone to failure. Use a dotted circle or a filled square for visibility. For complex circuits, split the schematic into functional blocks (power supply, MCU core, sensor interface) and connect them with labeled net names (e.g., “SPI_CLK”) rather than drawing direct traces. Always include a version number and revision date in the footer to track changes.

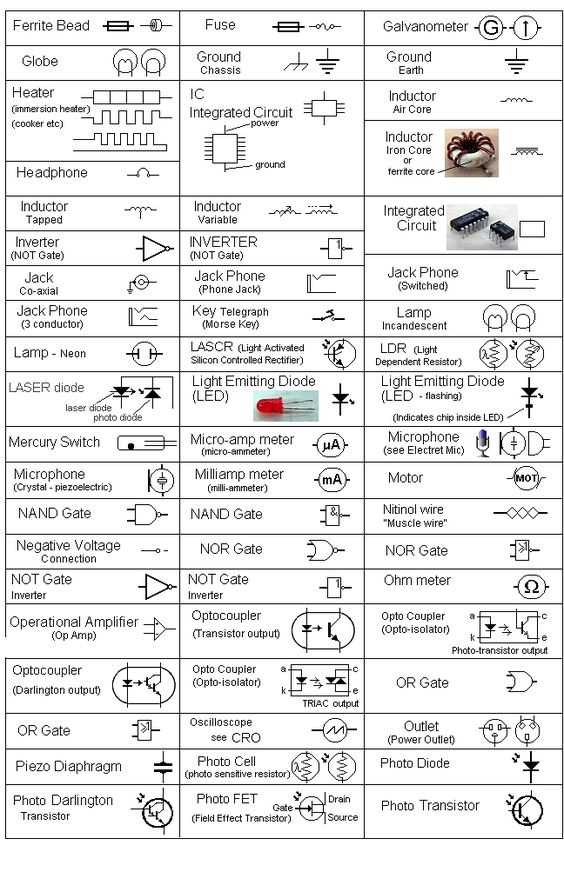

Key Electronic Component Symbols: Fixed Values and Variations

Memorize these resistor symbols first: a straight line with zigzag for fixed resistors, and rectangles for international standards. For variable resistors, note the arrow through the zigzag (potentiometer) or perpendicular (rheostat) variants. Critical detail: the arrow always points toward the adjustable terminal–this determines functionality in schematics.

Component	ANSI/US Symbol	IEC/European Symbol	Key Identifier
Fixed Resistor	Zigzag	Rectangle	No arrows/terminals
Potentiometer	Zigzag with diagonal arrow	Rectangle with diagonal arrow	Three terminals
Thermistor	Zigzag with ‘T’	Rectangle with ‘T’	Resistance changes with temperature

Capacitors use parallel lines: fixed types show equal-length lines (non-polarized) or one curved line (polarized/electrolytic). For variable capacitors, add an arrow across both plates. Critical: polarized symbols must clearly indicate the cathode with a ‘+’ mark or curved line–reversed polarity damages components.

Inductors use loops or coils: simple spirals represent air-core types, while filled rectangles indicate iron/solid cores. For variable inductors, add an arrow through the symbol. Coil direction matters: staggered loops denote mutual inductance in transformers–align dots to show phase relationship between windings.

Power Sources in Electrical Schematics: Batteries, AC/DC Inputs, and Grounding

Batteries should always be drawn with a clear distinction between terminals–use a long line for the positive (+) and a short line for the negative (-). For multiple cells in series, stack symbols vertically without gaps to indicate cumulative voltage. Label voltage explicitly (e.g., *9V*) to avoid ambiguity in later debugging.

AC sources demand a sine wave symbol, but differentiate mains power (230V/120V) from low-voltage signals by adding a small arrow on the waveform or annotating frequency (e.g., *50Hz*). Use a double-headed arrow for bidirectional AC if the schematic involves transformers or rectifiers.

DC power supplies need a consistent symbol: a circle with a “+” and “-” inside, but add barrel jack annotations (e.g., *12V/2A*) if the supply has specific connectors. For regulated supplies, append dropout voltage (e.g., *7805: 5V @ 1A*) to highlight current limits.

Ground symbols must match the type–use three downward lines for chassis ground, a single line for signal ground, and a triangle for earth ground. Never mix them in the same reference plane; label ambiguous grounds (e.g., *GNDA*, *GNDD*) to prevent shorts in multi-stage designs.

Solar panels require a unique symbol: a diagonal arrow pointing into a cell, annotated with wattage and efficiency (e.g., *10W/18%*). Add a diode symbol if bypass protection is included in the layout. For variable sources, include a note like *”Varies with irradiance”* near the symbol.

When drawing multiple power rails (e.g., +5V, +3.3V, -12V), align them horizontally or vertically and use bold lines or colors to distinguish them. Add test points near rails with expected voltages (e.g., *TP2: 5.0V ±0.2V*) for quick verification during assembly.

Isolated power supplies (e.g., flybacks, isolated DC-DC) must show a dotted line or gap between input and output, labeled with insulation ratings (e.g., *2kV isolation*). For high-voltage rails (>60V), use the IEC high-voltage symbol (a lightning bolt) adjacent to the ground line.

Thermal considerations for batteries or supplies: place a thermistor symbol (NTC/PTC) near lithium-ion symbols and annotate safe temperature ranges (e.g., *0°C to 45°C*). For high-current rails, add a thermal pad symbol (*TPAD*) with expected dissipation (e.g., *5W max*).

Integrating Switches, Relays, and Push Buttons in Electrical Blueprints

Position mechanical switches at the beginning of a load path to simplify troubleshooting. Use NO (normally open) contacts for momentary actions (e.g., push buttons) and NC (normally closed) for fail-safe operations (e.g., emergency stops). Label each component with a unique identifier–e.g., SW1, K1 (relay), PB1–and include its function in proximity (e.g., “START,” “RESET”).

Symbol Standards and Variations

• IEC 60617: Prefer this for international clarity. Switches are rectangles with a diagonal line (NO) or a perpendicular line (NC). Relays use a coil symbol (semi-circle) connected to contacts.
• ANSI Y32: Square coils for relays, dashed lines for mechanical linkages. Use sparingly for U.S.-centric designs.
• Push buttons: Indicate momentary action with “” arrows inside the symbol. Differentiate latching switches with a “T” (toggle) or “L” (lever) marker.

Avoid daisy-chaining relay contacts unless absolutely necessary. Instead, route signals through separate contacts to prevent voltage drop or unintended activation. For high-current loads (>10A), pair the relay with a flyback diode (e.g., 1N4007) directly across the coil to suppress inductive spikes. Specify coil voltage (12VDC, 24VAC) adjacent to the relay symbol.

Group related components in functional blocks. For example:

1. Draw all power control elements (switches, relays) on the left.
2. Place loads (motors, lamps) to the right.
3. Connect intermediate logic (e.g., PLC inputs) centrally with dashed lines.

For multi-pole switches or relays, align contact pairs vertically and number them sequentially (13-14, 21-22). Annotate the schematic with the relay’s contact arrangement if it deviates from standard pinouts (e.g., “K1: 5A SPST, pins 5/9”).

Error-Prone Scenarios and Fixes

• Ghost voltages: Isolate switch wires using shielded cable or twisting pairs to reduce EMI. Add a 0.1µF capacitor across NC contacts prone to arcing.
• Contact bounce: Mitigate in push buttons with a debounce circuit (RC network: 10kΩ resistor + 1µF capacitor) or integrate software debouncing in microcontroller-based designs.
• Relay chatter: Verify coil voltage match (±10% tolerance). Use a snubber circuit (series resistor-capacitor) if AC-driven.

Document cross-references for multi-page layouts. For instance, if relay K2’s coil is on Page 3, add a note near its contacts: “See coil: Page 3, row C5.” Use X to mark unused contacts (e.g., “X: spare NO”).

For emergency stops, wire the NC contact in series with the primary power path and terminate the conductor at a monitored safety relay (e.g., Pilz PNOZ). Include a manual reset push button in the schematic, clearly distinct from operational controls (e.g., color-coded red). Specify wire gauge (AWG 18) for high-current paths and fuse ratings (5A) directly on the drawing.
