Complete PIC Microcontroller Circuit Schematic and Wiring Guide

Start with a power supply section using a LM7805 regulator for stable 5V output–essential for noise-sensitive devices. Include a 10µF electrolytic capacitor on the input and a 0.1µF ceramic capacitor on the output to suppress transients. Avoid cheap voltage droppers; linear regulators handle load changes more reliably than resistor-divider setups.

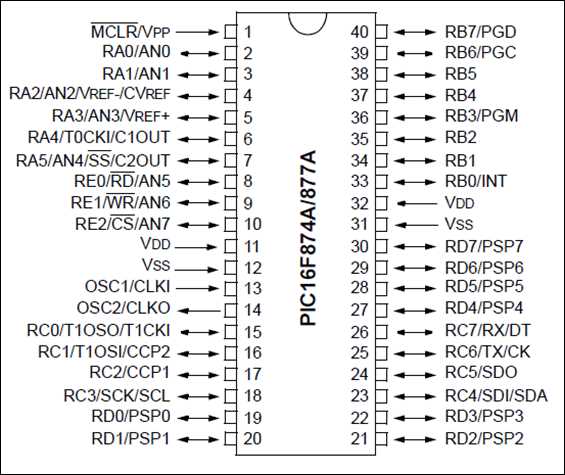

Use a 16F877A-based layout for peripheral integration. Route crystal oscillator pins (OSC1/OSC2) with short traces–no longer than 20mm–to minimize EMI. A 20MHz crystal paired with two 22pF load capacitors ensures stable clock signaling. Skip internal oscillators for timing-critical tasks; external crystals reduce drift under temperature variations.

Isolate analog inputs with a low-pass RC filter (1kΩ resistor + 0.1µF capacitor) to reject high-frequency noise. For digital I/O, add 330Ω series resistors to clamp inductive loads like relays. Decouple each power pin with a 0.1µF capacitor placed within 2mm of the pin; larger bulk capacitors (10µF) serve as reserve for sudden current demands.

Ground all analog components to a dedicated star point–never daisy-chain grounds. Split power planes between digital and analog sections to prevent cross-talk. For serial communication, route TX/RX lines with matched impedance (60Ω) and terminate with a 120Ω resistor to prevent reflections on long traces.

Test prototypes with a logic analyzer on SPI/I2C lines; clock stretching or corrupted data often points to improper pull-up resistor values. Stick to 4.7kΩ pull-ups for 5V systems; lower values increase power consumption unnecessarily. Flash firmware via ICSP using MCLR tied high–omit the 10kΩ resistor only if using a dedicated programming header.

Building Reliable Single-Chip Design Schematics

Start with a power supply section using an LM7805 regulator paired with a 10μF input capacitor and a 1μF output capacitor for stable 5V delivery. Include a 0.1μF decoupling capacitor near the chip’s VDD pin to suppress high-frequency noise–failure to do so risks erratic behavior in oscillator or ADC operations. For reset circuitry, connect a 4.7kΩ pull-up resistor to MCLR and a 1μF capacitor to ground to ensure clean power-on resets, especially critical when using low-cost power sources.

Use a 20MHz ceramic resonator with built-in load capacitors (typically 22pF) for clock generation if cost is prioritized over precision. For timing-sensitive applications, switch to an 8MHz or 16MHz crystal with two 18pF capacitors–this improves oscillator stability by ±50ppm. Avoid placing the crystal or resonator farther than 5mm from the chip’s clock pins to prevent EMI issues, particularly in noisy environments like motor control projects.

I/O Configuration Best Practices

Route all unused pins to ground through 10kΩ resistors to prevent floating inputs, which can increase current consumption by 20-30%. For outputs driving LEDs or relays, add a 220Ω series resistor to limit current to 20mA–exceeding this risks permanent damage to the output transistors. When interfacing with 3.3V logic (e.g., SPI sensors), insert a 2kΩ resistor in series to the 5V chip’s output to avoid exceeding the 3.3V device’s voltage tolerance.

For ADC inputs, use a low-pass RC filter (10kΩ + 0.1μF) to reduce noise from switching power supplies or PWM signals. Ground the analog reference (VREF) pin with a 0.1μF capacitor if using the internal reference, or connect it to an external precision voltage (e.g., MCP1501) for 1% accuracy in measurements. Remember: ADC resolution drops by 50% if VREF is tied to VDD instead of a dedicated reference.

Isolate digital and analog grounds at the chip by connecting them through a single point near the power supply. Use a 10Ω ferrite bead between digital VDD and analog VDD to block high-frequency noise without affecting DC performance. Place a Schottky diode (e.g., 1N5817) in reverse polarity across inductive loads (motors, solenoids) to clamp voltage spikes–this extends the chip’s lifespan by preventing latch-up conditions.

Programming and Debugging Hookup

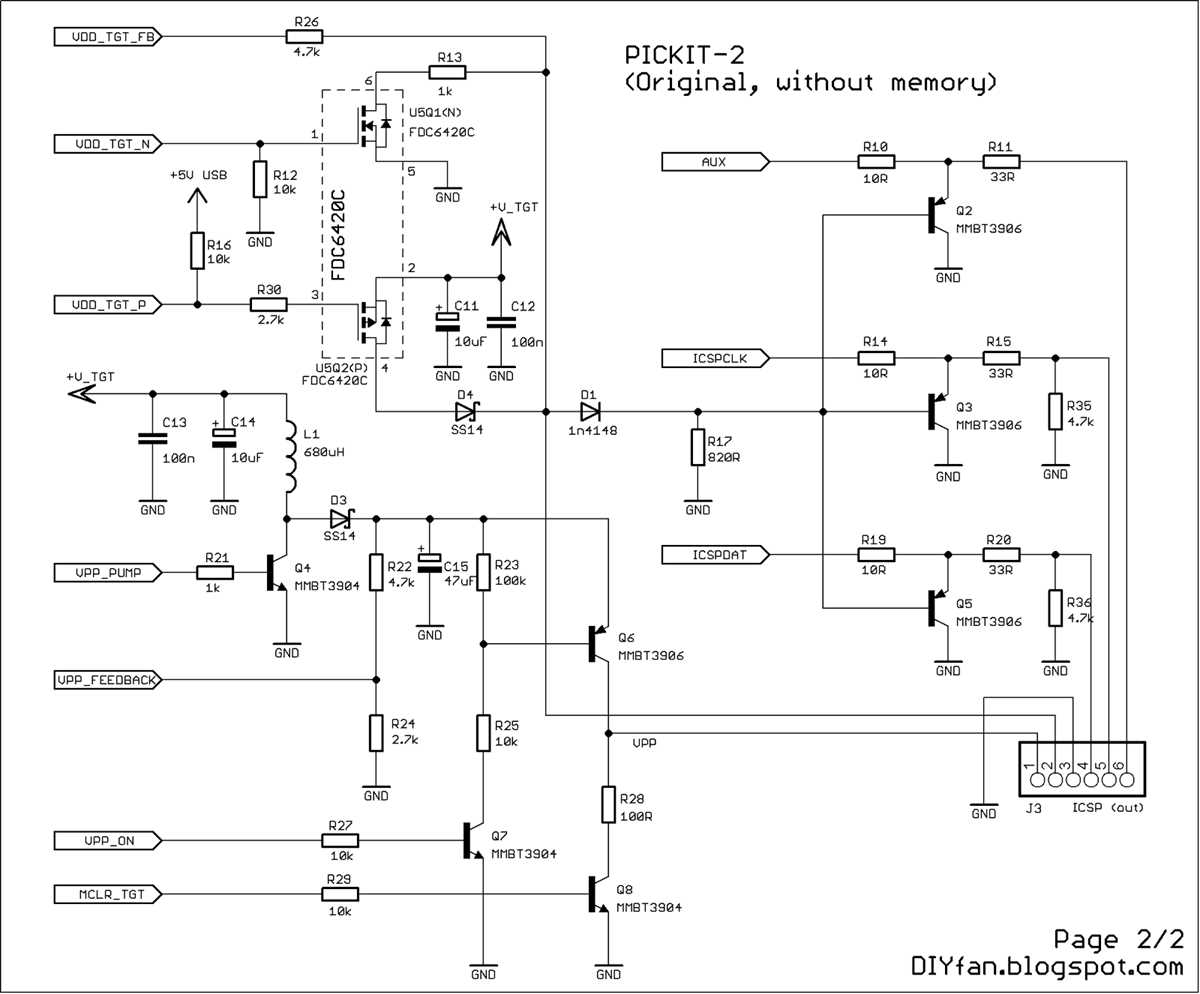

Reserve pins RB6 (clock) and RB7 (data) for ICSP programming, avoiding external pull-ups or loads that could interfere with the programmer. For debugging, connect a 330Ω series resistor to a status LED on an unused pin (e.g., RA4) to monitor program execution without loading the pin. If using USB-to-serial converters, add a 1kΩ series resistor to TX/RX lines to protect the chip from overvoltage if the converter’s logic levels mismatch (e.g., 3.3V vs 5V).

Selecting the Right Embedded Processor for Your Application

Choose an 8-bit variant like the PIC16F18345 for cost-sensitive applications requiring basic GPIO, timers, and serial communication. Its 3.5 KB flash memory supports simple control loops, sensor interfacing, and LED/LCD drivers without over-specification. Power consumption drops to 30 µA in sleep mode, ideal for battery-powered devices like remote sensors or handheld tools.

For projects needing analog signal processing, prioritize models with integrated 10-bit or 12-bit ADCs. The PIC24FJ64GA002 delivers two independent ADC modules sampling at 500 ksps each, alongside 64 KB program memory–sufficient for filtering audio, reading multiple sensors, or driving small motors. Ensure the device includes sufficient op-amp peripherals if signal conditioning is required before conversion.

Use the table below to compare key parameters across common families based on typical use cases:

Family	Core (bits)	Max Flash (KB)	ADC Resolution	Max Clock (MHz)	Typical Applications
PIC10F2xx	8	0.38–0.7	None or 8-bit	4	Disposable sensors, simple switches
PIC16F1xxx	8	3.5–56	10-bit (up to 28 channels)	32	Consumer appliances, motor controllers
PIC24FJ	16	16–256	10/12-bit dual ADC	32	Medical monitors, precision instrumentation
dsPIC33EP	16	64–1024	12-bit (5 Msps)	70	Power conversion, digital power supplies

Real-time control demands high interrupt performance; opt for 16-bit cores like the dsPIC33EP with deterministic execution. These devices offer 32-level interrupt priority, DMA transfers for peripherals, and a CPU clock up to 70 MHz–critical for motor commutation, closed-loop PID controllers, or high-speed PWM generation. Verify the PWM resolution meets application specs; 15-bit resolution at 1 MHz switching frequency suits most BLDC drivers.

Evaluate package options early–QFN or TQFP simplify manual soldering, while BGA variants require professional assembly but conserve PCB space. Thermal dissipation matters for linear regulators; SOT-223 or DFN packages handle 1 W continuous dissipation, adequate for low-power designs but inadequate for RF front-ends generating waste heat. Check pin count against minimal viable footprint: 8-pin SOIC chips fit space-constrained consumer products, whereas 100-pin TQFP packages accommodate 64 I/O lines.

Debugging tools influence selection; built-in ETM trace or UART bootloaders accelerate development. The PIC18F47K42 includes a 3-channel logic analyzer for real-time signal inspection, eliminating external probes. For projects requiring wireless connectivity, choose chips supporting native SPI or I2C interfacing to low-power transceivers like the RN4870 Bluetooth module, avoiding software overhead on slower cores.

Step-by-Step PCB Layout for Embedded Processor Boards

Define component placement based on functional blocks before routing traces. Group analog and digital sections separately–place power regulation near the input connector, processor core in the center, and peripheral interfaces along edges. Use a grid system (e.g., 0.1-inch spacing) for alignment to simplify hand assembly or automated pick-and-place. Verify pin assignments against the datasheet; swapped rows or incorrect orientation of polarized parts are leading causes of layout errors.

Route critical paths first. Keep clock lines (OSC1/OSC2) short and direct–avoid vias or turns tighter than 45°. For power rails, use wide traces (minimum 0.5 mm for 3.3V, 1 mm for 5V) or polygons to reduce voltage drop; place decoupling capacitors (0.1µF ceramic) within 2 mm of each power pin. Ground planes should cover any unused area; stitch multiple layers with vias spaced no farther than 5 mm apart to prevent ground loops.

• Layer stack: Use a 2-layer board for prototypes; 4-layer for production (signals on outer layers, ground and power on inner planes).
• Via sizes: Minimum 0.3 mm drill, 0.6 mm pad for hand soldering; 0.2 mm drill, 0.45 mm pad for reflow.
• Trace clearance: Maintain 0.2 mm minimum between traces and 0.3 mm between trace and copper pour.

Signal integrity checks require simulation only for high-speed buses (>10 MHz). For slower signals, ensure trace length matching within 10% across data/address buses. Polyimide tape or silkscreen dots (1.5 mm diameter) on test points simplify debugging. Add fiducials (1 mm copper circles) at three corners for pick-and-place machines; omit silkscreen inside fiducials to avoid solder mask issues.

Panelize small boards (≤50×50 mm) for cost efficiency–include mouse bites and V-grooves for separation. Add a 0.5 mm chamfer to sharp corners to reduce stress during handling. Export Gerber files in RS-274X format; generate drill files with separate layer pairs for plated/non-plated holes. Verify outputs with a Gerber viewer–check for missing pads, open polygons, or misaligned layers before fabrication.

After assembly, inspect solder joints under magnification–bridges, cold solder, or insufficient fillets are common failures. Measure power rails at load (tolerance ±5%); excessive ripple (>50 mVpp) indicates missing decoupling or poor ground returns. Use an oscilloscope with
