How to Wire a Nest Thermostat Step-by-Step Color Code Guide

Begin by identifying the labeled terminals on your climate control unit–typically marked as R (power), W (heat), G (fan), Y (cooling), and C (common). Use a multimeter to verify voltage between R and C before proceeding; readings should fall between 24-30V AC. Incorrect voltages indicate transformer issues requiring immediate attention.

Match the smart device’s connectors to the system’s existing leads based on function, not hue. A white conductor often serves as the heating signal lead, while a red strand frequently delivers power. For split heating/cooling setups, a yellow filament usually triggers cooling cycles. Verify manufacturer documentation–popular models sometimes deviate, assigning orange for auxiliary heat or blue for equipment ground.

Secure connections with insulated terminals rated for 600V and ensure bare copper sections are fully encased. For systems with emergency heat strips, confirm compatibility–some configurations require an additional E terminal. Test functionality by setting the device to call for heat and observing the furnace’s response within 30-60 seconds. Delays suggest miswiring or thermistor calibration needs.

Install a dedicated breaker for the low-voltage side if multiple zones control a single air handler. Label each conductor at both ends with detailed annotations–“Zone 1 Heat Call” or “Main Power Return”–to prevent future misidentification. Keep at least 18 inches of slack for servicing and avoid coiling excess length against high-voltage components to minimize interference.

Standard Hue Mapping for Smart Climate Control Connections

Begin by confirming the existing setup matches one of three common low-voltage frameworks: C, Rc, or Rh power supplies must align with a compatible return path (typically W for heating, Y for cooling). Systems lacking a C terminal require an adapter or reconfiguration–check the device’s manual for model-specific exceptions. Always disconnect the circuit breaker before handling any leads to prevent short-circuit risks.

Label each strand with masking tape and record its function before detachment. Use a multimeter to verify voltage between the power source (R) and other contacts–expect 24V AC for standard equipment. If readings deviate, inspect the transformer or furnace relay for faults. Common mismatches occur with dual-transformer setups, where Rc and Rh must remain isolated; Nest models without a jumper wire will malfunction.

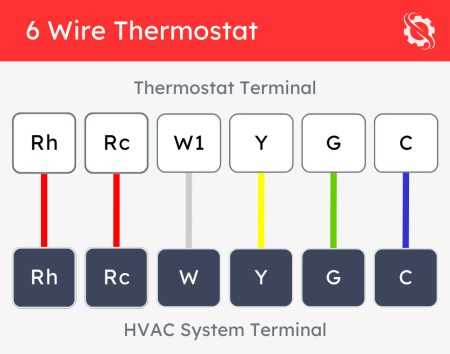

Strand Hue	Typical Function	Nest Terminal	Compatibility Notes
Red (R)	Power input	Rc/Rh	Unite Rc/Rh with jumper if single transformer
White	Heating stage 1	W1	Avoid pairing with W2 on non-multi-stage systems
Yellow	Cooling stage 1	Y1	Link to condenser; ensure outdoor unit supports Nest compatibility
Green	Fan activation	G	Manual fan override may conflict with G connections
Blue/Black	Common return	C	Not all configurations include this; retrofit if required
Orange	Reversing valve (heat pump)	O/B	Heat pump systems only; polarity varies by manufacturer

For multi-stage systems, connect secondary outputs (W2, Y2) only if the climate controller explicitly supports staging–unintended pairing risks damaging compressors. Heat pumps demand careful O/B strand assignment: check the outdoor unit’s defrost cycle documentation to determine whether orange or brown requires a 24V signal. Nest’s “Equipment Detection” feature will flag inconsistencies during setup, but manual verification remains critical.

Twist copper strands clockwise before inserting into the base plate’s terminal screws–ensure no fraying extends beyond the clamp. Tug gently to confirm secure attachment. For thicker gauges (18 AWG or lower), strip an additional 1/8″ of insulation to prevent intermittent contact. Reattach the faceplate and restore power before initiating configuration; Nest’s screen will prompt troubleshooting if voltage drops below 22V.

Third-party strands–often pink, purple, or striped–indicate proprietary adaptations like emergency heat, auxiliary outputs, or humidifier controls. Cross-reference these with the HVAC manufacturer’s schematic; Nest accepts limited add-ons via the “Add Equipment” menu. If the system includes a dual-fuel setup, prioritize the thermostat’s built-in lockout settings to prevent simultaneous activation of incompatible stages.

Understanding Standard Conductor Hues in HVAC Control Systems

Always verify the labeling on your control board before making connections–manufacturers prioritize R (24V power) and C (common) leads, typically marked in red and blue. The red conductor supplies voltage, while blue serves as the return path; reversing them risks damaging low-voltage circuits. Yellow (cooling), green (fan), and white (heating) follow industry conventions but may vary in dual-fuel setups–test with a multimeter if labels are absent. Secondary systems often add orange (heat pump) or brown (emergency heat) leads, requiring separate breakers.

Key Variations by System Type

• Single-stage heating/cooling: Red (+), white (W), green (G), yellow (Y), blue (C).
• Heat pumps: Red (+), white (W/AUX/E), orange (O/B), blue (C)–confirm O/B polarity with manufacturer specs.
• Zoned configurations: Purple or black leads may indicate zone valves; label each conductor per zone at the control panel.
• Humidifiers/dehumidifiers: Pink or gray conductors often regulate moisture, but cross-check with schematics.

Strip only 3/8″ of insulation to prevent shorts; secure connections with wire nuts coated in antioxidant paste for outdoor units. If hues deviate from standard, trace each conductor back to its source terminal and flag them with tape–never rely on memory.

Connecting a Smart Climate Controller: A Practical Installation Guide

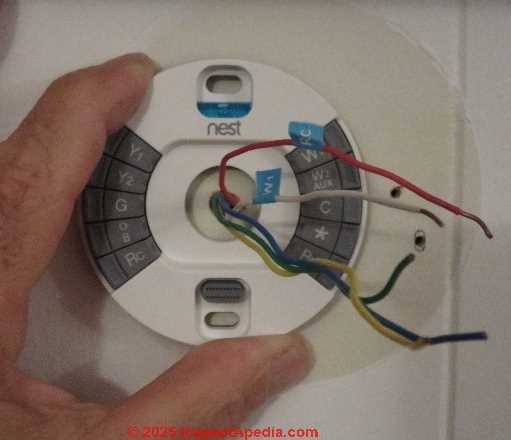

Before touching any connections, switch off power at the circuit breaker to eliminate risk. Verify the shutdown by testing voltage with a multimeter–zero reading confirms safety. Label each lead from the HVAC system using masking tape, noting their purpose (e.g., “heating branch,” “cooling branch,” “fan command”). This prevents confusion when matching them to the backplate terminals later.

Matching Terminals to System Leads

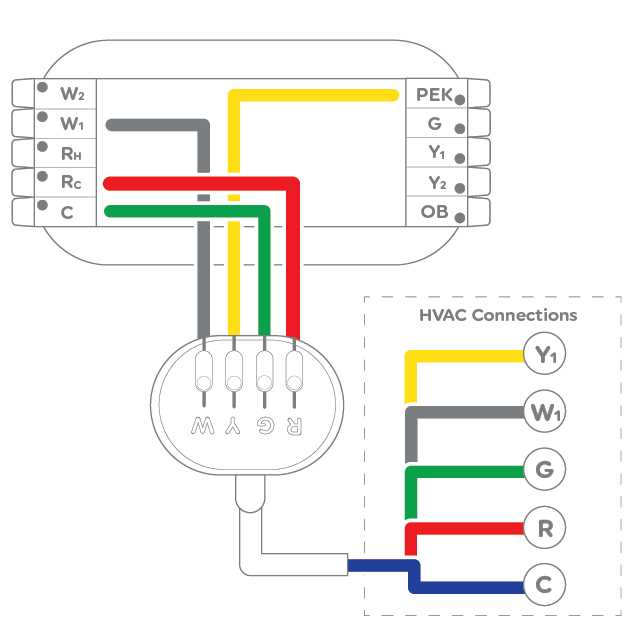

Standard installations typically use five core functions: RH (heat supply), RC (cool supply), W1 (heat call), Y1 (cool call), and G (fan activation). Locate these on the baseplate–Rh and Rc may merge into R if using a single-stage system without separate transformers. Align each labeled lead to its corresponding terminal: red (power) to R, white (heat) to W1, yellow (cool) to Y1, green (fan) to G. If an auxiliary heat demand (W2/Aux) or second cooling stage (Y2) exists, connect blue or brown leads to these ports.

For heat pumps, add an O/B terminal (orange) to trigger the reversing valve during cooling; some setups use a pink lead for emergency heat (E). Double-check the HVAC unit’s manual to confirm O/B polarity–incorrect assignment can reverse heating and cooling modes. Secure each connection with a small screwdriver, ensuring no bare strands touch adjacent terminals to avoid shorts.

Once all leads are fastened, snap the controller onto the backplate until it clicks. Restore power and start the setup via the touchscreen. The device will auto-detect installed functions; verify heating, cooling, and fan operations through manual mode tests. If error messages appear (e.g., “no power”), re-examine Rh/Rc connectors–undetected voltage often signals a loose or misaligned red lead.

Finalize calibration by adjusting temperature thresholds and scheduling. Ensure the equipment cycles correctly after each call–listen for compressor startup and blower activation within 90 seconds. If heating or cooling fails, revisit the O/B or W2 terminals; incorrect polarity here can prevent heat pump engagement. Keep the manual nearby for troubleshooting voltage irregularities or compatibility warnings.

Resolving Unidentified or Absent Conductor Hues During Smart Climate Device Setup

Start by examining the existing conduit labels if present – many HVAC systems include tiny adhesive tags or printed markings near connection points. Compare these to the base plate’s reference chart or app’s visual guide. Match terminals by function (R, C, W, Y, G) rather than relying on hue alone, as variations frequently occur across manufacturers.

If terminal markings are missing, use a multimeter set to continuity mode. Probe each lead while observing the indoor unit’s response (fans, relays, or compressor clicks). A live circuit (typically 24V AC) confirms correct assignment for R, C, or compressor-related conductors. For safety, disconnect power at the breaker before handling exposed ends.

Common mismatches often follow predictable patterns:

• Orange instead of blue for the C conductor in heat pump systems.
• Black substituted for red in older furnaces using single-transformer setups.
• Yellow or white stripped of insulation for high-voltage jumpers (label these hazardous).

Snap photos of the original connections before disconnecting anything – modern phones capture fine print that manuals often lack.

Verifying Suspected Conductors Without Documentation

Trace each lead back to its source within the furnace or air handler. Key components to inspect:

1. Transformer secondary coil outputs (should measure ~25V AC between R and C).
2. Low-voltage terminal blocks (look for sets of paired screws).
3. Relay coils (thin gauge conductors often attached).
4. Capacitor banks (thicker leads, typically non-relevant).

If tracing proves difficult, consult the unit’s model number plate – search for schematics using “[Model] low-voltage wiring diagram” directly from the manufacturer’s support portal.

For heat pump systems, expect additional complexity. The O/B conductor (typically orange or dark brown) toggles between heating and cooling modes. Measure voltage across this and R during a heating call – a ~10-second delay before voltage indicates proper reversal valve wiring. If absent, the system may default to emergency heat, substantially increasing energy consumption.

Untangle bundled conductors using a plastic pry tool. Older installations frequently use cloth-wrapped or brittle insulation that cracks when bent. Secure loose strands with small wire nuts (not electrical tape) to prevent shorts. If any segment appears damaged, strip back 1/4″ of insulation and re-crimp – corrosion at connection points is a leading cause of intermittent faults.

Final checks before closing the device:

• Ensure all conductors are fully seated in terminal clamps without exposed copper.
• Verify the base plate screws are tightened to 0.5Nm torque.
• Power on and confirm the display illuminates within 30 seconds.
• Check the app’s equipment configuration report for “wiring mismatch” warnings.

If issues persist, most smart climate devices generate specific error messages (like “E24” for missing common). Search these codes directly in manufacturer support forums for targeted resolutions.
