Complete Guide to Tarp Switch Wiring with Circuit Diagrams and Connections

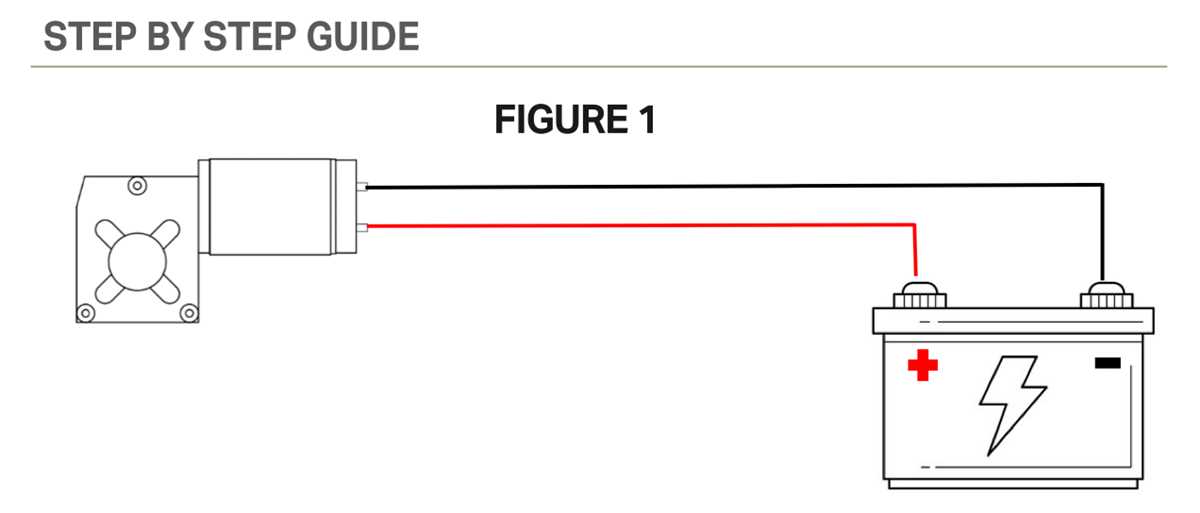

Start by identifying the power source–a 12V battery is standard for most setups. Connect the positive terminal to a 20-amp fuse first, then route it to the first terminal of your toggle or rocker activator. Failure to fuse this line risks short circuits that can damage the system or cause fire hazards. Use 14-gauge copper wire for this run; anything thinner overheats under load.

From the actuator’s output terminal, wire directly to the motor’s positive input. Reverse polarity here will make the cover move opposite to intended direction. Test this with a multimeter before finalizing connections–voltage should read 12V DC when engaged. If readings fluctuate, check for loose crimps or corroded terminals.

Ground the motor and controller to the vehicle’s chassis using 12-gauge wire, ensuring a clean contact point free of paint or rust. A poor ground causes intermittent operation or complete failure. For dual-direction mechanisms, add a double-throw relay rated for 30 amps minimum to prevent overheating during prolonged use.

Label every connection point with heat-shrink tubing and terminal covers to avoid accidental shorts. Secure all wires with zip ties every 6 inches along the frame to prevent chafing against metal edges. Verify functionality by cycling the cover fully open and closed before final mounting.

Use waterproof connectors (Deutsch or similar) for outdoor installations. Exposed splices or inadequate sealing will corrode within weeks in humid or rainy conditions. For systems over 10 feet long, step up to 12-gauge wire to compensate for voltage drop–anything less causes sluggish performance at the far end.

Electric Roll Cover Control Circuit Guide

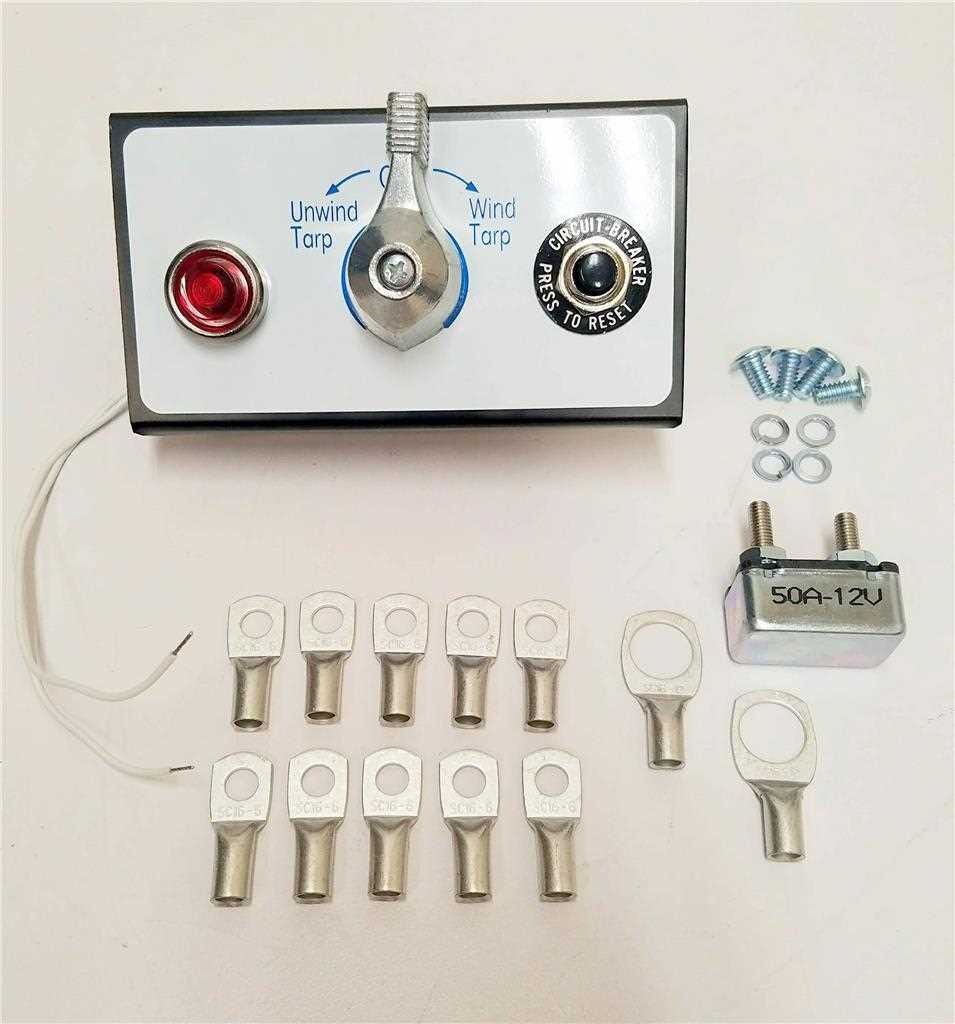

Use a 12-gauge stranded copper cable for all power connections to prevent voltage drop across longer runs, especially when the motor draws 15–20 amps under load. Install a 30-amp circuit breaker immediately after the battery to isolate faults without damaging the control panel.

Connect the limit modules in series with the motor leads–one for the fully extended position, another for full retraction. These snap-action microswitches should trigger at ±5° of the final roll position to avoid over-travel stress on the fabric and frame. Adjust the actuator arm so it contacts the cam wheel only when the cover reaches its travel endpoint.

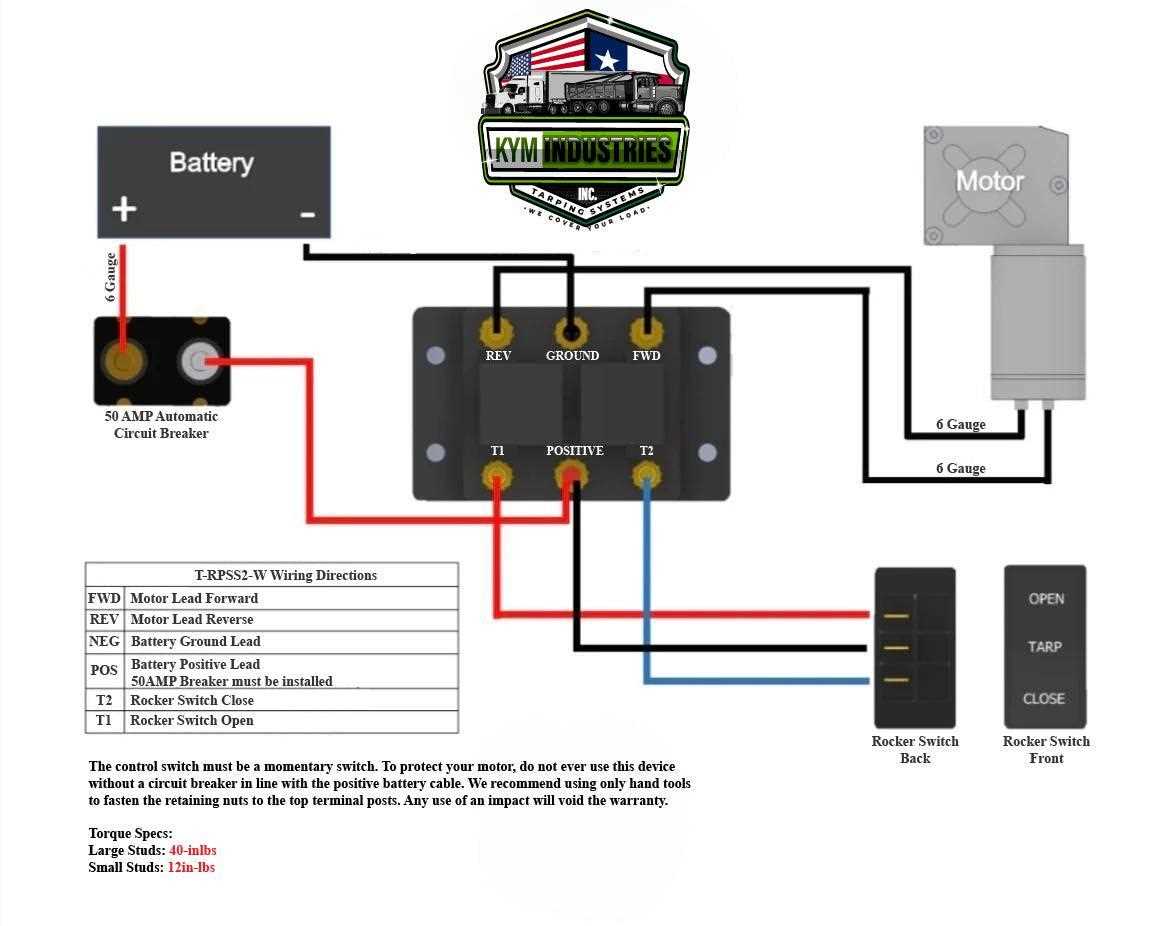

Mount the rocker actuator on a steel bracket welded perpendicular to the frame rail to ensure consistent mechanical engagement. Position the rocker 2 mm from the cam’s high lobe to prevent false trips during vibration. Use a single-pole, double-throw configuration for the rocker to reverse polarity to the motor, eliminating the need for a separate relay.

Critical Safety Modifications

Avoid common relay failure by replacing automotive relays with a sealed industrial-grade unit rated for 40°C ambient temperatures. Wire a red LED indicator (24 mA draw) directly across the motor terminals to show real-time power direction; mount it inside the operator’s cab for instant status visibility.

Splice a thermal cutoff fuse rated at 110°C between the positive lead and the motor windings. Locate it within 10 cm of the motor housing to interrupt current if internal temperatures exceed safe limits during stalled operation or prolonged start cycles.

Ground the metal frame to the battery negative terminal using a dedicated 6-gauge braided strap–never rely on chassis return paths, as corroded trailer couplings can introduce resistance and intermittent voltage drops. Secure the strap with stainless steel crimp lugs and apply dielectric grease at both ends to prevent oxidation.

Label each connection point with pressure-sensitive polyester tags marked with permanent ink, listing voltage, amperage, and wire function. Store a printed schematic folded inside a sealed pouch mounted beneath the control box for field troubleshooting.

Installation Guide for a Basic On/Off Control Mechanism

Locate the power source terminal–typically marked L or Line–and connect the live conductor (usually black or red) directly to it. Strip 6-8mm of insulation from the wire end before inserting it into the terminal slot. Tighten the screw securely but avoid overtightening, which can damage the thread or conductor strands. Verify the connection by gently tugging the wire; it should not pull free.

Identify the load terminal–commonly labeled LOAD or MOTOR–and attach the second conductor leading to the actuator. Use the same stripping and securing method as above. If the control device includes a ground terminal (green or bare wire), connect it now. Failure to ground properly increases shock risk and may cause erratic operation.

Before energizing the circuit, perform these checks:

• Confirm no exposed conductor extends beyond the terminal.
• Ensure all terminal screws are tight but not deformed.
• Check for stray wire strands that could short between terminals.
• Use a multimeter in continuity mode to test for unintended shorts between live and neutral.

Mount the control mechanism to a stable surface using screws or a pre-designed bracket. Ensure it is positioned away from moving parts and within easy reach of the operator. Avoid locations exposed to direct water spray or high vibration, as these conditions accelerate wear and electrical faults.

Connect the neutral conductor (white or blue) to the corresponding neutral busbar if the circuit requires it. Some single-pole configurations omit neutral, but when present, improper connection can lead to overheating or malfunction. Double-check local electrical codes–some jurisdictions mandate a dedicated neutral for all control circuits regardless of load type.

For final verification, restore power and activate the device briefly. Observe the actuator’s response: it should move smoothly without hesitation or unusual noise. If the actuator stalls or hums excessively, immediately cut power and re-examine connections. Voltage testing at the load terminal should match the supply voltage (e.g., 120V or 240V) when the device is in the ON position and drop to near zero when OFF.

Secure all loose conductors with zip ties or conduit straps to prevent chafing against sharp edges. Label wires at both ends with adhesive markers (e.g., “LINE IN,” “ACTUATOR,” “GROUND”) to simplify future troubleshooting. Maintain a log of installation details–voltage, wire gauge, and terminal torque values–if multiple similar devices are deployed across a system.

Properly Marking Connections for Dual-Role Cover Controls

Begin by isolating the power source–disconnect the battery or fuse box to prevent accidental activation. Use a multimeter in continuity mode to trace each conductor from the control unit to its endpoint: one path typically governs extension (forward motion), while the other handles retraction (reverse). Color-code the leads immediately with heat-shrink tubing or adhesive labels–red for extend, blue for retract–or adopt a two-letter system (EX/RE) if colors clash with existing insulation. Verify polarity before securing connections; reversed inputs can damage the motor relay or burn out solenoid coils.

Test each circuit sequentially before finalizing attachment. Apply brief voltage (12V from a bench supply or jump wires) to confirm motor response–quiet hum indicates correct polarity, while erratic movement signals miswiring. Label both the sender (toggle/pushbutton) and receiver (actuator) sides; ambiguity here leads to costly troubleshooting later. For systems with manual override, ensure the neutral line (if present) is marked distinctly–black or yellow tubing–to avoid accidental shorting when bypassing automated functions.

Document the finalized layout on resistant vinyl or laminated cardstock, placed near the control box. Include:

• Wire gauge (e.g., 16 AWG for signal, 12 AWG for power)
• Terminal specs (e.g., spade, ring, or bullet connectors)
• Fuse ratings (typically 20–30A for high-current paths)

Secure all terminations with anti-corrosion paste if exposed to moisture, and lock wires in place with zip ties every 15 cm to prevent vibration-induced chafing.

Identifying and Fixing Faulty Cover Control Circuit Issues

Begin by verifying continuity using a multimeter across each contact point in the activation mechanism. A reading outside the 0-0.5 ohm range signals corrosion, loose crimps, or broken strands in the conductor path. Clean terminals with a wire brush and re-crimp connectors using a ratcheting crimper specified for 14-16 AWG wire. Replace any terminals showing discoloration or pitting–these often indicate excessive resistance and future failure.

Check the power feed at the fuse panel if the system fails to respond. Use a test light to confirm voltage presence; absence suggests a blown fuse, defective relay, or an open circuit in the supply line. Swap relays with a known-good unit of identical rating (typically 30A/12V) to isolate relay failure. If voltage returns but the mechanism remains inert, inspect the grounding path–poor chassis connections are a frequent culprit, especially in corroded or painted mounting surfaces.

Sequence and Polarity Errors

Reverse polarity in motor leads can cause erratic cycling. Trace each conductor from the control module to the actuator, confirming correct alignment with the manufacturer’s color code. A common misstep involves swapping the limit sensor wires (often yellow/black); this triggers false end-of-travel cutoffs or continuous run-on. Label each wire before disconnecting, and cross-reference with a factory schematic if colors differ from aftermarket replacements.

• Intermittent operation often stems from incorrect gauge wire. Undersized conductors (below 16 AWG) create voltage drops exceeding 0.5V under load, stalling the motor mid-cycle. Measure drop across the entire circuit under operation; replace any segment exceeding specification.
• Loose or missing strain relief at entry points chafes insulation over time. Secure all cable bundles with nylon ties at 6-inch intervals, especially near hinges or moving parts. Use spiral wrap for exposed sections vulnerable to abrasion.
• Incorrect module installation (e.g., AC versus DC polarity) fries internal transistors. Always attach the ground first, then positive, when testing power delivery. A burnt odor or failed LED indicators confirm internal damage–replace the module immediately.

Advanced Diagnostics for Persistent Issues

1. Monitor current draw with an inductive clamp meter during operation. A healthy 12V system peaks at 15-20A under normal load; readings above 25A indicate binding tracks or misaligned roller tubes. Disassemble the cover path and inspect rollers for debris or deformation.
2. Programmable settings in newer modules often require a reset after supply interruptions. Press and hold the limit-set buttons simultaneously for five seconds to restore factory defaults. Consult the module’s quick-reference card–omitting this step causes irregular cycle timing.
3. If vibrations occur during movement, suspect a faulty capacitor in older modules. A capacitor rated between 220-470µF/25V ensures smooth start-stop transitions; replace with exact microfarad value to prevent motor chatter.

After resolving faults, cycle the mechanism ten times without load to confirm consistent operation. Listen for abnormal noise and watch for hesitation–these signal residual installation flaws requiring re-tightening of mounting bolts or realignment of guide tracks. Document adjustments with dated labels near the control unit for future reference.
