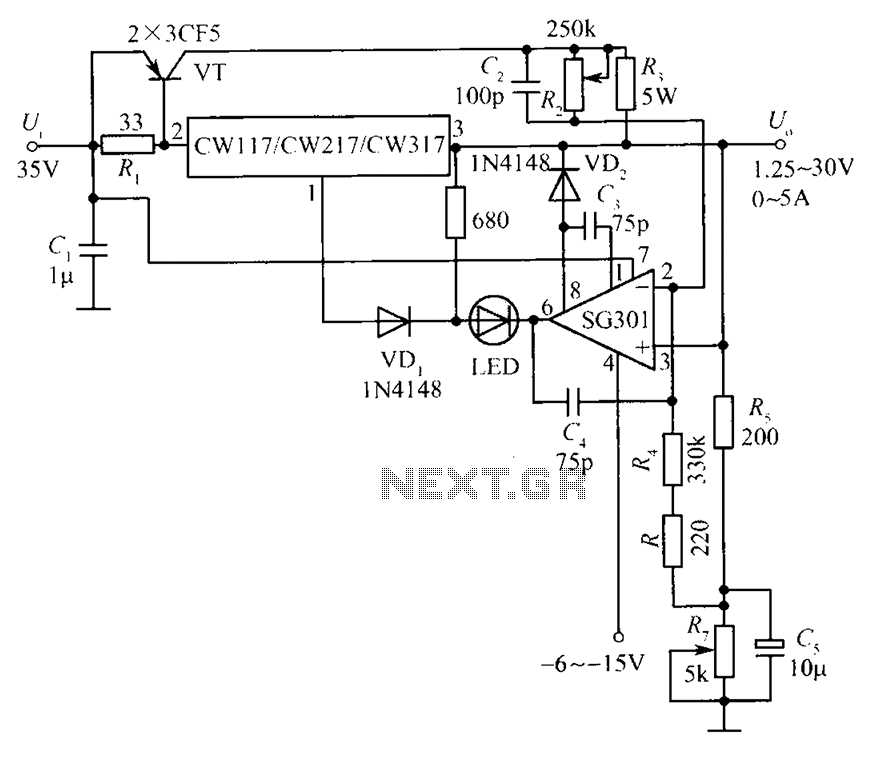

How to Build a Reliable Constant Voltage Power Supply Circuit

For a reliable fixed-output source under 5W, use a zener diode in parallel with the load. A 5.1V zener (1N4733A) paired with a 220Ω series resistor handles input variations from 8–15V while maintaining ±2% output stability. Calculate power dissipation–0.5W for the zener and 0.25W for the resistor–using P = (V_in – V_out)² / R. Exceeding these ratings demands heatsinks or a switch to a TO-220 package.

Avoid linear regulators for >1A loads. A 7805 in TO-220 package drops 7–8W when converting 12V to 5V at 1A, requiring a 15°C/W heatsink. Replace with an LM2596 buck converter (5V, 3A): set the feedback network to R1=1kΩ, R2=1.5kΩ for precise output. Add a 100µF electrolytic capacitor at the output to suppress ripple below 50mV_pp at full load. For adjustable outputs, replace R2 with a 5kΩ potentiometer and recalculate.

For noise-sensitive applications (audio, RF), use a TL431 shunt regulator instead of a zener. Configure the reference divider (R1=4.7kΩ, R2=10kΩ) for 5V output. Add a 1µF tantalum capacitor across the cathode-anode to stabilize transient response. The TL431’s 1% tolerance outperforms zener diodes by a factor of 5, critical for ADC reference voltages. For higher currents, pair it with a PNP pass transistor (e.g., TIP42) and limit base current to 10mA via a 1kΩ resistor.

When PCB space is limited, opt for an AP2204K LDO–dropout voltage of 0.2V at 300mA–over bulkier LDOs like the LM1117. Input/output capacitors must be 1µF ceramic (X5R/X7R) to prevent oscillation. For dual-rail supplies (±12V), combine two LT3092 current sources: program one for +12V (R_set=10kΩ) and the other for –12V (R_set=10kΩ), ensuring ±1% matching between resistors.

Stabilized Power Supply Blueprint Design

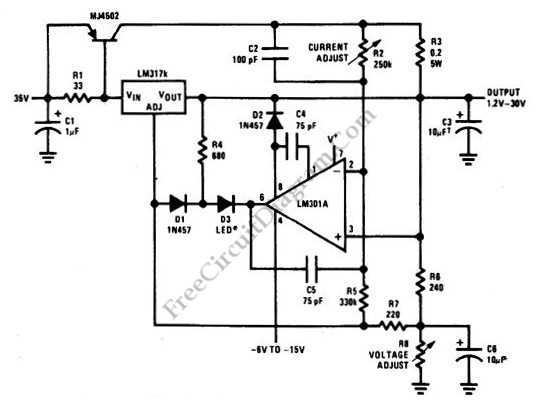

Begin with a linear regulator like the LM7805 for fixed 5V outputs. Ensure input exceeds output by at least 2.5V to maintain regulation margins under load variations. For adjustable setups, use an LM317 with resistors configured per the formula Vout = 1.25 × (1 + R2/R1), where R₁ is typically 240Ω. Add a 0.1μF ceramic capacitor on both input and output to suppress high-frequency noise.

For higher efficiency, replace linear components with a buck converter IC such as the TPS5430. Set the switching frequency between 300–600kHz to balance size and efficiency. Calculate the inductor value using L = (Vin - Vout) × Vout / (Vin × ΔI × f), where ΔI is 20–40% of the maximum load current. Place a 10μF low-ESR capacitor at the converter’s input to handle ripple.

Critical Component Selection

• Choose electrolytic capacitors with ripple current ratings 1.5× the expected load current.
• Select Schottky diodes for freewheeling paths to minimize voltage drops (e.g., 1N5822 for 3A loads).
• Use 1% tolerance resistors for feedback networks in precision applications.
• Thermal vias under regulator ICs improve heat dissipation; space them 1.2mm apart with 0.3mm drill sizes.

For transient protection, include a 5.1V Zener diode across the output if load dumps are anticipated. Add a 1N4007 diode in reverse across the regulator’s input-output to safeguard against reverse polarity. For low-dropout needs, opt for the LT1085, which requires only 1.5V headroom. Test under full load using a dummy resistor bank before connecting sensitive devices.

1. Measure output ripple with an oscilloscope; values above 50mV_pp warrant capacitance adjustments.
2. Verify regulation tolerance (typically ±2%) across temperature ranges (0–70°C for commercial-grade components).
3. Isolate high-current traces with 2oz copper weight to prevent voltage drops on the PCB.
4. For multi-rail designs, synchronize switching frequencies to avoid beat interference.

In battery-powered systems, prioritize quiescent current. The MCP1700 (1.6μA) suits low-power needs, while the AP2112K-3.3V handles 600mA with minimal dropout. For digital loads, add a 47μF tantalum capacitor at the output to mitigate dynamic current spikes. Always simulate the layout in SPICE before prototyping to identify stability issues.

Fault Mitigation Checklist

• Short-circuit test: Confirm foldback current limiting prevents thermal runaway.
• Input under-voltage: Ensure shutdown occurs before output collapses (e.g., below 6.5V for a 5V rail).
• Over-temperature: Use ICs with built-in thermal protection (e.g., TO-220 packages with internal cutoff at 150°C).
• Inductor saturation: Verify core material (e.g., ferrite for frequencies >200kHz).

Key Components for a Stable Power Supply

Select a linear regulator with a dropout below 1V for low-input scenarios. The LM317 offers ±1% load regulation at 1A, while the LT1086 pushes efficiency further with 0.5% drift under thermal stress. Match the heat sink surface area to the regulator’s dissipation–calculate using P_diss = (V_in – V_out) × I_load; for 5W dissipation, aim for 10 cm² per watt.

Capacitor Selection for Ripple Rejection

Component	Value Range	ESR (mΩ)	Recommended Part
Input Capacitor	10–100 µF		Panasonic EEU-FC1V101
Output Capacitor	47–470 µF		Nichicon UHE1V471MPD
Bypass Capacitor	0.1–1 µF		TDK C3216X7R1H104K

Position the bypass capacitor within 2 cm of the regulator’s output pin to suppress high-frequency noise. Ceramic capacitors excel here–X7R dielectric maintains ±15% tolerance from –55°C to +125°C, while Y5V drifts ±22% and is unsuitable for precision demands.

For switching designs, pair the inductor’s saturation current with the peak load: a Coilcraft MSS1048-103MLB handles 1.1A with 10 µH inductance, reducing core loss to 80 mW at 1 MHz. Use a Schottky diode for the catch–STMicroelectronics STPS2L60U offers 60V reverse voltage and 2A forward current, cutting recovery losses to 2 ns.

Thermal protection demands a negative temperature coefficient thermistor like the Murata NCP15XH103F03RC, which drops from 10 kΩ at 25°C to 2 kΩ at 100°C. Place it adjacent to the hottest component–typically the regulator or MOSFET–and set the trip point 20°C below the device’s maximum rating to avoid false shutdowns.

Avoid wirewound resistors for feedback paths; their inductance introduces 1–5 µH parasitic values. Instead, use thin-film resistors–Vishay TNPW0805 series holds ±5 ppm/°C drift and ±0.1% tolerance, critical for 0.5% output accuracy. For load testing, a decade box with 0.1% resolution ensures calibrated bench validation.

Step-by-Step Wiring Guide for a Zener Diode Stabilizer

Select a Zener diode with a breakdown rating matching your target output level–common values include 3.3V, 5.1V, or 12V–ensuring it handles the load current without exceeding its power dissipation limits (typically 0.5W to 5W). Pair it with a series resistor sized using Ohm’s Law: R = (Vin – Vzener) / Iload, where V_in is the input supply, V_zener the diode’s breakdown, and I_load the required current. For example, with a 9V supply, 5.1V Zener, and 20mA load, calculate R = (9 – 5.1) / 0.02 = 195Ω; choose the nearest standard value (200Ω).

• Connect the series resistor to the positive input line, soldering one end directly to the power source and the other to the Zener’s cathode (striped end).
• Attach the Zener’s anode to the ground rail, ensuring a low-impedance path to avoid noise coupling into sensitive components.
• Link the output from the junction between the resistor and Zener cathode to your load, adding a decoupling capacitor (0.1µF–10µF) parallel to the load to suppress transient spikes.
• Verify stability by measuring the output with a multimeter under varying input levels (e.g., 7V–15V); fluctuations should not exceed ±5% of the Zener’s rated breakdown.

For high-current applications (e.g., >50mA), replace the series resistor with a small NPN transistor (e.g., 2N2222) in emitter-follower configuration: connect the Zener to the transistor’s base, the emitter to the load, and the collector to the input supply. This reduces power loss in the resistor while maintaining precision–critical for microcontroller power rails or sensor bias networks. Always check thermal performance; a TO-220 Zener with a heatsink can dissipate up to 10W, whereas SMD variants (e.g., SOD-123) require PCB copper pours for cooling.

Calculating Resistor Values to Align with Load Specifications

Begin by identifying the target output level across your load and the total current it requires. For a linear regulator, subtract the desired drop from the input supply to determine the resistor’s voltage rating. Use Ohm’s law: R = (V_in – V_out) / I_load. If the input is 12V and the load needs 5V at 500mA, the formula yields (12V – 5V) / 0.5A = 14Ω. Select the nearest standard value, typically 15Ω, ensuring it handles the power dissipation: P = (V_in – V_out) × I_load, or (7V × 0.5A) = 3.5W. A 5W resistor provides margin.

For shunt-based stabilization, calculate the resistor in parallel with the load. If the input is 9V and the load demands 3V at 20mA, the resistor must drop 6V. Use R = V_drop / I_shunt, where I_shunt = I_in – I_load. With a total input current of 50mA, R = 6V / (50mA – 20mA) = 200Ω. Verify power dissipation: P = V_drop × I_shunt = 6V × 30mA = 180mW; a ¼W resistor suffices.

In series-pass configurations, the resistor’s role shifts to limiting current. If the load requires 100mA at 3.3V from a 5V source, the series resistor must drop 1.7V. Apply R = V_drop / I_load = 1.7V / 0.1A = 17Ω. Choose 18Ω and confirm power: P = 1.7V × 0.1A = 170mW. For pulsating loads, oversize the resistor by 20% to accommodate transient spikes.

Adjust resistor values for temperature sensitivity. Metal-film resistors drift ±100 ppm/°C; for a 6V drop, a 20°C rise alters the drop by 6V × 0.0001 × 20 = 12mV. If stability is critical, use precision resistors with ±50 ppm/°C or less. Carbon-film resistors, while cheaper, can drift ±500 ppm/°C, introducing errors up to 60mV in the same scenario.

Match resistor tolerances to load precision. A 1% tolerance resistor ensures tighter regulation than a 5% variant. For example, a 100Ω 1% resistor ranges 99–101Ω, while a 5% spans 95–105Ω. If the load tolerates ±2% variation, 1% tolerance is justified; for ±10% loads, 5% suffices. Always simulate worst-case scenarios to avoid marginal failures.

Account for parasitic effects in high-frequency designs. Resistor self-inductance can dominate at frequencies above 1MHz. A 1kΩ axial-lead resistor may introduce 5nH of inductance, causing a 30Ω impedance at 1MHz. For such applications, use non-inductive wirewound or thick-film resistors. The datasheet’s impedance vs. frequency graph is critical; ignore it at your peril.

Factor in aging and stress. Resistors derate power handling over time; a 1W resistor operated at 0.8W may last 10,000 hours, while full load reduces it to 2,000 hours. Solder joints and thermal cycling add mechanical stress. For long-term reliability, derate by 30% and use resistors with flame-retardant coatings (e.g., phenolic or silicone). Avoid cheap carbon composites, which degrade under thermal shock.

Validate calculations with real-world testing. A 10% discrepancy between calculated and measured values is normal due to component variances. Measure the actual drop across the resistor and load using a calibrated meter. If the load’s current varies, employ a current probe or shunt resistor in series. Log data over temperature and load cycles to expose hidden drift patterns before finalizing the design.
