How to Design a PLC Circuit Diagram Step-by-Step Guide with Schematics

Start with a 24V DC power supply rated for at least 1.5x your expected load–most installations require 500mA to 2A depending on sensor and actuator draw. Use a switched-mode regulator (e.g., LM2596 or Mean Well MDR-60) instead of linear regulators to minimize heat dissipation in enclosed panels. Place a reverse polarity diode (1N5822) directly at the power input to protect against accidental wiring errors.

Segment your I/O into isolated groups: digital inputs (sinking), digital outputs (source or NPN/PNP), and analog signals (4-20mA or 0-10V). Each group should have its own common return path fused separately–use 100mA fuses for signal lines and 1A for outputs. For 4-20mA loops, include a precision resistor (250Ω, 0.1%) to convert current to voltage at the analog input.

Mount surge suppressors (varistors or TVS diodes) across inductive loads–relays, solenoids, and motors–to clamp voltage spikes above 33V. For communication ports (RS-485, Ethernet), install galvanic isolators (ADM2483 or ISO3088) and terminate resistive networks (120Ω) at both ends of the bus. Use shielded twisted pair (STP) cable with the shield grounded only at the power supply side to prevent ground loops.

Label every wire at both ends with heat-shrink tubing and alphanumeric identifiers matching your ladder logic tags. Keep high-voltage (230V AC) and low-voltage (24V DC) conductors in separate conduits or cable trays, maintaining a minimum 50mm clearance. For redundancy, add a watchdog timer (e.g., MAX6369) that resets the system if the main CPU fails to toggle a dedicated output within 100ms.

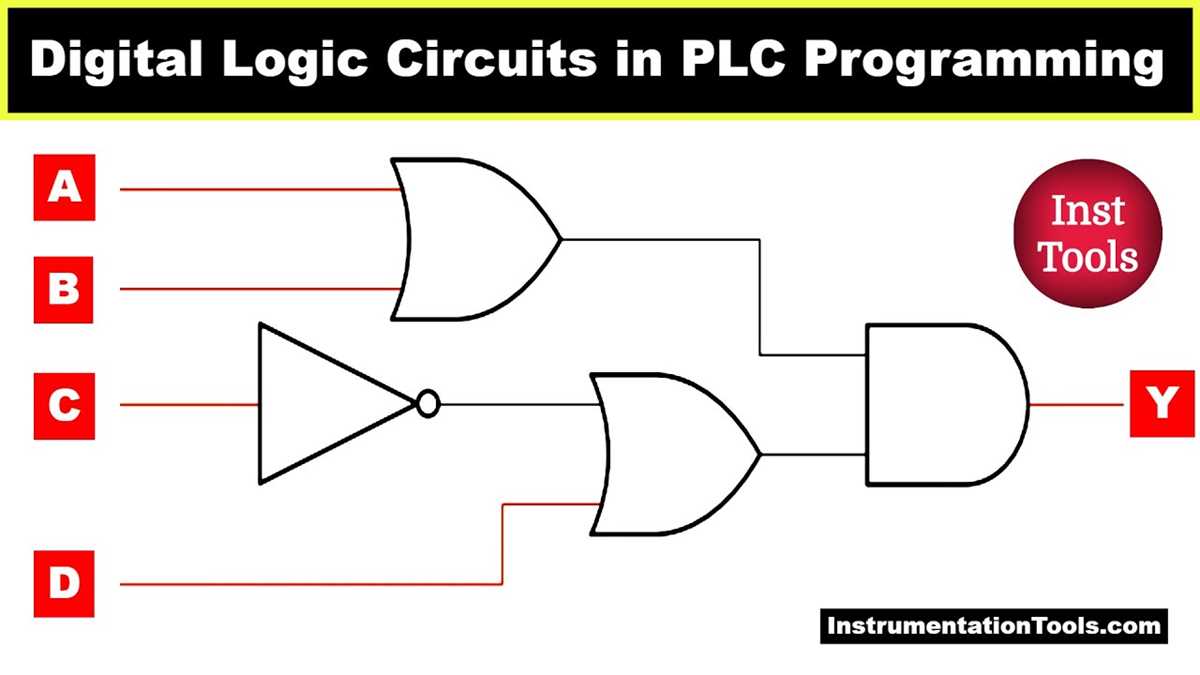

Designing an Industrial Automation Schematic: Key Components and Best Practices

Start by selecting a power supply with a voltage rating matching your field devices–typically 24V DC for most sensors and actuators. Use a dedicated switching regulator to prevent voltage drops in long cable runs; add a reverse polarity protection diode and a 1000μF electrolytic capacitor to stabilize transients. Label input terminals clearly: DI1-DI8 for discrete signals, AI1-AI4 for 4-20mA analogs, ensuring each pair has a 0.1μF bypass capacitor near the terminal block.

Isolate input and output sections with optocouplers or solid-state relays rated for 5kV isolation. For AC drives, separate the 230V lines with a physical barrier and use twisted shielded pairs (18AWG) for encoder feedback. Ground shields only at the automation unit end to avoid ground loops. Fuse every branch with fast-acting 1A fuses and include a 10kΩ pull-down resistor on unused inputs to prevent false triggers.

Place a microprocessor module at the center–ARM Cortex-M4 running at 120MHz is optimal for 1ms response times. Connect its SPI bus to flash memory (minimum 2MB) and UART to a debug port isolated with a MAX3232 transceiver. Use galvanically isolated CAN bus for distributed nodes, terminated with 120Ω resistors and protected by TVS diodes rated for 36V. Reserve 20% of I/O pins for future expansion.

Implement a watchdog timer with a 500ms timeout and pair it with a hardware reset button wired through a normally-closed pushbutton. Log all critical faults to FRAM instead of EEPROM to avoid wear; include a real-time clock chip backed by a supercapacitor. Power the RTC separately through a Schottky diode to maintain timekeeping during brownouts. Use ADC channels with 12-bit resolution and sample rates above 1kHz for vibration monitoring.

Label every net with a unique identifier–DI3_IN, OUT7_PWM, AI2_TEMP–using consistent uppercase notation. Group related signals on separate wire harnesses and color-code them: red for power, blue for digital inputs, yellow for analogs. Keep high-current paths (≥2A) on a dedicated PCB layer with 2oz copper thickness; use star-point grounding to minimize EMI. Route communication lines perpendicular to power traces.

Include a test mode header with jumper pins for manual override. Add a LED array driven by Darlington arrays for visual feedback; multiplex them to reduce GPIO load. Secure firmware updates via secure bootloader with AES-256 encryption, storing checksums in protected memory regions. Reserve a 6-pin programming header compatible with ST-Link or J-Link adapters for field debugging.

Core Elements for an Industrial Automation Schematic

Begin with a power supply block specifying input voltage (e.g., 24V DC, 120V/230V AC) and including fuses, surge protectors, and voltage regulators. Label each component with exact current ratings–e.g., 2A for digital inputs, 10A for motor drives–to prevent overload risks. Use separate power rails for control (low-current) and actuation (high-current) sections to minimize noise interference.

Integrate a central processing unit with clear pin assignments for communication ports (RS-232/485, Ethernet) and I/O expansion slots. Document memory size (e.g., 512KB SRAM, 4MB flash) and clock speed (e.g., 120MHz) directly on the schematic. Add a reset circuit with a debounce button (10kΩ pull-up resistor, 0.1µF capacitor) to ensure reliable initialization.

Include isolation barriers for all signal paths–optocouplers for digital signals (e.g., PC817), and isolated DC-DC converters for analog inputs (e.g., 4-20mA loops). Specify isolation voltage (e.g., 2.5kV RMS) and trace spacing (minimum 8mm for high-voltage sections) to comply with IEC 61131-2 standards.

Critical I/O Configuration

Type	Recommended Components	Key Parameters
Digital Inputs	Opto-isolators (e.g., MOC3041), RC filters	Response time <5ms, 5V/24V compatible
Digital Outputs	Solid-state relays (e.g., G3VM-61B1), flyback diodes	Max load 2A, inductive load protection
Analog Inputs	24-bit ADC (e.g., ADS1256), anti-aliasing filter	±0.1% accuracy, 4-20mA/0-10V range
Analog Outputs	16-bit DAC (e.g., DAC8552), buffer op-amp	0-10V output, slew rate >2V/µs

Add status indicators (LEDs) for all critical signals–power, fault, run/stop modes–with series resistors calculated for 5-10mA current (e.g., 330Ω for 5V supply). Group LEDs by function and label each with a unique identifier (e.g., “FAULT_24V” instead of “LED1”).

Draw termination resistors (120Ω) for differential communication buses (e.g., CAN, Profibus) at both ends of the line. Include pull-up/down resistors (4.7kΩ to 10kΩ) for open-collector outputs and unused inputs to prevent floating states. Specify resistor tolerance (±1%) and power rating (¼W) to ensure stability.

Label grounding points explicitly: separate analog, digital, and chassis grounds, connected at a single star point near the power supply. Use thicker traces (2mm width) for ground paths to reduce impedance. Add test points (e.g., 2.54mm headers) for critical signals like ADC references and clock outputs for troubleshooting.

Protection and Redundancy Layers

Incorporate transient voltage suppressors (TVS diodes) across all inputs/outputs (e.g., SMAJ12A for 12V lines) and varistors (e.g., V14E140) for AC lines. Specify clamping voltage (e.g., 15V) and surge current rating (e.g., 400A) to match the expected noise environment.

Add watchdog timers (e.g., MAX6746) with external capacitors (1µF) to trigger system resets if the main processor halts. Include a hardware kill switch (normally closed, 15A rating) for emergency stops, bypassing software layers entirely. Use shielded cables for all external connections, grounding the shield at one end to avoid ground loops.

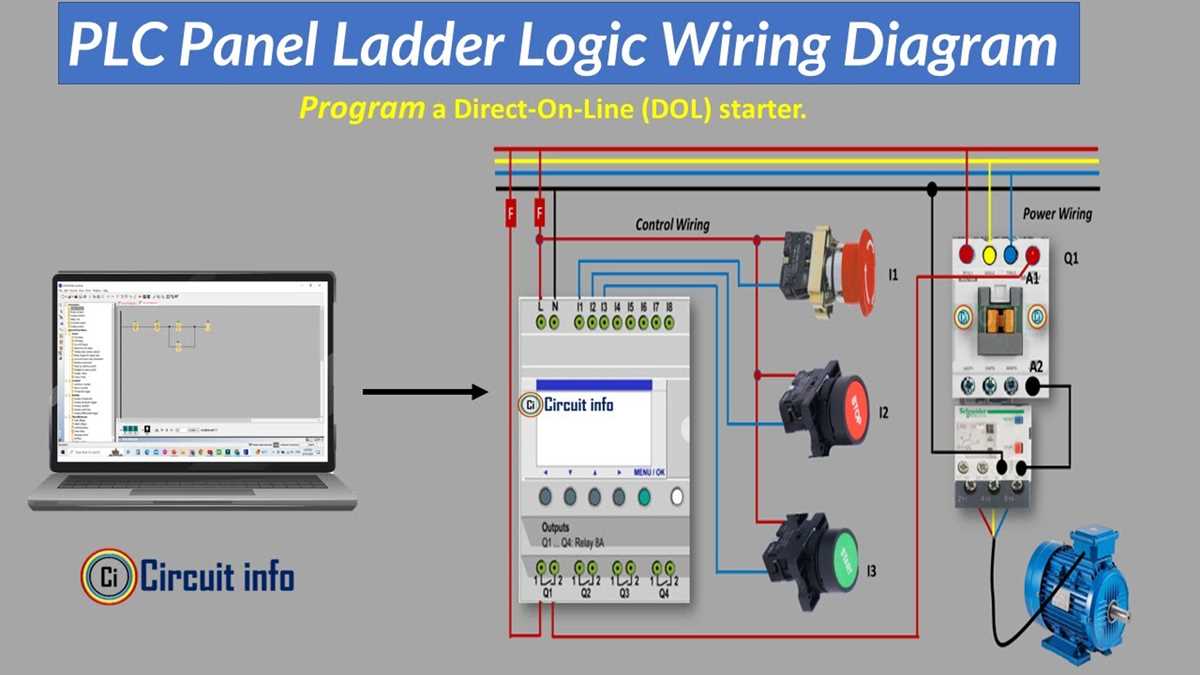

Step-by-Step Wiring of Input Modules in Automation Device Schematics

Begin by identifying module terminal designations. Most industrial input blocks label channels sequentially (e.g., I0.0–I0.7 for 8 discrete points). Verify polarity–sinking inputs typically require a positive voltage at the external device, while sourcing models need a ground reference. Terminals marked “COM” act as the return path; connect this first to avoid floating signals.

Use shielded twisted pair (STP) cable for noisy environments. Route wires away from high-current conductors–maintain at least 30 cm separation from motor feeds or switching power supplies. Ground the shield at a single point near the module’s housing; avoid loops that introduce interference. For analog inputs, prefer 4–20 mA over voltage-mode (0–10 V) when cable runs exceed 10 meters to minimize signal degradation.

Key Connection Checks Before Power-Up

• Confirm source voltage matches module specs (±12/24 VDC, 110/230 VAC).
• Short-test each channel with a pushbutton or jumper–observe LED indicators.
• Check wiring against the I/O mapping table in the project documentation.
• Ensure external devices (sensors, switches) are powered from an isolated supply.

For bipolar sensors (e.g., ±10 V encoders), use differential inputs if available. Connect +IN and –IN terminals; leave COM floating. Unipolar signals (0–20 mA) require linking COM to the module’s internal ground or an external reference. Avoid mixing signal types on the same module–dedicate separate blocks for discrete (ON/OFF) and continuous (analog) values.

After wiring, configure channel parameters in the engineering software. Set filter times (1–20 ms typical) to reject switch bounce; longer delays increase stability but reduce response speed. Calibrate analog ranges–adjust scaling so 4 mA corresponds to 0% process value and 20 mA to 100%. Document every connection in the schematic with cable colors, terminal numbers, and device tags (e.g., “LS-101” for limit switch).

Troubleshooting Common Issues

1. No LED activity: Verify sensor power, check loose terminals, test continuity.
2. Intermittent readings: Inspect for poor crimps, oxidised contacts, or capacitive coupling.
3. Analog drift: Replace 2-wire transmitters with 4-wire versions to eliminate loop errors.
4. Overload faults: Confirm external currents stay below module ratings (e.g., 20 mA max per channel).
