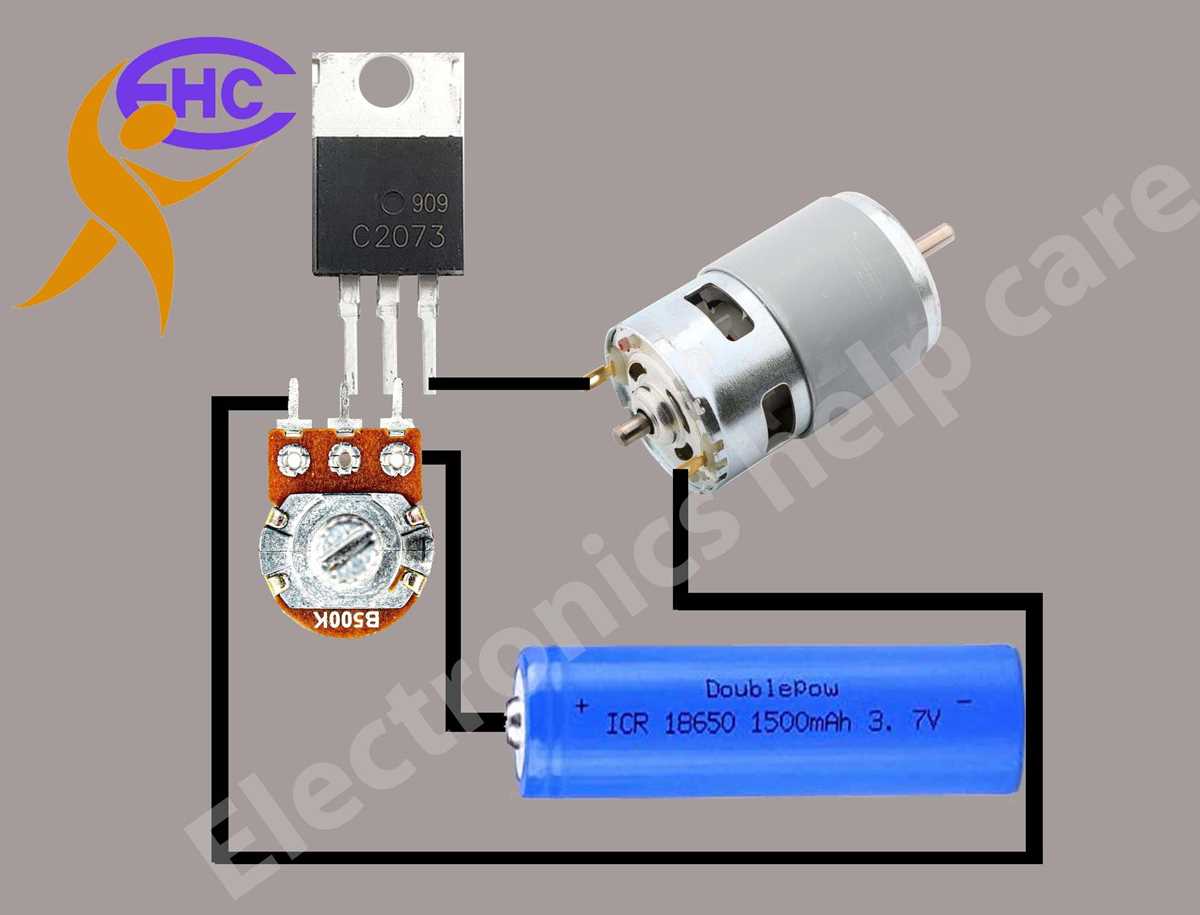

Step-by-Step DC Motor Control Circuit Schematic for Beginners
Start with an H-bridge arrangement if bidirectional rotation is required. A typical configuration uses four switching elements–like N-channel and P-channel MOSFETs–or an integrated IC such as the L298N. Position a 1N4007 diode anti-parallel to each transistor to suppress voltage spikes from inductive loads. Ensure the gate drivers receive clean PWM signals (10–20 kHz) to avoid thermal runaway. Calculate gate resistance (typically 10–100 Ω) based on the chosen MOSFET’s input capacitance to prevent ringing.
For speed regulation, introduce a closed-loop feedback mechanism. Attach a 10-bit ADC-compatible encoder or hall sensor to the rotating shaft and feed the signal into a microcontroller. Use PID tuning with Kp = 0.5, Ki = 0.1, and Kd = 0.01 for 12V systems to maintain stability under load fluctuations. An LM358 op-amp can serve as a comparator if analog feedback is preferred, configured with a 1MΩ/100kΩ resistor divider for hysteresis.
Power supply decoupling is non-negotiable. Place a 100nF ceramic capacitor across the supply pins of every IC and a 47µF electrolytic capacitor near the main power input. Avoid shared ground loops by routing high-current paths (traces ≥2 mm width for 5A) separately from signal grounds. If noise persists, add a ferrite bead on the power line to filter EMI. For overcurrent protection, integrate a 5A resettable fuse or a low-value shunt resistor (0.1Ω) with a comparator to trigger shutdown at 120% of rated current.
Isolate low-voltage logic from high-power segments using optocouplers like the PC817. This prevents backfeeding into microcontroller pins during transient events. For high-torque applications, parallel MOSFETs (e.g., IRLZ44N) and ensure uniform heat distribution with a 30x30mm aluminum heatsink. Test thermal performance under continuous load–ideal junction temperature should not exceed 125°C. Replace weak links: opt for Schottky diodes over standard silicon for faster recovery, and use potassium-silicate thermal paste for heatsink adhesion.
Building an Adjustable Drive Schematic for Precise Actuator Operation
Start with an H-bridge arrangement using four MOSFETs (e.g., IRF540N for robustness) to manage bidirectional power delivery. Connect the gates to complementary PWM signals–ensure dead-time delays of 100–200 ns to prevent shoot-through. A microcontroller like STM32F103 generates the PWM (20–50 kHz typical) with duty cycle adjustments from 0% to 95% for full range torque modulation. Use a gate driver (e.g., DRV8301) with built-in protection to handle inductive load transients up to 40V without latch-up.
Add current sensing with a low-resistance shunt (0.01Ω) placed in the return path. Amplify the signal (INA169 or similar) to scale 0–3.3V for 0–10A detection. Implement PID logic in firmware: tune proportional gain first (start with Kp=0.5), then integral (Ki=0.1) to eliminate steady-state error, and finally derivative (Kd=0.05) to dampen overshoot. For 12V systems, include a TVS diode (P6KE20A) across the load terminals to clamp voltage spikes during regenerative braking.
Critical Component Placement
- Position bulk capacitors (1000µF, 35V) within 2cm of each MOSFET to stabilize voltage rails under dynamic loads.
- Route high-current traces (≥2oz copper) for the actuator’s power path to minimize resistive losses–target <0.1Ω total impedance.
- Separate analog signals (current sense) from digital PWM lines with a 2mm clearance to avoid cross-talk, especially near switching edges.
For variable speed applications, integrate a rotary encoder (e.g., AS5600) with 12-bit resolution. Configure SPI communication at 8MHz for position feedback–this enables closed-loop RPM regulation with <1% error at 1000–5000 RPM. Include a soft-start function by ramping PWM duty cycle from 0% to the target value over 50–100ms to prevent inrush currents exceeding 3x nominal. Test under 80% load before deploying; monitor junction temperatures (target <85°C) with a thermistor (NTC 10kΩ) pressed against the MOSFET heatsink.
Core Elements for Managing a Direct Current Drive Setup
Begin with a H-bridge module, such as the L298N or DRV8871, to handle bidirectional current flow. These ICs eliminate the need for discrete transistors while supporting peak currents up to 3A for the L298N and 45V/3.6A for the DRV8871. Choose based on voltage and current demands–industrial applications often require higher ratings.
A pulse-width modulation (PWM) source is mandatory for speed regulation. Dedicated timers like the 555 IC or microcontroller outputs (Arduino, STM32) generate adjustable duty cycles. For precision control, ensure the PWM frequency falls between 1 kHz and 20 kHz–to avoid audible noise at lower ranges and switching losses at higher frequencies.
Include flyback diodes (1N4007 or Schottky variants like 1N5822) across each switch to suppress voltage spikes from inductive loads. These spikes can exceed 10x the supply voltage, damaging components. Schottky diodes offer faster recovery times, critical for high-frequency operation.
Power delivery requires a stable voltage source, typically a switch-mode regulator (e.g., LM2596) or linear regulator (e.g., 7805) for lower-current needs. Match the regulator’s output to the drive’s requirements–brushless setups may need 12V–24V, while smaller actuators operate at 5V–12V.
Current sensing improves safety and performance. A shunt resistor (e.g., 0.1Ω) in series with the load, paired with an operational amplifier (LM358), measures current draw. This allows for overcurrent protection and closed-loop feedback. For higher precision, consider Hall-effect sensors like the ACS712, which isolate measurements from the power path.
Heat dissipation is non-negotiable. Mount power components on a heatsink (e.g., TO-220) if continuous current exceeds 1A. Thermal paste and proper airflow extend component lifespan. For compact designs, use thermal vias on PCBs to transfer heat to the ground plane.
Lastly, incorporate fusing–fast-acting fuses (e.g., 250V/2A) protect against short circuits. Position them near the power source to isolate faults. For microcontroller-driven setups, add a reset button and pull-up resistors on critical signals to ensure predictable startup behavior.

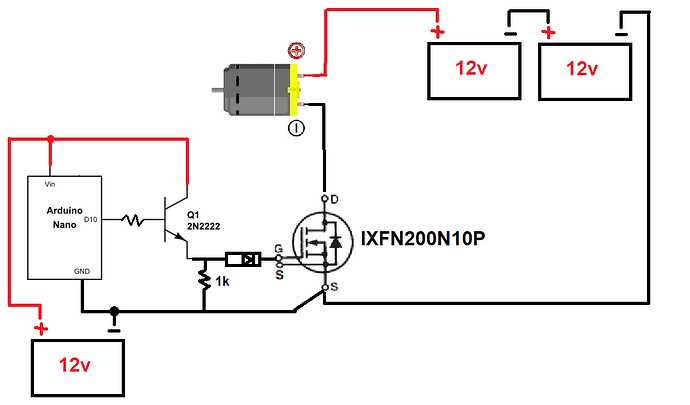

Step-by-Step Wiring of a PWM-Based Speed Regulator
Begin by connecting the power input directly to a 12V DC supply, ensuring polarity matches the marked terminals–reverse polarity will damage components instantly. Use 18 AWG or thicker wire for the main power lines to handle currents up to 5A without voltage drop. Skip cheap jumper wires; they overheat under continuous load.
Assemble the switching element first. A standard N-channel MOSFET like the IRFZ44N tolerates 55V and 49A, enough for most DC actuators. Solder the MOSFET’s drain to the positive lead of your load, the source to ground, and the gate to the PWM signal via a 10kΩ pull-down resistor. Omit the resistor, and the gate floats open, risking uncontrolled spinning.
Wire the PWM generator next. An Arduino Uno’s 5V output pin suffices if the signal voltage matches the MOSFET’s threshold–typically 2–4V. Set the PWM frequency between 500Hz and 2kHz; lower values cause audible whine, while higher ones increase switching losses. Use analogWrite(PIN, 127) for 50% duty cycle baseline testing.
| Component | Recommended Part | Max Rating | Note |
|---|---|---|---|
| MOSFET | IRFZ44N | 55V / 49A | TO-220 package, heatsink required above 3A |
| Diode | 1N4007 | 1000V / 1A | Place across load terminals, cathode to positive |
| Resistor | 10kΩ | ¼W | Gate pull-down, prevents floating |
Add a flyback diode immediately. A 1N4007 diode rated for 1A continuous suits most actuators; position it cathode-to-positive across the load terminals to clamp inductive spikes. Without it, the MOSFET dies within seconds. Finally, secure all connections with crimp connectors or direct solder–loose wires arc under pulse-width modulation.
Building an H-Bridge for Bidirectional Actuator Regulation
Start with four switching elements–MOSFETs are optimal for low-power drives due to their low conduction losses. Select N-channel devices for the low-side switches and P-channel for the high-side to simplify gate drive requirements. Ensure the chosen transistors handle at least 1.5× the expected peak load current to account for transient spikes during direction changes.
Place flyback diodes antiparallel to each switch, preferably Schottky types for faster recovery and lower voltage drop. Avoid standard silicon diodes as they introduce delays that increase heat dissipation during rapid polarity reversals. Calculate the reverse voltage rating of these diodes to exceed the supply voltage by 50% to prevent avalanche breakdown under inductive loads.
Integrate a dedicated gate driver IC between the microcontroller and the switching elements. Opt for drivers with isolated outputs if the load exceeds 24V to prevent ground loops and noise interference. The DRV8871 or L298N are suitable for most applications, but verify their peak current rating matches your design’s requirements.
Isolate the logic and power grounds using a star configuration to minimize noise coupling. Connect the grounds at a single point near the power source to prevent ground loops that can cause erratic behavior. Use a 0.1µF ceramic capacitor across each pair of switching elements to suppress voltage transients generated by rapid switching.
Implement dead-time insertion between the activation of opposing switches in the same leg to prevent shoot-through. A 1-2µs delay is sufficient for most setups; longer delays increase efficiency losses. Configure the microcontroller’s PWM outputs to enforce this delay automatically or use a dedicated driver IC with built-in dead-time protection.
Thermal management is critical–mount the switching elements on a heatsink if the continuous current exceeds 5A. Apply thermal paste between the device and heatsink to improve heat transfer. Monitor temperature during operation; exceeding 85°C reduces reliability and may require active cooling.
For precise regulation, pair the H-bridge with current sensing resistors or a Hall-effect sensor. Place the sensing element in series with the load’s return path to measure true current flow. Scale the sensing voltage to match the microcontroller’s ADC range for accurate feedback without saturation.
Test the assembly under full load before final deployment. Use an oscilloscope to verify clean switching waveforms and absence of voltage spikes. Gradually increase the duty cycle while monitoring for overheating or unexpected behavior–these signs indicate layout issues or component mismatches requiring adjustment.
