Step-by-Step Solenoid Circuit Diagram Creation Guide
Start by selecting a 12V or 24V DC electromagnetic actuator matched to your load requirements–common industrial options handle 5–30A inrush currents. Use a flyback diode (1N4007) directly across the coil terminals to suppress voltage spikes exceeding 100V during switch-off.
For AC applications (110V/230V), integrate a snubber network (0.1μF capacitor + 100Ω resistor) parallel to the coil to mitigate contact arcing in relays or contractors. Position the diode/resistor within 10mm of the coil leads to prevent electromagnetic interference.
Choose a mosfet driver (IRF540N) for low-voltage DC controls, ensuring the gate resistor (10Ω–100Ω) limits current to 500mA. For microcontroller-driven setups, add a 1kΩ pull-down resistor to prevent false triggering during power-up transients.
Avoid placing coil traces near high-frequency switching nodes–maintain a 5mm clearance from PWM lines to prevent inductive coupling. For multi-coil systems (e.g., hydraulic valves), use individual fuses (fast-acting, 125% of steady-state current) to isolate failures without disabling the entire system.
Key Schematics for Electromagnetic Coil Configurations
Start with a 12V DC source for most low-power inductor-driven setups. Ensure the power supply’s current rating exceeds the coil’s pull-in current by at least 30%–for example, a 1A coil demands a 1.3A or higher source. Place a flyback diode (1N4007) directly across the winding terminals, cathode to positive, to suppress voltage spikes during de-energization. Omitting this component risks damaging switching transistors or relays within microseconds.
For high-frequency applications, replace the standard diode with a TVS diode or a zener rated 5–10V above the supply voltage. Use a MOSFET (IRF520N) as the switching element; gate drive requires 10–12V with a 10kΩ pull-down resistor to prevent false triggers. Keep gate traces short and route ground returns separately to minimize inductive coupling. The table below lists optimal component pairings for different coil currents:
| Coil Current (A) | Switching Device | Flyback Protection | Gate Resistor (Ω) |
|---|---|---|---|
| 0.5 | 2N2222 | 1N4007 | 220 |
| 1–3 | IRF520N | P6KE20A | 47 |
| 3–10 | IXFH10N60P | SMBJ15A | 10 |
Dual-coil actuators require isolated driver channels. Use an optocoupler (PC817) for each winding to prevent cross-talk; drive pulses must overlap by ≤10% during transition to avoid deadband locks. For AC-driven loads, replace the DC supply with a triac (BTA16-600B) and snubber network (100Ω + 100nF in series). Phase angle control via a zero-cross detector (MOC3021) ensures smooth operation.
Monitor current flow with a low-side shunt resistor (0.01Ω, 1W) and an operational amplifier (LM358). Scale the amplifier gain to output 1V per amp of winding current–this prevents false readings from PWM noise. For fail-safe redundancy, add a normally closed switch in series with the power path that opens when the control signal exceeds 200ms absence, cutting power to prevent overheating.
Printed circuit board traces carrying coil current should be ≥2mm wide per amp of continuous load; use 2oz copper for currents above 5A. Position the flyback component within 5mm of winding terminals to minimize loop inductance. Always test the completed layout with a current probe–ringing amplitude above 20% of supply voltage indicates insufficient suppression, requiring an additional snubber or revised component placement.
Core Elements of an Electromagnetic Coil Setup
Begin by selecting a power source with a voltage rating matching the coil’s requirements–typically 12V DC for automotive applications or 24V AC for industrial controls. Nickel-cadmium or lithium-ion batteries provide stable current for portable setups, while linear regulators (e.g., LM7812) ensure clean output for sensitive loads. Avoid exceeding the coil’s rated voltage by more than 10% to prevent overheating; use a multimeter to verify input before connection.

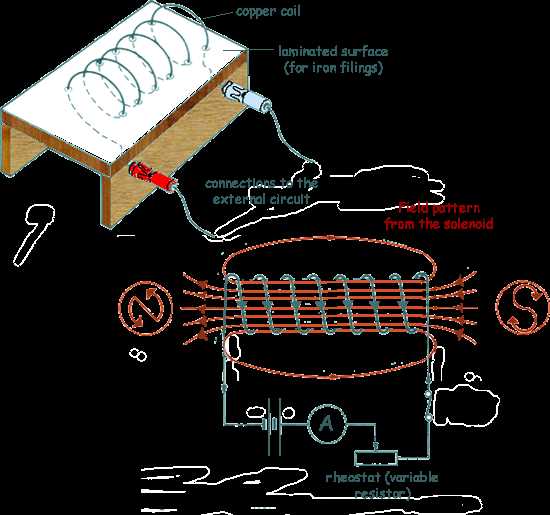

- Coil: Wire gauge (AWG 22–18 for most applications) determines current capacity. Enamel-coated copper wire resists short circuits; wind tightly on a ferromagnetic core (iron or steel) to maximize magnetic flux. A 100-turn coil at 1A generates ~1.25 millitesla, suitable for small actuators.

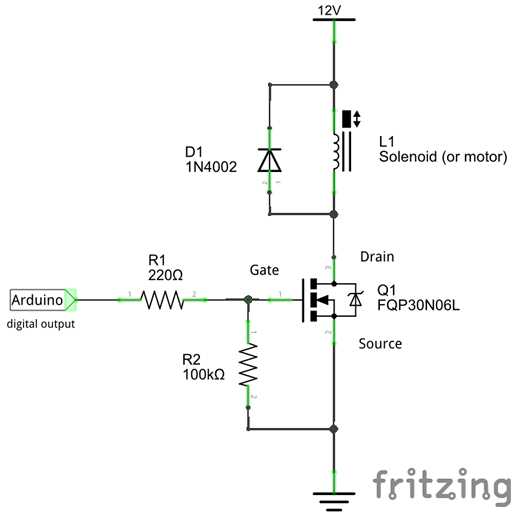

- Switching mechanism: Relays handle high current but introduce lag. For precision, opt for MOSFETs (IRF540N) or solid-state relays. Trigger with a microcontroller (Arduino, STM32) for logic-level control, using PWM to adjust force.
- Protection: Flyback diodes (1N4007) clamp inductive spikes when the field collapses. Fuses (500mA–2A) prevent fires; thermal overload sensors (NTC thermistors) cut power at 80°C.
Ground loops distort readings–use a star topology for returns. For AC coils, add a snubber network (RC: 100Ω + 0.1µF) across switch contacts to suppress arcing. Frame-mounted coils require insulation; nylon or fiberglass spacers isolate from chassis current leaks. Test continuity with a megohmmeter if resistance drops below 10Ω.
Step-by-Step Assembly of an Electromagnetic Coil with Direct Current Supply
Select a 12V DC power supply with a current rating exceeding the coil’s requirements by at least 30%. For example, if the coil draws 2A, use a 3A supply to prevent voltage drop under load. Verify polarity: the positive terminal connects to the coil’s input lead, and the negative terminal grounds the return path.
Strip 6mm of insulation from both coil wires and power supply leads. Twist the exposed strands tightly to avoid fraying. For high-vibration environments, apply a thin layer of solder to reinforce the connection. Use heat-shrink tubing or electrical tape to insulate joints–avoid exposed conductors near metal surfaces.
Mount the coil on a non-conductive base such as phenolic resin or fiberglass. Secure it with M4 nylon screws to prevent short circuits. Position the assembly at least 10mm away from ferrous materials to maintain magnetic field efficiency. If mounting on metal, use nylon washers to create an air gap.
- Connect the positive lead from the power supply to the coil’s input terminal.
- Attach the coil’s output terminal to a switch (e.g., SPST toggle or relay).
- Route the switch’s common terminal back to the power supply’s negative terminal.
For pulsed applications, insert a flyback diode (1N4007) across the coil terminals, cathode to positive. This protects the power supply from voltage spikes up to 1kV. For inductive loads above 5A, pair the diode with a 0.1µF ceramic capacitor in parallel to suppress high-frequency noise.
Test the assembly with a multimeter in continuity mode. With the switch off, confirm infinite resistance across the coil. Activate the switch; resistance should drop to the coil’s specified value (e.g., 5–50Ω). Monitor current draw: if it exceeds the power supply’s rating, check for shorts or miswired components.
Encase the entire setup in a vented enclosure if operating in dusty or humid conditions. Leave 15mm of clearance around the coil for heat dissipation. For 24/7 operation, add a 5mm aluminum heat sink bonded to the coil’s exterior with thermal adhesive, ensuring the sink does not short the windings.
Common Switch Types to Control Actuator Operation
Use a momentary push-button switch for precise, intermittent control. Rated at 12V/5A for standard automotive relays or 24V/3A for industrial actuators, these switches require manual release after activation, preventing unintended hold states. Pair with a latching relay to maintain power without continuous finger pressure–critical for safety in high-current applications like hydraulic valves or heavy-duty locks. Ensure the switch has a spring-return mechanism to eliminate dependency on operator discipline.
For automatic or remote-triggered setups, integrate a solid-state relay (SSR) with opto-isolation. SSRs handle up to 100A at 48V DC without mechanical wear, making them ideal for pulsed or PWM-driven loads where contact bounce would degrade performance. Select zero-crossing SSRs for resistive actuator coils to minimize EMI, or random-turn-on SSRs for inductive loads to accommodate inrush currents. Always include a snubber circuit (e.g., a 0.1µF capacitor in series with a 100Ω resistor) across the SSR output to suppress voltage transients that could damage nearby components.
Mechanical toggle switches remain reliable for manual override in environments with vibration or temperature extremes. Choose snap-action types with gold-plated contacts for low-voltage (
Fuse and Relay Integration in Electromagnetic Valve Control Systems
Always match fuse ratings to the peak inrush current of the coil–typically 30–50% above nominal steady-state current. A 10A actuator drawing 7A continuously requires a 12A–15A slow-blow fuse; standard fast-acting fuses will nuisance trip during startup surges. Position fuses directly downstream of the power source branch to isolate faults without disrupting adjacent components. Use DIN rail-mounted fuse holders with LED indicators for rapid fault identification in enclosed panels.
Relay Coil Protection Techniques
Insert a flyback diode (1N4007) across inductive windings to clamp back-EMF spikes–voltage transients can exceed 300V, destroying relay contacts or driver ICs within milliseconds. For AC-controlled units, substitute the diode with a varistor (MOV) rated at 130% of line voltage; ensure creepage distance complies with IEC 60664 for 240VAC applications. Use sealed relays (IP67) in environments with conductive dust or moisture; contamination on contacts increases resistance, leading to thermal runaway.
Select relays with coil resistance matching the control voltage–common 12VDC coils range 70–180Ω; mismatch causes overheating or failure to engage. For PWM-driven assemblies, specify relays with gold-plated contacts (minimum 1µm thickness) to prevent oxidation from low-current switching. Mount relays vertically to prevent contact bounce from vibration; secure with lock washers against loosening under cyclic loads.
