Build and Understand a DIY Digital Frequency Meter Circuit Design

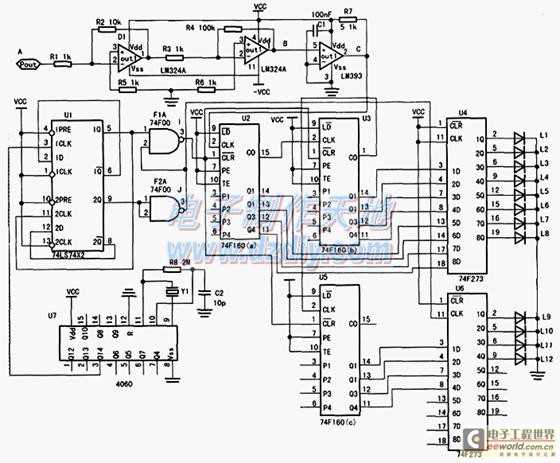

For accurate pulse measurement in the 0–10 MHz range, integrate a Schmitt trigger inverter (e.g., 74HC14) as the primary conditioning stage. This eliminates noise-induced false counts by enforcing a hysteresis threshold of ±1.2V for 5V logic, critical for stable readings when monitoring inductive or noisy sources. Follow with a ripple counter (74LS90) configured in decade mode, cascading multiple units if wider dynamic range is needed.

Decoupling capacitors (0.1 µF ceramic) must be placed within 2 mm of each IC’s power pins to prevent transient distortions from corrupting the count. Ground planes should shield the input traces, especially when sampling signals above 1 MHz, where parasitic inductance (>10 nH/cm) introduces timing errors. For calibration, connect a 10 kHz reference oscillator (e.g., CD4060) to verify counter linearity before field deployment.

Output display demands a BCD-to-7-segment decoder (CD4511) with current-limiting resistors (220Ω–1kΩ). Opt for common-cathode LEDs (e.g., Kingbright SA52-11GWA) to ensure uniformity. For high-frequency applications (>5 MHz), replace the 74LS90 with a faster ripple counter (74AC161) and reduce trace lengths below 3 cm to avoid skew-induced inaccuracies.

Power supply stability directly impacts resolution: a linear regulator (LM7805) with a 10 µF tantalum input capacitor guarantees 6N136) before the input stage, ensuring a 200 ns propagation delay is factored into timing budgets. Always test with a 50Ω terminated signal to simulate real-world impedance conditions.

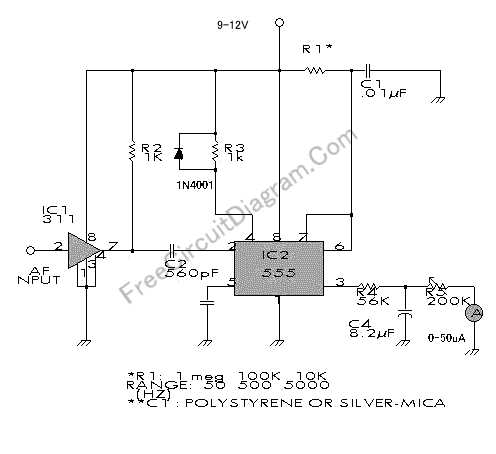

Building a Precision Signal Counter: Key Schematic Insights

Select a microcontroller with a dedicated timer/counter peripheral for accurate pulse measurement. The ATmega328P or STM32F103 are optimal choices, offering 16-bit counters capable of handling up to 65,535 pulses per sampling window without overflow at standard clock rates. Avoid 8-bit variants unless input rates are strictly limited to <255 Hz.

Use a Schmitt trigger at the input stage to suppress noise. The 74HC14 hex inverter excels here–configure one gate as a buffer with hysteresis, setting thresholds at 0.8V (low) and 2.0V (high) for 5V logic. This prevents false counts from ringing on slow edges, critical for signals below 1 kHz.

For signals exceeding the microcontroller’s maximum input frequency (~8 MHz for most 8-bit cores), implement a 10:1 prescaler using a 74HC4017 decade counter. Feed the original waveform into its clock pin and take the output from Q9, effectively dividing the rate by ten. This extends the measurable range to 80 MHz while maintaining ±1 count resolution.

Gate the measurement window with a quartz oscillator. A 32.768 kHz crystal paired with the microcontroller’s real-time clock module yields precise 1-second intervals. Alternatively, use an external CD4060 oscillator/divider for standalone applications, where stability is more critical than flexibility. Accuracy drops to ±10 ppm with temperature-compensated crystals, versus ±50 ppm for standard resonators.

Display the result on a four-digit seven-segment module driven by serial-in parallel-out shift registers (74HC595). This reduces pin count–only three lines (data, clock, latch) suffice for multiplexing all digits. For portability, replace the display with an I2C LCD, but note the ~30% increase in current draw and slower update rate.

Calibrate the system by injecting a known reference signal. A 555 timer in astable mode, configured for 1 kHz (1 kΩ resistor, 0.1 µF capacitor), provides a stable test source. Adjust the gate time by ±1% to verify count linearity–deviations above ±0.5% indicate oscillator drift or counter misconfiguration.

For battery-powered devices, minimize current with the following: sleep modes between measurements, low-power op-amps (LMV358) for signal conditioning, and disabling unused microcontroller peripherals. Expect <2 mA draw at 3V3 for typical operation, dropping to <50 µA in standby when using deep sleep states.

Key Components Required for a Basic Pulse Rate Tracker

Select a microcontroller with sufficient clock speed–opt for an 8-bit AVR like the ATmega328P or a 32-bit ARM Cortex-M0. Ensure it has a dedicated counter/timer peripheral capable of handling at least 16-bit resolution for precise measurements. Avoid units lacking hardware input capture; software polling introduces jitter and skews readings.

Use a signal conditioning stage tailored to the input waveform. For TTL pulses, a simple Schmitt trigger gate (e.g., 74HC14) stabilizes edges by eliminating noise. For sine waves or weak signals, employ an op-amp comparator (LM393) with hysteresis set to 10–20% of the peak amplitude. AC signals require clipping via a diode (1N4148) and resistor divider to avoid damaging the MCU’s GPIO.

For time-base accuracy, integrate a quartz oscillator module. A 16 MHz crystal with 22 pF load capacitors suffices for general use, but for ±10 ppm stability, choose a temperature-compensated oscillator (TXCO) like the FOX924B. Low-power applications benefit from a 32.768 kHz watch crystal, though this trades resolution for extended battery life.

A display interface demands minimal latency. Seven-segment LEDs with a MAX7219 driver simplify wiring but limit refresh rates. For dynamic updates, pair an OLED (SSD1306) with I2C at 400 kHz; SPI offers faster rendering but consumes more pins. Avoid multiplexed LCDs–delays between digit drives corrupt counts.

Include isolation and protection components: a series resistor (1kΩ) on input lines prevents latch-up during voltage spikes. Optocouplers (PC817) isolate high-voltage inputs like mains-derived pulses. For portable designs, add a Schottky diode across the power supply to clamp reverse currents from inductive loads.

Step-by-Step Assembly of a Microcontroller-Based Signal Counter

Begin by selecting an 8-bit microcontroller with at least 16 MHz clock speed–such as the ATmega328P–for optimal processing of incoming pulses. Ensure the board has sufficient GPIO pins (minimum 3: input, ground, and power) and a UART interface for data output. Verify the input voltage tolerance matches your sensor’s output; most Hall-effect or optical sensors emit 3.3V–5V pulses.

Construct a conditioning network using a 1 kΩ resistor and a 100 nF ceramic capacitor in series with the pulse source to suppress noise. If the signal amplitude exceeds 5V, add a voltage divider (two 10 kΩ resistors) or a Zener diode (5.1V) to protect the microcontroller’s input pin. For weak signals, amplify using an LM358 op-amp with a gain of 10× (configured via 10 kΩ and 100 kΩ resistors).

Program the microcontroller with a timer-based counting algorithm. Use Timer1 in CTC mode (Clear Timer on Compare Match) with a 1-second gate time. Initialize the timer registers as follows:

Register	Value (Hex)	Purpose
TCCR1B	0x0B	Prescaler 64, CTC mode
OCR1A	0x3D09	Counts to 15625 for 1-second interval
TIMSK1	0x02	Enable compare match interrupt

Upload the code via ISP (In-System Programming) using AVRDUDE with the command: avrdude -c usbasp -p m328p -U flash:w:freq_counter.hex.

Solder the components on a perforated board, grouping the conditioning network near the input connector to minimize lead inductance. Use a 0.1-inch pitch for all through-hole components. Route power traces (VCC and GND) as wide, parallel lines (minimum 1 mm width) on opposite sides of the board to reduce noise coupling. Add a 10 µF electrolytic capacitor across the power rails at the microcontroller’s power pins.

Connect the pulse source directly to the microcontroller’s interrupt pin (e.g., Arduino Pin 2 for INT0). Configure the interrupt for rising-edge triggering to count each pulse transition. Avoid using software delays in the interrupt service routine (ISR); instead, increment a volatile 32-bit counter variable. Reset the counter to zero after each gate-time cycle (1 second) and store the result in a buffer for serial transmission.

For calibration, feed a known reference signal (e.g., 1 kHz from a function generator) into the input. Adjust the timer’s OCR1A value empirically if the measured count deviates by >0.1%. Add a 16×2 LCD via I2C (PCF8574 backpack) to display real-time readings, or transmit data over UART at 9600 baud for logging. Use the following serial output format: <Count>Hz
, e.g., 1250Hz.

Enclose the assembly in a grounded aluminum chassis, with BNC or banana connectors for input/output. Keep signal traces ≤5 cm from the microcontroller to the connectors to prevent EMI. Test the counter with signals from 1 Hz to 1 MHz; verify linearity by plotting measured vs. reference values. For signals above 1 MHz, reduce the gate time to 0.1 seconds and multiply the result by 10 to retain resolution.

Calculating Input Signal Conditioning for Precise Rate Detection

Begin by selecting a coupling method that matches the signal’s waveform. For sinusoidal inputs, AC coupling with a high-pass filter (cutoff below 1 Hz) eliminates DC offsets without distorting the zero-crossings. Pulse trains demand DC coupling to preserve amplitude integrity–calculate the time constant (τ = R×C) to ensure it’s at least 10× the longest period of the input.

Attenuate high-amplitude signals using a resistive divider. For a 15 V peak-to-peak input scaled to 5 V logic levels, apply:

• R₁ = 10 kΩ
• R₂ = 5 kΩ
• Input impedance = R₁ ∥ R₂ ≈ 3.3 kΩ

Ensure the divider’s impedance doesn’t load the source–verify with Z_source < 1/10 Z_divider.

Apply hysteresis to noisy edges via a Schmitt trigger. For a 3.3 V system, set:

• Upper threshold (V_T+): 1.8 V
• Lower threshold (V_T−): 1.2 V
• Hysteresis width: 0.6 V (±0.3 V)

Use a comparator with push-pull output (e.g., LM393) or a dedicated gate (e.g., 74HC14) to avoid propagation delays exceeding 50 ns.

Limit bandwidth to reject aliasing. For a 10 MHz maximum count rate, install a low-pass filter with:

• Cutoff (f_c): 12 MHz
• Order: 2nd (e.g., Sallen-Key topology)
• Components: R = 1.5 kΩ, C = 10 pF

Calculate attenuation at twice the cutoff (−12 dB) to ensure harmonics beyond the Nyquist limit (f_s/2) are suppressed.

Isolate the input stage from ground loops using a transformer or optocoupler. For transformer coupling:

• Turns ratio: 1:1 (for matching amplitudes)
• Core material: Ferrite (e.g., FT37-43)
• Bandwidth: 10 Hz to 20 MHz

Optocouplers (e.g., 6N137) require a forward current (I_F) of 5–10 mA–size the series resistor using R = (V_CC − V_F)/I_F.

Amplify weak signals with a non-inverting op-amp stage. For a 50 mV_RMS input scaled to 3.3 V_PP, use:

• Gain (A_v): 66 (1 + R_f/R_g)
• R_g: 1 kΩ
• R_f: 65 kΩ
• Op-amp: OPA350 (GBW = 38 MHz, slew rate = 22 V/µs)

Bypass the supply pins with 0.1 µF ceramic capacitors, placed < 2 mm from the IC.

Compensate for temperature drift in passive components. For resistors, use metal-film types with TCR < 50 ppm/°C. For capacitors, select COG/NP0 ceramics (temperature-stable) or film (polypropylene) for values > 1 nF. Recalculate filter thresholds if operating outside 0–70°C.

Validate the conditioned signal with an oscilloscope before processing. Check for:

• Overshoot/ringing < 5% of amplitude
• Rise/fall times < 10% of the shortest period
• Noise floor < −40 dB relative to peak

Use a 10× probe with bandwidth ≥ 2× the highest harmonic (f_max) to avoid loading effects.
