How to Wire a Light Switch and Outlet Combo Step by Step Guide
Install a single-pole toggle paired with a dual-receptacle using a 12-gauge NM-B cable for 20-amp circuits. Route power from the service panel to the control point first, then split to the socket downstream. Use black wire for the hot feed, white for neutral, and bare copper for ground–never omit grounding on metal boxes.

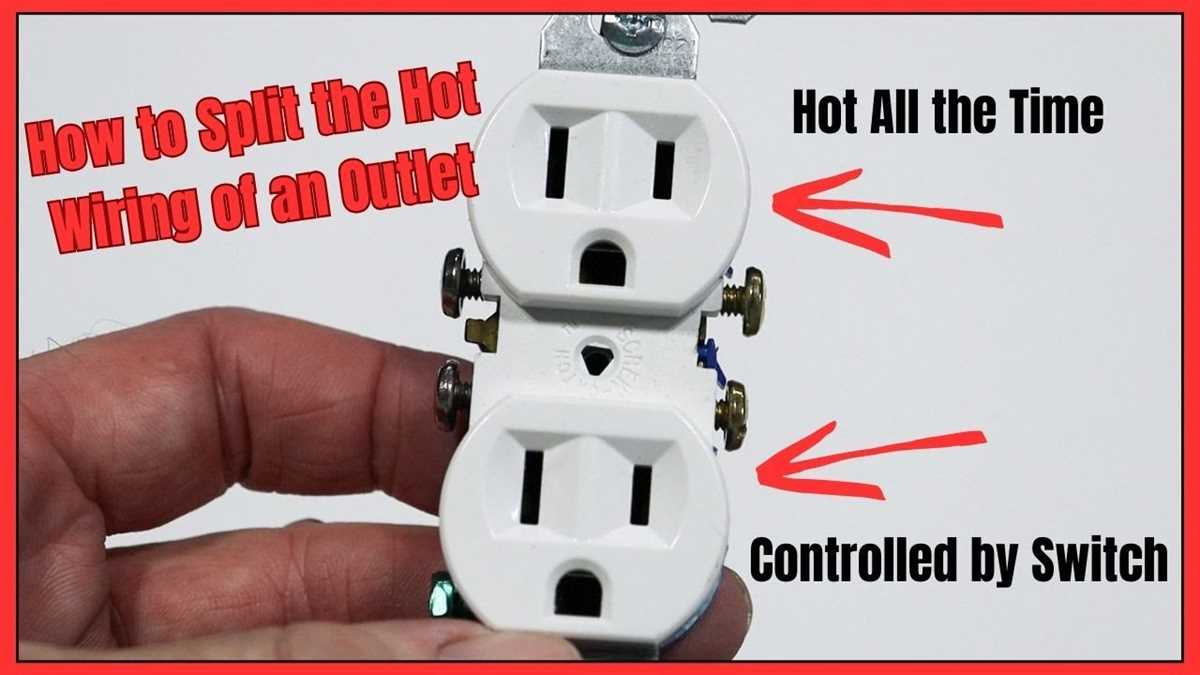

For a half-switched receptacle, connect the hot wire to the brass terminal of the toggle, then jumper to the upper socket’s brass screw. The white neutral attaches directly to the silver prong slot on both outlets. Tie grounds together with a pigtail secured to the box with a green grounding screw. Test polarities with a non-contact voltage pen before energizing.

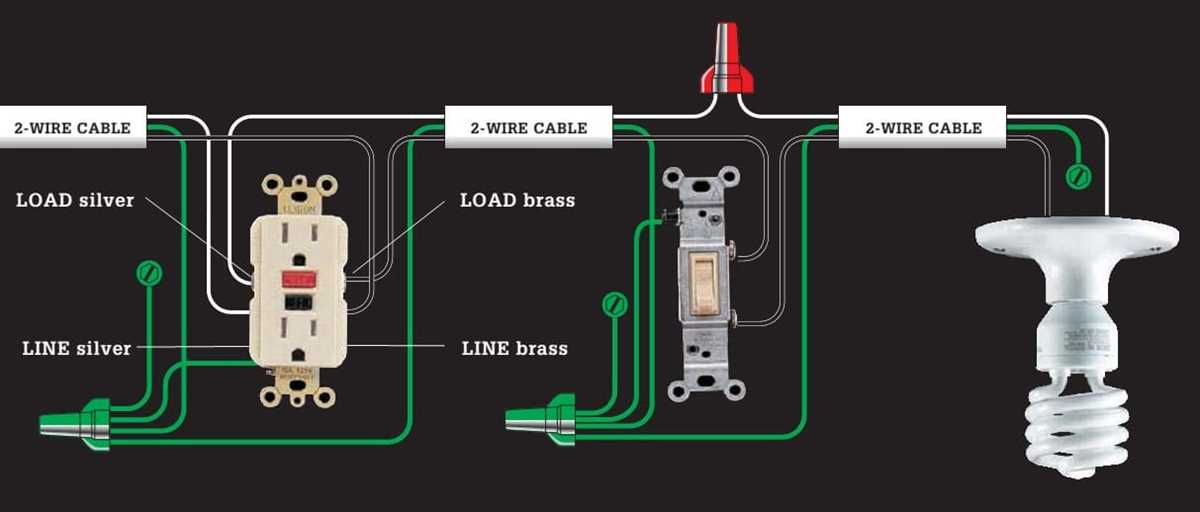

If incorporating GFCI protection, install the first device at the power source, labeling downstream points “GFCI Protected.” Wire the toggle to the LOAD terminals of the GFCI to extend protection. Avoid connecting neutrals from different branches–this triggers nuisance tripping. For split-circuit sockets, break the tab between brass screws and run separate hot feeds for each half.
Meter box fill calculations: #12 wires count as 2.25 cubic inches per conductor; a single gang metal box must have a minimum volume of 18 cubic inches to accommodate three 12-gauge wires plus device. Strip ½ inch of insulation from ends, loop clockwise around screws, and tighten to 12 inch-pounds–overtorquing damages threads or snaps conductors.
For old-work retrofits, fish cable through existing plaster-and-lathe using steel fish tape coated in talc to reduce friction. Secure NM cable within 12 inches of boxes using insulated staples; maintain ¼-inch clearance from the edge of studs. If removing a broken toggle, mark hot wires with red tape–accidental re-energization causes arcs.
How to Wire a Combined Fixture Control and Receptacle
Always confirm power is off at the circuit breaker before handling any conductors. Use a non-contact voltage tester on all wires to verify de-energization. Incorrect connections can create short circuits, severe shock, or fire hazards.
For a standard installation, you’ll need:
- 12 AWG or 14 AWG copper wire (stranded or solid)
- Single-pole toggle or rocker mechanism
- Grounded duplex receptacle, 15A or 20A rating
- Wire nuts, pigtails, or push-in connectors
- Electrical box rated for combined devices, min. 18 cu. in. volume
Install the electrical box at the desired height, typically 48″ from finished floor to center. If retrofitting an existing box, ensure it has adequate volume–add a mud ring or extender if necessary. For new work, use a deep single-gang box or a two-gang box split horizontally.
Run supply cable (hot, neutral, ground) from the circuit breaker panel to the box. If the receptacle should remain live regardless of toggle position, tap the supply hot wire directly to one brass terminal on the outlet. For a half-hot configuration, splice the neutral to both devices–connect neutral and ground to their respective terminals on the outlet first.
Connect the toggle’s common terminal to the supply hot wire. Route the switched conductor from the toggled terminal to the remaining brass terminal on the outlet–this makes the outlet controllable. If both devices must share the same hot feed, use a pigtail from the supply hot wire to the toggle and a second pigtail from the toggle’s switched terminal to the outlet.
Grounding and Termination
Secure all ground conductors together–include pigtails to both the toggle’s green screw and the outlet’s green grounding terminal. Twist clockwise before capping with a wire nut to ensure tight mechanical grip. Fold conductors neatly into the box, avoiding sharp bends that may stress wire strands. Attach device mounting straps to the box with 6-32 machine screws, tighten evenly to prevent misalignment.
Testing and Final Checks
Restore power at the circuit breaker. Verify the toggle operates the outlet correctly using a plug-in tester. For a half-hot configuration, confirm the untoggled outlet slot remains live. Check for proper grounding with a receptacle tester–both slots should indicate correct wiring including ground. If readings show open neutral or reversed polarity, recheck all connections immediately.
Replace the cover plate after ensuring no exposed conductors extend beyond the box edges. Label the circuit at the breaker panel and document the configuration (e.g., “Wall Combo–switched bottom outlet”). Keep installation notes accessible for future maintenance or modifications.
Essential Gear for Combining a Wall Control and Receptacle Installation
Begin by gathering a multimeter with a minimum 600V AC rating to verify circuit deactivation before handling conductors. Equip yourself with insulated lineman’s pliers (10-inch) and diagonal cutters (8-inch) for stripping 12- or 14-gauge NM-B cable, ensuring clean cuts without nicking copper strands–critical for avoiding hotspots. Include a non-contact voltage tester for rapid live-wire detection, along with a fiberglass fish tape (25-foot) to route cables through 1/2-inch EMT conduit where stud spacing exceeds 16 inches. A torque screwdriver (adjustable up to 20 in-lbs) complies with NEC 314.43 for securing terminal screws, while a 7/16-inch nut driver speeds ground wire attachments. Keep a roll of 3M Super 33+ electrical tape (10 mil thickness) for insulating backstab connections, which lack the mechanical reliability of screw terminals.
Opt for a dual-gang PVC wall box rated for 20 cubic inches (per NEC 314.16) to accommodate both the toggle and receptacle without overcrowding. Use pre-stripped THHN conductors (solid copper, #12 AWG for 20A circuits) for consistent terminations, avoiding stranded wire in backstabs–it’s prone to loosening. A Klein KT-315 clamp meter measures current draw at the receptacle (expect ≤15A for general-use circuits) without breaking connections. Include UL-listed tamper-resistant receptacles (NEMA 5-20R) for child-proofing, and a GFCI breaker if the circuit serves wet locations. For plaster walls, retrofit with a mud ring extender (1.5-inch depth) to align the plate flush, using #8-32 machine screws for secure mounting.
How to Install a Control Device and Power Receptacle in One Circuit
Turn off the circuit breaker labeled for the area where you’ll work. Use a non-contact voltage tester to confirm no current flows to the wires. Strip 12mm of insulation from the three cables: live (usually black or red), neutral (white), and ground (bare copper or green). For a standard toggle combined with a socket, connect the incoming live wire to the brass screw on the control mechanism–this becomes the common terminal. Attach the outgoing live wire (to the fixture) to the remaining brass screw. Twist the neutral wires together, adding a short pigtail (same gauge as the cables) to connect to the silver screw on the receptacle. Secure the ground wires under the green screw on both the control device and the socket, then join them with a wire nut if needed.
Mount the electrical box, ensuring it sits flush against the wall stud. Screw the faceplate to the box, tucking wires neatly inside. Restore power at the breaker and test by flipping the toggle–if the fixture responds, proceed to check the socket with a plug-in tester. If the tester shows correct polarity but no power, verify the neutral connection at the silver terminal; loose neutrals are the most common failure point in these setups.
Wiring a Dual-Function Control and Receptacle in a Shared Power Configuration
Ensure the breaker is off before handling terminals. Connect the incoming hot wire (typically black) to the brass screw marked *Common* on the combo device–this powers both the receptacle and one side of the toggle. Attach the neutral (white) to the silver screw on the receptacle side only; do not link it to the toggle circuit if splitting. For the switched half, run a red conductor from the toggle’s remaining brass screw to the fixture or device being controlled, securing it tightly to prevent arcing.
Test continuity with a multimeter after securing all connections. If the receptacle must remain energized while the toggle flips an independent load, cap the red wire at the combo unit and pigtail it to the fixture separately–keeping the shared hot intact. Verify polarity at the outlet using a plug-in tester before restoring power.
Critical Errors to Evade During Electrical Fixture Installation
Reverse polarity occurs when the neutral and live conductors are swapped, creating a severe shock or fire risk. Verify connections using a non-contact voltage tester before sealing the junction box–miswired terminals can energize the entire circuit even when the control is off. The brass screw must secure the hot (black) wire, the silver screw the neutral (white), and the green or bare wire the ground. Confusing these risks damaging appliances or causing shorts in dual-function setups where a receptacle shares the circuit.
Frequent Installation Pitfalls and Solutions
| Error | Consequence | Fix |
|---|---|---|
| Ignoring wire gauge for load | Overheating, potential meltdown | Use 12 AWG for 20A circuits; 14 AWG only for 15A |
| Loose terminal screws | Arcing, intermittent faults | Tighten to 12-15 in-lbs; wrap wire clockwise under screw |
| Skipping ground connection | No fault protection | Attach ground wire to metal box and device; use pigtail if needed |
| Mixing GFCI and standard devices | Tripped protection or no protection | Install GFCI upstream if combining with standard receptacles |
Overloading a single circuit by daisy-chaining multiple fixtures without calculating amperage draws leads to breaker trips or worse. A 15A circuit supports up to 1,800W; exceeding this by adding high-wattage bulbs or appliances demands a dedicated line. Always consult NEC tables for derating factors–ignoring them reduces safety margins by up to 20%. Label circuits clearly to avoid future confusion during maintenance or upgrades.
