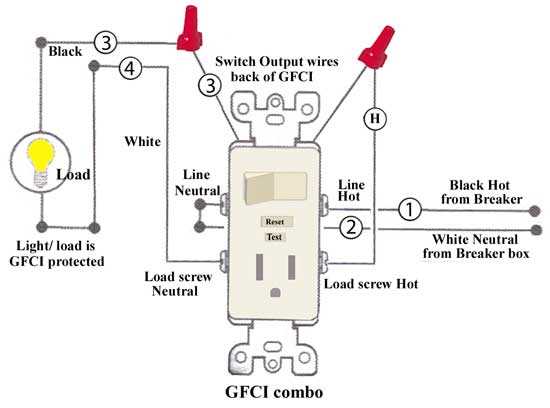

How to Wire an Eaton GFCI Receptacle Step-by-Step Guide with Diagram
For a fault-current interrupter outlet hookup that meets NEC 2023 standards, connect the supply wires directly to the marked LINE terminals of the device–black to brass (hot), white to silver (neutral), and ground to the green screw. Avoid pigtailing the neutral on the LOAD side unless downstream protection is explicitly required; this prevents nuisance tripping from shared neutral paths.
Verify proper operation by pressing the TEST button–current leakage above 5 mA should trip the unit within 25 milliseconds. If the RESET button fails to restore power after tripping, check for reversed polarity or loose connections at the terminals. Wire nuts must be tightened to 12 inch-pounds for 14 AWG conductors to prevent overheating at splice points.
When extending protected circuits to additional outlets, use 12-gauge THHN copper wire for runs exceeding 50 feet to maintain voltage stability. Secure all cables with 1/2-inch EMT straps spaced at 4.5-foot intervals for compliance with Article 358 of the NEC. For outdoor installations, apply a weatherproof in-use cover rated NEMA 3R to prevent moisture infiltration at the terminal block.
Before finalizing the panel, measure voltage between hot and neutral (120V ±3V) and hot-to-ground (
How to Connect a Safeguard Power Outlet Properly
Begin by identifying the line terminals on the safety outlet–these are marked with “Line” and accept the incoming power cables. Strip 5/8 inch of insulation from each conductor, ensuring the copper is exposed but not frayed. Insert the black (hot) wire into the brass screw terminal and the white (neutral) wire into the silver screw terminal, tightening each with 12 inch-pounds of torque. The ground wire (green or bare) must connect to the green grounding screw–do not omit this step, as it prevents hazardous shock conditions.
For downstream protection, use the load terminals: attach additional outlets or fixtures only if they require the same fault protection. Connect the remaining wires to the marked “Load” screws, matching polarity (black to brass, white to silver). Avoid exceeding 12 AWG wire gauge on these connections; thicker wires may not secure properly under the clamp. Test the setup with a circuit analyzer before finalizing the installation–this verifies correct polarity and ground integrity.
Follow these steps if the device fails to reset after installation:
- Disconnect all wires from both line and load terminals.
- Reattach only the line wires, then attempt to reset the outlet.
- If successful, reconnect load wires one at a time to isolate the fault.
- Check for tripped breakers, loose connections, or damaged insulation.
- Replace the outlet if the test button does not produce a trip–this indicates internal failure.
For installations in damp locations (bathrooms, kitchens, outdoor enclosures), seal the electrical box with a waterproof gasket and faceplate. Use weather-resistant enclosures rated NEMA 3R for exterior applications. Always verify local code requirements–some jurisdictions mandate dedicated circuits for these safeguard outlets, especially near water sources. Keep a multimeter on hand to measure 120V between hot and neutral terminals post-installation, ensuring no voltage leaks to ground.
Installation Walkthrough for Safe Electrical Protection Devices
Before handling live circuits, confirm the breaker is off using a non-contact voltage tester. Remove the faceplate and disconnect any existing terminals, noting wire colors and positions. For new installations, strip 5/8″ of insulation from copper conductors–ensure no stray strands touch adjacent connections. Line terminals accept black (hot) and white (neutral) wires from the power source; load terminals connect downstream outlets if required.
Connecting Conductors Precisely
Attach the stripped wires to their designated screws: brass-colored screws for hot, silver-colored for neutral. Torque each screw to 12-14 inch-pounds–overtightening can damage strands; undertightening risks loose connections. If including ground, secure the bare or green wire to the green screw at the bottom. For circuits without grounding, verify local codes allow ungrounded configurations before proceeding.
Fold wires neatly into the box, ensuring no bare metal contacts the device’s sides. Push the assembly into the wall cavity gently–force can misalign internal components. Secure the mounting straps with the provided screws, leaving just enough space to avoid compressing wires. Reattach the faceplate, then restore power at the breaker to test functionality.
Press the “TEST” button; the device should trip immediately with an audible click. Reset using the “RESET” button to verify proper latching. If no trip occurs, revisit connections–common issues include reversed line/load wires or a defective unit. For downstream protection, repeat testing with additional outlets: tripping the first should deactivate all linked devices.
How to Pinpoint Incoming and Outgoing Connections on a Smart Safety Device
Locate the embossed markings on the back of the device: the upper pair denotes the source side, the lower pair the protected side. These labels are stamped directly into the plastic housing and remain visible even if the warning stickers peel off. Never assume terminal position–always confirm by tracing the physical imprint.
Test each terminal with a non-contact voltage detector before making any connections. The primary pair will register live voltage if the circuit breaker is on, while the secondary set will stay dead until the device is properly configured. This differentiation guarantees correct polarity and function.
Visual Indicators Beyond Markings
The brass screws on the primary terminals are often slightly larger and positioned farther apart than the secondary screws. Additionally, the plastic insulation plate usually has a beveled edge above the primary screws for quick identification. If markings are obscured, these subtle design cues serve as reliable backups.
For devices with back-wire holes, the primary side includes shallow entry ports, while the protected side features deeper, more recessed openings. Matching wire gauge to these depths prevents accidental mis-wiring during push-in installations.
Always secure connections with a torque screwdriver–manufacturer specifications require 14-18 inch-pounds for brass screws. Loose contacts risk nuisance tripping or failure under load, while overtightening can strip threads or crack the housing.
Common Pitfalls with Safety Outlet Installation
Avoid connecting the line and load terminals incorrectly–this disrupts ground fault protection. The brass screws (hot/live) must receive power from the circuit breaker, while silver screws (neutral) link to the neutral bus bar. Swapping them causes the device to trip constantly or fail to reset. Verify polarity with a multimeter before securing connections: line voltage should measure ~120V between hot and neutral at the line terminals, zero at the load terminals until downstream devices are added.
| Error | Consequence | Fix |
|---|---|---|
| Loose wire nuts on pigtails | Intermittent faults, overheating | Use crimp sleeves + heat shrink, torque to 12 in-lbs |
| Ignoring back-wire clamps | Wires pull free under strain | Remove 0.5″ insulation, insert fully, tighten screws to 15 in-lbs |
| Mixing circuits on load side | False trips, unintended protection loss | Dedicate downstream outlets to one circuit only |
Essential Equipment for Safe Electrical Outlet Upgrades
Use a voltage tester with both non-contact and probe-based detection to confirm circuits are dead before handling any connections. Models like the Fluke 1AC or Klein NCVT-3 offer dual verification–critical for preventing accidental shocks when working with live wires. Avoid reliance on single-function testers, as false negatives can occur near conductive materials.
A quality wire stripper with precise cutter notches (e.g., Ideal 45-121 or Knipex 12 40 200) prevents nicks in copper conductors. Damaged wires increase resistance and create potential failure points. Look for tools with calibration markings for 12-14 AWG wires–standard for residential outlets–and ergonomic grips to reduce hand fatigue during repeated stripping.
Needle-nose pliers with insulated handles (rated for 1000V) are indispensable for bending looped ends of wires and guiding them into terminal screws. Opt for pliers with serrated jaws like Channellock E346 for better grip on slippery copper. For tight spaces, miniature versions (e.g., Xcelite 278SA) access confined junction boxes without damaging adjacent cables.
For grounding screws and mounting straps, an electric screwdriver with torque control (such as DeWalt DCE200B) prevents over-tightening, which can strip threads in plastic boxes or crack brittle outlet housings. If working manually, a magnetic-tipped Phillips #2 driver helps secure screws in awkward angles without dropping them into wall cavities.
Keep fish tape (1/8″ steel, 25′ length) and flexible drill bits (e.g., Dewalt DW1997) on hand for retrofits through finished walls. For older installations with aluminum wiring, carry instant-oxidation inhibitor paste (NOALOX or equivalent) and approved connectors to prevent overheating at connections. A headlamp with adjustable brightness (Petzl Actik Core) provides hands-free illumination in dimly lit work areas.
