DIY LED Moving Text Display Schematic Guide for Builders

Select a microcontroller with at least 8 KB of flash memory and 256 bytes of RAM to handle dynamic text rendering efficiently. ATmega328P or ESP8266 modules are optimal for balancing cost and performance–avoid cheaper variants with insufficient interrupts, as they cause visible flickering during updates.

Use a 5×7 dot matrix or 8×8 LED array with common cathode configuration for simpler switching logic. Daisy-chain shift registers (74HC595) instead of multiplexing directly from the microcontroller to prevent ghosting; each register should drive no more than three rows or columns to maintain brightness consistency.

Implement double buffering in your firmware: fill an off-screen buffer with the next frame while the current frame displays, then swap buffers during the vertical blanking interval. This eliminates tearing at refresh rates below 100 Hz. Store character bitmaps in PROGMEM to conserve RAM, using a condensed 5-bit width per column for standard ASCII.

Power the matrix from a dedicated 5V, 2A supply–USB ports often lack sufficient current, leading to dim or erratic outputs. Add decoupling capacitors (100nF) between the supply and ground at each shift register to suppress voltage spikes. For outdoor use, enclose the assembly in a sealed IP65-rated housing with a tinted acrylic cover to reduce glare without compromising visibility.

Test signal timing with an oscilloscope: pulse widths below 20 µs may fail to fully illuminate LEDs, while durations exceeding 1 ms cause smearing. Adjust slew rates on data lines with 220 Ω series resistors to curb ringing–this is especially critical when driving more than 16 cascaded registers.

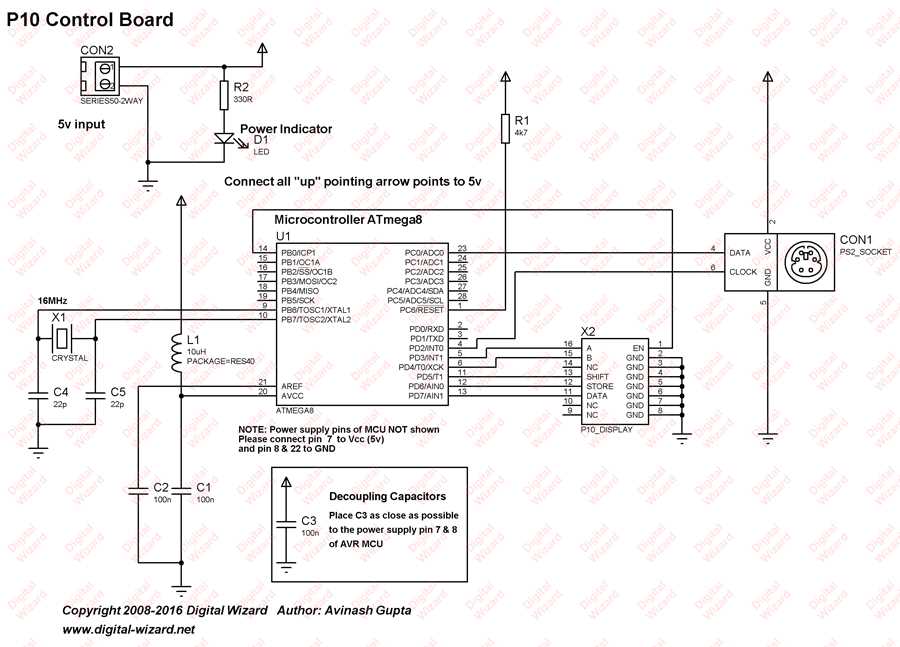

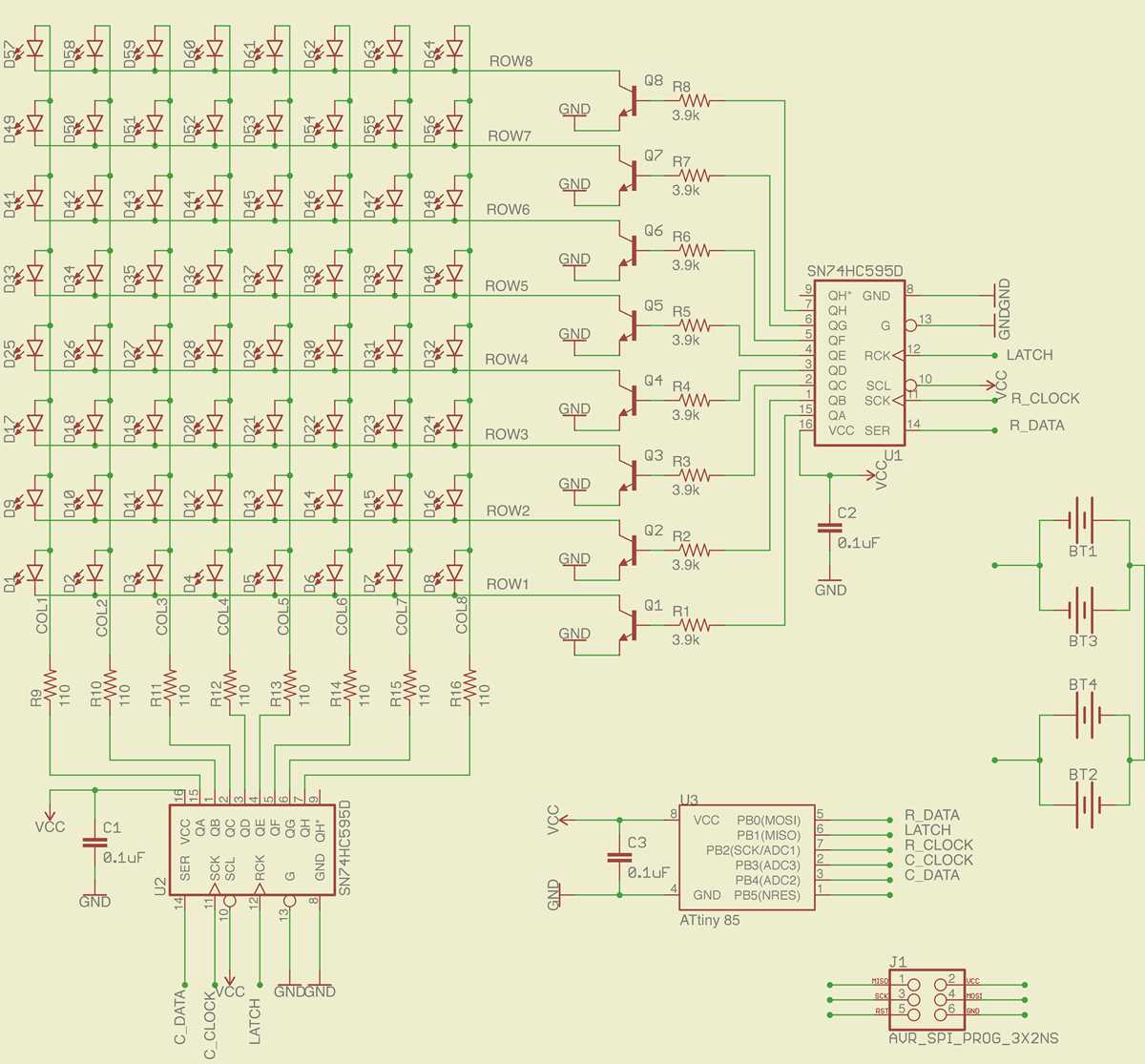

Building a Scrolling Text Indicator with Shift Registers

Start by selecting a 5V microcontroller like ATmega328P or STM32F103 for precise timing control. Pair it with 74HC595 shift registers–each drives 8 segments–chain them for wider matrices (e.g., 4 registers for a 32-column panel). Limit current per segment to 20mA using 220Ω resistors to prevent burnout while maintaining visibility.

Use multiplexing to reduce component count: connect all cathodes/anodes of identical positions to common drivers. For a 8×32 arrangement, 8 row drivers (e.g., ULN2803 for sinking) and 4 column drivers (74HC595 sourced) suffice. Clock the shift registers at 1MHz to ensure flicker-free text; higher speeds risk ghosting due to propagation delays.

• ATmega328P firmware: Timer1 interrupts at 100Hz refresh rate, Timer0 for PWM brightness (8-bit resolution).
• STM32 alternative: Use DMA to offload data transfer, freeing CPU for text rendering.
• Power: 5V 2A supply for 64 segments; add bulk capacitors (100µF) at the input to stabilize voltage dips during transitions.

Wire the control lines: MOSI (data), SCK (clock), and RCLK (latch) to the microcontroller–avoid long traces (>10cm) to minimize noise. For dynamic text, store character bitmaps in PROGMEM (AVR) or flash (ARM) to conserve RAM. Example: A 5×7 font occupies 9 bytes per character, 1KB for 95 ASCII symbols.

Troubleshoot latch timing: Delay RCLK pulse by 1µs after MOSI data completes to prevent partial updates. For outdoor use, swap 220Ω resistors with 120Ω and coat the panel in UV-resistant epoxy. Test thermal dissipation with a 70°C ambient; derate current by 30% if surface exceeds 60°C.

Core Hardware for Dynamic Signage Boards

Opt for a microcontroller with sufficient GPIO pins to handle multiple segments–ATmega328P (Arduino Uno) or STM32F103 (Blue Pill) work reliably for 16×32 matrices. Ensure the MCU has USB or serial support for firmware updates without desoldering.

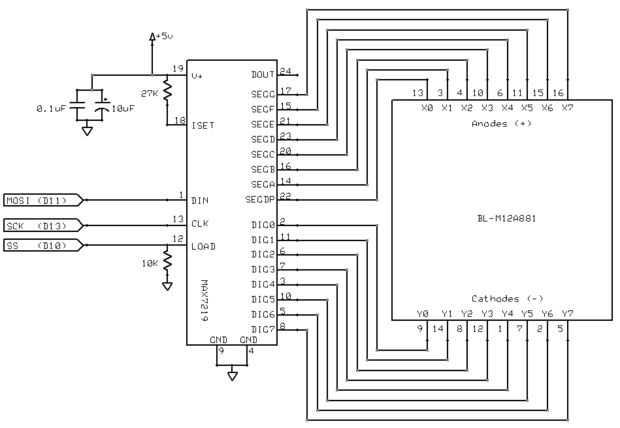

Use shift registers like 74HC595 for cascading output expansion–each handles 8 segments, reducing MCU pin usage. For larger panels, MAX7219 drivers simplify multiplexing with built-in current regulation; they daisy-chain without external resistors. Below are tested component pairs:

Component	Recommended Part	Key Specs
Microcontroller	STM32F103C8T6	72 MHz, 10-bit ADC, 2x SPI/I2C
Driver IC	MAX7219	8-digit, 30 mA per segment, 10 MHz SCK
Shift Register	SN74HC595N	5V tolerant, 100 MHz, 15 LS load
Discrete Elements	1N4007 Diodes	1A forward current, 1000V reverse

Choose 3mm or 5mm diodes with diffused lenses for wider viewing angles–standard clear-lens variants concentrate light too narrowly. For outdoor visibility, use high-brightness red (620-630nm) or amber (590-595nm) for best contrast against sunlight. Avoid blue/white (>4000mcd) in high-ambient areas–they require PWM dimming to prevent eye strain.

Power delivery demands attention: buck converters like LM2596 step down from 12V to 5V efficiently, handling up to 3A. Heat sinks on drivers and regulators prevent thermal throttling during continuous operation. For modular designs, use Molex connectors rated at 2A per contact–barrel jacks degrade under repeated reconnection cycles.

Step-by-Step Assembly of the Dynamic Sign Grid for Moving Characters

Select a 5×7 dot matrix configuration for optimal character clarity–smaller grids compromise legibility, while larger ones increase power consumption and control complexity. Pre-soldered modules simplify assembly; if building from discrete components, use 3mm diffused elements spaced 5mm apart to prevent pixel bleed. Arrange rows and columns on a perforated board or custom PCB, ensuring traces handle 20mA per channel without overheating.

Wire rows to shift registers (74HC595) via common-cathode or common-anode connections–consistency here prevents ghosting. Columns connect directly to microcontroller pins, prioritizing high-current sinking capabilities (e.g., Arduino Mega’s PORT outputs over Uno’s). For scrolling, dedicate separate pins to enable/disable the grid to eliminate flicker during refresh cycles. Calculate resistor values using I=V/R (V_f of 2V, desired 15mA per element), rounding down for brightness uniformity.

Load firmware with timing-sensitive interrupts–use a 10ms refresh interval to balance smooth motion and CPU load. Pre-render each alphanumeric glyph into a 5-byte array (e.g., ‘A’ = {0x7E, 0x11, 0x11, 0x11, 0x7E}), then shift left bytes across columns at 100ms intervals for a 10-character scroll speed. Avoid floating-point math in critical loops; integer arithmetic (e.g., bitwise operations) ensures precise timing on 8-bit controllers.

Test each mosaic independently before combining–use a static pattern (all elements lit) to verify wiring, then a checkerboard to detect shorts or dead channels. For multi-grid setups, daisy-chain shift registers but include decoupling capacitors (0.1µF) at each 595’s V_cc to suppress voltage drops during simultaneous updates. Ground planes reduce noise; if absent, twist signal wires with their return paths.

Optimize power delivery–calculate total current (elements × 15mA + control logic), then add 30% headroom. Linear regulators (LM1117) suffice for 45°C, reflow thermal vias or switch to high-efficiency elements.

Encase the assembly in UV-resistant acrylic–laser-cut the front panel 2mm from the grid to diffuse edges without obstructing angles. Seal the rear with conformal coating (e.g., MG Chemicals 422B) to prevent corrosion from flux residue. For outdoor use, add a silicone gasket and desiccant packet to absorb humidity. Calibrate scroll speed under actual lighting; direct sunlight may necessitate PWM dimming to maintain contrast.

Document the pinout and timing constants in firmware comments–overloading control registers or neglecting debounce delays (50ms minimum) risks erratic behavior. For bilingual support, store glyphs in PROGMEM to free SRAM. Final QA: measure voltage drop across long traces (>20cm) with a DMM–exceeding 0.4V warrants thicker gauge wire or local power feeds.

Programming Microcontrollers for Dynamic Text Output

Begin with initializing an 8-bit timer interrupt for precise scrolling control. Configure the ATmega328P’s Timer2 in CTC mode (WGM21=1) with a prescaler of 64 for 1ms intervals, setting OCR2A to 249. Use the ISR(TIMER2_COMPA_vect) to update char positions in a 16-byte circular buffer, advancing the pointer on each tick while handling wrap-around with bitwise AND (bufferIndex = (bufferIndex + 1) & 0x0F). For multi-segment panels, precompute bitmask arrays for row/column addressing–store these in PROGMEM to conserve SRAM (e.g., const uint8_t columnBits[] PROGMEM = {0xFE, 0xFD, …}). Prioritize non-blocking code: replace delay() loops with state machines tracking elapsed time via millis(), using uint32_t variables to avoid overflow errors (currentTime – previousTime >= interval).

Optimizing Memory for Variable Content

For custom content, pre-parse strings into byte arrays at compile time using macro concatenation (#define PARSE_STR(s) parse(s)). Implement a parser that splits strings into 5×7 pixel chunks, encoding each character into a 5-byte sequence (e.g., ‘A’ → {0x7E, 0x11, 0x11, 0x11, 0x7E}). Use strncpy_P() to fetch strings from PROGMEM dynamically during runtime, avoiding SRAM bloat. For Chinese/Unicode support, encode glyphs in 16×16 bitmaps, doubling the buffer size and mapping Unicode code points via lookup tables (e.g., uint16_t unicodeToIndex(uint16_t code) {return pgm_read_word(&lookup[code – 0x4E00]);}). Minimize refresh latency by enabling double buffering: maintain a “front” and “back” display array, swapping them during vertical blanking periods to eliminate flicker.

Wiring Power Supply and Current Limiting Resistors Correctly

Use a regulated DC source matched to the total voltage drop of your serial chain. For a 5V supply and three indicators in series, each with a 2V forward drop, ensure the remaining voltage (1V) divides evenly or falls within resistor tolerance. Oversupplying voltage risks thermal runaway, while undersupplying causes dim or erratic behavior.

Calculate resistor values using Ohm’s law: R = (V_supply – V_total) / I_desired. For 20mA target current, a 1V drop demands 50Ω resistors. Always round up to the nearest standard value (e.g., 56Ω) to account for supply fluctuations. Verify calculations with a multimeter before full assembly.

• Carbon film resistors (1/4W) suffice for most arrays under 100mA total draw.
• Metal film resistors (1% tolerance) reduce thermal drift in high-precision setups.
• Wirewound resistors handle higher power but introduce inductance–avoid in fast-switching sequences.

Route power directly to the first element in each chain, not through intermediate jumps. Daisy-chaining power rails increases resistance and causes uneven brightness. For parallel branches, dedicate separate resistors to each path to prevent current hogging. Example: six parallel segments of three indicators each need six resistors, not one shared.

Test each chain with a bench supply before connecting all rails. Start at 50% nominal voltage, then ramp up while monitoring current. If any segment draws >5% above calculated value, replace the resistor with the next higher standard. Overcurrent by design is safer than relying on internal regulator compliance.

1. Solder resistors at least 5mm from any junction to minimize heat transfer.
2. Use heat-shrink tubing on resistor leads if adjacent to conductive surfaces.
3. Label resistor values on the backplane for future troubleshooting.
4. Separate high-current grounds from signal returns to avoid ground loops.

For variable-intensity applications, pair a constant-current driver with a PWM source (100Hz–1kHz). Fix the driver’s output to 20mA and adjust duty cycle for brightness control. Avoid linear regulators; their dropout voltage wastes power. Switching regulators (e.g., LM3404) maintain efficiency but require input capacitors (10µF) and output inductors (47µH) for stable operation.
