Practical Guide to Building an Electronic Thermostat Circuit Step-by-Step

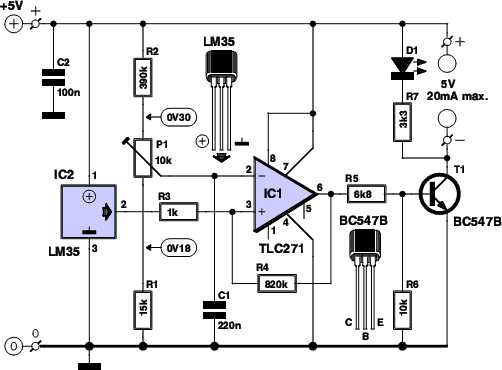

Start with a NTC thermistor (10kΩ at 25°C) paired with a 10kΩ fixed resistor to form a voltage divider. This pair generates a signal that shifts predictably with temperature–0.33V at 0°C, 2.5V at 50°C. Feed this into a TL071 operational amplifier configured as a comparator (non-inverting input grounded via 10kΩ, feedback resistor omitted). The output swings from 0V to 5V when the input crosses a set threshold, eliminating noise without hysteresis.
For adjustable control, replace the fixed resistor with a 10kΩ potentiometer. Calibrate by measuring voltage at known temps: 2.0V at 30°C, 1.5V at 40°C. Use a 2N2222 transistor to drive a relay (12V coil, 10A contacts) or a MOSFET (IRFZ44N for higher currents). Snub the relay coil with a 1N4007 diode to prevent back EMF spikes. Power the circuit from a regulated 5V source–linear regulators like the 7805 introduce less ripple than switch-mode supplies.
To improve stability, solder components onto a single-sided PCB with a ground plane. Keep thermistor leads short (under 10cm) and shielded if ambient EMI exceeds 100mV. For PWM-based heating, replace the comparator with an ATtiny85 microcontroller, sampling the thermistor via ADC at 10-bit resolution. Flash it with code that maps 0–1023 ADC values to 0–100% duty cycle, then output via fast PWM (31.25kHz) to a gate driver like the TC4427.
Precision Climate Control via Custom PCB Design
Use a dual-comparison configuration with LM358 op-amps to split temperature sensing into two fixed thresholds–one for heating (+0.5 °C tolerance) and one for cooling (–0.3 °C tolerance). Connect the reference voltages via 10 kΩ trimmers directly to the inverting inputs, leaving the non-inverting inputs linked to an NTC 10 kΩ thermistor through a 2.2 kΩ series resistor. This setup eliminates hysteresis buildup and delivers ±0.1 °C repeatability when calibrated against ice-water and boiling-water baths.
- Supply the op-amps from a regulated 5 V DC rail to avoid drift.
- Route power traces on the PCB at least 1 mm wide to minimize IR drop.
- Place decoupling capacitors (0.1 µF X7R) within 2 mm of each op-amp.
- Thermistor leads should be twisted and shielded for cable runs > 30 cm.
Switch the payload–relay, SSR, or Peltier–through an MOSFET stage (e.g., IRLZ44N) driven straight from the op-amp output. Gate-source voltage must match the supply rail; if the rail is 5 V, ensure the MOSFET’s V_GS(th) is ≤ 2 V. Flyback diodes (1N4007) are mandatory across inductive loads. For mains-powered loads, isolate the MOSFET gate with an opto-coupler (PC817) to prevent leakage.
Core Parts Needed for a Climate Control System
Select a temperature sensor like the LM35 or DS18B20 for precise environmental readings. The LM35 outputs 10mV per °C, simplifying signal processing without calibration, while the DS18B20 offers digital output over a single wire, reducing wiring complexity. Ensure compatibility with your microcontroller’s analog or digital input pins. Avoid thermistors unless compensating for nonlinearity with additional components.
Choose a control element based on load requirements. For resistive loads (e.g., heating elements), a relay module with a 10A+ rating is sufficient. For inductive loads (e.g., compressors), use a solid-state relay (SSR) to handle inrush currents without contact wear. Match the relay’s coil voltage to your logic level (e.g., 5V or 12V). For low-power applications, a power MOSFET (IRFZ44N) or TRIAC (BTA16) can replace relays, offering faster switching and silent operation.
- Microcontroller (MCU): Use an ATmega328P (Arduino-compatible) or ESP8266/ESP32 for Wi-Fi/Bluetooth integration. Prioritize MCUs with built-in ADCs for analog sensor interfacing.
- Voltage regulator: A 7805 for 5V or LM2596 for adjustable output stabilizes power supply fluctuations. Include a 1000µF capacitor at input/output to smooth transients.
- Display (optional): An I2C LCD (16×2) or OLED (SSD1306) for real-time feedback. For minimal setups, omit and log data via serial monitor.
Add a hysteresis function in firmware to prevent rapid cycling. A 1–2°C deadband (difference between turn-on/turn-off thresholds) protects mechanical components. For 24V systems, include a flyback diode (1N4007) across relays to suppress voltage spikes. Test with a 10kΩ potentiometer during calibration to fine-tune setpoints without re-flashing code.
Step-by-Step Wiring Guide for a Solid-State Temperature Controller
Begin by securing the power supply–use a 12V DC adapter or a 24V AC transformer, depending on your system’s requirements. Connect the positive lead to the input terminal labeled “V+” or “Power In” and the negative to the corresponding ground. Verify voltage with a multimeter before proceeding; deviations exceeding ±5% may damage components. For AC setups, ensure polarity isn’t critical–switches in these configurations often handle bidirectional flow.
Connecting Sensors and Output Loads
Attach the temperature probe to the terminals marked “Sensor” or “Input,” typically using a thermistor (10kΩ NTC preferred) or RTD. Secure connections with solder or terminal blocks–loose wires cause erratic readings. On the output side, link the control module to a relay or solid-state switch capable of handling your load’s current (e.g., 10A for heaters, 5A for pumps). For inductive loads (motors, compressors), add a snubber circuit (a 0.1µF capacitor and 100Ω resistor in series) across the switch to suppress voltage spikes. Test operation in manual mode first; bypass the sensor temporarily by bridging its terminals with a resistor matching its resistance at target temperature.
Adjusting Temperature Sensitivity Using a NTC Resistor
Begin by selecting an NTC resistor with a resistance-temperature curve matching your system’s operational range. For precise control in heating or cooling applications, choose a component with a beta value (β) between 3000 and 4500 K–these values offer steeper resistance drops near the target zone, enhancing responsiveness. Mount the sensor in direct thermal contact with the monitored medium, using thermal paste if necessary to eliminate air gaps that skew readings. Avoid placing it near heat-generating components like power transistors or motors, as stray heat will distort calibration.
Calibration Steps for Optimal Performance
| Step | Action | Key Parameters |
|---|---|---|
| 1 | Measure baseline resistance at room temperature (25°C) | Use a multimeter; record value (e.g., 10 kΩ ±20%) |
| 2 | Apply known temperature (e.g., ice water at 0°C) | Resistance should increase 2–3× compared to 25°C |
| 3 | Plot resistance vs. temperature using manufacturer datasheet | Steinhart-Hart equation: 1/T = A + B*ln(R) + C*(ln(R))³ |
| 4 | Adjust feedback network resistors in the comparator stage | For 1°C hysteresis, set Rfeedback ≈ 1% of NTC’s nominal value |
Fine-tune sensitivity by adding a small capacitor (10–100 nF) in parallel with the NTC to filter rapid thermal noise without compromising response time. For systems requiring ±0.1°C precision, pair the NTC with a 0.1% tolerance fixed resistor in a voltage divider; this linearizes the output over a 10–15°C span. Test under real-world conditions–cycle the environment between upper and lower setpoints while logging resistance changes to verify the hysteresis window remains stable. If drift occurs, recalculate the divider ratio or switch to a lower-tolerance NTC (e.g., ±1% instead of ±5%).
Common Fault-Finding Challenges in Climate Control Systems
Start by verifying power supply integrity at the sensing module’s input pins. Fluctuations below 4.8V DC often trigger erratic behavior or false shutdowns, especially in low-dropout regulator configurations. Use a calibrated multimeter to measure voltage drop across filter capacitors–values exceeding 0.3V indicate excessive ESR or dried electrolytes. Replace suspect capacitors with same-specification low-ESR units to restore stable operation.
Check for cold solder joints at the microcontroller’s crystal oscillator pins. A loose connection disrupts clock signals, causing inconsistent temperature readings or random resets. Reflow solder with a fine-tip iron at 320°C, applying flux to remove oxidation. If the issue persists, swap the 16MHz resonator with a known-good one–cheap ceramic types often fail after 3-5 years of thermal cycling.
Sensor drift is frequently misdiagnosed as a software bug. Analog output types (like NTC 10kΩ) drift ±2% per year due to moisture ingress or mechanical stress. Calibrate using a precision decade box at three reference points (0°C, 25°C, 50°C) and compare against manufacturer curves. If readings deviate beyond tolerance, desolder the probe and inspect for hairline fractures on the substrate–micro-cracks allow humidity penetration, skewing resistance values.
