Step-by-Step Guide to Designing and Interpreting PLC Circuit Diagrams

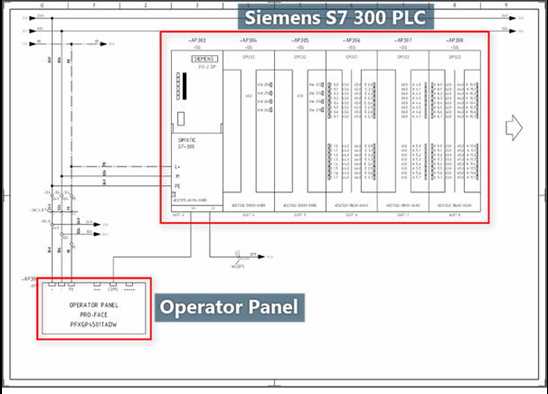

Begin with modular design: Break the control system into functional blocks–power supply, input interfaces, central processor, and output modules. Each block should occupy a distinct section of the layout, avoiding crossed lines. Label every component with a unique identifier (e.g., PSU-01, IN-03) and include a legend at the bottom right corner. Use standardized symbols (ISO/IEC 60617 or ANSI Y32.2) to ensure clarity across teams.

Prioritize signal integrity: Separate high-voltage (24V DC/230V AC) and low-voltage (5V/3.3V) traces by at least 20mm. Route analog signals away from digital or power lines to prevent noise coupling. For critical sensors (e.g., RTDs or load cells), employ twisted-pair wiring and shielded cables grounded at a single point. Indicate grounding points clearly–avoid daisy-chaining.

Validate with simulation first: Before physical assembly, test the logic using software like Siemens TIA Portal or Codesys. Verify scan cycles, ladder logic execution, and fault-handling routines. Simulate worst-case scenarios: simultaneous input triggers, power dips, or sensor failure. Document these test cases as annotations adjacent to the schematic.

Include a bill of materials (BOM) directly on the schematic or as a linked document. Specify part numbers, ratings (e.g., 10A relay, 10kΩ 1% resistor), and manufacturer recommendations. For commissioning, add a checklist with inspection points (e.g., “Verify PSU voltage at TP1 before powering CPU”).

Use color coding strategically: Red for power, blue for negative/common, green for safety circuits (E-stop, guards). Never rely solely on color–label each line textually. For complex systems, split the layout into multiple sheets, each focused on one sub-system (e.g., HMI interface, motor drives). Maintain consistent sheet numbering (e.g., “Sheet 1 of 4”) and cross-reference dependencies.

Future-proof the design: Reserve 10–15% spare I/O points and leave space on the layout for expansion. Include diagnostic LEDs for state monitoring (e.g., “Run,” “Fault,” “Comm OK”). Annotate firmware revision numbers and update requirements near the processor block.

Creating Reliable Industrial Automation Schematics: A Hands-On Approach

Begin by labeling every component with a unique identifier matching the manufacturer’s datasheet. Use a consistent naming convention like *IN-SENSOR-01* for inputs or *OUT-MOTOR-03* for outputs. This prevents signal mismatches during commissioning. Include power ratings (e.g., *24VDC, 500mA*) next to each actuator or relay to simplify troubleshooting.

Isolate high-voltage sections (e.g., 230VAC motor starters) from low-voltage logic (e.g., 12VDC sensors) using separate busbars or terminal blocks. Connect all grounds to a single star point to minimize noise. Avoid daisy-chaining grounds–this causes voltage fluctuations in analog signals. For critical devices like encoders, add shielded twisted-pair wiring and terminate shields at one end only.

Document every wire number on the schematic *and* on the physical terminal. Use heat-shrink labels or durable tags resistant to industrial environments (oil, dust, vibration). Cross-reference inline fuse ratings (e.g., *3A slow-blow*) with device current draw. Omitting this step leads to undetected overloads during startup.

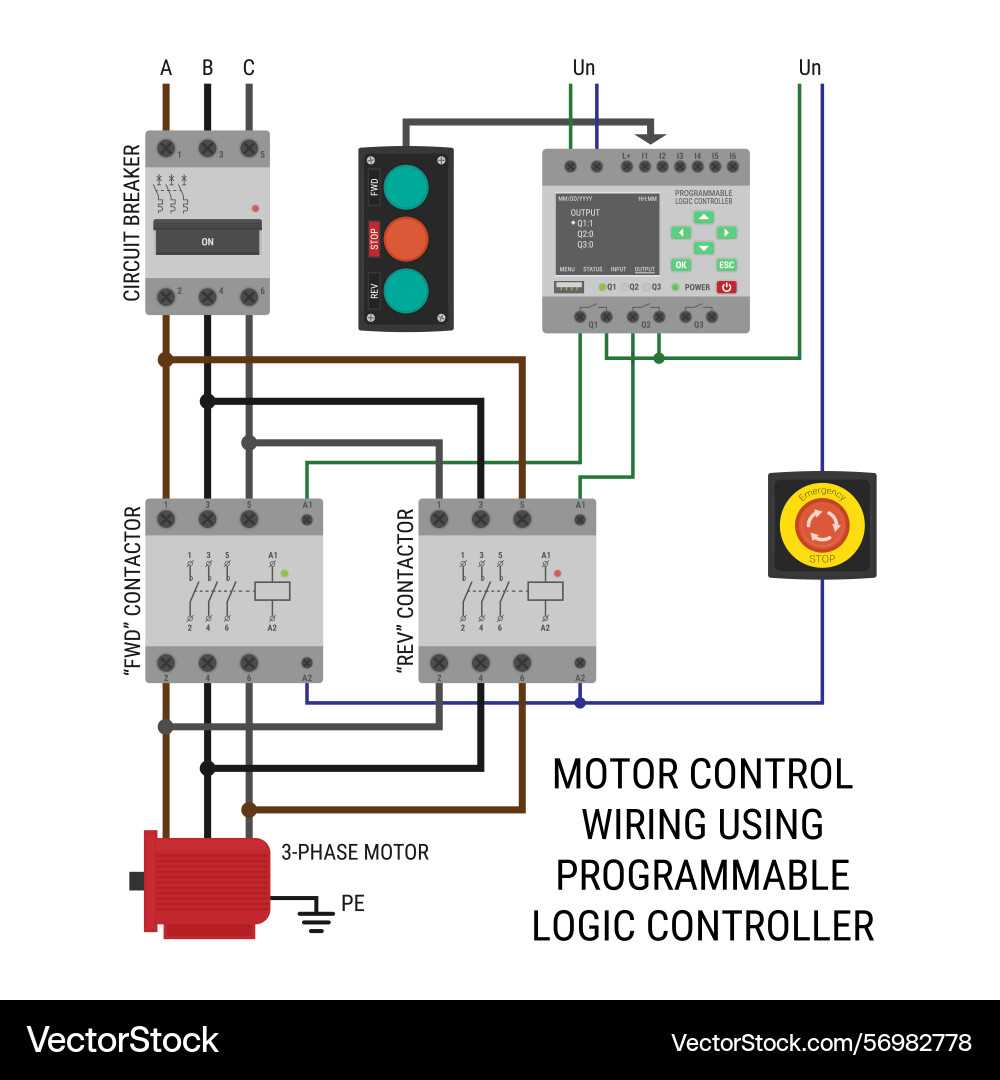

Place emergency stops (E-stops) in series with power to all outputs, not just control relays. Wire them through redundant contacts to ensure fail-safe operation even if a single contact welds. Avoid relying on software-reset E-stops–mechanical disconnection is mandatory for ISO 13849-1 compliance. Test E-stop loops during every maintenance cycle.

Use color-coding for different signal types: red for 24VDC, blue for 0VDC, yellow for analog (4-20mA), and green for digital outputs. Reserve black for high-voltage AC. Include a legend on the first page of the schematic. This reduces wiring errors by up to 60% during panel assembly and future modifications.

How to Interpret Industrial Control System Wiring Schematics

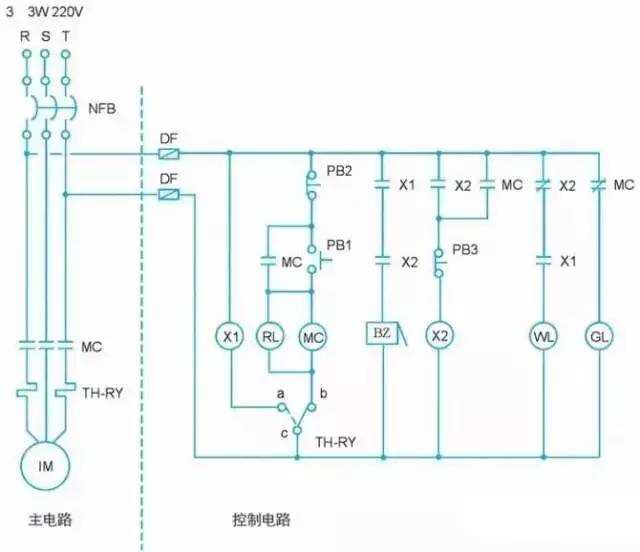

Begin by locating the power distribution lines at the edges of the schematic. These are typically marked with L1, L2, L3 for three-phase supply or L and N for single-phase. Verify voltage ratings (e.g., 24VDC, 120VAC, 230VAC) near conductor symbols–mistakes here risk equipment damage. Ground references appear as dashed or dotted lines and must connect to all relevant components without breaks.

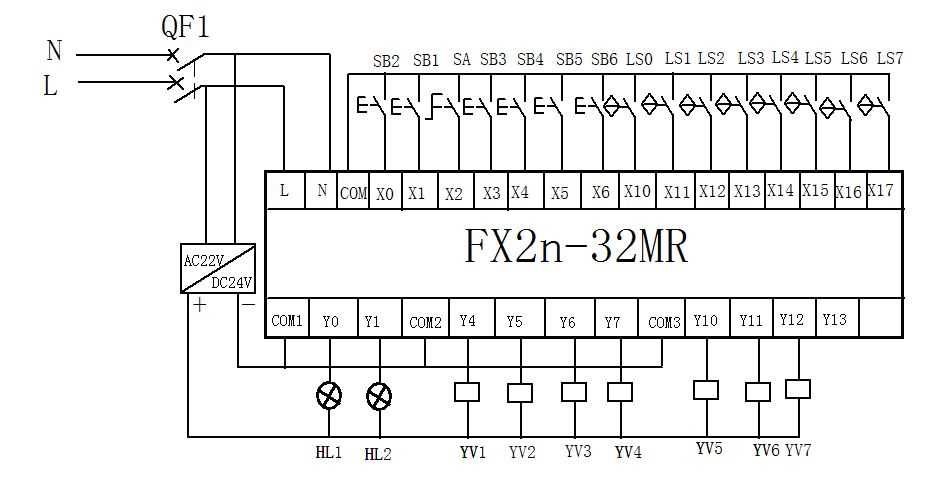

Identify input modules using terminal numbers (I0.0, I0.1) paired with sensor symbols (proximity switches, pushbuttons, temperature probes). Each input should trace back to its source device with labeled wires (e.g., BN for brown, BK for black). For analog signals (4-20mA, 0-10VDC), check scaling annotations next to module ports–zero and span values (e.g., 0V=0°C, 10V=100°C) prevent misinterpretation of readings.

• Outputs follow similar logic but use terminals like Q0.0, Q0.1. Actuators (solenoids, relays, contactors) must show flyback diodes for DC coils or RC snubbers for AC to suppress voltage spikes.
• Communication cables (Profibus, Ethernet/IP) appear as grouped conductors with shielding symbols–confirm pin assignments (e.g., A+/B- for RS-485) match device documentation.
• Motor starters include overload relays with current thresholds (e.g., 2.5A)–ensure these align with motor nameplate data.

Cross-reference symbols against the legend if unfamiliar. Common markings include:

1. Normally open/normally closed contacts: NO/NC with numerical tags (e.g., KM1-13/14 for relay contacts).
2. Wire colors: Use IEC 60757 or NFPA 79 standards (e.g., BU=blue, GN=green).
3. Signal types: Digital inputs may use “DI”, analog inputs “AI”, with suffixes like “_P” for positive, “_N” for negative.

Validate wire gauge for current capacity–1.5mm² suffices for 10A at 24VDC, but 4mm² is required for 20A at 230VAC. Check fusing: Control circuits need 2A-4A fast-acting fuses, power circuits 10A-50A. Termination points (e.g., “PE” for protective earth) must connect directly to chassis without intermediaries. Document all deviations between schematic and physical installation (e.g., unused contacts, rerouted wires) to maintain accurate as-built records.

Step-by-Step Guide to Sketching an Industrial Control System Signal Flow

Begin by listing all field devices and their signal types (discrete, analog, or communication) in a table to avoid omissions:

Device	Signal Type	Voltage/Current Range	I/O Module Slot
Push Button (NO)	Discrete Input	24V DC	Slot 1, Channel 0
Temperature Sensor (4-20mA)	Analog Input	4-20mA	Slot 2, Channel 3
Motor Starter Coil	Discrete Output	24V DC	Slot 3, Channel 1
Variable Frequency Drive	Analog Output	0-10V DC	Slot 4, Channel 2

Draw horizontal lines for power rails (L+, L–) at the top and bottom of the schematic. Place vertical lines for each device, connecting them to the rails via resistors, fuses, or contactors. For analog signals, add a 250Ω precision resistor between the sensor and I/O module to convert 4-20mA to 1-5V. Label every wire with its function (e.g., “PB1_IN,” “TEMP_OUT”) and color-code according to the standard: red for 24V+ and black for 0V. Mark module addresses directly on the schematic to validate I/O mapping before wiring.

Key Symbols and Notations in Industrial Automation Schematics

Begin with standardized IEC 61131-3 symbols to ensure clarity across global teams. Contactors use a rectangle with vertical lines–Normally Open (NO) shows parallel lines, Normally Closed (NC) adds a diagonal slash. Coils appear as circles, often labeled “K” followed by a unique identifier (e.g., K1). Timers combine a coil with a “T” prefix and include delay notation: “TON” (on-delay), “TOF” (off-delay), or “RTO” (retentive). For sensors, proximity switches use a rectangle with an output line, differentiating inductive (ferrous symbol inside) from capacitive (non-ferrous symbol). Always cross-reference manufacturer datasheets–some brands use proprietary variants (e.g., Siemens adds “I” for input, “Q” for output, “M” for memory bits).

Best Practices for Symbol Consistency

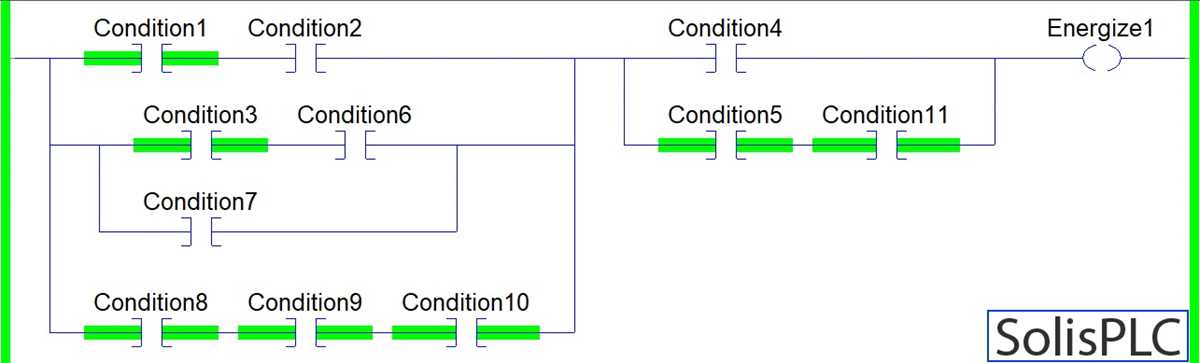

Adopt a naming convention early to prevent errors: use “I_” for digital inputs (I_StartPB), “Q_” for outputs (Q_MotorRun), and “FB_” for function blocks. Analog signals require prefix “AI” or “AO” with engineering units in brackets (e.g., AI_Temperature[°C]). Power rails in ladder logic schematics should always align vertically–left rail for supply, right for return–with horizontal rungs spaced evenly to avoid visual clutter. For complex networks, group related components with dashed rectangles labeled by function (e.g., “Conveyor Control Zone”). Always include a legend in the schematic’s corner matching symbols to their physical devices with part numbers (e.g., “K1: Relay, Omron MY4N 24VDC”). Validate symbols against the software’s built-in library to ensure compatibility during simulation or download.

Troubleshooting Industrial Control Schematics: Critical Checkpoints

Verify power distribution paths first–trace voltage from the main supply to terminal blocks and modules. Compare measured values at each point against the schematic’s labeled voltages, allowing no more than ±5% deviation. If discrepancies appear, isolate the affected branch and test protective devices like fuses or circuit breakers for continuity or tripped states before proceeding.

Inspect input/output signals next. For digital channels, check if LEDs on the modules align with the schematic’s expected states; a lit LED should correspond to an active high signal in the documentation. Analog signals require a multimeter to confirm 4–20 mA loops or 0–10 V ranges match the design specifications. Cross-reference signal names on wiring labels with those in the diagram to avoid misinterpretation.

Network and Communication Integrity

Test communication buses (e.g., Profibus, Ethernet/IP) by reviewing error codes on connected HMIs or diagnostic tools. Look for physical damage to cables–bent pins, corroded connectors, or electromagnetic interference near high-power equipment. Packet loss or timeout errors often stem from improper termination resistors; confirm their presence and resistance values (typically 120 Ω for RS-485) at both ends of the bus.

Examine grounding connections meticulously. Poor grounding manifests as erratic behavior, noise in analog signals, or unexplained resets. Measure ground-to-neutral voltage–it should not exceed 1 V AC. If elevated, separate signal grounds from power grounds as shown in the schematic and bond them only at a single point to prevent ground loops.

Review module configurations against the diagram. Misconfigured parameters–like input filters, scaling, or output hold settings–cause subtle faults. Use the project’s configuration file to verify every setting matches the documented logic. Pay special attention to “unused” channels; ensure they are disabled or configured as specified to prevent false triggers.

Logical errors often hide in timing sequences. Compare the program’s scan cycles with the diagram’s flow charts. Delays, pulse durations, or interlock conditions may deviate from intended values due to incorrect preset counts or timer instructions. Simulate conditions step-by-step with a test mode or force functions to validate behavior matches the schematic’s logic paths.

Document all findings directly on a printed copy of the schematic using red lines to mark discrepancies and green for verified correct connections. This annotated document becomes a troubleshooting roadmap for future maintenance, reducing diagnostic time by 40% in recurring issues.
