Step-by-Step Push Button Engine Start Wiring Guide with Diagram
Mount the momentary switch within 30 cm of the driver’s reach–direct horizontal alignment with the steering column avoids awkward hand movements during critical phases. Use 18-gauge tinned copper wire for the primary circuit; anything thinner risks voltage drop under cold cranks. The auxiliary relay must be rated at 40A minimum, positioned within 60 cm of the battery to prevent inductive lag.

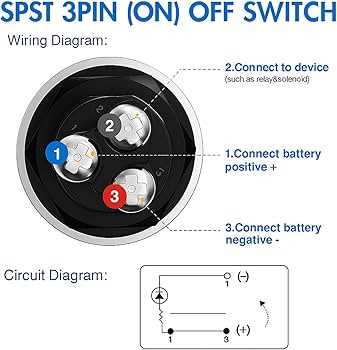

Connect the control wire from the switch to terminal 85 of the relay, ensuring a 1KΩ resistor bridges terminals 85 and 86 to suppress transient spikes. Terminal 30 feeds directly from the battery’s positive terminal–use a 10A fuse within 15 cm of the terminal to isolate faults. Ground the switch and relay chassis via separate 12-gauge wires to the vehicle’s frame, avoiding shared paths with high-current accessories like headlights.
Test continuity with a multimeter before finalizing connections; a 0.2Ω resistance between the switch and relay coil confirms proper contact. For vehicles with immobilizer integration, parallel a 100nF capacitor between the switch input and ground to filter noise from the CAN bus. If the starter solenoid clicks without cranking, recheck the relay’s 87 terminal–it should link to the ignition harness’s purple/white stripe wire, not the solenoid’s direct feed.
Label each wire with heat-shrink tubing at both ends: “CTRL” for the switch lead, “PWR IN” for the battery feed, “PWR OUT” for the relay output, and “GND” for all earth points. Avoid daisy-chaining grounds–each component must terminate independently to the chassis. For keyless bypass modules, splice the ACC wire from the original ignition barrel into the relay’s control circuit, using a 5A fuse inline to prevent overload.
Key Connections for Ignition Activation Circuits
Begin by identifying the primary power source for the control module–typically a 12V fused line from the battery. Connect this directly to the ignition relay’s input terminal, ensuring the fuse rating matches the system’s current draw, usually 10-15A for most vehicles. The relay’s output should feed into the solenoid or ECM interface, bypassing the traditional key cylinder signal. Verify polarity for inline components; reverse polarity will disable the system or cause erratic operation.
For seamless integration with existing security features, splice the immobilizer output into the activation circuit. Use a diode (IN4007) to prevent backfeed into the immobilizer’s signal line, which can trigger false errors. Test continuity with a multimeter before finalizing connections–resistance above 0.5 ohms indicates corrosion or loose terminals that require cleaning or re-crimping.
| Component | Wire Gauge | Termination Type | Voltage Drop Tolerance |
|---|---|---|---|
| Battery to Relay Input | 10-12 AWG | Crimp + Solder | <0.2V |
| Relay Output to Solenoid | 12-14 AWG | Crimp Only | <0.3V |
| Immobilizer Signal Splice | 16-18 AWG | Crimp + Heat Shrink | <0.1V |
Ground the relay coil and control unit to a clean chassis point, avoiding areas prone to paint or rust. Use star washers for grounding connections to penetrate surface oxidation; failing to do so may result in intermittent signal loss. For dual-relay systems (common in push-to-crank setups), wire the second relay to the accessory position, ensuring it engages only after the first relay confirms power delivery to critical modules.
Install a momentary trigger switch rated for 20A continuous current, using twisted-pair wiring (22-24 AWG) for the signal lines to minimize EMI from the ignition coil or alternator. Route wires away from rotating components and heat sources; secure them with adhesive-lined clamps every 150mm. Label all connections with heat-shrink tubing or labeled terminals to simplify future diagnostics.
Program the ECM to recognize the new activation sequence if required–some models mandate a specific signal duration (e.g., 500ms pulse) to validate input. For aftermarket modules, adjust the debounce time to 20-50ms to prevent false triggers from vibration or electrical noise. Validate the setup by monitoring battery voltage during operation; a drop below 11.8V under load suggests insufficient power delivery or corroded terminals.
Use a thermal imaging camera or infrared thermometer to check relay and solenoid temperatures after 30 minutes of idle operation. Overheating (above 85°C) indicates excessive resistance or undersized wiring. Replace components showing discoloration or melting insulation, and re-check the crimp joints for cold solder joints or oxidized strands–these failures often manifest as delayed response times or complete system shutdowns.
Critical Elements for Ignition Switch Upgrade
Begin with a high-amperage relay rated for at least 40A to handle the initial current surge–standard automotive relays often fail under these conditions. The relay must be paired with a heavy-duty solenoid, preferably one with a continuous-duty rating to prevent overheating during prolonged activation cycles. Use 4AWG or thicker wiring for the primary power feed from the battery to the solenoid, ensuring minimal voltage drop; anything less risks insufficient power delivery during cranking.
Control Module and Sensor Integration

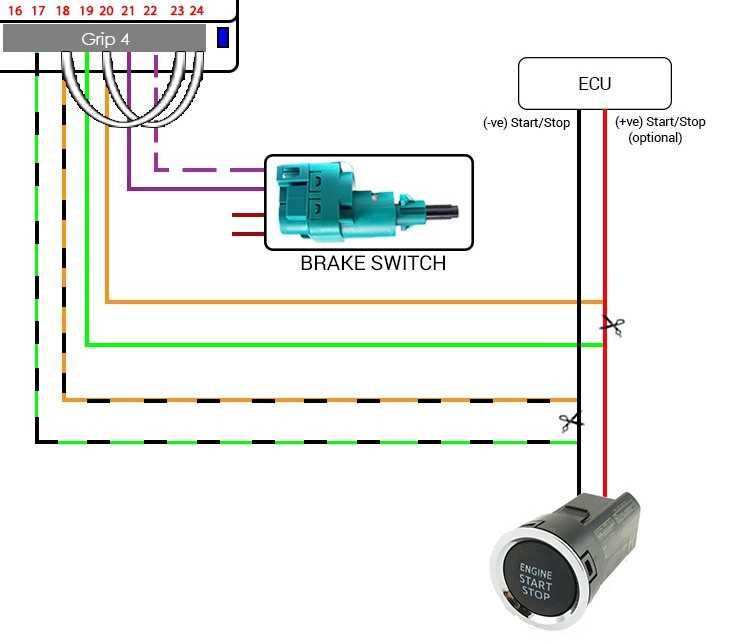

Install a dedicated control module with fail-safe logic–this unit must interpret signals from the vehicle’s immobilizer, clutch/brake pedal sensors, and accessory position inputs. Opt for a module with built-in transient voltage protection to guard against spikes during load dumps. Verify sensor compatibility: the clutch/brake switches should output a clean 12V signal when engaged, while the immobilizer interface must match the vehicle’s protocol (e.g., CAN bus, PWM, or direct 5V logic).
Secure the grounding points with star washers and torque to 12-15 Nm; loose connections are a primary cause of intermittent failures. For aftermarket keyless entry systems, isolate the antenna wire with shielded cable to prevent RF interference, and route it away from high-current pathways. Test the system with a multimeter under load before finalizing connections–confirm voltage holds steady at the solenoid terminal when the activation signal is sent, with no more than 0.2V drop from the battery.
Step-by-Step Wire Connection Guide from Ignition Switch to Cranking Mechanism
Begin by identifying the power source terminal on the activation switch, typically marked as “BATT” or “30.” This terminal supplies constant voltage from the battery, ensuring uninterrupted current regardless of the switch position. Use a 10-12 AWG wire with appropriate insulation rating for the vehicle’s voltage system (12V or 24V). Cut the wire to length, leaving a 10% excess for strain relief and adjustments.
Strip 6-8mm of insulation from both ends of the wire. Crimp a ring or spade terminal onto one end, matching the terminal size of the activation switch. For the battery connection, use a terminal suitable for the battery post–commonly a lead-acid battery clamp or a high-current stud connector. Secure the connection with a torque wrench to the manufacturer-specified value (usually 8-12 Nm) to prevent loose contacts.
Locate the activation switch’s cranking relay control terminal, often labeled “50” or “SOL.” This terminal sends a trigger signal to the relay when the switch is engaged. Connect a second 16-18 AWG wire from this terminal to the relay’s control input. Verify the relay’s coil voltage rating (typically 12V) and ensure the wire gauge matches the relay’s current draw (usually under 1A).
Route both wires away from moving components, heat sources, and sharp edges. Use grommets when passing through metal panels to prevent abrasion. Secure wires every 15-20cm with zip ties or adhesive clips, maintaining a minimum bend radius of 5x the wire diameter to avoid internal damage. Label each wire at both ends with heat-shrink tubing or marker for future reference.
Relay and Solenoid Integration
Connect the cranking relay’s power output terminal to the solenoid’s high-current input. Use a 6-8 AWG wire for this segment, as it carries the full cranking amperage (typically 150-400A). Verify the solenoid’s voltage rating matches the system (12V or 24V) and use a wire capable of handling the maximum current draw without excessive voltage drop–refer to the manufacturer’s specifications for exact values.
Ground the solenoid’s return path properly. Use a dedicated ground cable (4-6 AWG) connecting the solenoid’s housing directly to the chassis or battery negative terminal. Avoid daisy-chaining grounds, as this can introduce resistance and reduce performance. Clean the mounting surface thoroughly to ensure a low-resistance connection, and apply dielectric grease to prevent corrosion.
- Test the activation switch’s resistance before installation; it should read near 0 ohms when engaged and infinite when off.
- Check the relay’s continuity with a multimeter–terminals 85 and 86 (coil) should show infinite resistance to terminals 30 and 87 (contacts) when de-energized.
- Measure voltage drop across the cable during cranking; it should not exceed 0.5V for 12V systems or 1V for 24V systems.
- Inspect all connections for heat damage or discoloration after initial operation, indicating poor conductivity.
Final Checks and Safety Precautions
Reconnect the battery’s negative terminal last to prevent short circuits during installation. After reconnection, engage the activation switch briefly while observing the relay and solenoid–listen for a distinct click indicating proper operation. If the motor does not rotate, immediately disengage the switch and verify the relay’s control signal with a test light.
Seal all connections with heat-shrink tubing or electrical tape rated for automotive use (minimum 105°C). For high-vibration environments, apply silicone adhesive inside connectors to prevent terminal loosening. Document the entire setup, including wire lengths, terminal types, and relay specifications, for troubleshooting or future modifications.
- Never bypass the relay for direct high-current connections unless using fuses sized for the cable’s ampacity.
- Avoid routing wires near exhaust manifolds or turbochargers–minimum 5cm clearance is recommended.
- Use anti-seize compound on all battery terminal connections to prevent corrosion in humid environments.
- If the motor cranks slowly, check for voltage drop in the power cable or weak battery capacity before diagnosing switch issues.
