Step-by-Step Pioneer Car Stereo Wiring Guide for Easy Installation

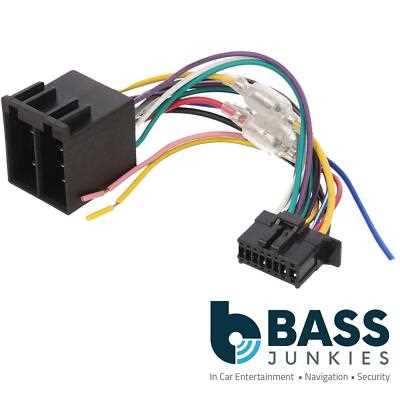

Begin by identifying the harness adapter specific to your vehicle model–most Pioneer units use a universal ISO standard, but variations exist for luxury brands. Pin configurations for power (constant 12V, ignition-switched, and ground) must align precisely with your car’s electrical layout. The yellow wire (battery) connects directly to the vehicle’s fused circuit, while the red (accessory) requires ignition linkage to prevent parasitic drain.

Speaker outputs follow an 8-wire schema: front/rear pairs distinguished by polarity (solid color for positive, striped for negative). Match these to the corresponding wires in your dash harness–mismatches create phase cancellation or distortion. For amplified systems, integrate the blue/white remote turn-on lead to trigger external amplifiers, ensuring signal integrity without voltage drop.

Ground connections demand bare metal surfaces, free of paint or corrosion. Crimp connectors should be soldered or secured with heat-shrink tubing to prevent oxidation. Verify all connections with a multimeter–continuity tests on speaker wires and voltage checks (12V-14V range) on power inputs eliminate installation errors before finalizing the panel.

For steering wheel controls, utilize the appropriate interface module (e.g., ASWC-1) wired between the head unit and vehicle’s CAN bus. Retain factory settings by referencing Pioneer’s wiring tables for your model year–some Land Rover or BMW setups require additional resistors for compatibility.

Final step: seat the unit securely in the dash kit, aligning the harness without pinching cables. Power cycles should initialize the unit without error codes–resets may be required for proprietary firmware integrations.

Connecting Your Pioneer Audio System: Key Electrical Schematics

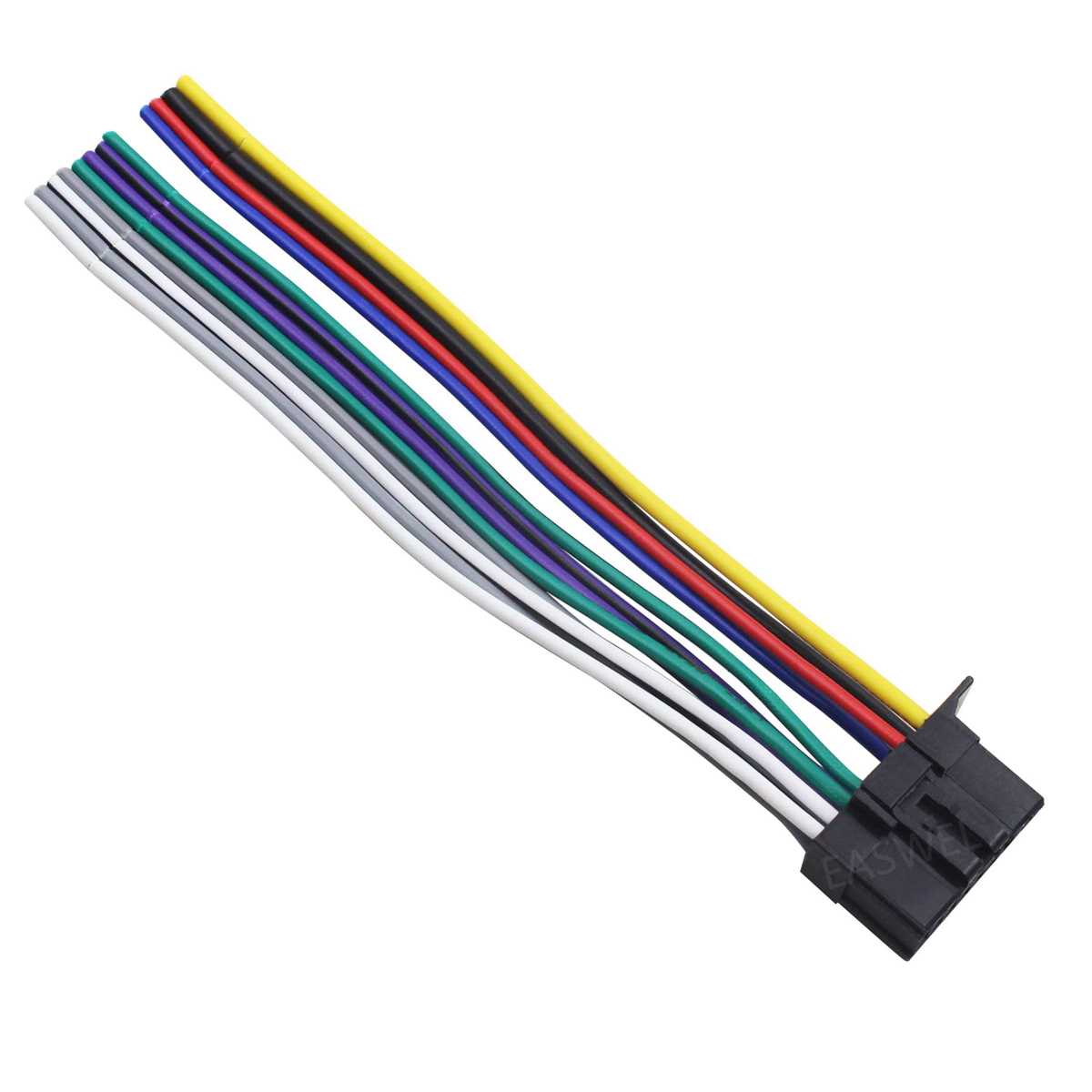

Start by identifying the harness layout in your vehicle’s manual–most Pioneer units use a 16-pin harness adapter for seamless integration. Match each colored wire from the head unit to the corresponding vehicle connector: red (constant 12V), yellow (switched 12V), black (ground), and blue/white (antenna/amplifier trigger). Verify connections with a multimeter before securing them; mistaken polarity risks damaging the unit’s internal circuits.

For amplified systems, connect the 4-channel RCA outputs (front, rear, subwoofer) to external amplifiers using shielded cables. Avoid running signal cables parallel to power wires to prevent interference. If your setup lacks an amplifier, bypass this step by connecting speakers directly to the harness, ensuring correct impedance (typically 4 ohms) for optimal performance.

Troubleshooting Common Errors

• No power? Check the fuse on the red wire–replace with a 10A fuse if blown.
• Distorted audio? Re-examine speaker wires for shorts; a single loose strand can cause static.
• Muted subwoofer? Confirm the subwoofer RCA is not damaged and the remote wire (blue/white) is active.

When splicing wires, use solder and heat-shrink tubing instead of crimp connectors for long-term reliability. Label each connection with masking tape to simplify future upgrades or repairs. For vehicles with factory steering controls, locate the data bus wire (often purple or orange) and ensure compatibility with Pioneer’s steering wheel interface adapter.

Test the installation by playing audio at 50% volume–listen for balanced output across all speakers. If rear speakers are silent, swap the left/right RCA cables; incorrect phasing can cancel audio. Finalize by securing slack wires with zip ties, keeping them away from moving parts like the seat tracks or pedals.

Decoding Wire Color Codes in Aftermarket Audio Controllers

Begin verification with the constant power feed–typically a yellow conductor–designed to retain memory settings regardless of ignition state. Confirm voltage directly at the harness side with a multimeter set to DC; expect 12V steady when the battery maintains connection. Without this, preset stations and equalization profiles reset each time the system powers down.

The ignition-switched lead (usually red) delivers voltage only when the key is turned to accessory or run position. This lead prevents parasitic drain during off cycles; trace continuity back to the fuse box to rule out misrouted splices that could short-circuit protection relays. Use a test light to validate switched behavior before final crimping.

Ground paths (black or brown) demand meticulous attention–corrosion at the chassis mount introduces intermittent failures detectable as pops, whines, or display flickers during volume changes. Clean mounting surfaces with a wire brush, apply dielectric grease, and secure with a dedicated screw rather than reusing factory bolts to reduce resistance below 0.2 ohms.

Speaker feeds follow a consistent pattern: front left positive (gray), front left negative (gray/black stripe), front right positive (white), front right negative (white/black stripe). Polarity misalignment causes phase cancellation–audible as a hollow or quiet bass response. Cross-check with a 9V battery touch test to ensure cones push outward.

Rear channel conductors split similarly: rear left positive (green), rear left negative (green/black stripe), rear right positive (purple), rear right negative (purple/black stripe). For amplified subwoofers, locate the dedicated subwoofer pre-out (typically blue or blue/white) delivering high-level 2–4V RCA-level signal; terminate unused pre-outs with RCA caps to prevent induced noise.

Illumination circuits (orange or orange/white) adjust backlight intensity–match these directly to the vehicle’s dimmer wire (often found at the instrument cluster). Mismatched voltage here results in either over-bright displays at night or darkened screens during daylight. Verify compatibility with the original harness; some models require voltage-divider resistors for proper scaling.

Data bus leads (typically pink or brown) manage steering wheel controls, OEM navigation feeds, and vehicle telematics integrations–confirm continuity with a logic probe if retrofitting older models. Isolate these from power feeds with inline chokes if noise persists; improper grounding here can corrupt CAN bus messages and disable safety alerts.

Step-by-Step Guide to Linking Permanent and Accessory Power Leads in Your Audio System

Locate the red and yellow cables on your head unit’s harness–the yellow delivers uninterrupted battery feed, while the red activates only when ignition is on. Strip 6mm of insulation from each, twist exposed strands tightly, and slide a crimped ring terminal over the yellow lead. Secure this to the battery’s positive post using an 8mm bolt; apply dielectric grease to prevent corrosion. Repeat for the red wire, but route it through a 15-amp inline fuse before tapping into an ignition-switched circuit–either the fuse box’s ACC terminal or a powered accessory line confirmed with a multimeter.

Verify polarity before final connections: probe the yellow’s terminal with a test light–it should glow steady, even with the key off. For the red, check for 12V only when ignition is toggled; if voltage sags below 11.5V, relocate to a thicker gauge source (

Securing Reliable Accessory Power

• T-tap splices into existing ACC wires often fail–prefer soldered joints or adhesive-lined heat-shrink tubing for long-term stability.
• Use a relay if the switched lead shares duty with high-draw components like heated seats; coil the relay off ignition, letting the yellow supply handle constant loads (≤2A).
• For aftermarket amplifiers, split the yellow into two paths–one to the head unit, another via a 4-gauge cable directly to the battery, fused within 30cm of the post.

Ground both wires separately if chassis resistance exceeds 0.1 ohms: scrape paint from a bare metal point near the head unit’s mounting location, attach a star washer to ensure solid contact, and bolt down using a 10mm flange nut. Confirm ground integrity by measuring voltage drop between the yellow lead’s chassis end and the battery’s negative post–should read

Final test sequence: power on with ignition off–clock and presets should retain data. Key on–unit should initialize without delay. Crank engine; voltage dip must not drop below 10V. If dimming occurs, upgrade the yellow’s path to 12 AWG or add a 0.1F capacitance stabilizer across the leads, mounted within 60cm of the head unit.

How to Properly Ground an Aftermarket Head Unit to Prevent Signal Noise

Locate a bare metal surface within 18 inches of the receiver’s chassis–paint, rust, or undercoating must be scraped off with a wire brush until shiny steel is exposed. Secure the ground lead (minimum 12 AWG, preferably 10 AWG for high-current installs) using a stainless-steel self-tapping screw or bolt no longer than 3/8-inch to avoid chassis flex; torque to 8–10 lb-ft without overtightening. Avoid using factory ground points shared with motors (wiper, blower) or ECUs–these introduce 100 Hz–1 kHz interference visible on an oscilloscope as 20–50 mVpp ripple.

Common Grounding Mistakes & Corrections

Issue	Detection	Fix
Painted/chromed surfaces	Multimeter shows > 0.1 Ω resistance	Sand to bare metal; verify
Oversized bolt (> ½”)	Thin chassis flexes under torque	Replace with ¼”–⅜” hardware; add star washer
Shared motor ground	Audio hum synchronizes with blower speed	Relocate to dedicated body-mounted point
Twisted wire loop	Induced EMI at 2–3 MHz	Straighten lead; keep

Use dielectric grease on the connection only after verifying zero resistance–spray cleaners (CRC 2-26) degrade over time. For systems with amplification > 75 W RMS per channel, run a secondary 8 AWG ground directly to the battery negative terminal, bypassing any fuse blocks; test with a load dump simulator (40 A pulse) to confirm transient stability.
