Step-by-Step Guide to Wiring an Ethernet Cable Correctly

Start by selecting Cat 5e or Cat 6 cables for standard gigabit setups–avoid older Cat 5 unless forced by legacy hardware. Pinout order follows the T568A or T568B standard; stick to one for consistency. T568B is dominant in commercial installations, while T568A remains common in residential wiring.

Use unshielded twisted pair (UTP) for most indoor runs where interference is minimal. For environments with heavy electrical noise–near motors, fluorescent lights, or industrial equipment–opt for foil-shielded (FTP) or shielded twisted pair (STP). Terminate cables with RJ45 connectors, ensuring wires are trimmed evenly and fully seated in the connector’s channels to prevent signal drops.

Test each link with a cable certifier or at least a simple continuity tester. Verify pair separation and polarity–miswiring causes crosstalk and latency spikes. For patch panels, maintain the same pinout across all ports. Label both ends immediately to avoid troubleshooting delays later.

Keep runs under 90 meters (295 feet) to comply with signal integrity standards. For longer distances, deploy fiber optic or active repeaters. Avoid sharp bends–radius should exceed 4x the cable diameter to prevent kinks. Secure cables with hook-and-loop straps instead of zip ties to prevent crushing.

Power-over-data-line (PoDL) setups require solid-core cables for reliable current delivery. Check switch compatibility–standard PoDL delivers 15.4W (IEEE 802.3af) or 30W (802.3at). Devices like IP cameras or VoIP phones often need only two pairs; Gigabit links use all four. Always double-check voltage drop calculations for long runs to avoid underpowered endpoints.

Structured Cabling Layout for Network Segments

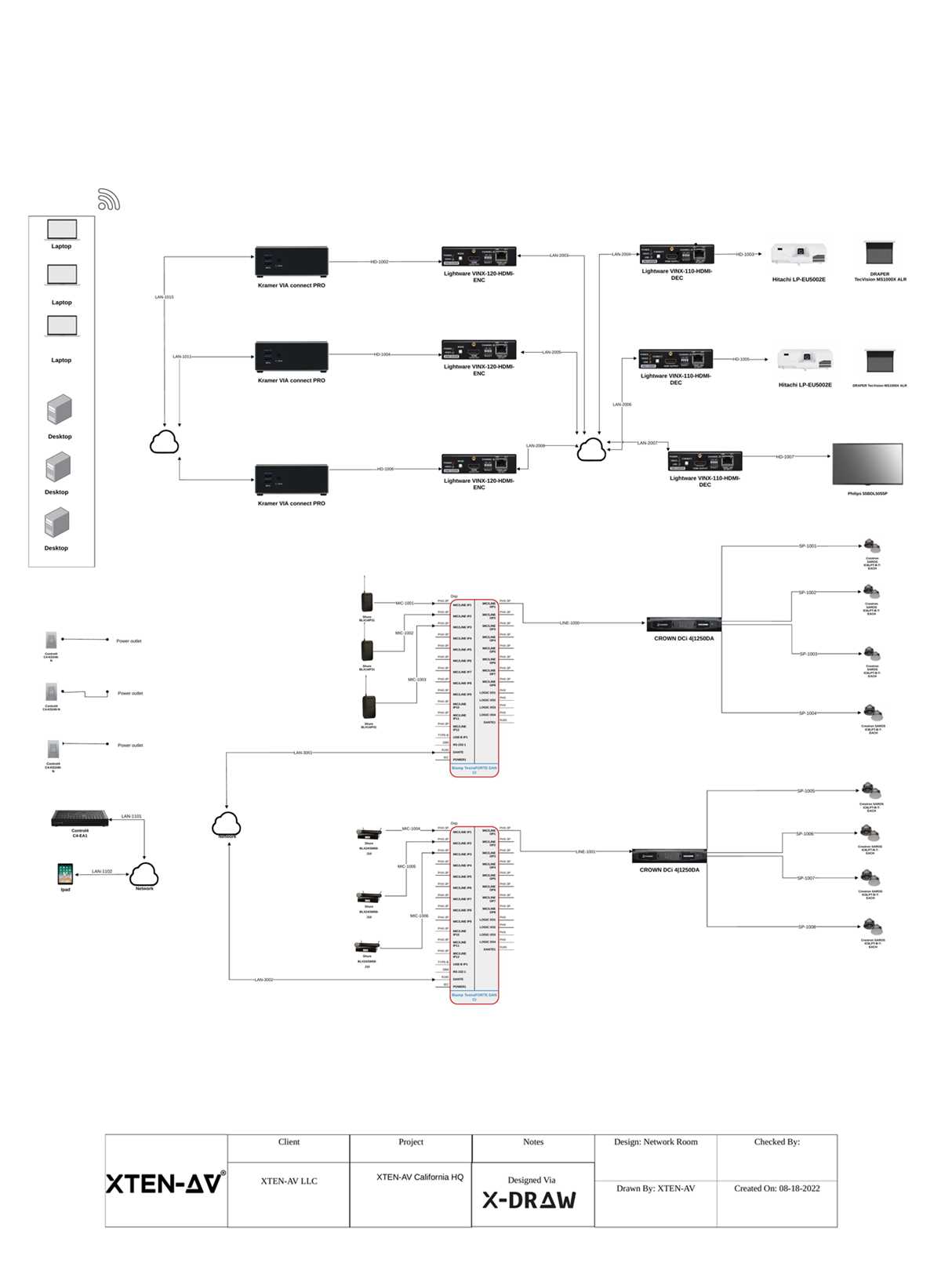

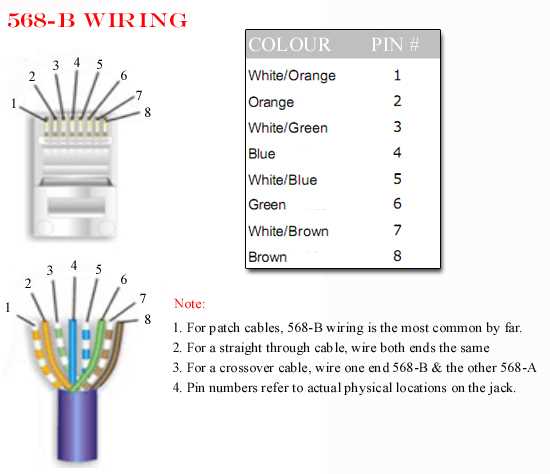

Use the T568B standard for terminating RJ45 plugs in gigabit-capable installations: pin 1 = white/orange, 2 = orange, 3 = white/green, 4 = blue, 5 = white/blue, 6 = green, 7 = white/brown, 8 = brown. This sequence ensures backward compatibility with Fast Ethernet and PoE devices while minimizing crosstalk at frequencies up to 500 MHz. For links exceeding 55 m, switch to shielded CAT6A or higher to maintain 10 Gbps throughput without signal degradation.

Patch Panel and Horizontal Cable Termination

Terminate solid-core horizontal cables directly into 110-type IDC blocks on the patch panel using a single-blade punch-down tool–avoid multi-stroke tools to prevent damaging conductor pairs. Keep twist ratios within 13 mm of the termination point for pairs 1-2 and 3-6; exceeding this length increases NEXT by up to 3 dB. Label each port on both sides (wall jack and patch panel) with identical alphanumeric IDs matching the port on the switch to simplify troubleshooting during packet loss events.

How to Select the Optimal Network Cable for Your Infrastructure

Begin by assessing the speed demands of your devices. Cat 6 cables support up to 10 Gbps at 55 meters, while Cat 6a doubles that distance for the same bandwidth. For home setups, Cat 5e remains a cost-effective choice, handling 1 Gbps reliably over 100 meters. Industrial environments should prioritize Cat 7 or Cat 8, shielding against interference with frequencies up to 2 GHz.

Evaluate cable shielding based on environment. UTP (Unshielded Twisted Pair) suits residential or low-interference areas, while STP (Shielded Twisted Pair) is mandatory near machinery, medical equipment, or power lines. Foiled Twisted Pair (FTP) offers a middle ground, protecting against minor electromagnetic noise without bulk. Check jacket materials–plenum-rated cables resist fire spread in building air ducts, while riser-rated suffice for vertical runs.

• Cat 5e: 1 Gbps, 100 MHz, budget-friendly for basic use.
• Cat 6: 10 Gbps, 250 MHz, ideal for office networks.
• Cat 6a: 10 Gbps, 500 MHz, extended range, reduces crosstalk.
• Cat 7: 10 Gbps, 600 MHz, fully shielded, durable connectors.
• Cat 8: 40 Gbps, 2000 MHz, data centers, short-distance backbone.

Match cable length to application. Excess length degrades signal–100 meters is the absolute limit for copper-based solutions. For longer distances, use fiber optic alternatives or signal boosters. Solid-core cables excel in permanent installations, while stranded variants flex better for patch cords and mobile setups.

Test compatibility with existing hardware. Older routers or switches may lack support for advanced protocols like NBASE-T, rendering Cat 6a or Cat 7 overkill. Verify PoE (Power over Network) requirements–thicker gauges (22-24 AWG) handle higher wattage without overheating. Always cross-check cable standards with device specifications to avoid bottlenecks.

Prioritize certified cables from reputable manufacturers. Counterfeit products often fail to meet advertised speeds or shielding standards. Look for TIA/EIA or ISO/IEC compliance markings, and avoid “lifetime warranty” claims without verifiable lab tests. For critical systems, invest in pre-terminated cables to eliminate termination errors.

Step-by-Step Guide to Assembling a Network Patch Cord (T568A vs. T568B)

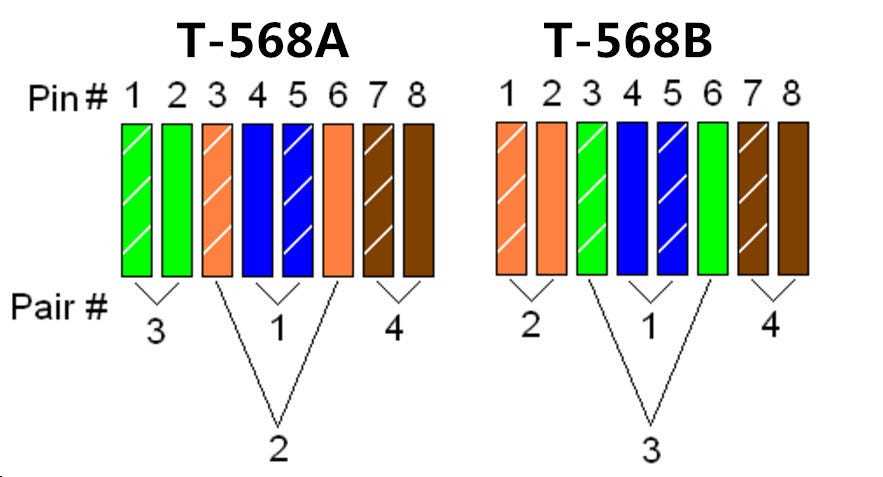

Choose T568B as the default standard unless network infrastructure explicitly requires T568A–it aligns with modern installations and minimizes compatibility issues. T568B maps pin 1 to orange-white, while T568A swaps this with green-white, altering only two pairs: orange/green and their striped counterparts.

Strip 20–25 mm of the outer jacket using a dedicated cutter, exposing the four twisted pairs without nicking the insulation. Unwind each pair only enough to manipulate the conductors–overhandling degrades signal integrity. Maintain the twists as close to the jacket as possible to preserve noise cancellation.

Conductor Arrangement for T568B

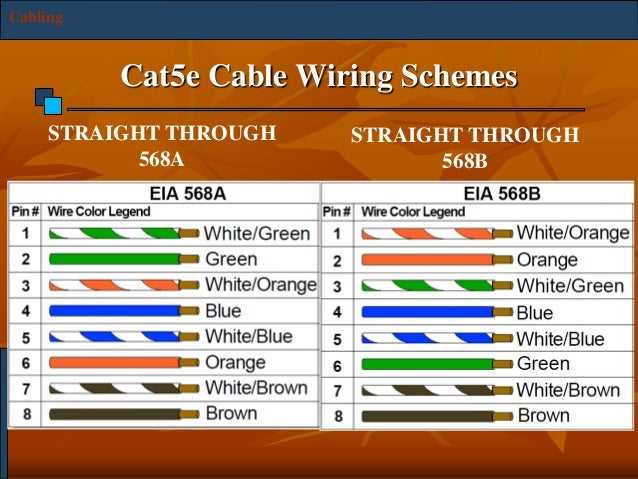

Align the wires left to right in this sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Flatten them between thumb and forefinger, ensuring no crossovers or gaps. Trim excess length to 12–14 mm from the jacket edge; longer leads introduce crosstalk, shorter ones risk poor crimp contact.

Insert wires fully into the RJ45 plug until each conductor rests against the front of its channel. Verify positioning by holding the plug against a light source–the tips must sit flush with the connector’s metallic contacts. Compress the plug with a crimping tool in one firm stroke; partial crimps cause intermittent faults.

Test the terminated cord with a continuity checker that validates both pin assignments and pair continuity. Faulty terminations typically show miswired pins (open circuits) or split pairs (crosstalk). Replace plugs with visible wire displacement or cracked housing–cheap connectors degrade performance at gigabit speeds.

Label completed cords with length and standard (e.g., “2m T568B”) to simplify deployment. Store unused patches coiled loosely, avoiding tight bends that stress the internal geometry. Performance degrades noticeably after five years of active use–retest annually in high-traffic installations.

Tools and Materials for Proper Network Cable Termination

Use a ratcheting crimper with an 8P8C die–inexpensive models often fail under strain, leading to inconsistent pin positioning. Verify the tool’s compatibility with both stranded and solid copper cores; some require swapping dies for different wire types. A built-in wire cutter and stripper reduce the need for separate tools, but standalone versions (e.g., Klein VDV226-011) offer cleaner cuts for delicate conductors.

Modular plug selection depends on cable gauge: Cat5e/6 pairs typically require 24 AWG plugs, while thicker outdoor-rated cable may need 23 AWG or hybrid designs. Shielded plugs (FTP/STP) demand proper grounding; omit them for UTP setups to avoid signal interference. Transparent plugs simplify troubleshooting but sacrifice durability–opt for molded boots on high-flex installations. Always match the plug’s category rating to the cable (e.g., Cat6 plugs for Cat6 cable) to prevent performance degradation.

Ancillary Gear for Reliable Terminations

A continuity tester with remote identifiers (e.g., Fluke DTX-1800) pinpoints faults faster than basic LED testers, but a $15 cable mapper suffices for most jobs. For stranded wires, a loading bar or “ejector tool” (included in premium crimpers) ensures conductors reach the plug’s gold contacts without bending. Avoid lubricants on plugs–they attract dust and corrode contacts over time. Keep a heat gun on hand for shrink tubing repairs; electrical tape degrades in under 12 months in high-temperature environments.

Avoiding Critical Errors in Network Link Setup

Mismatching cable categories ranks as the most frequent blunder. Cat5e supports gigabit speeds, while Cat6 handles 10Gbps over shorter distances. Using Cat5 for a 2.5GBASE-T deployment forces retransmissions, degrading throughput by 40% or more. Verify specifications before termination–label cables at both ends to prevent misidentification during installation.

Reversing transmit and receive pairs during termination creates a dead link. Pins 1 and 2 (TX) must connect to pins 3 and 6 (RX) on straight-through cables. Swapping these pairs in a crossover setup disrupts auto-MDI/MDIX negotiation, leaving devices unable to communicate. Test continuity with a cable analyzer; checking resistance alone isn’t sufficient–pair mapping must align precisely.

Skipping shielding on high-interference runs invites crosstalk. Unshielded twisted pair (UTP) in proximity to power lines or motors absorbs noise, reducing signal-to-noise ratio by 12dB or more. For installations near fluorescent lighting or industrial machinery, use shielded twisted pair (STP) with grounded drain wires. Terminate shielding at both ends, but only ground one side to prevent grounding loops.

Error	Impact	Detection Tool
Incorrect pair termination (T568A/T568B)	Link failure, no negotiation	Cable certifier (Fluke DSX-8000)
Untwisted pairs exceeding 13mm	Near-end crosstalk (NEXT) rise	Time-domain reflectometer (TDR)
Bend radius	Signal attenuation, broken conductors	Visual inspection + tensile tester

Neglecting bend radius limits permanently damages conductors. Cat6 and Cat6a cables tolerate a minimum 4x outer diameter bend–the tighter the curve, the higher the risk of fatigue fractures. Solid-core cables, while cheaper, fail at 100 flex cycles versus 5,000 for stranded variants. Route cables through conduits with smooth edges; avoid staples or sharp corners. Test mechanical durability with a tensile pull test–30N force shouldn’t degrade performance.
