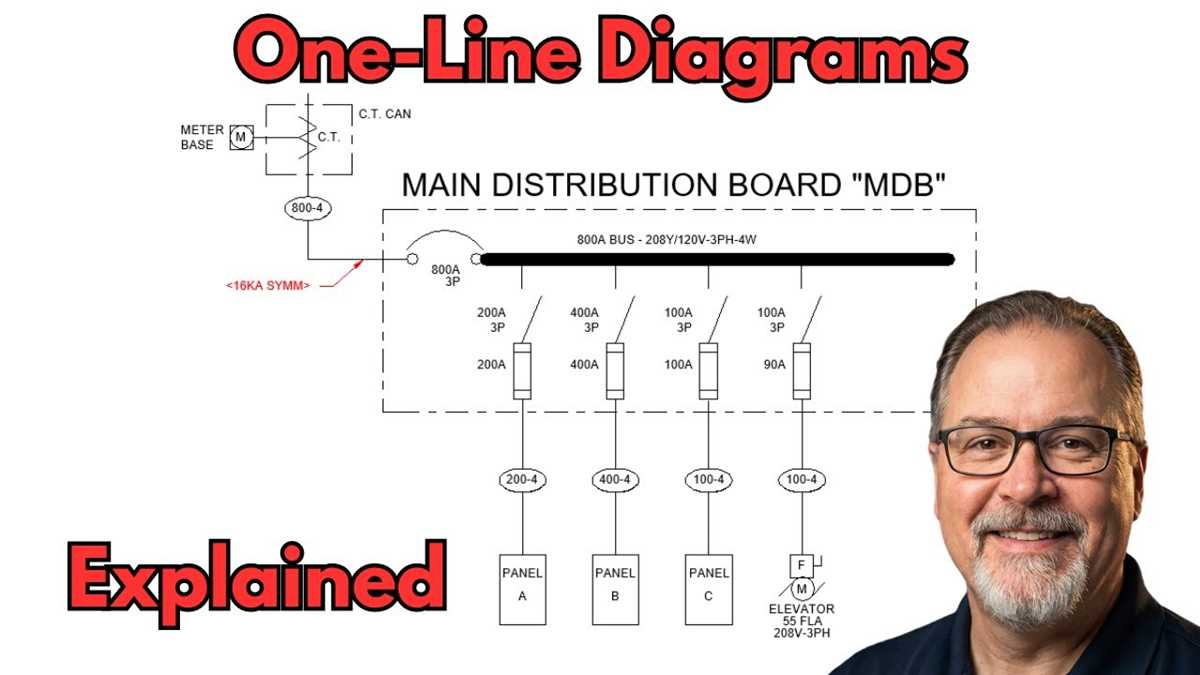

Step-by-Step Guide to Creating Clear Line Diagram Schematics

Begin with a single, unbroken path for the main power flow. Break the circuit into functional blocks–use horizontal alignment for inputs (left) and outputs (right). Each block should represent a discrete component: power source, switching element, load. Label each block with a concise, standardized identifier (e.g., “PS-1,” “SW-A,” “LD-2”) instead of descriptive text.

Place grounding symbols at the bottom edge; never route them through intermediate nodes. For multi-phase systems, stack phase lines vertically, spacing them equally (10 mm minimum) to prevent misreading. Add a dotted reference line above the first phase to indicate neutral where applicable. Use a consistent arrowhead style–closed, 30-degree angle–for all directional indicators.

Limit color coding to three hues: red (live), blue (neutral), green (ground). Avoid gradients; solid fills ensure legibility when printed in grayscale. Test all labels at 50% of target size–if text becomes illegible, increase font weight (bold, 8 pt minimum) or adjust spacing (1.2 line height). For wiring pathways, use straight segments with 90-degree bends only at intersections; diagonal lines invite misinterpretation.

Separate high-voltage and low-voltage sections with a dashed boundary line (0.25 pt, 5 mm gap pattern). Add a revision grid in the bottom right corner: version number, date (ISO 8601 format), and initials of the approving engineer. Include a legend only if symbols deviate from IEC 60617 standards.

Export the final file as a lossless vector format (SVG, DXF). Embed all fonts; flatten layers if distributing to external teams. Verify electrical continuity with a digital multimeter simulation before final approval–discrepancies between the visual and actual circuit topology are the primary cause of construction errors.

Constructing Clear Visual Representations for Engineering Systems

Begin by labeling all components with precise alphanumeric identifiers–RS-485 transceivers as U1-U4, resistors as R1-R8, and capacitors as C1-C3–matching them to a separate bill of materials. Use distinct line weights to differentiate signal paths (0.5mm for power rails), control circuits (0.3mm), and grounding (0.2mm dashed). This hierarchy prevents clutter and ensures traceability during debugging.

Map connections on a 1mm grid, aligning terminals horizontally or vertically to avoid diagonal routes. For microcontroller-based designs, route clock signals (e.g., 16MHz crystal) first, keeping traces under 25mm to minimize noise. Place decoupling capacitors (0.1µF) directly adjacent to IC power pins, with vias spaced no more than 1.5mm apart for high-frequency stability.

Annotate critical voltages near power symbols–3.3V at VDD, 5V at VCC, and GND with a circular symbol–using 2.5mm text height for legibility. Group related subsystems (e.g., power regulation, I/O expansion) into dashed-outline boxes (0.2mm stroke) with descriptive headers like “USB Interface Block.” Add test points (TP1-TP5) as filled circles (1.2mm diameter) at key junctions: MCU reset pin, ADC inputs, and SPI bus lines.

For PCB-derived layouts, overlay a simplified variant using orthogonal lines, substituting SMD pads with equivalent through-hole symbols. Replace ground planes with a triangular symbol (Δ) at each return node, ensuring consistency with schematic ERC checks. Use net labels (e.g., “SCLK,” “MOSI”) sparingly, only where traces exceed 50mm or cross sheet boundaries.

Validate the design by exporting netlists in both SPICE and KiCad formats, then cross-reference against the component library for footprint compatibility. Add revision blocks in the lower-right corner with columns for date, author, and change description–e.g., “Rev. B: Added ESD protection on USB.” Finalize with a title block compressing project name, scale (1:1), and DPI tolerance (

Key Components for Effective Process Visualization

Begin with clearly labeled endpoints to eliminate ambiguity. Use standardized identifiers (e.g., ISO/IEC 8185 tags for electrical components, ANSI Y32.2 for pipelines) and place them adjacent to connection points rather than below or above. Avoid decorative arrows–opt for solid, uniform strokes with a minimum 0.5mm thickness for visibility under reduction. If abbreviations are necessary, include a dedicated legend in the lower-right corner with a maximum of 12 entries to prevent clutter.

Flow Direction and Symbol Consistency

• Adopt a single convention for flow indicators: open arrowheads for energy/matter transfer, filled arrowheads for control signals.
• Ensure all valves, pumps, and sensors adhere to domain-specific standards (e.g., P&ID symbols per ISA-5.1 for industrial processes).
• Maintain uniform spacing between parallel paths–minimum 3x the stroke width–to avoid misreading.
• Color code critical paths only (e.g., red for emergencies, blue for cooling water), using monochrome for non-critical elements to improve scanability.

Incorporate a hierarchical numbering system for components, aligning labels vertically for linear processes or radially for circular pathways. For complex networks, segment into modular sub-visualizations, each limited to 9 primary elements to align with cognitive load limits (Miller’s Law). Include a revision block with date, author, and version (e.g., “Rev. 3 – 2024-05-15”) in a 10pt sans-serif font, positioned outside the main visualization area to prevent obstruction.

1. Define boundaries explicitly–use dashed lines (0.25mm stroke) to separate subsystems or solid bounding boxes for external interfaces.
2. Add quantitative annotations only where critical (e.g., “50 PSI Max” or “≤25°C”).
3. Test legibility at 50% scale–if labels or connections become ambiguous, redesign before finalization.

Step-by-Step Process for Creating a Visual Flow Representation

Start with a blank grid or graph paper to maintain precision. Define the scale–one unit on paper should equal a consistent real-world measurement (e.g., 1 cm = 1 meter). This ensures proportional accuracy without distortion.

Outline Key Nodes

Mark critical junction points first. Use small circles or squares to denote terminals, intersections, or endpoints. Label each node with a unique identifier (A, B, C) or functional description (e.g., “Pump Station”). Keep labels concise and legible, placed adjacent to, not inside, the symbol.

• Use a 0.5 mm mechanical pencil for initial drafts–erases cleanly without smudging.
• Avoid curved connectors unless modeling pipelines or organic pathways; straight segments simplify readability.
• Align nodes vertically or horizontally where possible to reduce visual clutter.

Draw connectors between nodes using solid strokes. Vary line weight for hierarchy: 0.3 mm for secondary routes, 0.7 mm for primary arteries. Add directional arrows every 3-5 cm on longer segments, ensuring they point in the intended flow direction. Arrowheads should be small (2 mm) and sharp to avoid ambiguity.

Annotate Technical Details

Add metric dimensions near connector segments if distance matters. Example: “15.2 m – 3/4″ Schedule 40” for pipe specs. Include symbols for valves, sensors, or obstacles (e.g., “V” for valve, “⚡” for power node). Place symbols directly on the connector line if space allows; otherwise, offset with a leader line (2 mm).

1. Resolve crossing connectors with a small break (1 mm) on non-priority routes–never overlap.
2. Use dotted strokes (0.2 mm) for proposed extensions or invisible boundaries.
3. Color-code if needed: red for power, blue for fluid, green for data streams–but restrict to 3 colors max.

Finalize by darkening all non-draft lines to 0.5 mm weight for reproduction. Remove construction marks and verify every connector reaches its destination node without gaps. Scan at 600 DPI if digitizing; vector formats (SVG, DXF) preserve edge quality better than raster exports.

Standard Symbols in Flow Representations and Their Interpretations

Begin by memorizing the straight horizontal bar: this denotes a direct connection between components, often representing a conductive path such as wiring or piping. Variations with arrows indicate flow direction–right-pointing arrows suggest output, left-pointing arrows imply input. Ensure consistent orientation across your layout to prevent misinterpretation, especially in systems with multiple branching points.

Core Graphical Elements and Their Applications

The circle with a diagonal slash universally signifies a power source, typically a battery or voltage supply. Double parallel lines, closely spaced, represent capacitors in electrical charts, while wider gaps between lines denote inductors. Rectangles with rounded corners often illustrate functional blocks like amplifiers or integrated circuits–label them clearly to avoid ambiguity. For mechanical systems, a simple rectangle may instead indicate a valve, pump, or actuator.

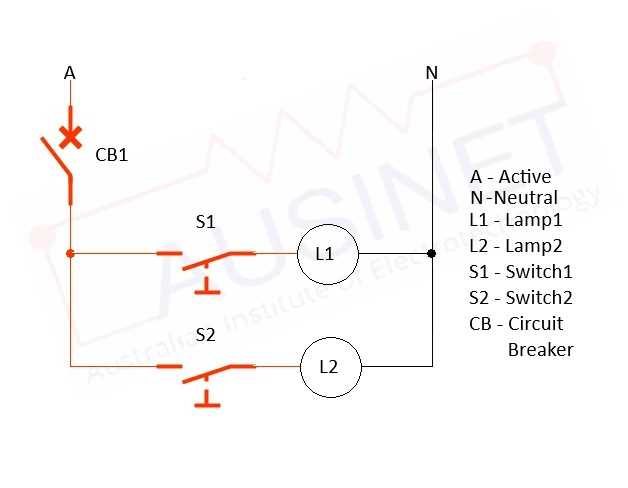

Switches are shown as breaks in a path, with open or closed states depicted by a perpendicular line intersecting the break. A circle enclosing a cross is the standard symbol for a lamp or indicator light. Resistors appear as zigzag lines; adjustable resistors include an angled arrow cutting through the zigzag. Always cross-reference symbols with industry standards (IEC 60617 or ANSI Y32.2) to ensure compliance, particularly when sharing diagrams internationally.

Ground symbols vary: a single downward-pointing triangle indicates chassis ground, while three descending parallel lines denote earth ground. Dotted lines typically represent boundaries of sub-systems or shielded enclosures. When depicting control logic, an elongated oval marks a process start or end, triangles denote decision points, and rectangles with flared sides signal data storage. Prioritize clarity over ornamentation–excessive detail dilutes readability, especially in complex systems with dozens of nodes.
