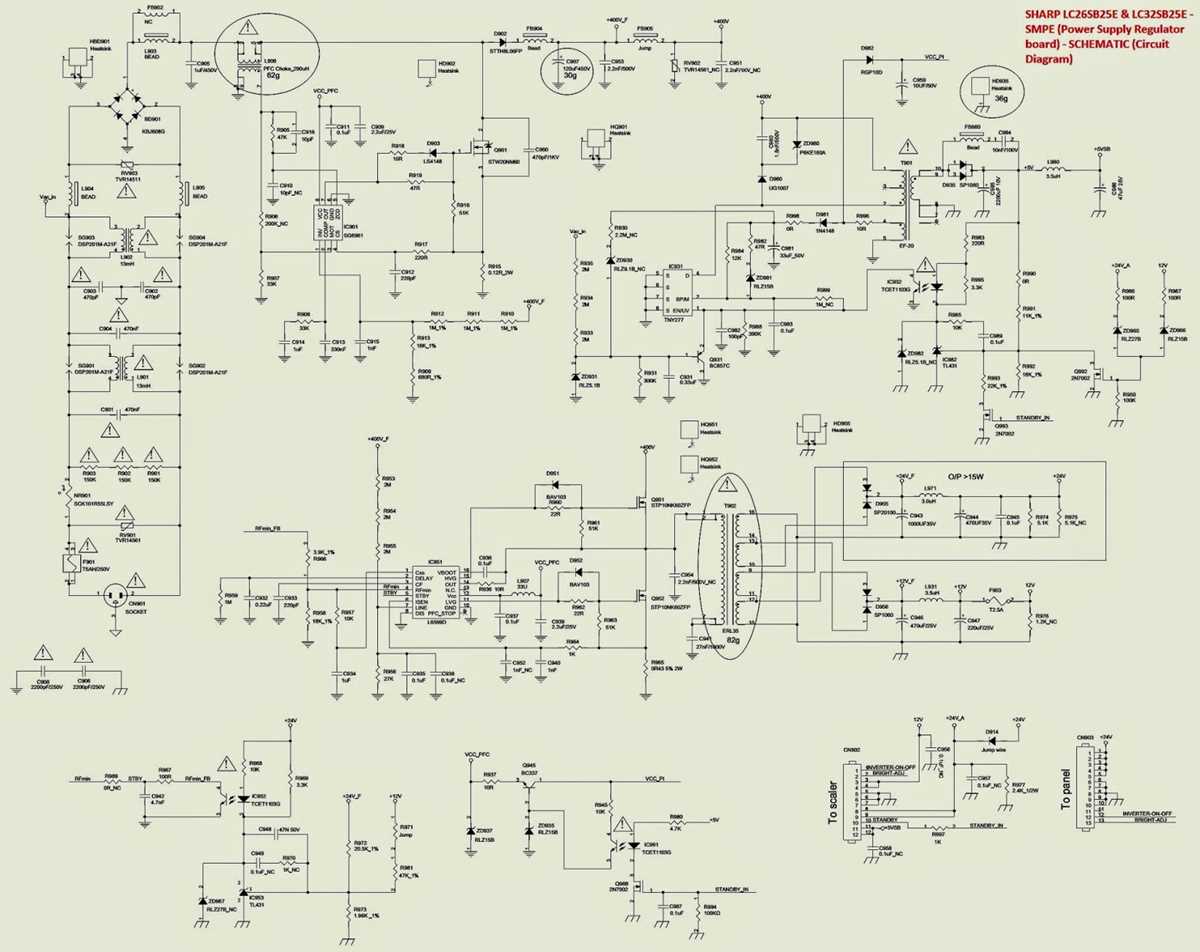

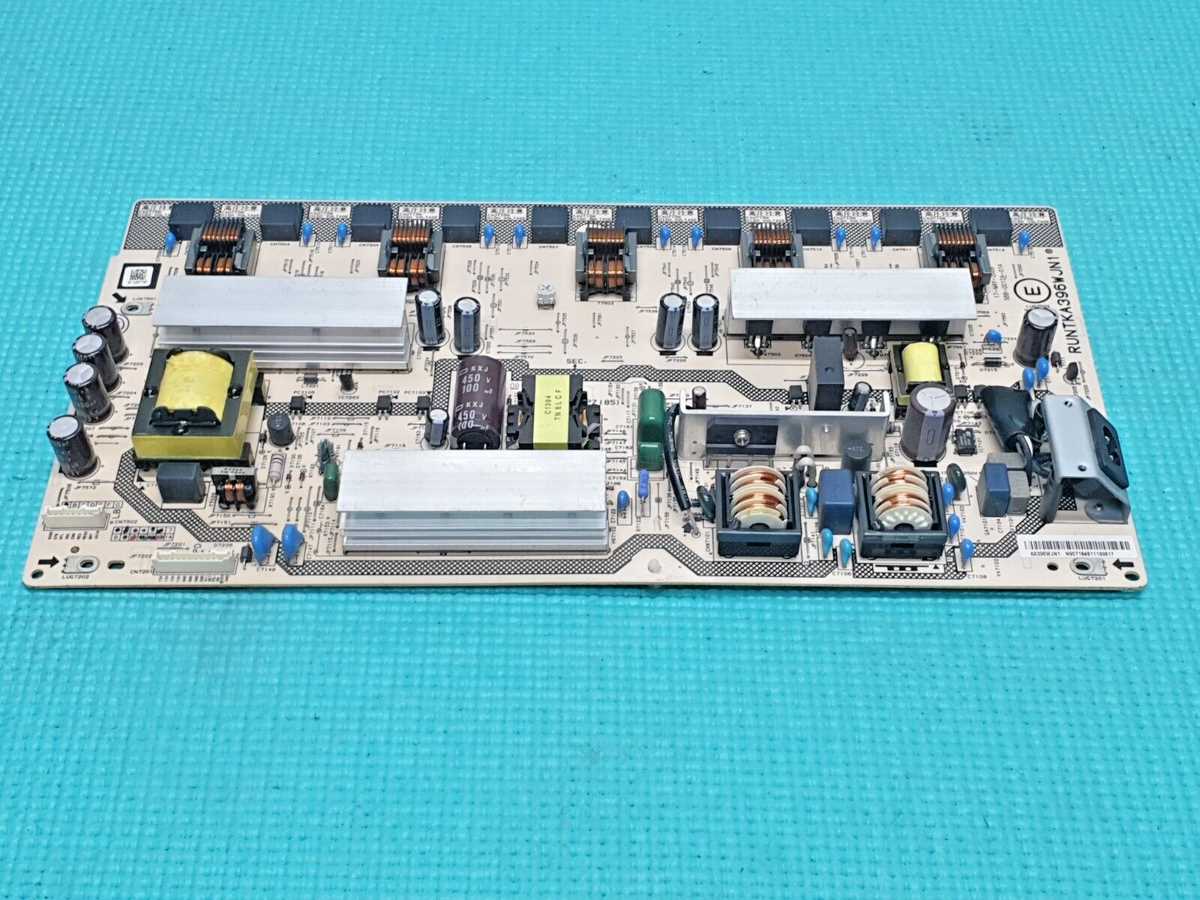

Sharp LCD TV Power Board Circuit Diagram and Repair Guide

If your flat-panel display fails to activate, begin by tracing the main converter board. Most failures originate from swollen capacitors in the secondary regulation stage, particularly around the 24V and 12V rails. Identify high-capacitance electrolytic components (typically 1000µF–4700µF, 25V–35V rating) – these commonly degrade due to thermal stress. Replace all suspect units within the same section to prevent recurring issues.

Locate the standby regulator IC, often an SMD chip marked with codes like “AZ431” or “TL431”. This component controls the 5V rail that keeps circuitry active in standby mode. If the TV shows no signs of life, measure voltage at the output pin – a reading below 4.5V indicates failure. Desolder gently using a hot-air station to avoid damaging adjacent traces.

Examine the switching transistor (usually a MOSFET, marked “SMPS” or “PWM”) near the primary transformer. Failed transistors show burn marks or resistance values outside the 5–10Ω range when tested in circuit. Check associated resistors (typically 0.5Ω–1Ω) for open circuits. Replace the transistor with an exact match, ensuring matching gate charge and drain-source voltage ratings.

For intermittent shutdowns, focus on the feedback optocoupler (commonly a 817-series). This isolates the primary and secondary sides. A weak optocoupler causes erratic voltage spikes, damaging downstream components. Test by gently pressing it while monitoring output rails – instability confirms failure. Always pair replacements with identical current transfer ratios.

When reassembling, reflow all solder joints on the converter board, especially around high-current paths. Thermal cycling creates micro-fractures, leading to unreliable connections. Use rosin flux and a temperature-controlled iron (350°C) to prevent overheating pads. Verify repairs by loading the TV for 2+ hours to detect latent faults.

Reference Guide for Flat-Panel Display Electrical Board Layouts

Locate the standby transformer near the primary AC input to minimize interference with secondary circuits–typically a small ferrite-core coil labeled T801 or similar. Verify its winding resistances: primary (1.8–2.2 Ω), secondary (0.4–0.6 Ω), and tertiary feedback (0.8–1.2 Ω) using a milliohm meter before proceeding. Any deviation above ±10% suggests insulation breakdown or shorted turns.

Check the PFC choke inductor (usually marked L802 or L601) for continuity across its main winding (0.2–0.4 Ω) and each auxiliary tap (0.1–0.2 Ω). If readings exceed these thresholds, replace the unit–most failures result from overheated epoxy resin degrading core material. Below is a quick comparison of expected inductance values measured at 1 kHz:

Board Revision	Main Inductance (µH)	Auxiliary Tap (µH)	Saturation Current (A)
PWB-A123B	850–920	180–220	4.5
PWB-B456C	720–800	150–190	5.2
PWB-C789D	950–1050	240–280	4.0

Inspect MOSFETs Q801–Q804 (or IRFP460-equivalent) for gate-source leakage; clamp the gate at 0V and apply 20V between source and drain–a leakage above 10 µA indicates oxide layer damage. Substitute any suspect device with a genuine part rated for 500V/20A or higher to avoid cascading failures.

Measure output rail voltages at connector CN803 with the set in standby; following values are typical for most chassis:

• +5VS: 5.00–5.15 VDC
• +12V: 11.80–12.30 VDC
• +24V: 23.8–24.5 VDC
• +13V (audio): 12.7–13.2 VDC

Any voltage below these ranges suggests either a faulty optocoupler (PC817 or similar) or degraded electrolytic capacitors–test each capacitor with an LCR meter at 120 Hz; ESR above 1.5 Ω for 1000 µF units indicates replacement.

Signal Integrity Checks

Trace the +B enable line (labeled ON/OFF or P-ON) from the main controller board back to the switching regulator IC–usually a Fairchild FAN7530 or Richtek RT8205. Probe the enable pin (pin 4) with a logic analyzer while toggling power; expect a clean 3.3V rising edge within 20 ms of button press. Ringing above 200 mVpp suggests insufficient decoupling–add a 0.1 µF ceramic capacitor directly across the IC’s VCC and GND pins.

Key Circuit Elements in Flat-Panel Display PSUs

Inspect the primary side for a standby transformer (T801) and associated MOSFETs (Q801, typically 600V/8A models like the FDP12N60NZ or SPP11N60C3). These handle low-load regulation, delivering 5V/1A to the main controller board. Check the PFC circuit–critical for efficiency–where the boost converter (IC801, e.g., NCP1653) works alongside a 600V/20A IGBT (Q802, often GT20J341) and a 270μF/450V bulk capacitor (C806). Replace suspect components with exact matches; generic substitutes risk overheating or premature failure under transient loads.

On the secondary side, focus on these critical elements:

• Multiple-output rectifiers: Dual Schottky diodes (SB560) for 12V/4A and 24V/3A rails–prolonged startup currents degrade these faster than standard recovery types.
• Feedback optocouplers: PC817 variants isolate primary/secondary regulation; verify CTR (100-200%) and replace if output drift exceeds ±3%.
• DC-DC converters: LDO regulators (e.g., AP1501 buck IC) generate 3.3V/0.8A for logic–check inductor (L805, 10μH/3A) for core saturation under full load.
• Protection ICs: Resettable fuses (P801, PPTC) and overtemperature sensors (TS801, NTC 10kΩ)–test continuity during thermal shutdown simulations.

Measure ripple on all rails (target <50mVpp for 12V, <20mVpp for 3.3V) using an oscilloscope; excessive noise points to failing filter caps (330μF/35V low-ESR types) or cracked PCB traces near high-current paths.

Step-by-Step Tracing of Board Circuit Paths

Begin by isolating the primary input stage on the board layout. Locate the AC entry points–typically marked as L (line) and N (neutral)–and follow the copper traces toward the bridge rectifier. Use a multimeter in continuity mode to verify paths; the meter should beep when probing directly connected pads. If silence occurs, inspect for cold solder joints or hairline fractures under magnification. Even minor disruptions in this segment can cause intermittent failures.

• Identify filtering capacitors adjacent to the rectifier–measure their capacitance (µF) against the printed value.
• Examine ESR (Equivalent Series Resistance) with an LCR meter if bulging or leakage is visible.
• Note voltage ratings: a 400V-rated component failing at 350V suggests overstress.

Proceed to the switching regulator section, often identifiable by a toroidal transformer or heatsink-mounted transistor. Trace the gate driver signal from the controller IC to the MOSFET gate using the board’s silkscreen annotations. Probe the controller’s output pin with an oscilloscope–expect a clean PWM waveform (typically 50–200 kHz). Irregularities like ringing or missing pulses indicate driver IC degradation or parasitic capacitance in nearby traces.

1. Verify VCC supply to the controller: 12V or 15V is common. Low voltage here halts operation.
2. Check bootstrap circuitry (if present) via diode forward voltage drop tests.
3. Inspect snubber networks–parallel RC components near switching elements–to suppress voltage spikes.

Secondary outputs demand scrutiny of feedback loops. Isolate the optocoupler (usually a 4-pin device) and confirm its LED side receives stable reference voltage from the zener diode. Probe the phototransistor’s collector-emitter path: fluctuation here suggests optocoupler failure. Replace with an identical part number (e.g., PC817, EL817) to avoid mismatched gain values, which disrupt regulation.

Terminate at the load-side components. Measure DC output rails against nominal values (±3% tolerance). For 12V rails, expect 11.64V–12.36V; deviation beyond this range implies faulty voltage dividers or shunt regulators. Use a load tester (1–3A) to confirm stability under draw–drooping voltage under load pinpoints deteriorating output capacitors or high-impedance connections.

Spotting and Validating Compromised Electrolytic Components on the Main Control PCB

Begin by visually inspecting high-voltage reservoirs–especially those rated above 25V–near heat sinks or switching transistors. Bulging tops, crusty residue around the base, or slight discoloration on the circuit paths leading to these parts confirm degradation. Use a capacitance meter to measure deviation from nominal values: tolerate no more than 10% loss for critical filtering units (100–470μF, 400V) and 5% for smaller decoupling devices (22–100μF). Record ESR readings simultaneously; values exceeding 2Ω for 220μF/25V or 0.5Ω for 470μF/400V denote failure. Always discharge components with a 10kΩ resistor before testing to prevent meter damage or false readings.

For rapid field verification, employ a non-contact thermometer after powering the unit for 15 minutes. Healthy smoothing capacitors should stay below 60°C; anything above 75°C signals internal resistance build-up. Probe with an oscilloscope: distorted ripple waveforms (amplitude >200mVpp or frequency deviation >5%) at the rectifier output node directly link to defective reservoirs. Replace any suspect parts with exact voltage/capacitance ratings, prioritizing low-ESR variants from Nichicon or Rubycon to match original performance specs.

Desolder suspect units with controlled heat (350°C iron, 5-second max per pin) to avoid pad lifting. Clean pads with isopropyl alcohol and 0.5mm rosin flux before reinstalling new parts–ensure polarity aligns with the silkscreen. Post-replacement, power the board through a variac: ramp voltage from 0V to nominal over 30 seconds while monitoring current draw. Stabilization below 300mA indicates no latent shorts; sudden spikes mandate immediate shutoff and re-examination of adjacent semiconductors.
