Complete F150 Ford Steering Column Wiring Diagram Guide for Troubleshooting

Start by identifying the specific year and trim of the vehicle in question–the electrical layout differs substantially even between consecutive model years. The 1997–2003 series uses a modular connector block under the dashboard, while 2004+ variants integrate inline fuses into the multi-function harness beneath the instrument cluster. Download the official service manual PDF from the manufacturer’s portal; generic third-party wiring guides often omit critical splice details for turn signal cancellation, cruise control relays, and horn activation circuits.

Trace the power feed wire with a multimeter–it originates at the ignition switch, typically an 18-gauge red or pink cable for accessory voltage, then branches through the combination switch before terminating at the airbag clock spring. A malfunctioning flash-to-pass function usually points to corrosion on the 10-pin connector, pin 5; clean the contact with electrical cleaner and apply dielectric grease to prevent oxidation. For intermittent horn failure, inspect the ground strap located behind the lower dash panel–secure mounting bolts frequently loosen over time.

Use color-coded diagrams labeled with circuit numbers rather than wire colors alone; Chrysler’s late 90s convention swaps blue/orange for turn signals, while GM retains consistent yellow/green for the same function. Label each connector segment with painters tape during disassembly–misalignment during reassembly can trigger false airbag deployment codes. Verify circuit continuity before reinstalling steering wheel trim; the clock spring assembly tolerates no more than half a rotation mismatch without permanent damage to internal traces.

Exchange the integrated circuit board rather than attempt individual trace repair if diagnostics reveal erratic resistive readings across the impact sensor or rotary coupler. Aftermarket assemblies frequently suffer from inferior solder joints on the slip ring; original equipment remains the only guaranteed solution. Reassemble in reverse order, ensuring the steering wheel alignment notch engages before tightening the central bolt to 25 Nm.

Electrical Schematic for Pickup Truck Helm Assembly

Trace the primary harness connections by locating the ignition switch cluster beneath the instrument panel cowl. The thick red cable with yellow stripe (circuit 14) delivers 12V+ from the battery, branching into key positions: ACC, RUN, and START. Verify continuity with a multimeter between terminal 5 (red/light blue) and chassis ground–expected reading: 0.2–0.5 ohms. If resistance exceeds 1.0 ohm, inspect the fusible link (T-shaped connector near the firewall) for corrosion or thermal damage.

• Turn signal cancelling mechanism: orange/white (circuit 57L) and dark green/white (circuit 57R) feed the lever microswitch. Disconnect the 8-pin connector at the base of the stalk; probe pins 3 and 4 for 5V reference signal during left/right actuation.
• Horn relay control: black/yellow (circuit 15) triggers at pin 6 of the C201 connector. Test by jumping 12V to this pin–horn should sound within 0.3 seconds.
• Cruise control interface: tan/light green (circuit 34) and tan/black (circuit 41) carry speed sensor data. Backprobe these wires at the ECM while driving; valid signal ranges: 120–240 Hz at 60 mph.

Troubleshooting Faulty Gauge Clusters

For intermittent tachometer dropout, focus on the purple/white (circuit 676) wire linking the coil negative terminal to the instrument cluster. Crimp a 0.1 µF ceramic capacitor between this wire and ground–this filters transient voltage spikes exceeding 400V. If the issue persists, replace the tach circuit board R1 resistor (nominal value: 1.8 kΩ) with a precision 1% tolerance component.

1. Disassemble the three-spoke wheel hub by removing the Torx T20 security bolt (counter-clockwise).
2. Detach the clockspring ribbon cable–note the yellow alignment dot before separation.
3. Inspect the slip ring for carbon deposits; clean with 99% isopropyl alcohol and a lint-free swab.
4. Reinstall with clockspring centered–test by rotating the wheel 2.5 turns in each direction while monitoring airbag circuit resistance (spec: 2.0–3.0 Ω).

Pinpointing Critical Conductors in the Pickup’s Helmshaft Cable Assembly

Locate the ignition switch feed wires first–they’re typically thick and wrapped in yellow or red insulation. These carry the main circuit power and are often paired with a matching size ground line (brown or black) that terminates at the base near the firewall connector. Measure voltage here before proceeding; expect 12V+ when the key is in the “run” position.

• Horn relay lead: single green/gray striped conductor, usually 18 AWG. Test continuity from the wheel button to the relay socket–resistance should drop below 2 ohms.
• Turn signal flasher input: light blue/orange stripe, 20 AWG. Connects directly to the multifunction switch; verify by activating the lever–voltage should pulse at ~1-2Hz.
• Cruise control engage wire: solid purple, 20 AWG. Runs alongside the clockspring assembly to the engine bay module. Probe with ignition on; should read 5V when lever is pulled.
• Airbag deployment loop: coiled yellow pair, twisted together. Never probe these directly–use a load tool rated for supplemental restraint systems to check resistance (~2-3 ohms).

Cluster illumination lines are grouped in a four-wire bundle: two white (dash lights), one orange (dimmer input), and one gray (park lamp feed). Trace these to the instrument panel connector–white conductors should show ~12V when headlights are on, scaling with the dimmer position.

For automatic transmission models, the neutral safety switch wires sit behind the selector mechanism: light green/orange (start signal) and pink/black (park/neutral switch). Jumper these temporarily to confirm starter engagement–isolate before road testing.

1. Disconnect the negative battery terminal before handling any embedded restraint system conductors.
2. Label each wire at both ends–use shrink tube or numbered tags, not masking tape.
3. Clip a multimeter set to DC voltage across unknown points–steady 12V indicates constant power, pulsed signals suggest switch-controlled circuits.
4. Refer to the specific build sheet for exact pinouts–assembly variations exist between model years.
5. Avoid twisting or bending conductors near the clockspring–they’re pre-formed to prevent fatigue fractures.

Check for chafed insulation where cables pass through column mounts–replace the entire section if copper strands are exposed. Use a heat gun to shrink new tubing over splices, ensuring moisture resistance matches OEM standards.

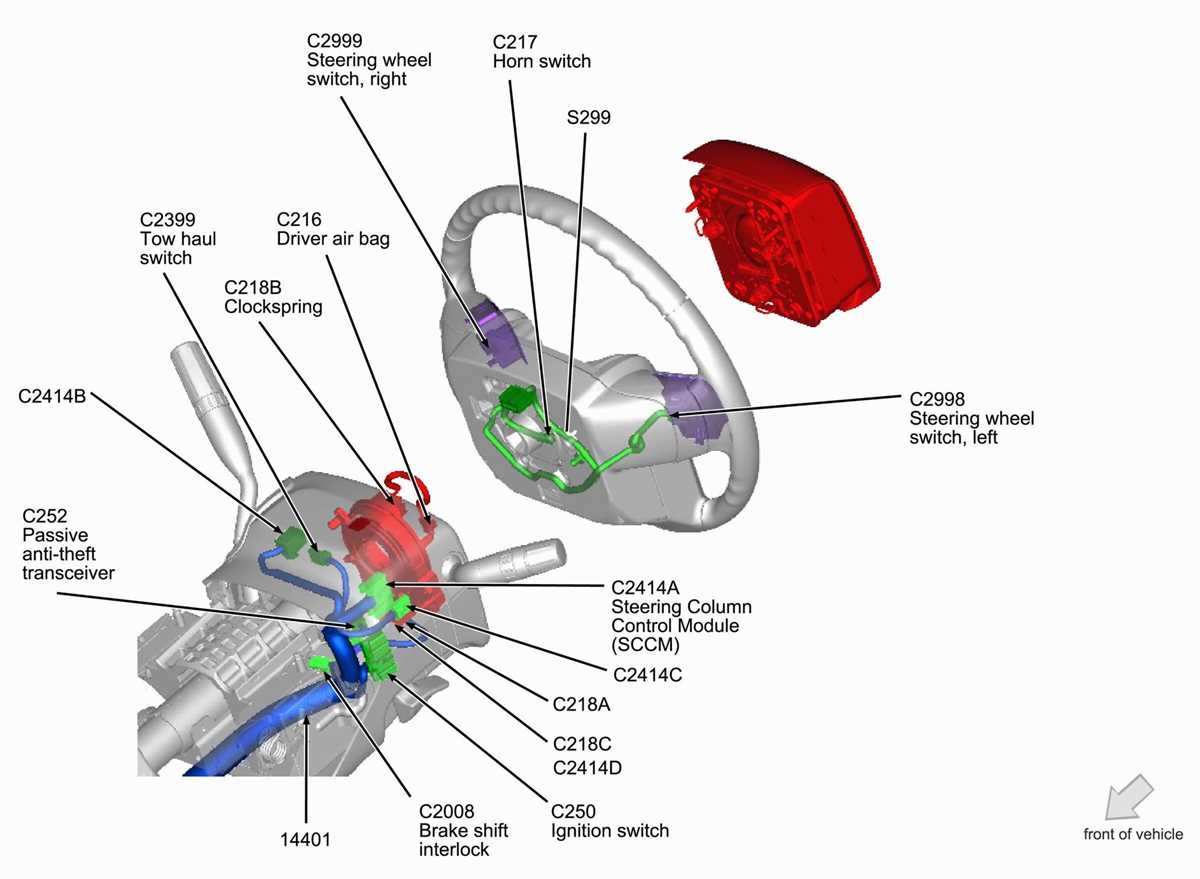

Step-by-Step Guide to Locating the Clock Spring Connector

Disconnect the vehicle’s battery by removing the negative terminal first–wait at least 10 minutes to discharge residual power. Remove the lower dash panel beneath the wheel assembly by unscrewing the three 8mm bolts and releasing the two plastic clips near the pedals. Peel back the sound-deadening material to expose the back of the modular switch cluster; the clock spring connector sits directly behind it, secured by a white or black plastic housing with a locking tab on the upper right side.

Location Marker	Connector Type	Release Mechanism
Behind modular switch cluster	6-pin or 8-pin rectangular	Push-down tab on housing
Above intermediate shaft	2-wire spiral cable	Squeeze sides to disengage
Left side of central hub	4-wire auxiliary	Rotate counterclockwise ¼ turn

Press the tab firmly while pulling the connector straight out–avoid twisting. If resistance occurs, check for debris in the slots; use a flashlight to inspect the pins for corrosion or bent contacts. Reattach by aligning the notches on the connector with the grooves in the housing, then push until the tab clicks. Reinstall the dash panel before restoring power to prevent airbag error codes.

Diagnosing Electrical Circuits in Vehicle Control Assemblies

Begin by disconnecting the battery negative terminal to prevent shorts during testing. Use a multimeter set to 20V DC to probe the harness connector terminals linked to the ignition switch and multifunction switch. For power feeds, connect the red lead to the wire terminal and the black lead to a clean chassis ground–voltages should read within 0.5V of battery voltage when the key is in the “ON” position. If readings are absent or fluctuate, trace the circuit upstream to the fuse block, relay, or ignition harness splice points, checking for corroded pins, burnt traces, or loose connections.

Verify ground paths by switching the multimeter to continuity mode. Probe between the suspected ground wire terminal and bare metal on the vehicle’s firewall or frame–resistance should measure below 1Ω. If readings exceed this threshold, follow the ground wire to its termination point, often a bolt or weld stud. Clean any rust, paint, or debris at the contact surface using a wire brush or fine-grit sandpaper, then re-secure the connection tightly to ensure minimal resistance. Common failure points include aged star washers or under-torqued fasteners.

Isolating Intermittent Faults

For inconsistent behavior, wiggle test the harness near the control unit while monitoring voltage or resistance. Focus on areas where wires bend sharply or pass through bulkheads, as insulation breakdown and internal conductor fractures are frequent culprits. Strip back suspect sections of wire and inspect for greenish corrosion or brittle copper strands–replace compromised segments using heat-shrink butt connectors and solder for durability. Always re-tape harnesses with high-temperature electrical tape to prevent chafing against adjacent components.
