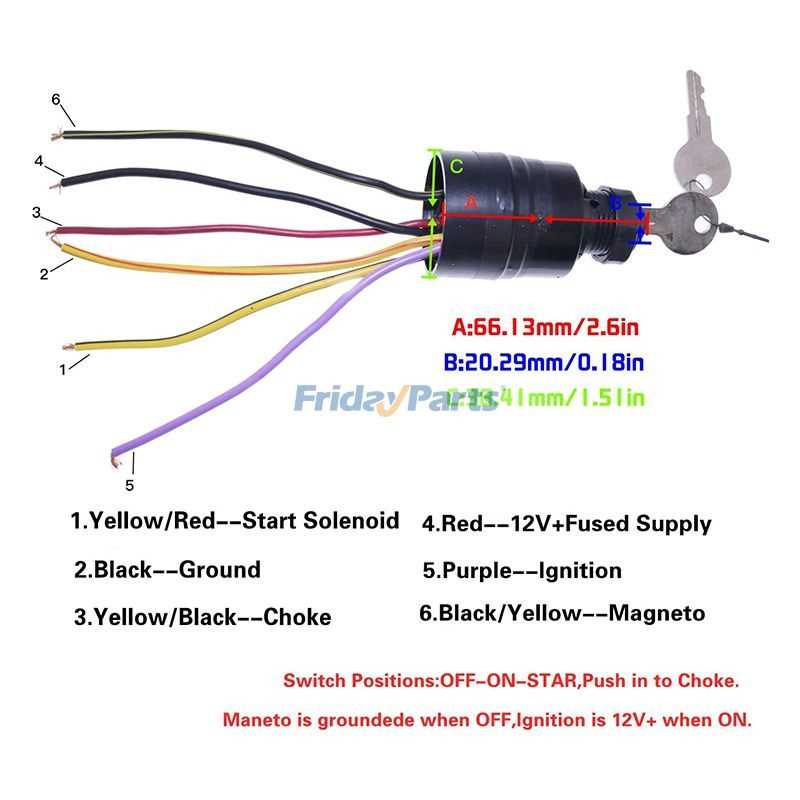

Step-by-Step Mercury Ignition Switch Wiring Guide with Diagram

Start with the spade terminals. The primary red lead attaches to the battery-positive spade connector, ensuring a direct 12V supply. Verify the crimp before securing it–loose connections cause intermittent failures. A secondary yellow lead often bridges to the solenoid, but check your model’s voltage drop specs: some require a dedicated 10-gauge jumper instead of the factory 14-gauge.

Ground integrity dictates reliability. The black wire must route to a corrosion-free engine block point, bypassing paint or anodized surfaces. Use a star washer between the ring terminal and mounting bolt–this prevents vibration-induced resistance. If your unit has a kill-switch loop, confirm its continuity with a multimeter: readings above 0.5 ohms indicate hidden oxidation.

Inspect the neutral safety link (usually a thin purple or brown wire). On models with electric start only, this loop combines with the start relay to prevent engagement outside neutral. Skipping this step risks accidental engine rollover. Modern variants integrate a micro-switch under the flywheel cowl–locate it via the manufacturer’s service manual, not generic schematics. Replace the switch if plunger travel exceeds 3mm.

Test sequence: apply 12V to the red terminal, verify solenoid click, then jump the yellow to the engine block–if starter cranks, the issue lies in the ignition path. Dead silence? Probe the brown/white stripe wire behind the panel; it carries the pulse signal from the ECM. Voltage spikes here (above 0.8V) confirm ECM failure, not wiring faults.

Final check: corrosion inhibitors. Apply dielectric grease to connector faces before reassembly. Never use marine-specific grease on resistor-type terminals–it causes voltage leakage. For EFI-equipped engines, ensure the pink wire’s 5V reference voltage remains stable (±0.2V) during cranking. Fluctuations here cascade into erratic fuel delivery.

Electrical Connection Guide for Outboard Starter Mechanism

Ensure the red lead from the battery connects directly to the solenoid terminal labeled “B+” or marked with a battery symbol. Failure to secure this link with a 10-gauge crimp connector risks voltage drop, leading to intermittent start failures. Avoid soldering–heat degrades wire integrity over time.

Locate the purple or yellow-striped wire, which carries the control signal from the key assembly to the relay. Trace it to the push-button panel or rotary assembly, depending on model year. For pre-2010 units, the path includes a thermal fuse; verify continuity with a multimeter before proceeding. Post-2012 configurations often integrate a CAN bus module–consult service manual section 4.3 for resistance values.

Terminal Pinout Reference

Connector Pin	Wire Color	Function	Voltage (Key ON)
A1	Red/Black	Power Feed	12.6V
B2	Purple/White	Start Signal	0.8V-1.2V
C3	Green/Yellow	Ground Return	0V
D4	Blue/Orange	Accessory Relay	12.2V (with load)

Neutral safety interlocks require attention: the gray wire at the gearshift assembly must show continuity only in “neutral” position. If readings fluctuate, inspect the microswitch bracket–bend it 2° clockwise to restore proper alignment. Models with smart helm control units need firmware calibration (Mercury part #8M0087442) if the engine cranks but stalls immediately.

Terminate all connections using adhesive-lined heat shrink tubing (minimum 4:1 ratio). Standard electrical tape degrades within 18 months in marine environments. Test each joint with a 5-amp load–voltage drop should not exceed 0.2V at any single splice. For troubleshooting intermittent no-crank conditions, probe the starter motor brushes; resistance above 0.3 ohms indicates worn contacts requiring 8mm replacement brushes (OEM part #34-863698T).

Connecting the Right Leads on Outboard Engine Start Controls

Begin by locating the power lead from the battery–this is typically a thicker, red cable with a fused connection. Trace it to the starter solenoid or relay; incorrect attachment here will prevent the engine from cranking. Verify voltage with a multimeter before proceeding; 12V systems should read between 12.6–13.2V at rest.

Next, identify the kill circuit conductor, usually a thin purple or black wire leading to the emergency stop terminal. Disconnecting this should interrupt spark delivery immediately–test this function before finalizing connections. Some models integrate this with the tilt lockout; consult the shop manual for variants like 40HP EFI units where the lead may split.

Check the ignition coil output–look for a pair of smaller cables (often yellow and brown) linked to the distributor cap or direct-fire coils. Swap these only if fouled plugs suggest reversed polarity, which causes weak spark and poor starts. On older two-stroke models, the coil pack output may route through a separate resistor block; bypassing this alters voltage delivery and risks damage.

Matching Terminals to Control Module Inputs

Focus on the control module, often mounted under the flywheel cover or near the fuel pump. Most late-model units have a 6-pin harness; pins labeled “B+”, “S”, “I”, and “G” correspond to battery positive, sender signal, ignition input, and ground, respectively. Misrouting the “I” pin (usually blue) to ground creates a permanent kill switch effect.

Ensure the sender signal wire (frequently pink or orange) reaches the correct dash gauge without splices–resistance here skews readings and triggers false alarms. For models with integrated trim sensors, a separate gray lead often ties into the lower unit sender; leave this isolated unless the gauge cluster supports trim display.

Ground paths demand particular attention–every control box and solenoid needs a dedicated return to the engine block or negative bus bar. Shared grounds between accessories and ignition components induce voltage drops under load, producing intermittent misfires or solenoid chatter. Clean mounting surfaces thoroughly; oxidation here mimics failed switches.

Verify all connections with a continuity tester before energizing. Start engines in neutral with the lanyard detached; unexpected engagement points to reversed shift interrupt or throttle position sensor errors. Record each wiring decision for future diagnostics–reversals void warranty claims and confuse technicians.

Step-by-Step Guide to Powering Your Outboard Start System

Disconnect the vessel’s main power source before handling any electrical components. Locate the positive terminal on the 12V energy cell–typically marked with a “+” symbol and covered in red insulation–and attach an 8-gauge marine-grade cable directly to it. Ensure the connection is secured with a corrosion-resistant crimp connector or solder joint, then apply dielectric grease to prevent oxidation.

Route the cable through a waterproof conduit toward the control module, avoiding sharp edges or moving parts. Connect the cable to the designated input point on the starter relay, usually labeled “BAT” or “B+”, using a ring terminal sized to match the terminal post. Verify polarity with a multimeter (expected reading: 12-14V DC) before proceeding.

Securing Ground Connections

Identify a clean, unpainted metallic surface on the engine block as the ground attachment point. Scrape away any paint or debris with a wire brush, then fasten a 6-gauge tinned copper cable to this location using a self-tapping stainless steel screw. Connect the opposite end to the negative terminal of the energy cell with an equal or larger gauge cable, forming a complete circuit.

Final Safety Checks

• Inspect all connections for tightness (torque specs: 10-12 ft-lbs for terminals).
• Test the system by activating the control handle–listen for a distinct “click” from the relay.
• Monitor voltage drop during activation (should not exceed 0.5V).
• Reinstall protective covers only after confirming proper operation.

Key Errors in Connecting an Outboard Starter System and Fixes

Reverse-polarity connections burn out safety relays within seconds–a mistake that destroys $120 components instantly. Always verify the positive (battery terminal) and negative (ground) markings before attaching leads, especially on aftermarket harnesses where labeling may be ambiguous. Use a multimeter set to DC voltage: red probe on the battery’s positive post, black on engine block–reading should match the battery’s voltage (12.6V). If it doesn’t, trace the ground path, cleaning corrosion from the engine mount bolts and inspecting the bonding strap for continuity.

Skipping the ballast resistor leads to starter motor overheating during prolonged cranking. Most 40-115 HP models require a 0.25-ohm resistor inline with the solenoid’s “S” terminal. Omitting it causes amperage spikes up to 200A, deforming solenoid contacts within three starts. Test resistance between the “S” and “B” terminals: readings below 0.2 ohms signal a missing or failed resistor. Replace it with an exact OEM part (Mercury part #887926T)–aftermarket alternatives often use incorrect wire gauges, risking melt-down.

Faulty Neutral Safety Circuit Checks

Incorrectly bypassed neutral safety switches force engines to crank while engaged–a violation of ABYC standards that voids insurance. The switch must open the circuit when the shift lever moves out of neutral. Test by disconnecting the pink/white wire from the control box and measuring continuity: infinite ohms in neutral, zero in gear. If readings are reversed, adjust the shift cable’s tension screw (located behind the lower cowling) until the switch clicks audibly. Never substitute this with a jumper wire; doing so risks uncontrolled starts at 4,000 RPM.

Ignoring battery voltage drop under load masks intermittent starting failures. Connect a voltmeter between the battery’s positive terminal and the starter’s “B” terminal while cranking–readings below 9.5V indicate a weak battery or corroded connections. Clean terminals with a stainless-steel brush, applying dielectric grease to prevent future oxidation. For lithium batteries, ensure the Battery Management System (BMS) supports cold-cranking amps: undersized BMS units shut off below 0°C, leaving the engine dead. Use a BMS with a minimum 600A rating (e.g., Victron SmartShunt) to handle Mercury’s 80A draw during ignition.
