Complete Ford Fusion Radio Wiring Harness Color Codes and Connections Guide

To connect a new sound module aftermarket unit, locate the 12-pin harness connector behind the dash panel. Pin assignments follow this sequence: A4 (yellow/black) delivers constant 12V power, A8 (red/light blue) supplies accessory voltage activated by the ignition switch. Ground connects via A5 (black). Front speaker outputs occupy A3 (gray/black, right positive) and A1 (gray/red, right negative), while rear outputs use A6 (green/black, left positive) and A2 (green/red, left negative). Antenna control sits on C2 (blue), requiring a 300-ohm resistor for proper signal amplification.

For vehicles equipped with SYNC, additional wires emerge: B4 (orange/light blue) carries CAN High data, B2 (orange/white) handles CAN Low. These lines must not be spliced–interference disrupts microphone input and Bluetooth pairing. Verify connections with a digital multimeter set to 20V DC range; stray voltage exceeding 0.3V indicates corrosion or improper crimping. Replace factory crimps with solder-sealed joints to prevent signal degradation over time.

If integrating a navigation retrofit, the GPS antenna (pink) demands an unobstructed path to the roof–route the cable through the headliner using existing clips. Steering wheel control inputs (if retained) require a bypass adapter module; direct splicing causes erratic volume adjustments. All connections should be wrapped in heat-shrink tubing, then secured with zip ties away from moving components to prevent chafing.

Before reassembly, test each channel with a 1kHz sine wave at 2V RMS. Distortion above 0.1% suggests a ground loop–recheck every splice point. Finalize installation by updating the firmware via OBD-II port to ensure compatibility with hands-free protocols.

Automotive Audio System Connection Guide for Your Vehicle

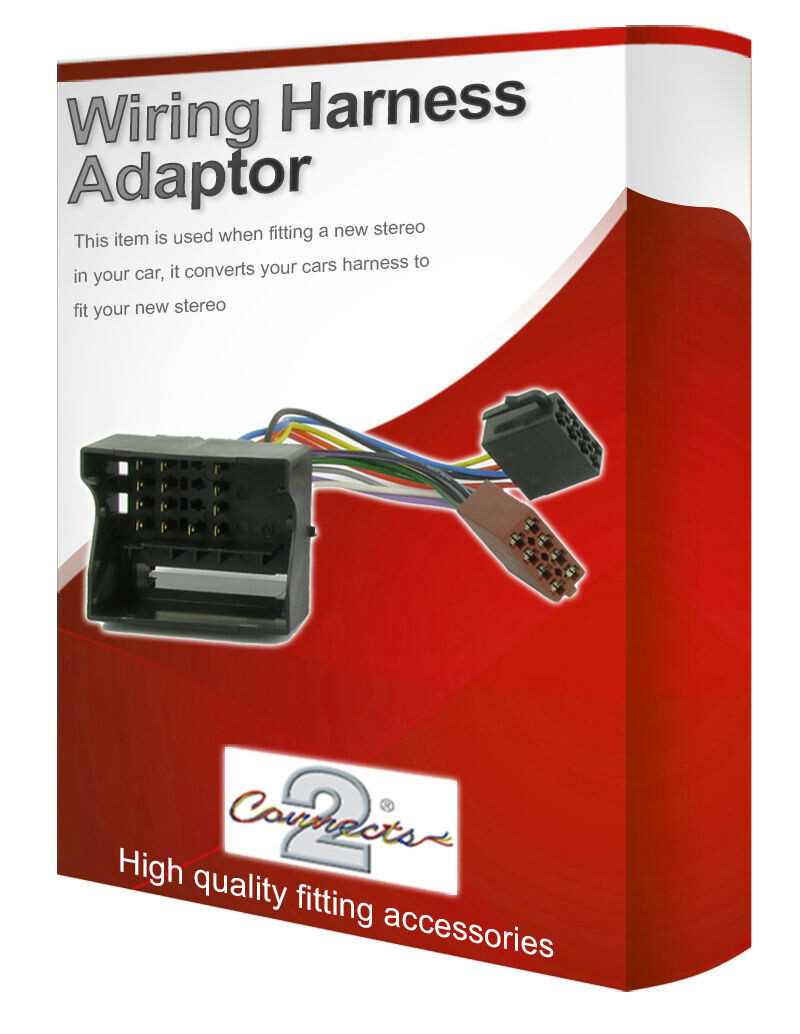

Begin by locating the harness adapter matching your model year–typically an ISO or Metra ASWC-1 for seamless integration. Pin assignments for 2013–2020 variants follow this layout: constant power (yellow), ignition-switched feed (red), ground (black), front speakers (gray/white for +, gray/black for –), rear speakers (green/white for +, green/black for –), and illumination (orange). Verify wire gauge–18 AWG suffices for standard setups, but upgrade to 16 AWG if running high-power amplifiers.

For aftermarket unit compatibility, splice the adapter’s antenna lead (blue/white) to the factory harness’s corresponding wire–failure results in no signal reception. Disable factory amplifier triggers on premium sound trims by severing the pink/black wire; retaining it may cause distorted output. Use a multimeter set to 20V DC to confirm voltage: 12V on yellow (battery), 0V on black (chassis ground), and 12V on red only when ignition is active.

Troubleshooting Common Issues

If static persists despite proper grounding, shield the RCA cables with foil–route them away from power leads to minimize interference. Check fuse ratings: 15A for the main circuit, 10A for accessory feeds. Replace blown fuses with identical amperage; higher values risk overheating. For no sound on rear channels, inspect the green harness connector for corrosion–clean with electrical contact cleaner if oxidation is present.

When retrofitting a double-DIN head unit, confirm dash kit compatibility–OEM bezels require Metra 99-8212B for 2017+ models. For steering wheel control retention, use an ASWC-1 module or Axxess AX-ADBF-50–programming requires vehicle-specific codes, available in the module’s manual. Secure all connections with solder and heat-shrink tubing; avoid electrical tape as it degrades over time.

Identifying the Audio System Harness Interface in Mid-Size Sedan Variants

Begin by removing the central trim panel above the climate controls–this section is secured with clips, so apply gentle pressure along the edges to release it without damaging the housing. The harness connector for the head unit is typically nestled behind this panel, adjacent to the HVAC vents, on 2013-2020 iterations. Use a trim removal tool to avoid scratching surrounding surfaces, as the plastic retains marks easily.

Trace the bundle of cables extending from the rear of the infotainment module–it should terminate in a rectangular plug with 16-24 pins arranged in two rows. Earlier releases (2010-2012) may feature a slightly different pinout, but the connector shape remains consistent. Verify the harness matches the vehicle’s build year before proceeding to prevent mismatches during upgrades or repairs.

If the connection point isn’t immediately visible, check beneath the ashtray or storage compartment on the dashboard’s lower section. Some configurations route the cabling through this area, requiring partial disassembly of the gear shift surround. Disconnect the battery before handling any exposed terminals to prevent short circuits or accidental airbag deployment.

For hybrid or electric versions, additional wiring may be present, including orange-colored cables indicating high-voltage circuits. Do not disturb these; focus solely on the stereo-specific harness, which is usually color-coded (yellow for power, red for accessories, black for ground) and bundled separately with smaller gauge wires for speaker outputs.

Key Landmarks for Quick Identification

The most reliable reference point is the gray or black plastic casing encasing the connector–it’s roughly the size of a deck of cards and often labeled with serial numbers or manufacturing codes. On late-model editions, a secondary harness may link to the rear camera or satellite module, distinguished by a thinner profile and fewer pins. Prioritize the primary plug when troubleshooting audio issues.

If the harness feels loose or corroded, examine the locking tab on the connector–press it firmly to ensure it latches securely. A faulty connection here can cause intermittent sound dropouts, distorted bass, or complete system failure. Clean the contacts with electrical contact cleaner if oxidation is visible, avoiding abrasive tools that could damage the gold-plated terminals.

Should the harness be missing or damaged, replacement components can be sourced from salvage vehicles or aftermarket suppliers, but ensure compatibility with the OEM pin configuration. Third-party adapters exist for integrating modern stereo systems, though they may require splicing or reprogramming to align with the sedan’s CAN bus protocol. Always cross-reference the wire colors with a verified schematic before modifying connections.

Safety and Functional Checks

After reconnecting the harness, power on the vehicle and test the audio system at varying volume levels–listen for static, popping, or imbalance between channels, which may indicate a poor ground or shorted speaker wire. If the head unit boots but displays errors, reset it by holding the power button for 10 seconds or disconnecting the battery for 15 minutes. Persistent issues may require diagnostic scanners to check for fault codes in the entertainment control module.

Understanding Connector Hues in Vehicle Audio System Circuits

Begin by locating the 12-pin harness at the rear of the head unit–pin 1 (typically yellow) delivers continuous battery power, while pin 2 (often red) supplies accessory voltage, activating only when the ignition is engaged. Verify these with a multimeter: yellow should read 12V regardless of key position, red only when the vehicle is on.

Ground connections appear in two forms: a dedicated black wire (pin 7 or 8) and a chassis link via a bare metal stud near the mounting bracket–ensure both have zero resistance to the battery’s negative terminal. A poor ground causes intermittent operation, distortion, or silent channels. For speaker outputs, trace the rear harness: front left (gray/light blue stripe), front right (gray/red stripe), rear left (white/brown stripe), and rear right (white/purple stripe).

Illumination control uses a dimmer-compatible wire (pin 5, gray with a black stripe)–this adjusts display brightness in sync with dashboard lights. Aftermarket interfaces may misinterpret this as a ground, causing erratic backlighting. The antenna trigger (pin 9, blue with a white stripe) feeds 12V to power amplifiers or motorized antennas when the system is active; without it, FM reception weakens or auxiliary devices fail to initialize.

For factory amplifiers, identify the data bus wires: pin 14 (orange with a white stripe) carries CAN high signals, and pin 16 (green with a yellow stripe) carries CAN low–these synchronize the audio system with the car’s ECU. Cutting or splicing these can disable steering wheel controls, voice commands, or sync features. Always use solder and heat-shrink tubing for splices to prevent corrosion-driven signal degradation over time.

Test each wire before finalizing connections: set a multimeter to DC voltage and probe the harness with the ignition off (for constant power) and on (for accessory and speaker outputs). Speaker wires should alternate between 2-4V when bass tones are played; absence of voltage indicates an open circuit or faulty harness. Replace any brittle or frayed wires immediately–compromised insulation risks shorts or fire in high-current pathways like power feeds or subwoofer outputs.

Step-by-Step Guide to Integrating a New Receiver with OEM Harnesses

Begin by disconnecting the vehicle’s battery to prevent electrical shorts or damage to sensitive components. Locate the factory connector behind the dashboard–typically a 12-pin plug with color-coded leads for power, speakers, and antenna. Use a multimeter to verify function by testing each wire’s voltage: constant 12V (yellow), switched 12V (red), ground (black), and speaker outputs (varies by channel).

Match the aftermarket unit’s harness to the vehicle’s connector using a wiring adapter if available. If not, strip 1/4 inch of insulation from each wire and twist corresponding colors together securely. For constant power, connect the yellow lead from the new system to the vehicle’s thick yellow or orange wire (often labeled “BATT”). For switched power, link the red lead to the vehicle’s red or pink wire (labeled “ACC”).

Ground the system properly by attaching the black wire from the new harness to the vehicle’s chassis or a designated ground point–avoid daisy-chaining grounds, as this can cause noise interference. Speaker wires require polarity checks: use the multimeter in continuity mode to ensure positive (solid color) and negative (striped) leads align with the factory harness. Miswiring here will result in phase cancellation or reversed audio channels.

Wire Color (OEM)	Function	Aftermarket Equivalent
Yellow	Constant 12V	Yellow
Red	Switched 12V	Red
Black	Ground	Black
Gray/White	Front Right (+)	Gray
Gray/Black	Front Right (-)	Gray/Black
White/Black	Front Left (+)	White
White	Front Left (-)	White/Black

For amplified systems, identify the factory amp trigger wire (usually blue/white) and connect it to the new unit’s remote turn-on lead. Skip this step if the vehicle lacks an external amplifier. Test connections by temporarily reconnecting the battery and turning the ignition to accessory mode–verify the new head unit powers on without dimming lights or blown fuses. If issues arise, recheck grounds and power leads before proceeding.

Secure all splices with heat-shrink tubing or electrical tape, avoiding exposed copper. Route wires away from sharp edges, moving parts, or heat sources. Reassemble the dashboard in reverse order, ensuring no wires are pinched behind panels. Perform a final test of all audio channels, balance, and fade settings before fully tightening trim pieces. If static or distortion occurs, inspect speaker wiring for loose connections or improper polarity.
