Complete Guide to Autotransformer Starter Circuit Design and Functionality

For three-phase induction motors requiring reduced-voltage starting, a tapped coil-based initiation circuit provides superior inrush current suppression compared to direct-on-line or resistor-based methods. This approach leverages a multi-tap auxiliary winding to deliver precisely calibrated voltage reduction–typically 50%, 65%, or 80% of nominal–through a controlled transition sequence. The primary advantage lies in its ability to maintain torque proportional to the square of the applied voltage, unlike star-delta configurations where torque drops precipitately during phase shifts.

Select the coil taps based on motor characteristics and load inertia. For standard NEMA Design B motors, the 65% tap often strikes the optimal balance between current limitation (reducing inrush by ~50%) and available starting torque (42% of full-load torque). High-inertia loads–centrifugal compressors, large conveyors–may necessitate the 80% tap to prevent excessive acceleration time, though this increases initial current draw by ~20% compared to the 65% setting. Consult motor nameplate data to verify locked-rotor kVA code and match tap selection accordingly.

Implement a time-delay relay calibrated to 5-10 seconds per 100 kW of motor rating, ensuring complete transition to full voltage before the motor reaches 80% of synchronous speed. Premature switching risks secondary inrush currents exceeding direct-on-line starting levels. Use a three-pole contactor for the auxiliary winding connection, with coil voltage matched to the control circuit (24V, 110V, or 230V)–never connect the motor winding directly to the supply during prolonged operation, as the unloaded transformer effect can cause destructive overheating.

Incorporate a thermal overload relay in series with the main circuit breaker, sized at 125% of motor full-load current to protect against sustained voltage imbalances or stalled rotor conditions. For motors above 100 HP, add a thermistor embedded in the starter’s winding to monitor temperature rise and trigger shutdown if exceeding 135°C. Bypass this protection during starting only–misapplication risks insulation failure in the primary winding under prolonged reduced-voltage operation.

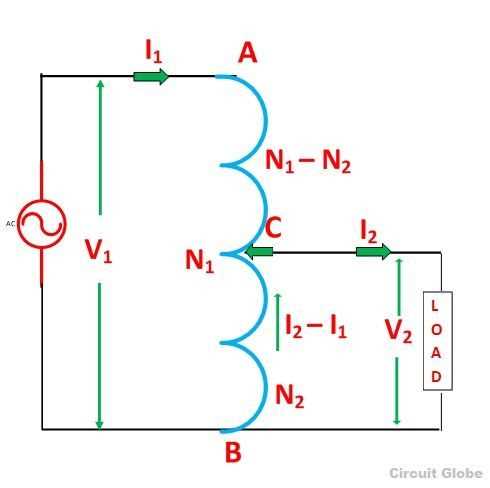

Visual Guide to a Voltage-Reducing Motor Activation System

Begin by connecting the primary coil taps to a three-phase supply, ensuring phase sequence matches L1, L2, and L3. Use terminal markings on the tap selector: 50%, 65%, and 80% voltage options reduce inrush current proportionally. The 50% tap delivers minimal torque–ideal for light-load machinery like conveyor belts–while the 80% tap suits applications requiring near-full torque at startup, such as compressors or pumps.

Install a rotary switch or contactor bank to toggle between taps without powering down the system. The switch must handle peak currents–typically 3-5 times the motor’s rated current–to prevent arcing. Use silver-alloy contacts for durability; copper contacts oxidize under repeated switching cycles, increasing resistance and heat buildup over time.

Wire the control circuit through a time-delay relay set to disengage the voltage reducer once the motor reaches 80-90% of synchronous speed. Standard delays range from 5 to 15 seconds, depending on motor inertia. For high-inertia loads like centrifugal fans, extend the delay to 20 seconds to avoid premature transition, which risks overheating the starter coils.

Ground the neutral point of the coil to the chassis via a copper braid with ≤0.1 ohm resistance. Omit this step, and transient voltages may exceed insulation limits, leading to short circuits or insulation breakdown in the winding layers. Verify grounding with a megohmmeter before energizing; readings should exceed 100 megohms between coil and ground.

Integrate overload protection using thermal elements sized at 110-125% of motor nameplate current. Place these upstream of the coil taps–never downstream–to safeguard the entire system during prolonged reduced-voltage operation. For motors above 50 HP, add separate phase-loss relays; single-phasing at 50% tap voltage can stall the motor indefinitely.

Label all connections with heat-resistant sleeves showing tap percentages, line voltages, and motor current ratings. Use 12 AWG wire for control circuits and 8 AWG or thicker for power leads, based on motor horsepower. Avoid splices in power leads; crimp lugs with hydraulic tools and seal with heat-shrink tubing filled with dielectric grease to prevent oxidation in humid environments.

Test the system under load before full deployment. Measure coil temperatures after 10 consecutive starts; above 65°C, recheck tap ratios and coil resistance. For motors driving gearboxes, reduce tap voltage by an additional 5-10% to compensate for mechanical losses during acceleration, preventing torque dips that cause gear chatter.

Troubleshooting Common Issues

If the motor hums but fails to rotate, verify tap voltage matches motor specifications–overvoltages saturate the core, while undervoltages produce insufficient magnetic flux. Check for loose connections at the coil taps with a thermal camera; hotspots exceeding 10°C above ambient indicate high-resistance terminations. Replace any terminal showing discoloration; arcing damage is irreversible and compromises future starts.

Maintenance Protocol

Inspect contactor mechanisms monthly: clean contacts with solvent-free wipes, and replace any showing pitting deeper than 0.5 mm. Tighten all terminal screws to manufacturer torque specs every 6 months–loose screws increase resistance, generating heat that degrades insulation prematurely. Log startup times and coil temperatures; deviations exceeding 10% from baseline warrant immediate coil resistance testing.

Key Components and Their Symbols in Voltage-Reducing Circuit Wiring

Begin by identifying the primary winding taps–these determine the voltage applied to the motor during startup and must match the system’s rated input. Each tap corresponds to a specific step-down ratio, typically labeled as 50%, 65%, or 80% of the line voltage. Incorrect tap selection risks overheating or insufficient torque, so verify the manufacturer’s datasheet before wiring. Use a multimeter to confirm continuity between taps and the common terminal to avoid misconnections.

Integrate the contactor symbols into the layout with precision: the main contactor handles full-voltage operation, while the transition and startup contactors manage the reduced-voltage phase. Symbols for these should include coil terminals (A1, A2) and power contacts (NO/NC) clearly marked. Wire the coil circuits to a separate control voltage (e.g., 110V or 24V) to ensure reliable actuation, and test each contactor’s operation before energizing the system to prevent phase loss.

Thermal Overload Relays and Protective Elements

Place thermal overload relay symbols adjacent to the motor terminals, ensuring their current rating aligns with the motor’s full-load amps (FLA). The relay’s normally closed (NC) contacts should interrupt the control circuit during overload conditions–connect them in series with the startup contactor coil. For added safety, incorporate a compact circuit breaker or fuse symbol upstream of the relay, sized at 125% of the motor’s FLA for consistent protection.

Include the timer relay in the control circuit to govern the transition from reduced to full voltage. Its symbol should feature adjustable delay settings (e.g., 5–30 seconds), with the coil wired in parallel to the startup contactor coil. Use a potentiometer or digital dial to fine-tune the delay based on motor inertia; overly short delays cause current surges, while excessive delays increase thermal stress on the winding. Validate the timer’s function by simulating a startup sequence before live testing.

Grounding and Auxiliary Controls

Ground the common terminal of the voltage-reducing unit to the system’s earth bus using a dedicated conductor–omit this step risks voltage imbalance and safety hazards. Represent grounding symbols with a distinct line pattern (e.g., dashed or zigzag) to differentiate from power circuits. For auxiliary controls, add pushbutton symbols (NO for “Start,” NC for “Stop”) with momentary contacts, wired in series to the main contactor coil for manual operation.

Verify all symbols’ adherence to IEC or NEMA standards to prevent misinterpretation during troubleshooting or modifications. Label each component with its rated voltage, current, and function (e.g., “K1: Start Contactor”) directly on the layout to streamline maintenance. Perform a final insulation resistance test (500V megohmmeter) between windings and ground before commissioning to ensure no shorts exist.

Step-by-Step Assembly of a Voltage-Reducing Starter System

Begin by selecting a three-phase variable-ratio coil with taps at 50%, 65%, and 80% of line voltage–these values optimize torque while minimizing inrush current for NEMA B motors. Mount the coil in a ventilated enclosure with at least 100mm clearance on all sides to prevent overheating; verify core insulation resistance (>1MΩ) before energizing. Connect the primary side directly to the supply terminals (L1, L2, L3), ensuring phase rotation matches motor nameplate data to avoid reverse rotation. For the secondary, use 600V-rated stranded copper wire (minimum 10 AWG) to handle transient currents up to 6x FLA during startup.

• Control Circuit Wiring: Install a 4-pole contactor (AC-3 duty, rated for 125% of motor FLA) with auxiliary contacts for coil feedback. Wire the overload relay in series with the contactor coil; set the trip class to Class 10 for standard applications or Class 20 for high-inertia loads. Add a timer relay (adjustable 5–30s) to switch from reduced-voltage to full-voltage operation–use a DPDT relay to prevent transient interruption during transition.
• Tap Selection: Hardwire the 65% tap as the default starting position unless specific load tests indicate otherwise. For centrifugal pumps or fans, the 50% tap reduces acceleration stress on impellers; for reciprocating compressors, the 80% tap prevents torque lag that could damage couplings. Label all tap connections with indelible ink on heat-shrink tubing to simplify troubleshooting.
• Grounding and Shielding: Bond the coil’s core to the enclosure ground bus with a 6 AWG bare copper conductor–this suppresses high-frequency noise that can trip VFDs or PLCs in adjacent panels. Route signal wires (timer, auxiliary contacts) in separate conduits from power cables; maintain 300mm separation or use shielded cable grounded at one end to eliminate capacitive coupling.

Verify the assembly with a megohmmeter before energizing: test between each winding and ground at 1000V DC for 1 minute (minimum 2MΩ expected). Apply nominal voltage to the primary side and measure secondary voltage at each tap–deviations exceeding ±3% require recalibration or coil replacement. For final commissioning, monitor line current with a clamp meter during the first three start cycles; expect 3–4x FLA at 65% tap, dropping smoothly as the timer transitions to full voltage. Document the tap selection and transition time in the equipment log for future reference.
