Complete Push Button Horn Wiring Guide with Step-by-Step Diagram

For reliable operation, connect the sound activator to a 12V power source via a relay. Direct wiring without a relay risks burning out the control mechanism due to excessive current draw–most acoustic units require 5–15 amperes. Use an automotive-grade SPDT relay to handle the load; its coil side links to the manual switch while the contacts tie into the vehicle’s fused power line.

Wire gauge selection matters: 16 AWG suffices for the control circuit, but the power feed demands 12–14 AWG stranded copper to prevent voltage drop. Route the cabling away from moving parts and heat sources–secure it with nylon ties every 6 inches. Ground both the relay and the signaling unit directly to the chassis; avoid daisy-chaining through painted surfaces to ensure consistent signal flow.

Test continuity before final assembly. Press the control trigger and verify the relay clicks–audible confirmation means the coil circuit is intact. If the acoustic device remains silent, check the fuse rating (typically 10–20A) and inspect the relay contacts for corrosion. Polarity rarely applies to electromechanical sound emitters, but always consult the unit’s datasheet if working with a piezoelectric or electronic variant.

Avoid splicing into existing circuits that power high-draw components like headlamps or cooling fans. Instead, tap into a dedicated 30-amp fused line from the battery’s positive terminal. Label every connection with heat-shrink tubing or vinyl flags–clear identification prevents misdiagnosis during future repairs.

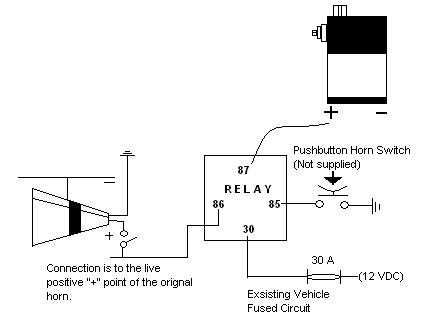

For vehicles without an integrated relay harness, assemble a simple five-pin module: 85 to ground, 86 to the manual trigger, 30 to the battery via fuse, and 87 to the acoustic unit. Confirm the relay pinout with a multimeter; reversed coil connections will prevent activation even if the trigger mechanism closes properly.

Connecting a Momentary Switch to an Audible Alert System

Begin by securing a 14-gauge stranded copper wire for the circuit–this gauge balances conductivity with flexibility for vehicle or machinery applications. Cut two lengths: one spanning from the power source (typically a 12V battery) to the switch, and another from the switch to the sound emitter. Strip 6mm of insulation from each end and twist the strands tightly to prevent fraying.

Identify the positive terminal on the sound emitter; most models mark this with a “+” symbol or a red indicator. Attach the wire from the switch to this terminal using a crimp connector or solder for a vibration-resistant bond. For the power input wire, connect it directly to the battery’s positive post–avoid fuses here to ensure instant activation, but consider a 10A fuse inline if the emitter lacks internal protection.

Ground the sound emitter’s negative terminal by bolting it to a clean, unpainted metal surface. Remove any rust or paint within a 10mm radius of the contact point to guarantee solid conductivity. If mounting to a non-conductive surface, run a separate ground wire back to the battery’s negative terminal.

Test the switch before finalizing connections: press the actuator briefly to verify a sharp, clear output. If the sound is muffled or delayed, inspect for loose crimps, corrosion, or excessive wire length (keep total circuit wiring under 3 meters to minimize resistance). For dual-tone emitters, confirm both tones activate without crossover interference.

For installations where the switch is remote (e.g., dashboard or handlebar), use a relay if the current draw exceeds 5A. Connect the switch to the relay’s coil terminal, then route the emitter through the relay’s contacts. This isolates the high-current load and reduces voltage drop at the switch.

Insulate all connections with adhesive-lined heat shrink tubing or electrical tape. Wrap each joint twice, extending coverage 15mm beyond the stripped wire to prevent moisture ingress. Secure the wires at 30cm intervals with nylon zip ties or conduit to prevent chafing from vibration.

Label both the switch wires and emitter terminals using a permanent marker or color-coded sleeves. This simplifies troubleshooting–common issues include reverse polarity (resulting in no sound) or a short to ground (causing continuous output). For marine or outdoor applications, apply dielectric grease to all connections to repel moisture.

Final validation involves a multimeter test: set it to DC voltage, probe the switch terminals while actuated, and confirm 12V-14V at the emitter’s input. If readings fluctuate, check for intermittent connections or a weak power source. For highly sensitive environments (e.g., medical equipment alerts), add a transient voltage suppressor diode across the emitter terminals to protect against voltage spikes.

Key Components for Installing an Electric Audible Signal

Begin with a momentary switch rated for at least 10A at 12V DC to handle inrush currents without premature failure. Choose models with a corrosion-resistant metal housing and sealed contacts if mounting in exposed areas prone to moisture or dust–IP65 or higher is ideal for longevity. Verify the actuator travel distance; switches with shorter throws reduce accidental activation in high-vibration environments like off-road vehicles.

A relay with a 40/30A coil/resistive load rating ensures reliable switching under load while minimizing voltage drop. SPDT or SPST relays suffice for basic setups, but DPDT variants allow future expansion for dual-tone alerts. Opt for relays with a plastic or epoxy-sealed enclosure to prevent internal corrosion, especially in coastal or high-humidity climates. Mount the relay within 18 inches of the power source to limit wire resistance.

Critical Signal Device Specifications

Select an electric alert with a decibel output between 100-120 dB at 1 meter for urban use, or 110-130 dB for industrial or marine applications. Air-powered models require additional compressor components, so prioritize electric variants unless space constraints demand pneumatic solutions. Check the voltage compatibility–most automotive systems operate at 12V, but heavy machinery may use 24V. Confirm the device’s current draw; a 5A draw is typical, but some high-output models exceed 10A, necessitating larger gauge wiring.

Use 14 AWG copper wire for runs under 3 meters, upgrading to 12 AWG for distances up to 6 meters or high-current setups. Stranded wire outperforms solid core in dynamic environments due to superior flexibility and fatigue resistance. Apply dielectric grease to all connections to prevent oxidation, particularly in areas exposed to temperature fluctuations. Heat-shrink tubing or liquid electrical tape provides superior protection over traditional vinyl tape, which degrades under UV exposure.

Integrate a fuse holder with a 10-15A blade-type fuse within 7 inches of the power source to safeguard against short circuits. For vehicles with sensitive electronics, add a transient voltage suppressor diode across the relay coil to absorb inductive spikes. Test the system with a multimeter before finalizing connections–measure voltage at the signal device under load to confirm it meets the manufacturer’s minimum operating threshold, typically 11.5V for 12V systems.

Step-by-Step Installation of a Basic Acoustic Signal Circuit

Choose a control activator with a momentary contact mechanism, ensuring it’s rated for at least 10A at 12V to handle the load reliably. Verify the device’s current draw–most automotive sound emitters consume between 5A and 15A–and select an appropriate relay if the activator’s capacity is exceeded.

Locate the vehicle’s power distribution point. Connect the circuit’s positive lead directly to the battery terminal or an ignition-switched fuse box slot to prevent parasitic drain. Use 14-gauge stranded copper wire for general applications, upgrading to 12-gauge if the run exceeds 3 meters or the current draw surpasses 10A.

Mount the relay within 30 cm of the sound emitter to minimize voltage drop. Pin 30 connects to the power source, Pin 87 to the emitter’s positive terminal, Pin 85 to the activator’s output, and Pin 86 to a solid ground point–clean, unpainted metal–secured with a 10 mm ring terminal and a torque of 3.5 Nm.

Grounding and Signal Path Optimization

Route the signal path from the activator to the relay’s 85 terminal using 18-gauge wire, shielding it from high-current cables to reduce electromagnetic interference. Avoid daisy-chaining grounds; each component should terminate directly to a common point to prevent unintended activation or signal degradation.

Test continuity with a multimeter before finalizing connections. Set the meter to ohms (Ω) and confirm less than 0.5Ω resistance between the emitter’s negative terminal and chassis ground. If resistance exceeds this threshold, disassemble the connection, remove corrosion with a wire brush, and reapply dielectric grease to the contact surface.

Final Validation and Adjustment

Activate the circuit momentarily while monitoring voltage at the emitter’s terminals. A drop below 11V indicates excessive resistance–recheck crimp connections and wire gauge. Secure all cables with loom tubing or spiral wrap, avoiding sharp edges or moving components (e.g., steering columns, suspension parts) that could chafe insulation over time.

For vehicles with dual emitters, wire them in parallel, not series, to ensure consistent volume. If the acoustic signal is polarized, align the anode (+) and cathode (-) as marked–reverse polarity may reduce output by up to 30% or cause premature failure. Seal all exposed connections with heat-shrink tubing rated for automotive use (minimum 125°C).
