Step-by-Step Guide to Wiring a GFCI Circuit Breaker Safely

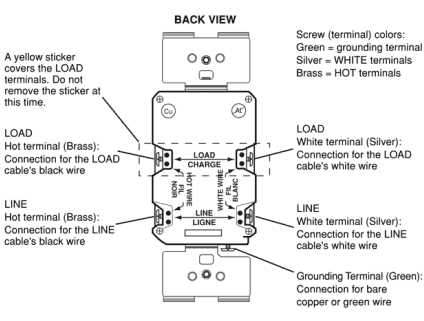

Install a dual-function safety switch by attaching the hot wire to the line-side terminal marked “L”–never reverse this connection with the load terminal, or trip sensitivity will fail. Use 12-gauge copper for 20-amp installations and match wire gauge to the panel’s capacity; undersized conductors risk overheating under sustained loads. Strip insulation precisely to the manufacturer’s spec–usually 5/8 inch–avoiding stray strands that can interfere with clamp pressure.
Secure grounding with a dedicated screw or green bonding jumper directly to the metal box; floating grounds defeat the purpose of fault detection. Test continuity with a multimeter before energizing–verify less than 1 ohm resistance between ground and neutral. Miswired neutral paths create nuisance tripping, while open grounds leave users unprotected. Follow the sequence: neutral first, then ground, then hot when disconnecting to prevent accidental shorts.
Label load terminals clearly; mix-ups here void compliance with NEC 210.8. Confirm trip functionality by pressing the test button before closing the panel–if it doesn’t click, suspect a defective unit. Replace worn or corroded breakers immediately; compromised contacts lead to false positives. For subpanels, separate neutrals and grounds–cross-bonding here introduces parallel paths that blind protection mechanisms.

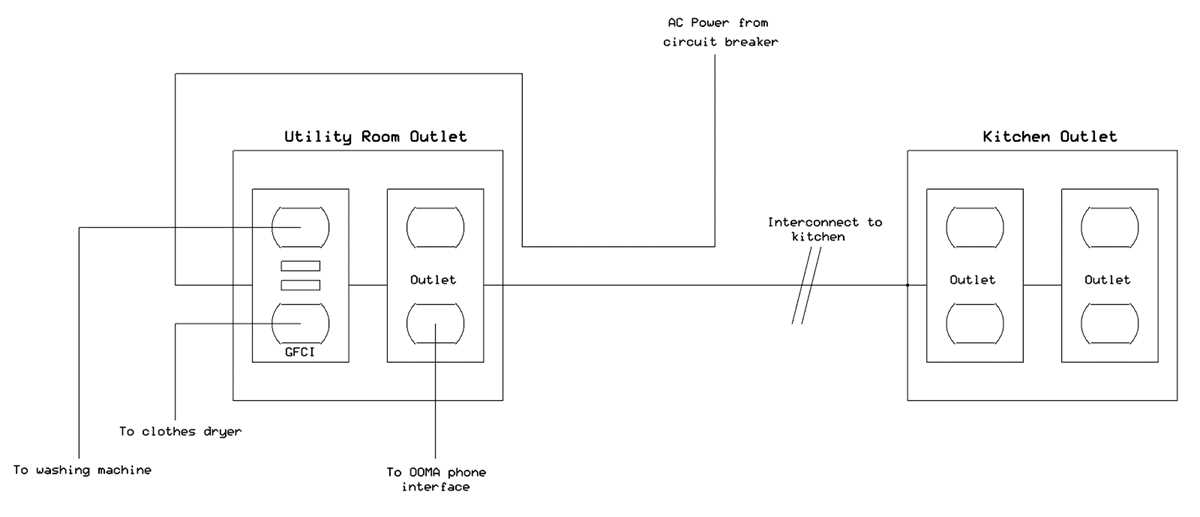

Mount the device vertically in the enclosure with arrow indicators facing upward–orientation affects arc suppression and lifespan. Torque terminal screws to 15–18 in-lbs; loose connections cause arcing under load. When feeding downstream outlets, connect only protected loads to the device’s load posts–bypassing this step leaves circuits exposed. Document each connection in a one-line schematic for future troubleshooting.
How to Properly Install a Safety Switch in Your Electrical Panel
Match the hot wire (usually black or red) to the terminal labeled “LINE” on the protective device–never reverse this connection. The neutral conductor (white) must attach to the corresponding neutral terminal adjacent to the hot input. Confirm the wire gauge matches the overcurrent rating: 14 AWG for 15A models, 12 AWG for 20A. Replace any undersized conductors before energizing.
Ground wires (bare or green) terminate at the panel’s grounding bus, not on the safety switch itself. Some panels integrate ground and neutral buses; verify local codes allow this before combining them. Improper grounding voids fault detection and increases shock hazards.
Snap the device into the panel’s mounting rail, ensuring it aligns flush with adjacent units. Loose seating causes overheating and nuisance tripping. Test immediately after installation by pressing the “TEST” button–failure to trip indicates reversed polarity or open neutral. Reset only after correcting errors.
Label every protected outlet downstream to warn users of fault interruption risks. Use permanent markers on faceplates; temporary stickers peel over time. Note that AFCI-equipped models require separate verification–perform both tests individually.
For subpanel installations, feed the protected side through dedicated conduit or armored cable. Mixed branch loads sharing the same conduit increase false tripping likelihood. Keep conductors under 100 feet to avoid voltage drop exceeding 3%.
Inspect connections annually: oxidation buildup on terminals reduces current flow by 12% within 18 months. Retighten all screws to manufacturer torque specs (typically 18-22 in-lbs). Replace units if plastic housings show cracks or discoloration–heat degradation compromises internal components.
When adding surge protection, install suppressors upstream of the safety switch to prevent backfeeding. Coordinate let-through voltage with the switch’s maximum interrupting rating (10kA for most residential models). Record installation dates; UL-listed devices expire after 15-20 years regardless of appearance.
Essential Gear and Supplies for Safe Protective Device Setup
Begin with a voltage tester rated for your panel’s voltage range–120/240V for residential use. Non-contact models detect live wires through insulation, but a multimeter with probes provides precise readings. Choose one with fused inputs to prevent damage from accidental overloads.
Insulated screwdrivers are mandatory. Opt for a set with magnetic tips in sizes #1, #2, and #3 for terminal screws. A nut driver (1/4″) speeds up securing neutral conductors and ground wires to bus bars. Avoid tools with exposed metal shafts–they increase short-circuit risks.
- Wire strippers: Adjustable models accommodate 14–6 AWG solid and stranded copper. Verify the stripping hole depth to avoid nicking conductors.
- Crimping tool: Required for pigtail connections if your panel lacks neutral terminals. Use UL-listed crimp connectors.
- Fish tape: Stiff, 1/8″ steel variant for pulling conductors through conduit. Leave 6″ of slack beyond terminal points for stress relief.
Side-cutting pliers handle 12 AWG wire cleanly; heavier 10 AWG demands bolt cutters with insulated grips. Ensure clean cuts–frayed strands lead to poor contact. Torque-limiting drivers prevent overtightening: 14–10 AWG terminals require 12–18 in-lbs, while bus bar connections need 20–25 in-lbs.
Consumables Checklist
Stock these before starting:
- Copper conductors: 10 AWG THHN/THWN (black, white, green) for load-side connections. Verify ampacity matches device rating.
- Antioxidant compound: Apply to aluminum conductors only; copper-to-copper connections use no compound.
- Arc-rated gloves: Minimum Class 0 for 1,000V systems. Test for punctures with air inflation before use.
- Safety glasses: ANSI Z87.1 impact-rated, with side shields for lateral protection.
Conduit bushings prevent wire chafing at panel entry points. Use plastic bushings for NM cable; metal for rigid conduit. Secure conduit with two-hole straps spaced every 48″ for 3/4″ EMT. Label all new wires with heat-shrink tubing–inkjet-printed labels smudge under heat.
Panel shroud kits isolate live bus bars during installation. Select kits compatible with your panel brand–Siemens, Eaton, or Square D. Never substitute with makeshift materials (e.g., cardboard). A rubber mat rated for 10 kV provides secondary insulation when standing on concrete floors.
Store all tools in a grounded, ESD-safe container. Replace any item showing cracks, wear, or insulation breakdown–no exceptions. Test trip functionality with a portable load bank before energizing. Record torque values and initial trip test results in panel documentation.
Installing a Residual Current Device: A Practical Walkthrough
Shut down the main service panel by switching the primary disconnect to “off.” Verify absence of voltage at the bus bars using a non-contact tester before touching any conductors. Exposure to live terminals risks severe injury or fatality.
Remove the cover from the distribution box. Identify the vacant slot aligned with the amperage rating of the protective module–typically 15–20 A for branch lines feeding bathroom or kitchen outlets. Match the brand to avoid incompatibility; Siemens QP models, for instance, do not interchange with Eaton BR types.
Disconnect the neutral pigtail from the ground bar if it connects directly. Route the white return wire from the module through the knockout and terminate it on the same bus as other neutral conductors. Tighten with a torque screwdriver set to manufacturer specs–usually 12–18 lb-in for #12 AWG copper.
Strip the hot conductor (black or red) back 3/8″ and loop clockwise around the breaker lug. Secure with a torque wrench; over-tightening can fracture the terminal block. For double-pole versions, repeat on the adjacent lug, ensuring both poles trip simultaneously under fault conditions.
Snap the module into the designated bus slot until it audibly clicks. Misalignment causes arcing; wiggle-test each side to confirm engagement. Reattach the panel cover, leaving only the toggle switch accessible for final energization.
Restore power at the main disconnect. Press the “Test” button on the device–an audible trip confirms proper operation. Reset by moving the toggle fully to “off” then back “on.” Failure to trip indicates reversed polarity on the neutral or a defective unit; recheck connections with a multimeter.
| Conductor | Color Code | Termination Point | Torque (lb-in) |
|---|---|---|---|
| Hot | Black/Red | Module Lug | 14–20 |
| Neutral | White | Neutral Bus | 12–18 |
| Ground | Green/Bare | Ground Bar | 14–20 |
Label each protected outlet with “GFCI Protected” stickers included in the packaging. Downstream receptacles lose fault detection if the neutral connects upstream–use a single-ended feed topology. Recheck torque values annually; aluminum wire expands and contracts, loosening connections.

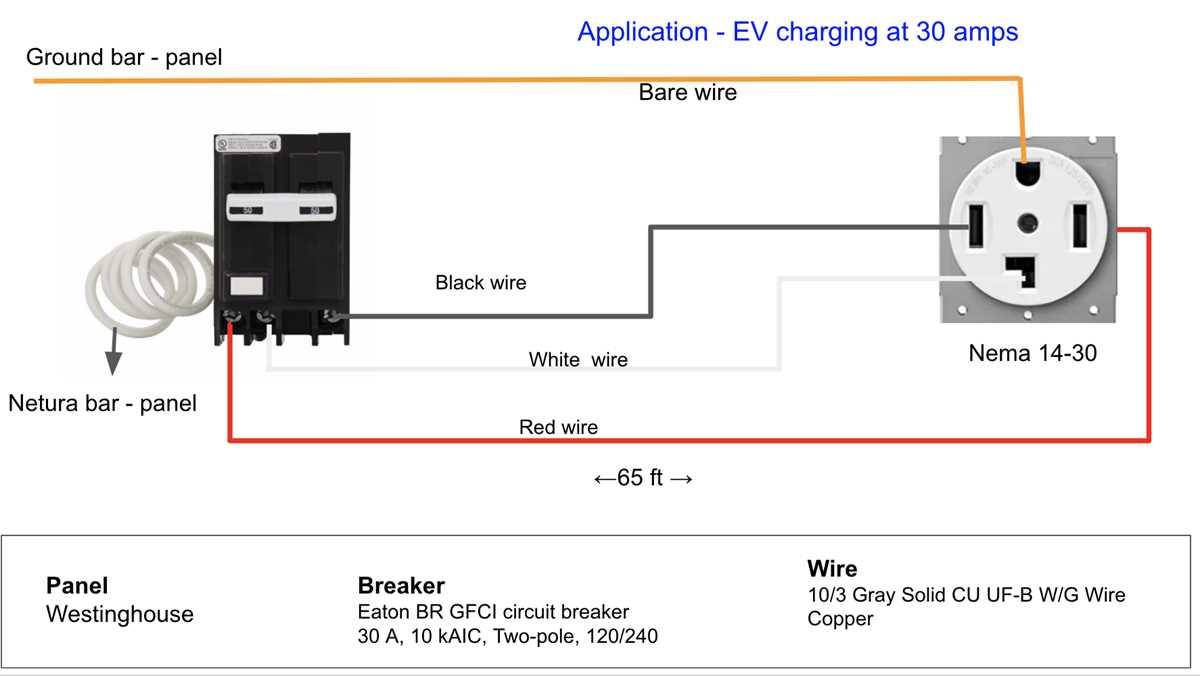

For 240 V appliances–electric ranges or dryers–install a two-pole model. Both lugs must connect to opposite phase buses; mismatched legs eliminate imbalance detection. Test monthly; nuisance tripping may signal high-frequency noise from variable-speed drives or LED drivers–suppress with a 0.1 μF capacitor across load terminals.
Critical Errors to Sidestep When Installing Residual Current Protection
Connecting the line-side terminals backward creates immediate hazard. The incoming supply must attach to the line terminals, not the load set. Reversing this risks defeating ground-fault detection entirely, leaving downstream devices unprotected. Verify terminal markings before tightening any screws–mislabeling on older panels occurs.
Overloading a single protective device with too many branch loads trips nuisance alarms. Calculate amperage draw for all connected outlets or fixtures; exceeds 80% of the device’s rating prompts erratic behavior. Split high-demand appliances onto dedicated units rather than combining them on one.
Neglecting torque specifications during terminal tightening invites loose connections. Most manufacturers specify 12–18 inch-pounds for copper conductors; exceeding or under-torquing leads to overheating or intermittent faults. Use a calibrated torque screwdriver–guesswork fails under load.
Assuming all output receptacles require identical protection misleads novices. Downstream outlets need coverage only if the device includes load terminals; feeding additional points directly from the panel bypasses safety entirely. Label every protected outlet to prevent future confusion.
Skipping insulation integrity checks invites arcing faults. Even minor nicks or cuts from installation tools weaken the conductor, raising resistance under current. Strip wires carefully, then inspect the exposed length before insertion–visible copper should be uniform, not nicked.
Pairing neutral wires incorrectly–a common oversight–creates phantom trips. Each branch neutral must attach solely to its designated terminal, never shared between circuits. Mixing neutrals causes false ground-fault readings, wasting hours troubleshooting non-existent issues.
Forgetting to reset the device after installation guarantees frustration. Press the test button, then the reset button before energizing; failure to do so leaves the protection inactive. Repeat this cycle three times to confirm proper mechanical operation.
Ignoring manufacturer instructions for specific panel compatibility risks damage. Some protection modules integrate solely with certain brands, requiring unique bus bar configurations or spacing. Cross-reference the device’s data sheet with the enclosure’s specifications–assuming fit without verification leads to costly rework.
