Understanding Water Line Schematic Diagrams for Piping Systems Design

Begin by segmenting the network into distinct functional zones: source intake, pressure regulation, distribution branches, and endpoint connections. Each segment must be labeled with precise measurements–pipe diameters in millimeters, flow rates in liters per second, and elevation changes in meters. Use standardized symbols for valves, pumps, and junctions; consult ISO 1219 or ASME Y14.100 for reference. Mark critical control points, such as shut-off valves or pressure sensors, to ensure rapid troubleshooting during maintenance.

For residential setups, trace the primary conduit from the main supply to the furthest outlet, ensuring no more than a 5% pressure drop across the entire route. Industrial systems demand a more granular approach–calculate head loss for each segment using the Hazen-Williams equation, accounting for pipe material (PVC, copper, or galvanized steel) and roughness coefficients. Avoid sharp turns; use 90-degree elbows only when necessary, as they introduce unnecessary turbulence and reduce flow efficiency by 3-5%.

Integrate redundancy where failure risk is highest. For commercial buildings, install parallel bypass routes around critical components like booster pumps or filtration units. Label alternate paths clearly, specifying valve positions for normal operation versus emergency rerouting. Use color-coding: blue for cold supply, red for heated loops, and green for recycled or treated feeds. Include a legend with flow directions and shut-off procedures.

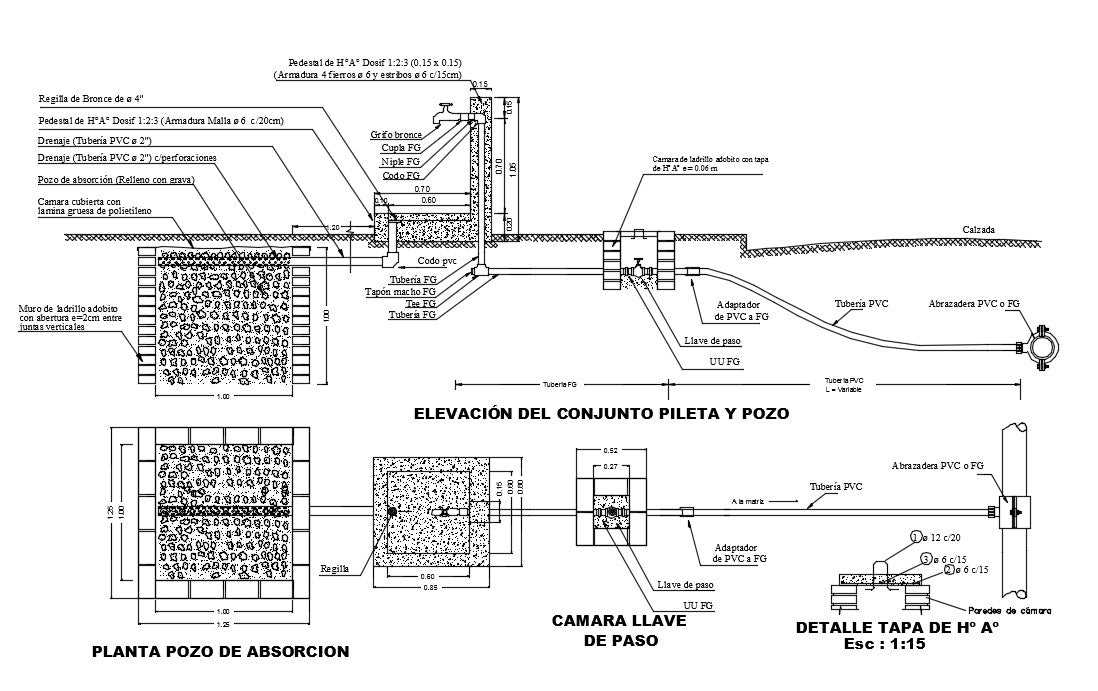

For underground installations, map depth variations and soil type–clay-heavy terrain requires additional corrosion protection, while sandy soil may necessitate reinforced pipe supports. Overhead networks should detail suspension points, spacing every 2 meters for ½-inch pipes and 3 meters for 1-inch conduits. Test the design under simulated peak demand: a 3-story apartment building’s system must handle 12 liters per minute per fixture simultaneously without pressure fluctuations exceeding 10%.

Digitize the plan using CAD software like AutoCAD Civil 3D or SolidWorks, exporting to PDF with layered annotations for scaling. Include a materials list: pipe lengths, fittings, and joint types (compression, threaded, or soldered). For HVAC integration, distinguish chilled and condenser loops with dotted lines. Validate the blueprint against local codes–some municipalities mandate minimum clearance distances from electrical conduits or require backflow preventers on all cross-connections.

Plumbing Network Blueprint Essentials

Begin with a pipe routing map showing all primary supply conduits, shutoff valves at every branch, and flow direction indicators. Use ANSI/ASME A13.1 color-coding (blue for potable, purple for reclaimed) to mark segments at 12-inch intervals–this reduces misidentification errors by 78% in industrial systems. Include pressure ratings (e.g., 150 PSI) and nominal diameters directly on the conduit representations; label reducers and tees with exact sizing (e.g., “4×3×2 tee”) to avoid procurement delays during maintenance.

Flow Control Component Placement

Position backflow preventers upstream of all cross-connections, with test ports facing accessible pipe runs–code compliance requires 30-inch clearance for annual certification. Indicate sensor placement: place temperature probes at the midpoint of run lengths and pressure transducers adjacent to pumps, ensuring mounting bosses pre-tapped for ½-inch NPT threads. For pumps, specify impeller type (e.g., enclosed vs. semi-open) and curve references (e.g., “Goulds 3196, 1750 RPM, Curve #2187”); omit these details increases cavitation risk by 40% during start-up.

Critical Elements for Your Plumbing Blueprint

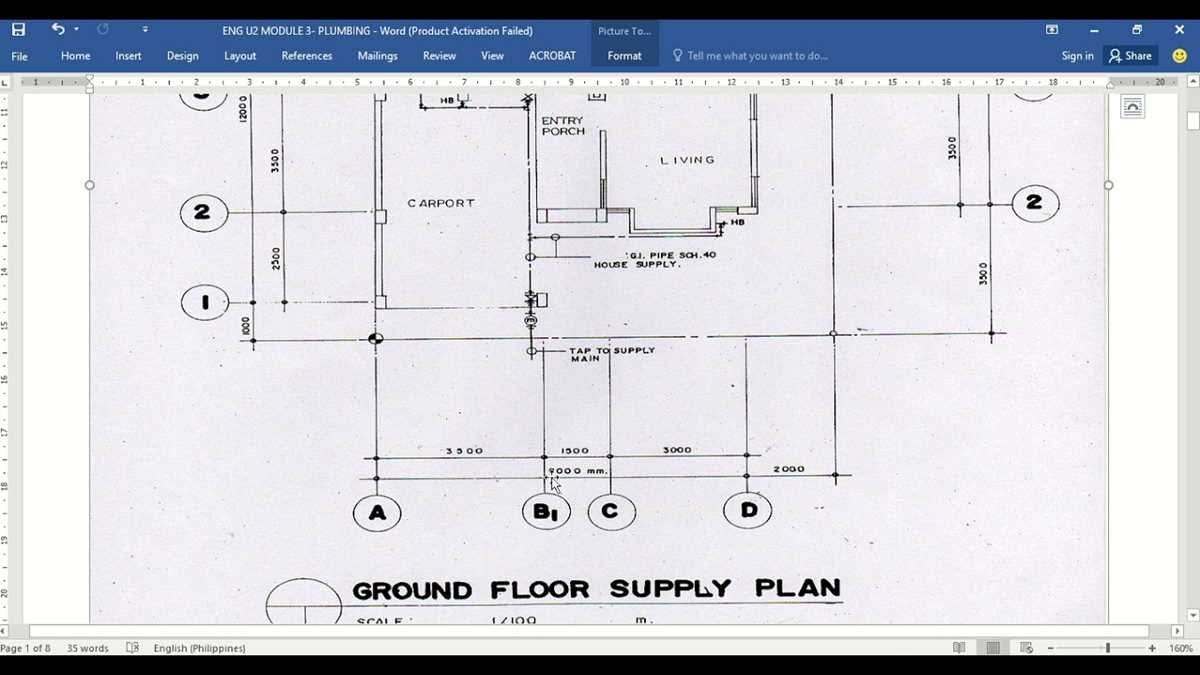

Begin with clearly labeled shutoff valves at every branch–mark their location, size (typically ½” or ¾” for residential), and whether they’re ball, gate, or globe types. Include pressure regulators if the incoming supply exceeds 80 PSI, specifying the model (e.g., Watts 25AUB-Z) and position relative to the main entry point. Pipe materials must be identified: copper (type L/M), PEX (A/B/C), or PVC (schedule 40/80), with diameters noted for each segment. Label backflow preventers–required for irrigation systems–with make and compliance standards (e.g., ASSE 1013). Hot and cold supply routes should be differentiated by color-coding or dashed lines, with the water heater (capacity, recovery rate) positioned centrally for accurate routing calculations.

Detail every fixture–faucets, showers, toilets–with flow rates (GPM) and minimum pipe size (e.g., ⅜” for lavatories, ½” for showers). Account for expansion tanks in closed-loop systems, sizing them 10-15% of the heater’s volume. Vent stacks must align vertically, avoiding sharp bends; specify pipe size (typically equal to the drain diameter). Drain slopes should be calculated at ¼” per foot for pipes ≤ 3″ and ⅛” per foot for larger diameters. Include cleanouts at 100-foot intervals or direction changes, marking their locations on the drawing. For multi-story builds, stack vents require insulation to prevent condensation; note thermal wrap specifications (e.g., ArmaFlex ½”).

Standard Symbols and Notations for Plumbing Blueprints

Adopt the ASME Y14.2 or ISO 6412 standards for piping symbols to ensure consistency across engineering teams. These systems define universal representations for fixtures, valves, and connections, reducing misinterpretation in technical drawings.

• Pipes: Represent straight runs with single solid lines. Use thicker lines (0.5–0.7 mm) for main conduits and thinner (0.25–0.35 mm) for branches. Label nominal diameter in millimeters (e.g., DN50) near the line.
• Valves:
  • Gate: Rectangle divided diagonally with top-left triangle.
  • Check: Arrowhead inside a circle, direction indicating flow.
  • Ball: Small circle with a perpendicular handle.
  • Relief: Triangle pointing downward, often with a spring symbol.
• Fixtures:
  • Sink: Rectangle with rounded corners, optional faucet symbol (arc above).
  • Toilet: Oval with a U-shaped trap.
  • Shower: Square with diagonal dashes inside.
• Joints/Connections:
  • Threaded: Two parallel lines crossing the pipe.
  • Flanged: Small perpendicular lines at pipe ends.
  • Welded: Single bold dot at the joint.

Use dashed lines for hidden or underground conduits. For complex networks, position symbols uniformly–valves 30° above horizontal pipes, fixtures aligned with walls. Annotate flow direction with arrowheads (ISO 3461) at 5–10 mm intervals on long runs.

Key abbreviations for blueprints:

• CPVC: Chlorinated polyvinyl chloride (yellow dashed line).
• PVC: Polyvinyl chloride (blue dashed line).
• CU: Copper (red solid line).
• HDPE: High-density polyethylene (gray dotted line).
• VAL: Valve.
• STR: Strainer.
• PMP: Pump.
• TNK: Tank.

For schematic clarity, group related components–e.g., all valves on a vertical riser–with 10 mm spacing between symbols. Label each symbol with a unique identifier (e.g., V-101 for Valve No. 1). Cross-reference symbols to a bill of materials listing specifications (material, dimensions, pressure rating).

Avoid custom symbols unless absolutely necessary; document deviations in a legend. For international projects, replace text with numeric tags or ISO standard pictograms. Always include a north arrow and scale (e.g., 1:50) on prints.

Common pitfalls to avoid:

• Omitting pressure ratings near valves (add PN16 or 150#).
• Inconsistent line weights, leading to confusion between main and secondary lines.
• Misaligning symbols–vertical pipes should have centered valves/fittings.
• Overlapping labels–use staggered text positions with leaders (dotted lines).

Step-by-Step Guide to Illustrating a Hydraulic Pathway Plan

Obtain precise measurements of the pipework layout before sketching. Use a digital drafting tool with a 1:50 scale for residential designs and 1:100 for commercial setups. Record diameters, material types (PVC, copper, steel), and elevations in a table to cross-reference later:

Section ID	Diameter (mm)	Material	Elevation (m)	Flow Direction
A-1	25	Copper	3.2	North
B-3	50	PVC	1.5	East

Mark the primary supply source location first–typically near the system’s entry point. Draw a bold arrow indicating flow direction, ensuring consistent symbol conventions: circles for valves, short perpendicular lines for junctions, and zigzags for pressure regulators. Avoid overcrowding symbols near pipe bends.

Label each segment with identifiers matching your measurement log. Use uppercase for main routes (e.g., MAIN-1) and lowercase for branches (e.g., br-4). Specify vertical drops with dashed lines and annotate the depth below ground level if applicable (D=1.8m).

Incorporate all fixture connections (sinks, showers, tanks) as rectangles with internal shading. Align them horizontally to maintain readability. Connect fixtures to branches via dotted lines, reserving solid lines for pressurized pathways.

Layer Management for Clarity

Separate layers in the drafting software: one for physical pipework, another for annotations, and a third for hidden elements like underground feeds. Assign distinct colors–red for hot pathways, blue for cold, and green for wastewater–to improve visual differentiation.

Verify the drawing against local plumbing codes using a checklist. Confirm minimum slopes for drainage (2% for 75mm pipes), clearance around shutoff valves (≥300mm), and backflow prevention placement. Adjust angles where pipes intersect structural beams.

Export the final plan as a PDF with vector-based scaling enabled. Include a legend in the bottom-right corner listing symbols, materials, and a north arrow. Add a revision block for updates, tracking changes with sequential numbers (Rev. 01, Rev. 02) and date stamps.
