Complete GPS Module Circuit Design and Wiring Schematics Guide
For immediate deployment, integrate a NEO-6M satellite navigation receiver into your hardware setup. This compact component operates on a 3.3V power supply and communicates via UART at 9600 baud. Connect the TX pin of the receiver to a microcontroller’s RX input, ensuring proper signal voltage levels–use a voltage divider if interfacing with a 5V logic device. Ground the receiver’s GND pin to the common ground of your system to prevent signal noise. Add a 100nF decoupling capacitor across the power pins to stabilize voltage fluctuations during operation.
For antenna integration, use an active patch antenna with a LNA (Low Noise Amplifier) for improved signal acquisition in urban or obstructed environments. Connect the antenna’s coaxial cable to the receiver’s RF_IN port, ensuring a secure SMA or U.FL connection. If external interference is a concern, position the antenna at least 5 cm away from other electronics and route the cable with minimal bends to reduce signal loss. For outdoor applications, consider a ground plane beneath the antenna to enhance signal reflection.
When prototyping, include a backup battery circuit to maintain real-time clock functionality during power interruptions. A 3V coin-cell battery (e.g., CR1220) connected to the receiver’s RTC backup pin will preserve satellite almanac data, reducing subsequent lock-on times. To optimize power efficiency, use a P-channel MOSFET to switch the primary power supply during stand-by modes, ensuring the system draws less than 100µA in idle states. Log raw NMEA data into an SD card via SPI for post-processing, enabling detailed trajectory analysis without constant connectivity.
For error correction, implement a multiplexer to alternate between the primary satellite feed and a secondary inertial measurement unit (IMU). This compensates for short-duration signal drops–common in tunnels or dense foliage–by relying on gyroscopic and accelerometer data for dead reckoning. Calibrate the IMU using a six-point tumble test to minimize drift, and fuse sensor inputs with the extended Kalman filter for precise hybrid positioning. Deploy a dual-band (L1/L5) antenna if working in high-multipath environments, as it reduces susceptibility to signal reflections from buildings or terrain.
Designing a Satellite Navigation Interface Schematic
Begin with a microcontroller supporting UART, such as the STM32F103 or ATmega328P, to handle serial communication. The NEO-6M positioning unit outputs data at 9600 baud by default–ensure the MCU’s UART peripheral matches this rate. Power the tracker with a 3.3V LDO regulator (e.g., AMS1117) to avoid voltage fluctuations that disrupt signal acquisition. Include a 100nF decoupling capacitor near the positioning chip’s VCC pin to filter noise, a common oversight in prototype designs.
For signal stability, route the antenna trace as a 50-ohm controlled impedance line on the PCB. Use SMA or U.FL connectors for external patch antennas, ensuring the coaxial cable length remains under 15cm to minimize losses–longer runs degrade sensitivity below -160 dBm. If integrating a backup battery for ephemeris retention, connect a 3V coin cell (e.g., CR2032) via a Schottky diode (BAT54) to prevent reverse current during main power cycles.
- Connect the positioning unit’s PPS (pulse-per-second) pin to an MCU interrupt for precise timing synchronization–critical for drone navigation or time-sensitive applications.
- Add a 10kΩ pull-up resistor on the I2C lines if interfacing with additional sensors to prevent bus lockups during cold starts.
- Avoid placing switching regulators near the RF front-end; their EMI can introduce jitter in position fixes.
Test the schematic with a logic analyzer before finalizing the board layout. Monitor the serial output for NMEA sentences–valid fixes include the $GPGGA and $GPRMC packets, containing latitude, longitude, and fix quality indicators (0 = no fix, 1 = valid). If signal acquisition exceeds 30 seconds, verify the antenna’s ground plane dimensions (minimum 70×70mm for patch antennas) and check for nearby sources of 1.575GHz interference, such as Wi-Fi modules.
Core Elements for Assembling a Satellite Navigation Receiver
Start with a high-sensitivity satellite signal processor like the u-blox MAX-M10S or Quectel L96. These chips handle weak signals down to -167 dBm, critical for urban or indoor positioning, and support multi-constellation tracking (GPS, Galileo, BeiDou, GLONASS). Pair the processor with a 26 MHz TCXO for clock stability–cheaper crystals introduce drift exceeding ±2 ppm, degrading accuracy by up to 5 meters. Power the system via a 3.3V LDO regulator (e.g., AP2112K) with
An active antenna with 28 dB gain and 1.5 dB noise figure is non-negotiable for reliable satellite lock. Models like the Taoglas AA.162 or Antcom 3G4MLNAN include integrated LNAs, reducing component count. Include a SMA connector and SAW filter (e.g., Murata SF2123E) between the antenna and processor to reject adjacent-band interference (e.g., LTE Band 13 at 746 MHz).
| Component | Critical Specification | Recommended Part |
|---|---|---|
| Satellite processor | Tracking sensitivity -167 dBm | u-blox M10, Quectel L96 |
| Clock source | ±0.5 ppm stability | TXC 7Q-26.000MAAJ-T |
| LDO regulator | <30µV output noise | TI TPS7A47 |
| Filter | 30 dB rejection @ ±30 MHz | Murata SF2123E |
For data interface, allocate a dedicated UART (115200 baud) with hardware flow control (CTS/RTS) to prevent buffer overruns during high-frequency NMEA output. Include a supercapacitor backup (e.g., 1F Panasonic EDLC) to retain ephemeris data during power cycles–this cuts reacquisition time from 30+ seconds to PPS pin via a test point (λ/20 (≈20 mm at 1.575 GHz) for all RF paths to prevent impedance mismatches.
Thermal management dictates performance: mount the processor on a 4-layer PCB with dedicated ground planes to dissipate heat from constant tracking. Avoid placing the antenna cable near switching regulators (>1 MHz) or MCUs–interfering noise floors above -80 dBm will corrupt weak satellite signals. Validate the build with a spectrum analyzer to confirm -110 dBm noise floor at 1.575 GHz before integrating with host systems. Test with u-center or GNSS Viewer to verify cold-start times and S/N ratios across constellations.

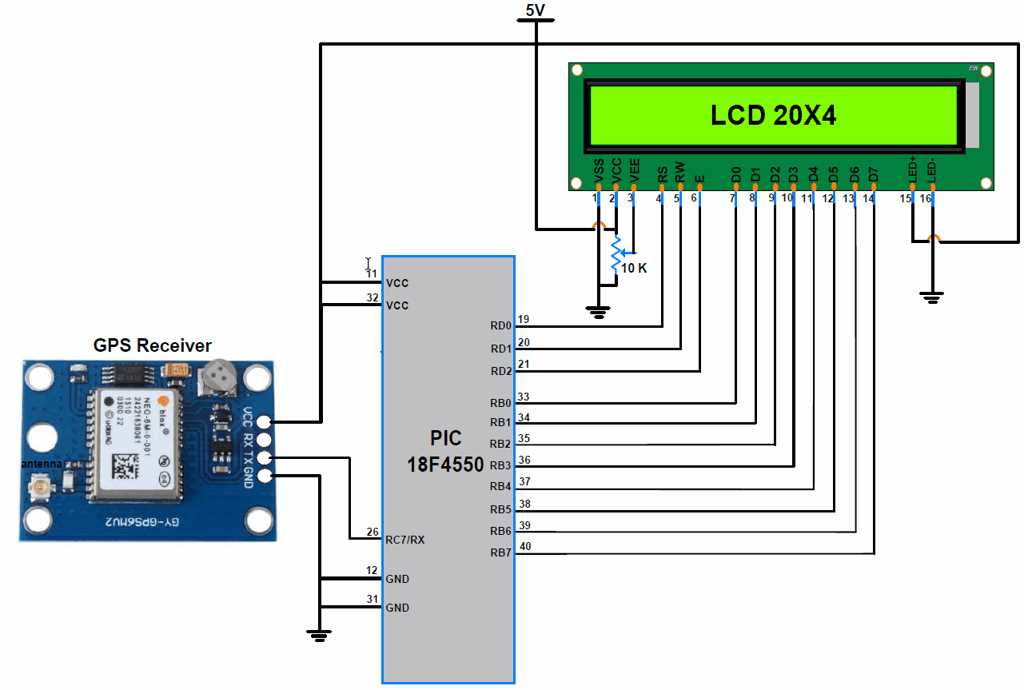

Step-by-Step Wiring Guide for Satellite Navigation Unit and Processor
First, verify the pinout configuration of your receiver matches the processor’s voltage levels. Most modern navigation sensors output 3.3V UART signals, but some older models may require 5V logic. Check the datasheet for both components to confirm compatibility–mismatched levels will corrupt data transmission or damage pins. If interfacing a 5V processor with a 3.3V sensor, add a logic-level converter between the TX/RX lines to prevent signal degradation.
Connect the receiver’s power supply directly to a regulated source. Avoid linking it to the processor’s 3.3V or 5V rail unless the current draw is under 100mA; navigation units often consume 50-200mA during acquisition. For stable operation, use a dedicated 1A LDO with a 10µF capacitor on the input and output terminals. Bypass capacitors (0.1µF ceramic) near the sensor’s power pins filter high-frequency noise, critical for accurate positioning.
Wire the serial interface as follows:
- TX (sensor) → RX (processor)
- RX (sensor) → TX (processor)
- GND (sensor) → GND (processor)
Avoid long wire runs (>30cm) to reduce electromagnetic interference; use shielded twisted-pair cables if routing near motors or switching regulators. For processors without hardware UART (e.g., ATmega328), implement software serial with precise baud rate matching–common default rates include 9600, 38400, or 115200 bps.
Enable power-saving features if the sensor supports them. Many receivers enter backup mode after 1-2 seconds of inactivity, reducing current draw to 10-20µA but increasing restart time. Configure this via the NMEA or UBX protocol before soldering permanent connections. For battery-powered projects, toggle the sensor’s ON/OFF pin with a microcontroller GPIO if deep sleep is required.
Test the connection before final assembly. Parse basic NMEA sentences (e.g., $GPRMC or $GPGGA) to confirm valid coordinates, speed, and satellite lock. Use a terminal emulator (115200 baud, 8N1) to verify real-time data integrity. If latency exceeds 500ms or sentences appear garbled, recheck ground loops, baud rate mismatches, and power stability. For precision applications, disable unnecessary NMEA data streams to reduce processor load.
Common Pitfalls in Satellite Navigation Board Layout
Avoid placing the antenna trace near high-speed digital lines or switch-mode power supplies. Maintain at least 5 mm clearance between the RF path and any data bus carrying signals above 10 MHz. Noise coupling from adjacent components degrades signal-to-noise ratio by 12–18 dB, directly reducing cold-start fix times from 30 seconds to over 2 minutes. Use a dedicated ground plane under the RF section, stitched with vias spaced ≤1.5 mm apart to prevent ground loops.
Failure to account for voltage drop across long PCB traces leads to inconsistent performance. A 10 cm trace of 0.25 mm width carrying 30 mA at 3.3 V drops ~0.2 V, causing intermittent brownouts. Route power lines with ≥1 mm width and add decoupling capacitors–0.1 µF within 5 mm of the IC and 10 µF at the board’s power entry–using low-ESR tantalum types for frequencies below 10 kHz.
Overlooking Thermal and Mechanical Constraints
Ceramic patch antennas lose 0.5 dBi gain for every 10°C rise above 25°C. Mount them away from heat sources–regulators, processors–by at least 15 mm. Secure the board with non-conductive standoffs; metal screws act as unintended ground points, skewing antenna impedance by ±15 Ω. Verify trace widths against copper weight–1 oz/ft² copper requires 0.2 mm per ampere for reliable operation in -40°C to +85°C environments.
