Understanding the Key Components of a Wastewater Treatment Process Flowchart
Accurate visual representations of liquid waste management systems should start with a clear identification of three core stages: preliminary filtration, biological breakdown, and tertiary polishing. Failures typically trace back to oversimplified connections between screens, aeration tanks, and final sedimentation units. Prioritize labeling each component with exact retention times–primary clarifiers require 1.5–2.5 hours, activated sludge units 4–8 hours, and disinfection zones 30–60 minutes. Misaligning these durations causes imbalances in suspended solids loading rates (target ≤150 mg/L for effluent).
Flow paths must reflect realistic liquid volumes–standard municipal input averages 378 litres per capita daily. Use directional arrows sized proportionally to peak hourly flows during dry and wet weather events (expect 2–3× increase during rainfall). Pump specifications demand precise sizing: grit removal systems need 0.3–0.6 m/s velocity to prevent grit buildup, while sludge recirculation pumps should maintain 1.0–1.5 m/s to avoid settling. Include emergency bypass lines with fail-safe valves rated for at least 1.5× maximum expected head pressure.
Secondary treatment aeration schemes often misrepresent oxygen transfer efficiency–diffusers spaced at 30–50 cm intervals demand 1.0–1.2 kg O₂/kg BOD input. Avoid generic blower symbols; specify centrifugal vs. positive displacement types with exact power ratings (30–75 kW per million litres). Final effluent quality targets (BOD ≤ 30 mg/L, TSS ≤ 30 mg/L) require chlorine contact chambers sized for 20–30 minutes retention, or UV systems with ≥30 mJ/cm² dosage for equivalent pathogen reduction. Validate all pipe diameters using Hazen-Williams formulas to prevent underestimation of friction losses.
Energy recovery opportunities merit dedicated annotations: anaerobic digesters should include biogas output metrics (0.5–0.7 m³/kg VS destroyed) and combined heat-power units sized for 5–7 kW per 10 m³ biogas. Omit generic “process tanks” labels–detail whether vessels use rectangular vs. circular configurations, noting wall slope requirements (≥1:10 for circular clarifiers). Sensors and automation protocols must align with SCADA integration points; include pressure, flow, and turbidity monitoring locations with calibrated range values (e.g., 0–50 NTU for turbidimeters).

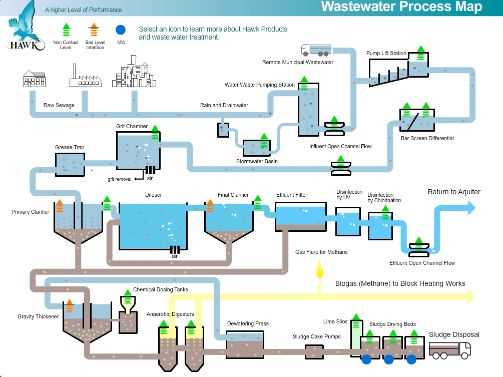

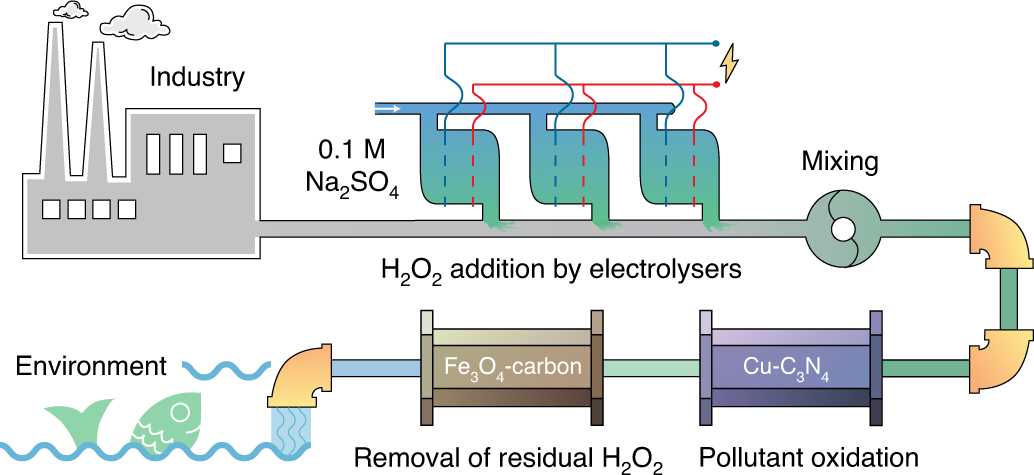

Visualizing Urban Wastewater Processing Flows
Start with a block flow representation that splits primary, secondary, and tertiary phases into distinct modules. Label inlet concentrations (e.g., 350 mg/L BOD, 220 mg/L TSS) directly on the conduits entering each unit to establish baseline performance metrics. Include dashed arrows for optional sludge return loops–specify recirculation ratios (typically 50–150%) between aeration tanks and settlers.
Position grit chambers immediately after screening, indicate detention time (30–60 seconds) and velocity (0.2–0.4 m/s) with subscript annotations. For biological reactors, overlay oxygen demand curves (1.5–2.5 kg O₂/kg BOD removed) on the aeration basin schematic. Add color-coded streams: brown for raw influent, green for treated effluent, orange for waste sludge.
Advanced Annotation Tactics
Embed hydraulic retention times (HRT) as callouts adjacent to each vessel–2–4 hours for primary clarifiers, 6–12 hours for activated sludge basins. Integrate mass balance arrows for nitrogen: label nitrification zones (pH 7.5–8.5, DO >2 mg/L) and denitrification (DO
Highlight critical failure points with red dotted borders: membrane bioreactor (MBR) fouling potential at >5 NTU influent turbidity; UV disinfection efficiency drop below 30 mJ/cm². Include scalability arrows showing doubling capacity from 10,000 to 100,000 m³/day with incremental pump curves.
Finalize with a legend box mapping symbols–triangles for chemical dosing units (FeCl₃, lime), circles for biological reactors–plus numerical footnotes referencing design codes (ISO 5667, EPA 832-F-00-018). Ensure every conduit arrow terminates at a unit operation with exact percentage splits (e.g., 60% sludge to digester, 40% to dewatering).
Critical Elements of a Wastewater Processing Facility Design
Begin with a preliminary separation tank when designing a plant layout. This unit removes large solids like rags, plastics, and grit through screening and sedimentation. Install bar screens with 6–18 mm spacing to trap debris before it damages downstream equipment. Position grit chambers after screens, ensuring a flow velocity of 0.3 m/s to settle sand while keeping lighter organic matter suspended. Bypass channels are essential for maintenance, allowing flow diversion without halting operations.
Biological Reactor Specifications
Integrate aeration basins sized for a hydraulic retention time (HRT) of 4–8 hours, depending on influent organic load. For activated sludge systems, maintain mixed liquor suspended solids (MLSS) at 1,500–3,000 mg/L. Use submerged diffusers with fine bubbles for oxygen transfer efficiency–target 1.5–2.5 kg O₂/kWh. Include anoxic zones upstream of aerobic sections to enhance nitrogen removal via denitrification. Secondary clarifiers should follow reactors, designed with surface overflow rates of 0.8–1.2 m/h to ensure solids separation.
| Component | Key Parameter | Optimal Range |
|---|---|---|
| Primary Settling Tank | Surface Loading Rate | 30–50 m³/m²·d |
| Aeration Basin | Food-to-Microorganism Ratio (F/M) | 0.2–0.4 kg BOD/kg MLSS·d |
| Sludge Digester | Volatile Solids Reduction | 40–60% |
| Disinfection Chamber | UV Dose (E. coli) | ≥40 mJ/cm² |

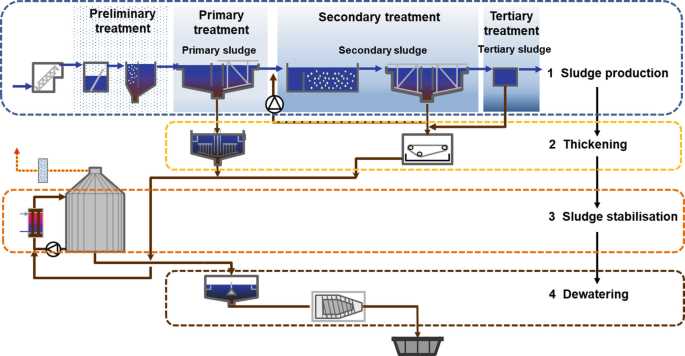

Sludge handling requires dedicated zones for thickening, digestion, and dewatering. Gravity thickeners reduce sludge volume by 85–90%, operating at solids loading rates of 20–30 kg/m²·d. Anaerobic digesters, running at 30–37°C, stabilize sludge while producing biogas; target a HRT of 15–30 days. For dewatering, centrifuges achieve cake solids of 25–35%, while belt presses yield 18–22%. Store biosolids in covered areas to comply with pathogen reduction standards (e.g., Class A biosolids require ≤1,000 MPN fecal coliforms/g).
Include tertiary polishing steps if discharging into sensitive waters. Granular media filters (e.g., sand, anthracite) remove residual suspended solids down to 5–10 mg/L. For phosphorus removal, chemical precipitation using ferric chloride or alum is effective–dosage ranges from 1.5–3.0 moles metal per mole P. Disinfection options must neutralize 99.99% of pathogens; UV systems require clear effluent (turbidity
Pipe layouts demand redundancy to handle peak flows and equipment failures. Use 150–200 mm diameter pipes for primary flows, with slope gradients of 0.5–2% to prevent sedimentation. Valves (e.g., gate, check, air-release) should be accessible and clearly labeled. Electrical systems must support critical loads during outages–emergency generators sized for 20–30% above maximum demand ensure pumps, mixers, and controls remain operational. Sensor placement (pH, DO, flow meters) must align with process zones for real-time adjustments.
Primary Processing Stages: A Detailed Sequence
Install screening equipment at a 60-degree angle to water flow for optimal debris removal. Coarse screens with 6–12 mm bar spacing capture large solids like plastic, rags, and wood, while fine screens (0.5–3 mm) trap grit, seeds, and organic fragments. Position both stages at least 0.9 m below water level to prevent turbulence; structure channels to maintain a 0.6–1.0 m/s flow rate, ensuring solids neither settle prematurely nor bypass screens. Clean screens mechanically every 2–4 hours–manual cleaning increases bypass risk by 30% and reduces downstream efficiency.
Sedimentation Tank Operations
Design rectangular tanks with a length-to-width ratio of at least 4:1 to minimize short-circuiting. Sludge settling rates depend on particle diameter:
- Particles <0.1 mm: 0.01–0.05 m/h
- 0.1–1.0 mm: 0.3–3.0 m/h
- >1.0 mm: 9–15 m/h
Apply surface loading rates of 1.0–1.5 m³/m²·h for typical influent; exceed 2.0 m³/m²·h and sedimentation efficiency drops below 70%. Install sludge scrapers operating at 0.6–1.2 m/min–faster speeds resuspend settled solids, slower speeds cause anaerobic pockets. Withdraw sludge at 1–2% solids concentration; thicker sludge (>3%) clogs pumps and increases chemical conditioning costs.
Control scum accumulation with adjustable baffles set 10–15 cm above the water surface. Rotating scum pipes or fixed troughs should cover at least 85% of the tank width to prevent oil and grease carryover. Schedule scum removal every 4–8 hours–delaying beyond 12 hours reduces FOG (fats, oils, grease) removal by 22% and accelerates odor generation. For facilities processing >5,000 m³/day, add surface aerators supplying 0.05–0.1 m³ air/kg BOD to prevent septicity; below this threshold, intermittent aeration suffices.
Monitor influent pH (6.5–8.5) and temperature (10–30°C) to optimize settling. Variations outside these ranges disrupt flocculation:
- pH <6.0: Alkalinity drops, sludge density increases by 40%, impairing compaction
- pH >9.0: Calcium carbonate precipitates form, fouling pipes
- Temp <10°C: Settling velocity decreases 2% per 1°C drop
- Temp >30°C: Anaerobic digestion accelerates, releasing hydrogen sulfide
Adjust chemical coagulants (e.g., ferric chloride, aluminum sulfate) in real-time based on turbidity–excessive dosing (>50 mg/L) increases sludge volume by 35% without improving clarification.
