Complete Guide to Wiring Your H4 Headlamp Step-by-Step Schematic
Begin by identifying the three pins on the H4 bulb socket: ground, low beam, and high beam. The standard color-coding for most vehicles is black for ground, blue for high beam, and yellow or white for low beam. Verify these colors against your vehicle’s service manual–deviations occur in aftermarket harnesses.
Disconnect the battery negative terminal before handling any electrical connections to prevent short circuits. Strip 5–7mm of insulation from each wire, twist the strands tightly, and crimp using 16–18AWG crimp connectors for secure contact. Avoid solder–it can melt under heat cycles in enclosed assemblies.
Route wires away from moving parts and exhaust manifolds, securing them with adhesive-backed loom tubing or zip ties at 15cm intervals. For halogen bulbs, maintain a minimum 5cm clearance from plastic housings to prevent melting. If upgrading to HID or LED, swap the factory relay for a 30A relay kit to handle increased current draw–stock circuits often overheat under prolonged high-beam use.
Test connections with a multimeter: 0 ohms between ground and chassis, 12V+ on low beam when ignition is on, and 12V+ on high beam when switched. If voltages are inconsistent, check fuse ratings–H4 circuits typically use 10–15A fuses; exceeding this risks wiring damage.
For auxiliary lights (fog/spot), splice into the high-beam circuit using a diode isolation kit to prevent feedback. Label all wires with heat-shrink tubing to simplify future diagnostics. Reconnect the battery, verify operation across all modes, and monitor for flickering–this indicates loose connections or insufficient gauge wire.
Understanding H4 Light Assembly Circuit Layouts
Begin by identifying the dual-filament connector: the H4 socket has three pins–ground, low beam, and high beam. Pin 1 (left, facing the connector) serves as the common ground, while pin 2 handles low-intensity illumination and pin 3 activates the brighter output. Verify continuity with a multimeter before proceeding; incorrect polarity risks damaging the bulbs or fuses.
Use 1.5 mm² cross-sectional wire for both signal and return paths to ensure minimal voltage drop–critical for halogen units drawing 55/60W per filament. For LED retrofits, reduce gauge to 1.0 mm² since current draw typically halves, but confirm specs for your specific module. Avoid thin wiring in circuits exceeding 8A to prevent overheating at connection points.

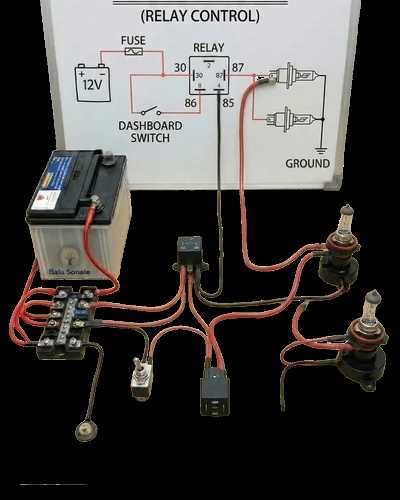

Relay Integration for High-Power Demands

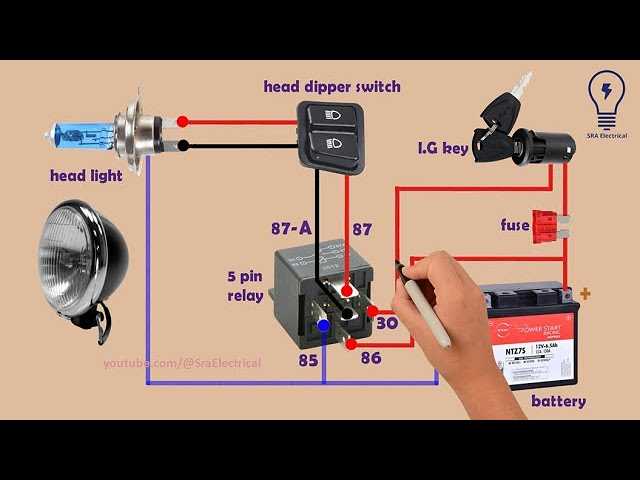

Install a 40A relay when upgrading to aftermarket kits exceeding factory ratings. Connect the relay coil to the existing low/high beam trigger (pin 2 or 3) via a lightweight 0.5 mm² wire–this isolates the switch from high current. The relay’s 87 terminal carries power directly from the battery through a 20A fuse, while 85 grounds to chassis. Use crimp connectors rated for 120°C for all terminations.
Route cables away from heat sources like exhaust manifolds or radiators–temperatures above 80°C degrade insulation and increase resistance. Secure harnesses every 15 cm with nylon zip ties, avoiding sharp edges. For fog-prone environments, apply dielectric grease to connectors to prevent corrosion that causes intermittent failures.
Test the circuit in stages: first, confirm bulbs illuminate using a 9V battery; then verify proper function at 12.6V (fully charged system) and 11.8V (weak battery condition) to catch voltage-sensitive issues. If flickering occurs, suspect loose grounds–clean mounting surfaces with a wire brush and apply anti-seize compound to threads.
Common Pitfalls in H4 System Upgrades
Never splice into existing circuits for additional accessories–H4 systems operate near capacity, and added loads risk overheating switches. For turn signals, tap into the flasher module instead. If factory connectors show burn marks, replace them with waterproof Deutsch DT counterparts; standard bullet terminals fail under continuous 10A+ loads.
Identifying Common H4 Light Assembly Connector Pinouts
Start by verifying the connector layout against standard configurations: most automotive H4 setups use a 3-pin arrangement with low beam on the outermost terminal (typically 12V), ground adjacent, and high beam on the remaining pin. Use a multimeter to test each contact–probing for 9-15V on low beam and instant voltage jump when switching to high. If readings deviate, inspect for corroded sockets or melted plastic; replacements often follow Bosch 0 332 209 142 or Hella 8WH 007 506-011 specs. For motorcycles or older vehicles, some variants swap high/low positions–compare against repair manuals for specific models like VW Golf MK3 or Toyota Hilux.
Key Variations
- European vehicles (VW, BMW, Audi): Pin 1: low beam, Pin 2: ground, Pin 3: high beam–resistance between ground and any active circuit should read 0.2-0.5 ohms.
- Japanese models (Toyota, Nissan): Pin order may reverse; confirm with bulb filament glow during tests.
- Aftermarket LED adapters: Often mirror OEM layouts but verify heat sink compatibility–incorrect polarity risks instant burnout.
Label each wire before disconnection: “L” for low, “H” for high, and “G” for ground. For dual-filament bulbs lacking separate day running lamps, Pin 3 may alternate between high beam and a second low beam circuit–check fuse box legends for directional symbols.
Step-by-Step Guide to Installing H4 Bulbs in Halogen Lighting Assemblies
Disconnect the vehicle’s battery before handling any electrical components to prevent short circuits or damage. Locate the rear of the lighting unit–most housing designs feature a dust cover or plug; twist it counterclockwise to remove it and expose the bulb socket.
Press the retaining clip or spring latch securing the existing bulb inward, then pull it away from the base to release the old halogen element. Avoid touching the glass part of the new H4 bulb with bare fingers; oils from skin can reduce lifespan. Use gloves or hold the bulb by its metal connector base.
Align the H4 bulb’s positioning tabs with the slots in the socket–most assemblies use a three-tab configuration for correct orientation. Push the bulb straight into the socket until it clicks into place, then re-engage the retaining clip by hooking its ends under the designated notches and pressing it down firmly.
Reinstall the dust cover by pressing it into position and rotating it clockwise until fully seated. This cover prevents moisture and debris from entering the housing, which can cause corrosion or fogging. If the assembly includes a vent tube or breather port, ensure it remains unobstructed for proper airflow.
Reconnect the battery and test the bulbs before finalizing the installation. Turn on the low and high beams to verify brightness and alignment; flickering or dim output may indicate a loose connection. Check for stray light spillage or misdirected beams, which may require aim adjustment using the housing’s vertical or horizontal screws.
Secure any excess cable length with plastic zip ties or adhesive-backed clips to prevent contact with moving engine components or hot surfaces. Route wires along existing harness paths to maintain a clean installation and reduce the risk of chafing. Reassemble any removed trim panels or covers, ensuring no fasteners are left loose.

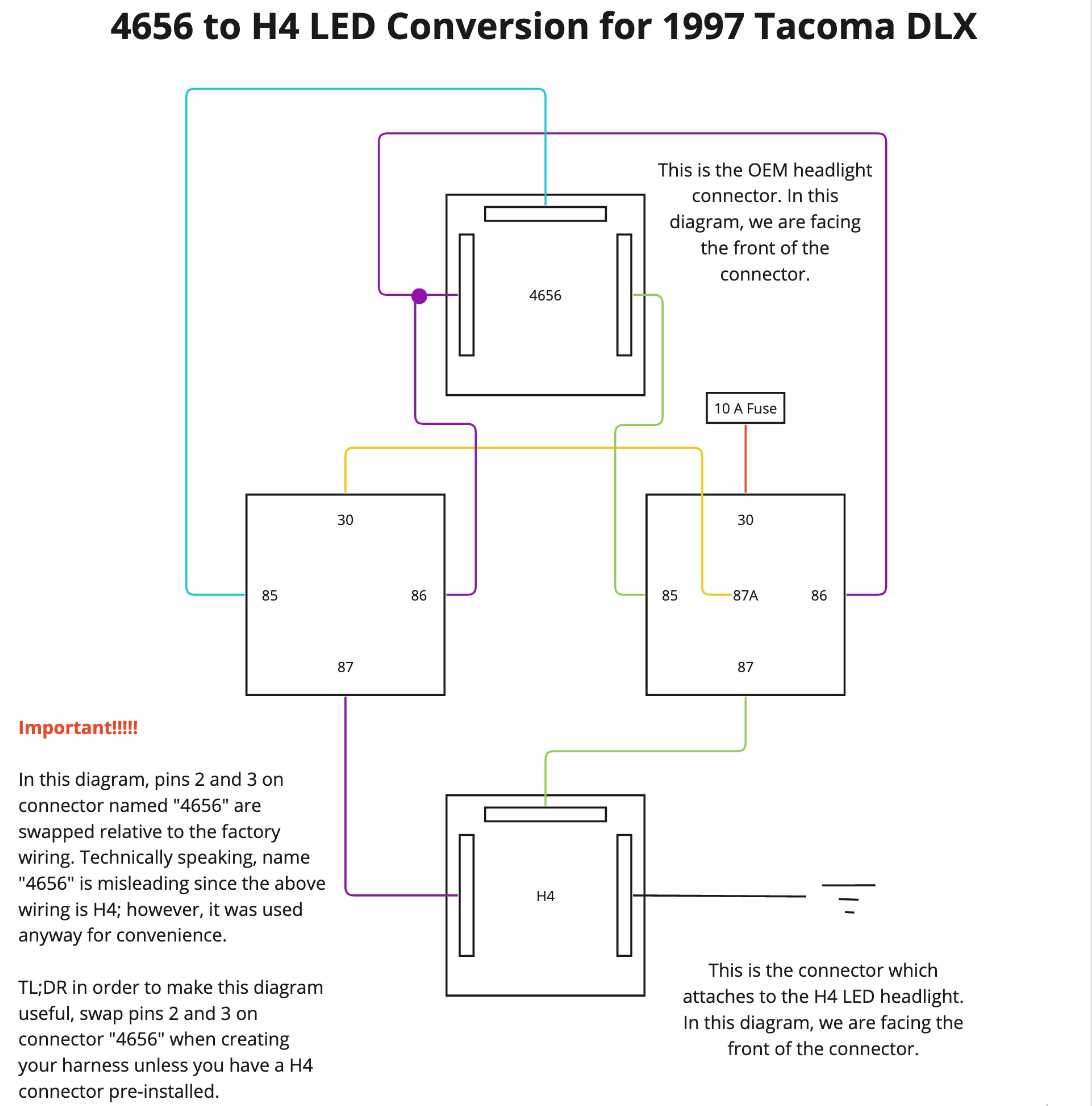

Modifying H4 Circuitry for LED or HID Retrofits
Before cutting factory connectors, measure the existing current draw at both low and high beam settings. Stock halogen bulbs typically demand 55W on high beam, while aftermarket LED modules may vary between 20W–40W depending on the emitter configuration. Use a multimeter in series to log baseline figures, then cross-reference these with the new assembly’s power specifications to prevent overloading the vehicle’s relay or fuse panel.
Relocate the ballast for HID kits to a moisture-free zone near the front grille or behind the bumper reinforcement. Secure it with vibration-damping mounts; standard zip ties degrade within 12–18 months under engine bay heat cycles. For LED arrays lacking built-in drivers, integrate a constant-current module set at the emitter’s rated forward voltage–check the datasheet, as forward voltage often spans 9V–14V per diode cluster.
| Component | Stock Halogen | LED Drop-In | HID Kit (35W) |
|---|---|---|---|
| Current draw (A) | 4.1–4.6 (high) | 1.2–2.8 | 2.9–3.2 |
| Can bus compatibility | Direct | Resistor pack required (6–10Ω) | Ballast regulates |
| Thermal management | Passive housing | Heatsink/fan mandatory | Ignitor vented |
Splice in a dedicated relay for circuits exceeding 30W. Use 16-gauge wire for signal leads and 14-gauge for power runs–avoid thinner wiring that risks voltage sag under sustained pulses. Connect the relay’s coil side to the original low or high-beam trigger, isolating the factory wiring from the new load. Shield all splices with adhesive-lined heat shrink tubing to block moisture ingress that corrodes copper strands within six months.
Verify beam pattern alignment before final installation. LED emitters with sharp cutoff angles may project a scatter pattern unless collimated; adjust via the assembly’s vertical mounting slots. HID kits often include self-leveling motors, but manual aiming requires a flat surface and 7.6-meter target wall–center the hotspot 50mm below horizontal zero to meet DOT standards.
Apply dielectric grease to every connector interface, including bulb sockets and relay pins. Corrosion resistance coating prevents intermittent failures that manifest only in humid conditions. Test the setup with a 30-minute high-beam cycle; monitor housing temperatures–LED emitters should not exceed 85°C, while HID ignitors may reach 105°C before triggering thermal cutoff.
Adapt the can bus resistors if the vehicle logs bulb-out errors. Resistor packs must match the original bulb’s wattage signature; a stock H4’s 55W output equates to a 6Ω resistor rated for 50W. Mount resistors on a grounded heat sink pad away from plastic components to prevent warping. Failure to implement these causes dashboard warning flickers within 200–400 ignition cycles.
Document every modification with photographs and voltage readings. Save baseline data alongside revised figures for troubleshooting future issues. Archive component part numbers–LED emitter arrays refresh annually, and replicating the exact bin during warranty claims hinges on precise identification.
