How to Wire an AC Thermostat Step-by-Step Connection Guide
Begin by identifying the low-voltage transformer output on your HVAC setup–typically marked as R (power) and C (common). Modern configurations often use Rh (heating) and Rc (cooling) if dual transformers are present. For single-transformer units, bridge Rh and Rc with a jumper wire to consolidate power supply. Failure to do so may result in intermittent operation or system shutdown. Verify transformer voltage (usually 24V AC) before proceeding; incorrect readings indicate potential equipment damage.
Connect the cooling call terminal (Y) directly to the compressor relay. Use 18-gauge solid copper wire rated for 300V insulation to prevent signal degradation. Avoid coiled or excessively long runs–voltage drop over distances exceeding 50 feet can trigger false cycling. For heat pumps, the O/B terminal controls reversing valve polarity; standard heat pumps default to O (energized in cooling), while Rheem and some Carrier models invert this logic. Double-check manufacturer specifications to avoid reversing valve damage.
Ground the system by attaching the C terminal to the transformer’s neutral side. Skipping this step creates erratic behavior: unstable readings, short cycling, or complete failure. For smart adapters, add a 5-20 mA current loop between C and W (heating) if humidity control is integrated–most Nest and Ecobee units auto-detect this configuration, but Honeywell T-series requires manual setup in the installer menu.
Test each circuit independently. Activate cooling mode and monitor compressor engagement–verify Y reads 24V between R and C. Repeat for heating (W), ensuring furnace ignition or heat pump operation. If voltage is absent, inspect control board fuses or replace the 3-amp glass fuse in the air handler. For variable-speed systems, confirm G (fan) operates in auto mode; manual override risks continuous airflow, wasting energy.
Label every connection with heat-shrink tubing or colored spade terminals. Code breakdown: R (red), C (blue or black), Y (yellow), W (white), O/B (orange), G (green). Crossed wires can destroy thermostatic relays or void equipment warranties. Store spare wire under the baseplate to simplify future diagnostics.
Connecting Your Climate Control System: A Practical Guide
Begin by identifying the labeled terminals on your HVAC control unit–typically marked R (power), Y (cooling), G (fan), W (heating), and C (common). For single-stage cooling, link the Y terminal on the control panel to the corresponding cooling relay using 18-gauge solid copper wire with yellow insulation. Ensure the R terminal is connected to a 24V transformer output; a multimeter reading between R and C should confirm 24VAC before proceeding. If your system includes a heat pump, note the O/B terminal, which activates reversing valve operation–polarity determines heating or cooling mode, so verify manufacturer specs before connecting.
Fan operation requires bridging the G terminal to the fan relay, but avoid direct connection to the R terminal unless manual fan override is desired, as this bypasses automatic cycling. For systems with dehumidification features, locate the terminal marked “DH” or “Dehumidify” (varies by manufacturer) and wire it to a dedicated dehumidifier relay, ensuring the control sequence aligns with the unit’s humidity sensor logic. Always secure connections with wire nuts rated for 600V, then wrap with high-temperature electrical tape to prevent corrosion or short circuits in humid environments.
Test each circuit step-by-step: activate cooling mode and verify compressor engagement via a clamp meter measuring current draw (typically 5–10A for residential units). Check fan operation independently, ensuring air handler motors start smoothly without excessive amperage spikes. If integrating smart controls, follow the OEM’s app or interface guidelines for pairing–most require temporary removal of the C wire from the backplate during setup to prevent power feedback. Finalize by labeling each wire at both ends with heat-shrink tubing or permanent markers, noting the terminal origin for future troubleshooting.

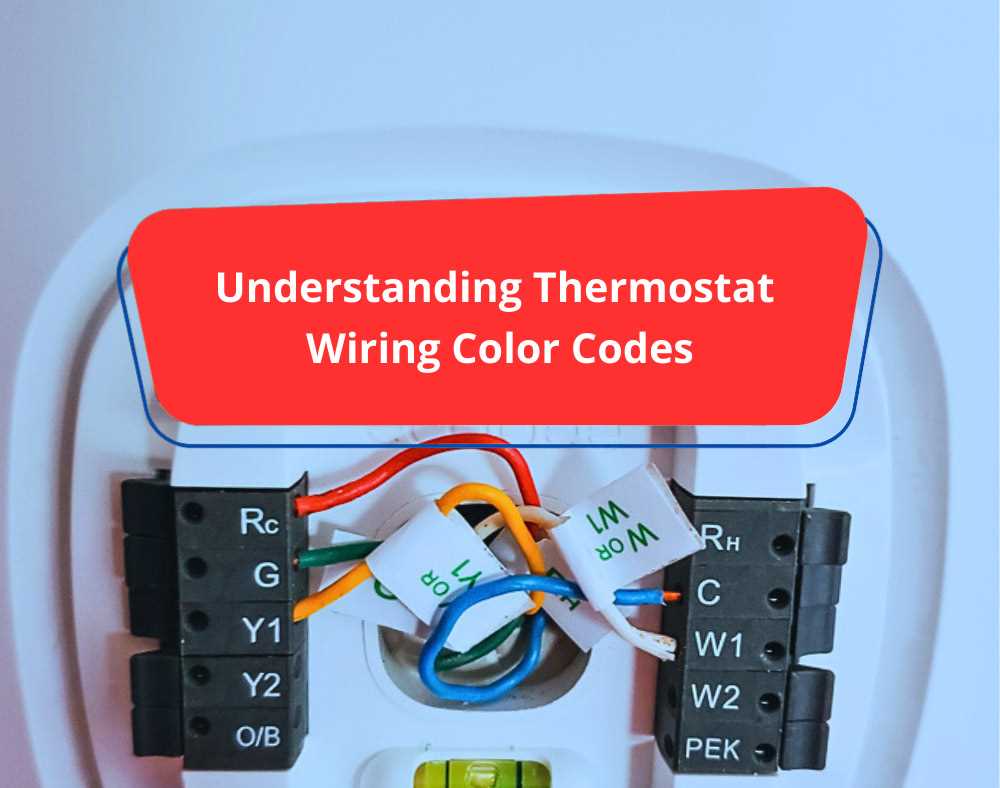

Step-by-Step Guide to Identifying Climate Control Conductor Hues and Connection Points
Begin by shutting off power to the HVAC system at the circuit breaker to eliminate shock hazards. Locate the control panel cover–typically secured with one or two screws–and remove it. Observe the clustered colored leads attached to labeled posts. Standard configurations include:
- Red (R): Power supply, often split into Rc (cooling) and Rh (heating) on dual-transformer setups.
- White (W): Activates heat; may appear as W1 or W2 in multistage systems.
- Yellow (Y): Engages cooling compressor; Y1 for single-stage, Y2 for secondary stage.
- Green (G): Triggers fan independently of heating/cooling cycles.
- Blue/C (Common): Completes circuit for smart controllers requiring continuous power.
Check for non-standard colors on older units or specialty installations. Purple or brown may denote auxiliary heating (e.g., electric strip heaters), while orange often links heat pumps to reversing valves. If labels are missing, use a multimeter set to continuity mode–probe each conductor against R; the correct terminal will show ~24VAC when energized. Mark ambiguous connections with masking tape and a permanent marker to avoid misrouting later.
Match each wire to its corresponding terminal based on HVAC function rather than color alone, as regional or manufacturer deviations exist. For instance, some European models swap yellow and blue roles. Cross-reference with the equipment’s technical manual if available–look for terminal block diagrams under “low-voltage connections” or “control assembly.” When reconnecting, insert bare ends fully into slots, securing screws tightly to prevent loose contacts, which cause intermittent failures or complete system shutdowns.
Verify installation by restoring power and cycling through heating, cooling, and fan-only modes. Monitor for proper response:
- Heat: W engaged, G (optional auto mode) or Y inactive.
- Cool: Y engaged, G spins fan immediately.
- Fan only: G active, no heating/cooling relay clicks.
If any mode fails, recheck connections–overlooked steps like reversed R and C wires often disable smart temperature regulators without triggering visible errors.
How to Safely Disconnect Power Before Adjusting Climate Control Systems
Locate the circuit breaker panel and switch off the dedicated breaker labeled for cooling equipment–typically a 15-20 amp double-pole unit marked “AC” or “HVAC.” Verify the disconnect using a non-contact voltage tester at the outdoor condenser and the low-voltage control board near the indoor unit. If the breaker lacks clear labeling, shut off the main power supply to eliminate any risk of residual current.
Verify Zero Voltage Before Handling Components
After cutting power, wait a full 5 minutes to allow capacitors in the condenser to discharge. Test all exposed terminals and connections with a multimeter set to AC voltage–readings must show 0V. Failure to confirm zero voltage has caused severe shocks, particularly in systems with faulty disconnects or incorrectly wired backup power sources.
Never rely on wall switches–they control only low-voltage signals and leave high-voltage lines live. For additional safety, secure the breaker in the “off” position with electrical tape or a lockout tag to prevent accidental reactivation during service. Professionals handling older installations should check for hidden live wires in junction boxes, as some models route power unconventionally.

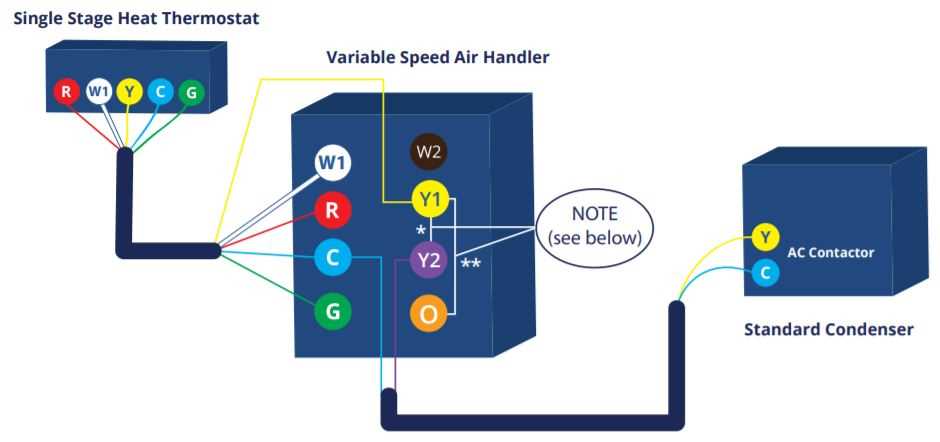

Single-Stage Cooling Unit Control Setup: Circuit Layout
Begin by verifying the control board labels on both the indoor unit and the wall-mounted climate regulator. Most single-stage configurations require four core connections: R (power), C (common), Y (cooling), and G (fan). Confirm these labels match on both components before proceeding–mismatches are a primary cause of system failures. Use a multimeter to check for 24VAC between R and C on the indoor unit; absence of voltage indicates a transformer issue or tripped breaker.
Attach the wires in this sequence:
| Regulator Terminal | Indoor Unit Connection | Wire Color (Standard) |
|---|---|---|
| R | R (24V power) | Red |
| C | C (common) | Blue or black |
| Y | Y (cooling relay) | Yellow |
| G | G (fan relay) | Green |
Secure each connection with a small screwdriver, ensuring no bare wire extends beyond the terminal–exposed strands can cause short circuits. If your system includes a heat pump, locate the O/B terminal and connect it to the reversing valve wire (typically orange) on the indoor unit.
Critical Checks Before Powering On
Remove the faceplate from the climate regulator and inspect for loose screws or debris. Set the device to “OFF” before restoring power at the breaker. After 30 seconds, switch the regulator to “COOL” and adjust the setpoint 5°F below room temperature. Listen for the indoor fan to engage immediately–no humming or clicking noises should be present. Delayed activation (over 10 seconds) suggests incorrect Y or G connections.
Monitor the outdoor unit for startup. Lag time beyond 90 seconds indicates potential issues with the contactor or compressor capacitor. If the system fails to start, recheck all connections against the table above. For persistent issues, measure voltage at the outdoor unit’s contactor coil (between Y and C)–readings below 20VAC suggest a break in the circuit path.
