Step-by-Step High Power LED Driver Schematic for Reliable Illumination

Select a step-down converter topology for voltages exceeding 20V to avoid linear regulator inefficiencies. A synchronous buck controller with an external MOSFET delivers 95%+ efficiency at 1A–5A loads, critical for thermal management in compact enclosures. Ensure input capacitors handle ripple currents ≥30% of the maximum load to prevent premature failure. For 3W–10W emitters, pair a 10μF ceramic capacitor with a 100μF electrolytic to stabilize transients.

Pulse-width modulation at 250 kHz–1 MHz reduces inductor size while maintaining stability under 5% ripple. Use a fast-recovery diode (trr <50ns) for switching frequencies above 500 kHz to minimize losses in discontinuous mode. For dimming, implement analog voltage scaling (0.5V–2.5V) instead of PWM to avoid flicker in sensitive applications–resistor dividers must have a tolerance ≤1% to ensure consistent brightness.

Thermal protection requires a negative temperature coefficient thermistor (NTC) placed 3mm from the emitter’s thermal pad. Set shutdown at 85°C with 5°C hysteresis to prevent thermal runaway. For current sensing, bypass low-side resistors with a hall-effect sensor (e.g., ACS712) to eliminate ground noise when driving arrays above 2A. Test open-load conditions by simulating a 10ms delay in soft-start circuitry to avoid voltage spikes at power-on.

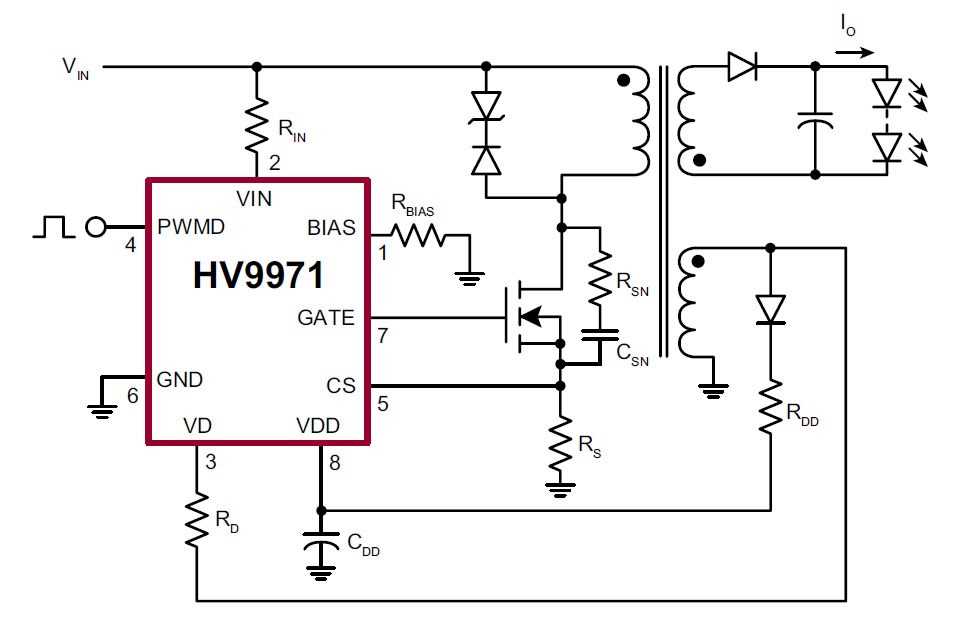

Isolation is mandatory for voltages >60V: use a flyback converter with a 1:1.5 transformer ratio and optocoupler feedback. For non-isolated solutions, prioritize components with V_CEO >1.5× input voltage to survive transients. Always verify layout–trace widths for 3A paths must be ≥2mm; decoupling capacitors must sit ≤2mm from IC pins to suppress high-frequency oscillations.

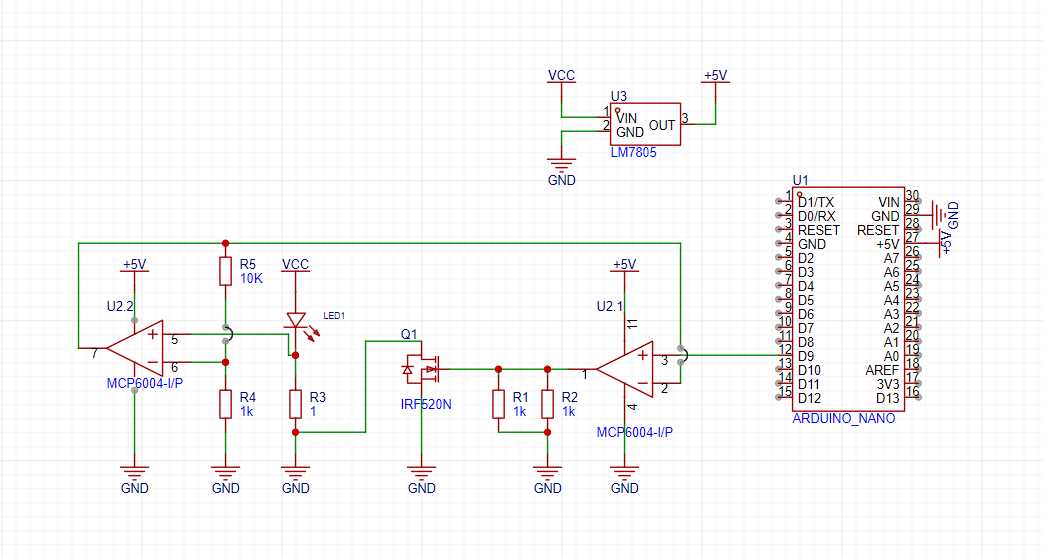

Designing Robust Current Regulators for Intense Illumination Modules

Select constant-current topologies for 10W–100W emitters to prevent thermal runaway–buck converters with PWM control offer ±2% regulation across 3–24V input ranges.

Integrate a MOSFET (e.g., IRFB3077) with a 100kHz switching frequency to minimize heat dissipation; pair with an AL8861 LED controller for sub-100μs response to load transients.

Use ceramic capacitors (X7R, 10μF at 50V) on the input and output to suppress ripple below 50mV_pp–film or electrolytic types degrade under pulsed currents >1A.

Implement a snubber network (22Ω resistor + 1nF capacitor) across the switching node to quell EMI spikes that exceed FCC Class B limits.

For dynamic brightness control, incorporate a logarithmic 10kΩ potentiometer wired to the ADJ pin of the regulator–linear tapers introduce perceptible stepping at low dimming levels.

Thermal Mitigation Strategies

Mount emitters on a 3mm-thick aluminum PCB with 100μm copper traces; thermal vias (0.3mm diameter, 0.5mm pitch) enhance dissipation by 40%.

Derate components by 30% when ambient temperatures exceed 50°C–Schottky diodes (e.g., STPS20L45C) lose 2% efficiency per 10°C rise above 85°C.

Add a bimetallic thermal cutoff (rated for 120°C) in series with the load; this prevents catastrophic failure if the heat sink detaches or fan stalls.

Critical Elements for a 10W–100W Illumination Source Regulator Blueprint

Select a switching regulator topology with a 30–150 kHz operating frequency for optimal efficiency in 10W–100W applications. Buck converters dominate this range due to their simplicity, cost-effectiveness, and thermal performance. For input voltages above 48V, consider a flyback design to minimize component stress and improve isolation. Ensure the chosen IC supports continuous conduction mode (CCM) for reduced ripple current, with typical efficiency targets of 88–94% at full load./Components like the TI LM3404 or ON Semiconductor NCL30xxx series integrate critical protection features, simplifying external circuitry.

Core Active and Passive Parts

Component	Specification	Purpose	Example Models
Switching IC	5A–15A, 60V–150V	Regulates output voltage/current	ST ST1S14, Infineon IFX91040
Inductor	47μH–220μH, 3A–10A saturation	Energy storage, ripple reduction	Coilcraft SER2915, Wurth 7443736470
Input/Output Capacitors	10μF–100μF, 50V–250V, X7R/X5R	Filters voltage ripple	Murata GRM32ER7, TDK CGA9
Schottky Diode	3A–10A, 40V–150V,	Rectification, freewheeling	ON Semiconductor MBRS340T, Vishay VS-10ETS08S
Current Sense Resistor	0.02Ω–0.1Ω, 1% tolerance, 1W–3W	Feedback for constant current	Vishay WSLS2908, KOA Speer RK73

Thermal management dictates long-term reliability. A TO-220 or TO-263 MOSFET (e.g., Infineon IPP075N10N3) dissipates 2–5W, requiring a heatsink with

Protection circuitry prevents catastrophic failures. Implement over-voltage clamping with a 18V Zener diode (e.g., BZT52C18) for 12V/24V outputs to suppress transients. Input reverse polarity protection uses a P-channel MOSFET (e.g., Texas Instruments CSD95372Q3M) with a 1N4148 diode for gate drive. Short-circuit detection should trigger within

Step-by-Step PCB Layout for Switching Mode Illumination Controllers

Prioritize component placement by grouping critical elements–controller IC, input capacitor, and switching inductor–within a 20 mm radius. This minimizes parasitic inductance, ensuring rise/fall times under 50 ns for 1 A/μs transitions. Keep the input capacitor’s ground return path under 10 mm to suppress voltage spikes at startup.

Route the switching node trace as a short, wide polygon (minimum 2 mm width) to reduce EMI and thermal stress. Locate the Schottky diode adjacent to the inductor, with its cathode facing the node to cut reverse recovery losses. For 1 MHz+ operation, use 2 oz copper to handle 3 A/mm² current density without derating.

Separate analog and digital ground planes with a single, narrow bridge at the controller’s reference pin. This prevents ground bounce, which can exceed 50 mV in designs with rapid load changes. Place decoupling caps (0.1 μF + 10 μF) within 3 mm of the IC’s power pins to filter low and high-frequency noise.

Thermal Management

Allocate at least 5 cm² of exposed copper beneath the controller and inductor for every 3 W of dissipation. Use thermal vias (0.3 mm diameter, 0.8 mm pitch) to connect the top layer to a bottom-side ground plane. For forced-air cooling, space vias 1 mm apart to improve heat transfer by 20%.

Avoid right-angle traces on the switching node to prevent reflections; use 45° bends with radii ≥ 1.5× trace width. Position feedback resistors (1% tolerance) ≥ 5 mm from the switching node to eliminate capacitive coupling, which can shift regulation accuracy by ±2%. For multi-phase designs, stagger the switching edges by 10-20 ns to halve ripple current.

Implement a star-ground topology for load return paths to prevent crosstalk between channels. For 3 A+ loads, use via-in-pad (laser-drilled, 0.2 mm) beneath output caps to reduce ESR and improve transient response. Test prototypes with a thermal camera; hotspots >100°C indicate insufficient copper or vias.

Validate the layout with a time-domain reflectometer to ensure impedance mismatches, if any, remain below 10 Ω at 500 MHz. For boundary-scan testing, leave 0.5 mm gaps between traces and unused pads to avoid shorts. Export Gerbers with centroid data for automated assembly, ensuring component rotation tolerances ≤ ±2°.

Selecting Current Control Resistors for 350mA, 700mA, and 1A Emitters

For 350mA emitters, use a resistor calculated via R = (V_in – V_f) / 0.35, where V_in is the supply voltage and V_f the forward voltage of the emitter. Example: with V_in = 12V and V_f = 3.5V, R = (12 – 3.5) / 0.35 ≈ 24.3Ω. Round up to the nearest standard value (24Ω or 27Ω) and verify with a multimeter before finalizing.

At 700mA, formula adjusts to R = (V_in – V_f) / 0.7. For V_f = 6V, R = (12 – 6) / 0.7 ≈ 8.57Ω. Select 8.2Ω or 9.1Ω based on tolerance. Power dissipation must be ≥ I² × R; for 700mA and 8.2Ω, P = 0.7² × 8.2 ≈ 4.02W, so use a 5W resistor minimum.

• 350mA: 1/4W resistors may suffice if emitter count ≤ 3 in series, but parallel setups require derating.
• 700mA: 1W resistors tolerate ≈30% overload; exceed this and thermal runoff risks emitter degradation.
• 1A: Non-wirewound resistors fail quickly; opt for metal film or wirewound types rated ≥10W.

For 1A emitters, R = (V_in – V_f) / 1. Example: V_in = 24V, V_f = 12V, R = (24 – 12) / 1 = 12Ω. Power rating: P = 1² × 12 = 12W. Use a 15W resistor and heatsink if thermal resistance >40°C/W.

Precision matters–±5% resistor tolerance can swing current by ±10mA at 350mA or ±30mA at 1A. For tighter control, measure actual resistance under load and adjust via parallel resistors. Dynamic resistance (R_dyn) of emitters ranges 0.5–2Ω; ignore this for rough calculations but account for it in high-accuracy designs.

Avoid carbon film resistors above 500mA; their TCR (temperature coefficient of resistance) drifts significantly under load. For 1A, use resistors with TCR

For multi-string arrays, calculate per-string resistance. Example: three 700mA strings sharing a 24V supply with V_f = 8V each:

1. String 1: R = (24 – 8) / 0.7 ≈ 22.86Ω → 22Ω, 10W
2. String 2 and 3: Duplicate 22Ω resistors.
3. Total power: 3 × (0.7² × 22) ≈ 32.3W; ensure supply can deliver ≥35W.

Common Pitfalls in Stabilizing Current for Intense Illumination Sources

Avoid relying solely on linear regulators for solid-state lighting exceeding 5W. These components dissipate excess energy as heat, requiring costly thermal management–heatsinks or active cooling–that complicates design. Switch-mode regulators, though more complex, handle efficiency demands without excessive heat buildup, cutting BOM costs by up to 40% in mass production.

Neglecting transient response calculations leads to visible flicker or premature failure. Solid-state emitters rated for 1A continuous current may tolerate brief 1.5A surges, but prolonged overshoot above 20% of nominal destroys phosphors or bond wires. Use LDO regulators with

Assuming all switching controllers are interchangeable invites inefficiency. Buck converters designed for automotive applications (e.g., LM2596) often lack the precision current limiting required for illumination arrays, causing uneven brightness or thermal runaway. Select controllers with built-in cycle-by-cycle current limiting and ±2% voltage accuracy for consistent luminosity.

Misjudging Input Voltage Tolerances

Underestimating input voltage fluctuations causes unreliable operation. A module designed for 12V nominal may encounter 14.4V in automotive systems or 10V during cold crank. Specify regulators with input ranges extending ±25% of nominal and add reverse polarity protection to prevent catastrophic failure when operators mistakenly reverse connections during installation.

Ommitting soft-start circuitry risks current inrush that exceeds emitter ratings by 300-500% during turn-on. This generates destructive voltage spikes that degrade phosphors or trigger avalanche breakdown. Implement a controlled rise time (5-10ms) via a series capacitor on the regulator’s enable pin or a dedicated soft-start IC like the TPS2420.

Choosing electrolytic capacitors for bulk storage in rapid-discharge applications shortens lifespan. These components degrade under frequent charge/discharge cycles, reducing effective capacitance by 50% within 1,000 hours. Replace them with polymer tantalum or ceramic capacitors rated for 1.5-2x the expected ripple current to maintain stable output under pulsed loads.

Ignoring PCB trace impedance mismatches induces voltage drops that vary with ambient temperature, causing inconsistent brightness. A 1A trace routed with standard 1oz copper loses 0.2V over 10cm at 25°C, but this climbs to 0.4V at 85°C due to increased resistivity. Use Kelvin sensing to measure actual emitter voltage and adjust regulator feedback accordingly, or widen traces to 2oz copper for critical paths.
