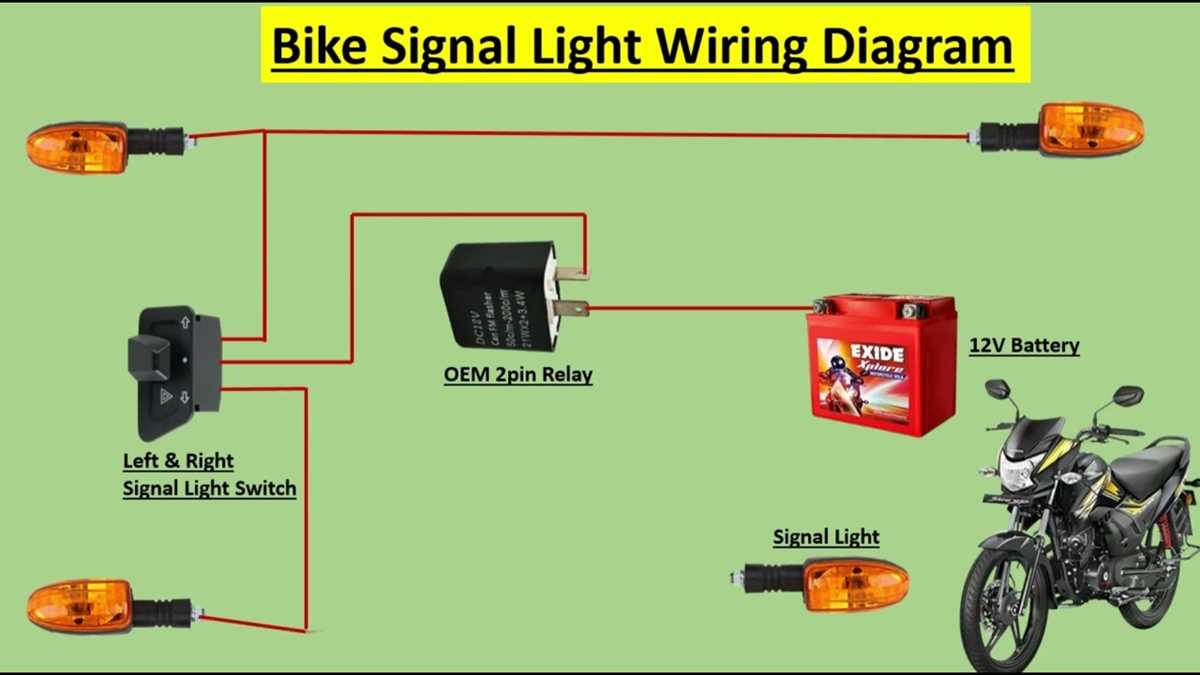

Complete Honda Shadow Turn Signal Wiring Diagram Guide for Easy Installation

For immediate repairs, locate the brown (BR) wire beneath the headlamp housing–this is your primary blinker power feed. Connect it to an inline fuse (7.5A) before routing to the switchgear. Avoid tapping into the green/white (GR/W) engine kill circuit; doing so risks intermittent electrical faults during ignition cycles.

Use 18-gauge stranded copper wire for all blinker extensions. Crimp terminals must be double-crimped (first insulation, then conductor) and sealed with adhesive-lined heat shrink. Verify ground connections at the frame’s lower left mount point–sand paint to bare metal if voltage drop exceeds 0.2V.

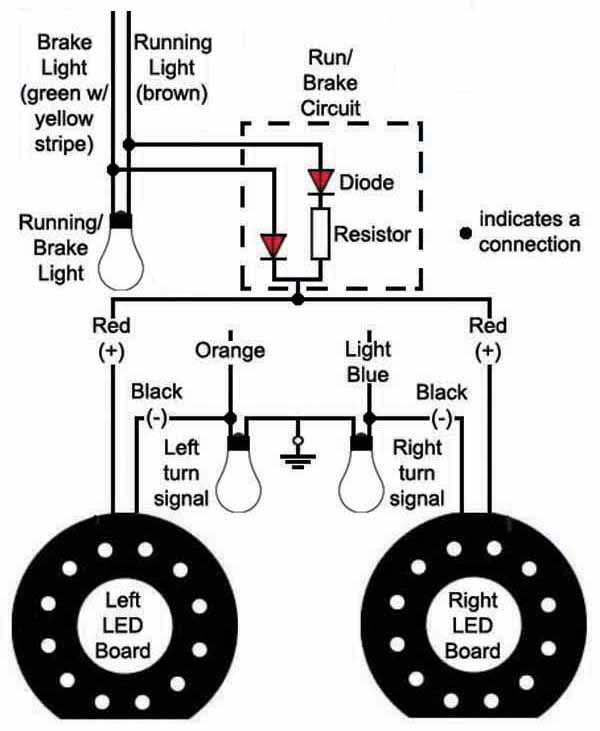

When retrofitting LED indicators, install load resistors (10W, 15Ω) across each bulb socket to prevent hyperflash. Route harnesses away from exhaust manifolds (minimum 3-inch clearance) and secure loops with Teflon-lined zip ties spaced every 6 inches. Test continuity with a multimeter set to 200Ω before finalizing connections.

For OEM-style replacements, reference factory service manual page 16-5. The orange wire (O) handles front left blinker, while light blue (L) controls the front right. Rear circuits use gray (G) (left) and pink (P) (right). Color codes are consistent across 1998–2012 production runs.

Understanding Your VT750C Light Circuit Layout

Locate the flasher relay near the battery compartment–it’s a small cylindrical module with two connectors. Pin 1 receives power from the ignition switch (yellow wire, 12V), while pin 2 sends pulsed output to the stalk controls (orange/white leads). If bulbs blink erratically, swap the relay first; aftermarket units often fail under 50k ohms resistance loads.

Trace the front and rear indicators back to the handlebar switch cluster. The left stalk routes brown/white and brown/green wires; the right uses brown/blue and brown/yellow. Corrosion at the bullet connectors causes intermittent failures–disassemble and coat terminals with dielectric grease. For LED upgrades, bypass the relay and install an electronic flasher rated for 2A draw per side to prevent hyper-flashing.

• Front indicators: 2.1W amber bulbs (check resistance–should read 7-9 ohms cold)
• Rear indicators: 3.4W bulbs (replace if resistance exceeds 12 ohms)
• Harness grounds: black wire terminates at frame near rear shock mount
• Emergency override: jumper the hazard switch’s gray wire to ignition feed for constant blink

Color codes follow JIS standards, not ISO–swap European-spec harnesses carefully. The canceling cam on the right stalk relies on a 3mm detent pin; if self-cancel fails, verify the actuator wheel hasn’t cracked. For custom setups, route new leads through the headlight bucket conduit, securing with spiral wrap every 15cm to prevent chafing against the triple clamp.

Locating the Proper Leads for Indicator Lights on Classic Cruiser Bikes

Begin by accessing the main harness connector near the instrument cluster–on most models built between 1995 and 2015, this plug contains four distinct wires specific to directional lamps: front left (FL), rear left (RL), front right (FR), and rear right (RR). FL and RL typically share a consistent color code: solid light green for FL and light green with a white stripe for RL, while FR and RR follow suit with a brown base (solid for FR, brown/white stripe for RR). Prior to splicing, verify each lead with a multimeter set to continuity mode; the front lamp outputs should register approximately 12V when the corresponding switch is engaged, whereas rear outputs may show slightly lower voltage due to resistance in the harness.

• Disconnect the battery negative terminal to prevent accidental short circuits during testing.
• Trace each wire from the connector to its respective lamp housing–older variants often route rear leads through the subframe, while front leads pass through the headlight bucket.
• Check for splices or inline diodes, particularly on models equipped with accessory alarms or self-canceling modules–these can alter expected color patterns.
• If the factory markings are obscured, reference the service manual for the specific trim level (e.g., Spirit, Aero, or Sabre) as wire gauge and insulation type vary between 750cc and 1100cc variants.

Step-by-Step Guide to Accessing the Electrical Connections Behind the Front Lamp

Start by removing the two screws securing the trim panel above the headlamp assembly. Use a 5mm hex driver for standard fasteners–some models may require a T20 Torx bit. Set the screws aside in a marked container to avoid misplacement. The panel typically lifts away with minimal force, but check for hidden clips near the corners if resistance is felt.

Disconnect the negative battery terminal before proceeding. This prevents short circuits when handling live connectors. A 10mm wrench loosens the terminal clamp; wrap it in a non-conductive material like electrical tape to prevent accidental contact. Verify that all dash indicators and lighting are off before continuing.

Locate the rear access plate behind the lamp housing. Most assemblies have a circular or rectangular cover held by two screws–remove these with a flathead or Phillips screwdriver, depending on the screw type. Gently pull the cover away, revealing the harness bundle and bulb sockets. If the plate resists, check for adhesive residue or dirt buildup along the edges.

Identify the wiring loom entering the housing from the left side. Trace the bundle to where it splits into individual connectors. Label each connector with masking tape and a permanent marker–note the original position of plugs for color-coded wires (e.g., yellow/black for left circuits, green/white for right). This avoids confusion during reassembly.

Disconnecting Plugs Safely

Press the release tab on each connector before pulling–never yank wires directly, as this damages terminals. For stubborn plugs, wiggle them side-to-side while applying steady pressure. If corrosion is present, clean contacts with a wire brush and dielectric grease before reconnecting. Use needle-nose pliers to straighten bent pins if necessary.

Inspect the rubber grommet where the loom exits the housing. Ensure it’s intact to prevent moisture ingress. If cracked, replace it with a matching OEM seal–part numbers are often embossed on the old grommet or listed in the service manual under “lighting components.” Push the new seal into place before securing the loom to avoid pinching wires.

For deeper access, remove the entire headlamp assembly. Three mounting bolts (usually 8mm) secure it to the fork bracket–remove them in a star pattern to prevent warping the housing. Disconnect the main beam plug last, noting its orientation. Rest the assembly on a soft cloth to avoid scratching the lens.

Reassembly follows the reverse order. Route wires carefully to avoid interference with moving parts like the fork or handlebars. Test each circuit with a multimeter set to continuity mode before restoring power–probe the terminal side of connectors with the ignition off to confirm proper grounding. Reattach the battery terminal last, then verify operation with a test ride.

Integrating Custom Flashers with Factory Electrical Setup on VT Models

Begin by locating the original flasher relay under the left side cover–typically a small cylindrical or rectangular module marked with amp ratings (usually 10A or 15A). Disconnect the factory harness by releasing the two-pin connector, then attach an adapter harness (pigtail with matching connectors) to bridge the aftermarket unit. Most third-party relays use a standard 12V input/output configuration, but verify polarity: the brown wire on the OEM side is ground, while the green/yellow stripe carries positive voltage. For LED-compatible units, ensure the replacement relay supports low-current operation to prevent hyper-flashing.

Identifying Wire Functions and Splicing Methods

Trace the existing loom from the relay output to the front and rear lamp clusters. The left/right circuits will split at a common junction near the steering head–use a multimeter set to continuity mode to confirm correct paths before cutting. Solder all splices using 18-gauge heat-shrink tubing (minimum 3/4″ length) for moisture resistance; avoid crimp connectors on circuits carrying over 3A. For models equipped with self-canceling timers, preserve the tan wire (throttle-side module signal) by tapping it into the new relay’s “cancel” terminal if available. Test each connection with a 12V test light prior to reassembly.

Aftermarket brake/running light combos often introduce additional load challenges. Measure total amperage draw across all bulbs–if exceeding 80% of the flasher’s rated capacity, install a heavy-duty relay (e.g., Bosch 0311 or CEC MFS-3) between the handlebar switch and lamps. Route the new relay’s control wire (thin gauge, typically purple) directly to the switch’s output terminal to maintain factory-style operation. For integrated modules handling both hazards and directionals, prioritize units with separate load-sensing circuits to avoid false triggers during braking.

Ground integrity is non-negotiable–secure all earth points to bare metal using star washers and dielectric grease. The primary ground (usually a thick black wire) should terminate at the frame near the battery tray; secondary grounds (thin black wires from individual fixtures) must not share paths with high-draw components like radiator fans. If retrofitting sequential modules, ensure the signal processor’s logic voltage (often 5V) remains isolated from the main 12V circuit using optoisolators or a dedicated voltage regulator. Final validation includes a 30-second operational test for each fixture, verifying steady illumination and correct cancelation timing before reseating body panels.
