Honda CDI 6 Pin Wiring Guide with Color Codes and Connection Steps

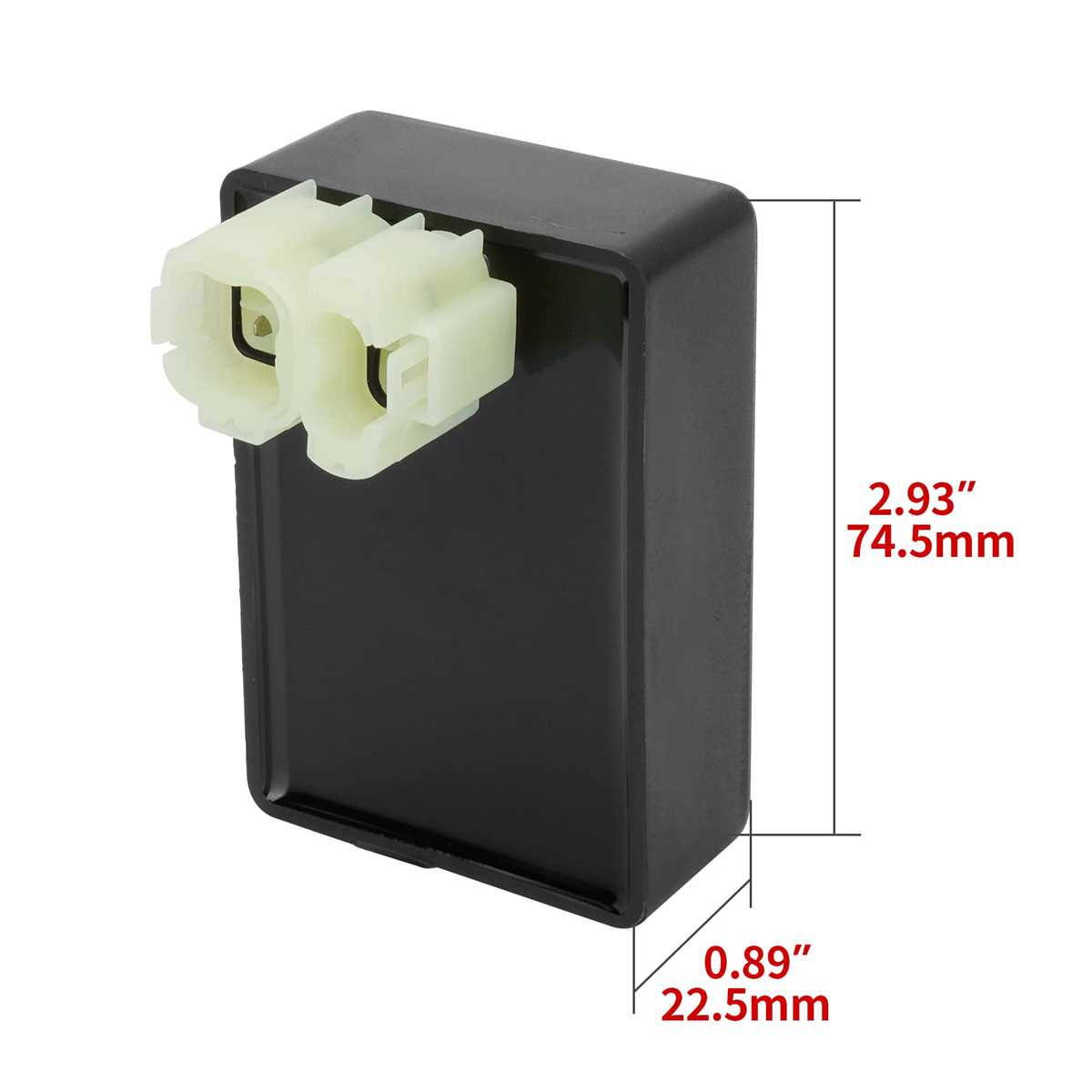

Start by locating the six-connector ignition module on your engine’s left side near the stator. Each terminal corresponds to a specific input: two for the pulse generator (timing signals), two for power delivery (main 12V and switched voltage), one for ground, and one for trigger output to the coil. Reverse-engineering the factory harness shows that the first wire (red) carries constant battery voltage, while the second (black/white) triggers ignition via a crankshaft sensor. Avoid splicing into these lines unless testing resistance values–ideally 120-240 ohms across pulse terminals.

For correct installation, match the color codes exactly: orange (generator coil), blue/white (stator input), and green (earth). Swapping these will cause misfires or no-start conditions. Use a multimeter to verify continuity between the ignition control unit and ignition coil. A broken circuit here often explains intermittent spark loss. Keep wire lengths identical to stock to prevent voltage drops–modifications beyond 15cm require thicker gauge (16-14 AWG) to compensate.

When troubleshooting, prioritize checking the kill switch circuit. Many users overlook that a single brown wire splices into the ignition module to disable the system. A faulty switch or shorted wire can mimic coil failure. Replace the entire harness if corrosion is present–grease-based connectors like dielectric compound help prevent future oxidation. Never bypass the module; the integrated rev limiter and advanced timing curve depend on precise signal processing. For off-road conversions, retain original connectors and swap only the coil to a high-energy aftermarket unit.

Understanding the 6-Connection Ignition System Layout

Begin by identifying the black/yellow wire–this carries power directly from the stator to the ignition control module and must connect to the corresponding input terminal. The blue/white line handles RPM signaling, so route it to the tachometer output on the unit before splicing to the coil’s primary circuit. Ensure the green ground lead terminates at the engine block or battery negative post with a secure, corrosion-resistant crimp or bolt.

Matching resistance values across components prevents erratic timing: verify the pickup coil measures 200–800 ohms at the white/red and white/green connectors, while the charging coil should read 50–200 ohms between the black/yellow and red wires. Swap any mismatched stators immediately–voltage spikes from incorrect readings destroy capacitors within the control box. For models with AC lighting coils, add a 10 amp fuse on the black/yellow line to prevent overload.

Test switching functionality with a multimeter: probe the blue/black wire while cranking–expect 0.5–3V AC if the pulse generator functions correctly. If voltage drops below 0.3V, check for loose mounting screws on the flywheel’s reluctor teeth or replace the sensor. Finally, solder all connections with 60/40 rosin-core and seal them with adhesive-lined heat shrink to block moisture-induced shorts in high-vibration environments.

Matching the Right Leads on a 6-Contact Ignition Control Unit for Small Engines

Start by locating the primary power input–the thickest wire, typically red or orange, which feeds the system directly from the battery or charging coil. Verify its voltage with a multimeter: 12–13.8V DC under load confirms correct connection. Reversing this lead risks immediate damage to the control module, so securely crimp a ring terminal if splicing is needed. Never rely on color codes alone; cross-reference with the stator output readings before finalizing.

• White or yellow striped lead: pulse generator signal (0.5–3V AC, pulsed).
• Black/white or green: ground, must connect to engine block or chassis ground.
• Blue or purple: ignition coil trigger (3–6V DC, switched).
• Thin brown: tachometer output (optional, often ignored on simpler setups).

Test continuity between the ground and every other contact using a low-ohm setting–any reading above 0.5Ω suggests corrosion or a broken strand. Label each lead before disconnecting the harness; masking tape wrapped around the wire near the connector prevents mix-ups during reinstallation. If diagnostics show no spark, swap the blue trigger and white pulse leads–common factory variation between engine models–before assuming a faulty unit.

Step-by-Step Guide to Diagnosing an Ignition Control System with a Multimeter

Begin by disconnecting the battery’s negative terminal to prevent short circuits during testing. Ensure the ignition switch is in the OFF position before proceeding. Locate the vehicle’s primary ignition module–typically a compact black box near the engine or frame–with a six-terminal connector.

Set your multimeter to continuity mode (beep test) or resistance (ohms) at the 200Ω range. Probe each terminal pair listed below, comparing readings against the expected values. A broken circuit or infinite resistance indicates an open connection; zero resistance suggests a short. Record all measurements for reference.

Terminal Pair	Expected Resistance (Ω)	Failure Indication
Trigger coil input (VR sensor)	20–200	>500Ω or OL
Charge coil input	300–900	<50Ω or OL
Ground to chassis	<0.5	>1Ω
Ignition output (to spark plug)	N/A (high-voltage test)	No voltage spike

Switch the multimeter to DC voltage (20V range) and reattach the battery. Probe the charge coil input terminal while cranking the engine–expect 80–150V AC. If voltage is absent or below 50V, inspect the stator winding for damage or loose wires.

Test the trigger signal by connecting one lead to the VR sensor input and the other to ground. Crank the engine; a functional sensor will produce 0.5–3V AC. Replace the sensor if readings are erratic, zero, or exceed 5V.

For output verification, reconnect the ignition module’s spark plug lead. Crank the engine while observing the multimeter’s DC voltage on the ignition output terminal–expect brief 200–400V spikes. No spikes confirm module failure; replace the unit.

Troubleshooting Intermittent Faults

If readings fluctuate, wiggle the connector while monitoring voltage/resistance. A sudden change pinpoints loose terminals, corroded pins, or frayed wires. Clean contacts with electrical cleaner and reconnect tightly.

Final Checks

Reassemble all components and perform a test start. If the engine misfires or fails to crank, repeat steps focusing on previously failed readings. Persistent issues warrant professional bench testing of the stator and module.

Color Code Standards for 6-Connection Ignition Modules Across Motorcycle Variants

Always verify the ignition harness against the manufacturer’s service manual before making connections, as deviations exist even within the same series. The most consistent color scheme appears in entries from 1995–2005, where:

• Black with white stripe – ground reference
• Green – magneto source (alternator coil output)
• White with red stripe – pulse generator signal
• Blue with yellow stripe – trigger coil positive
• Yellow with red stripe – ignition power feed
• Red – battery positive (vital for capacitor discharge operation)

For newer models (2010 onward), expect the pulse generator lead to shift to brown with a white stripe, while the trigger coil positive often adopts a solid orange trace. Later revisions also split the battery feed into dual paths: a solid red for primary power and a second red with a black stripe for auxiliary circuits. European-spec units introduce a mandatory interference-suppression capacitor on the red feed line, identifiable by a 10 nF marking near the connector housing.

Model-Specific Anomalies

Dirt-oriented machines swap the magneto lead to a solid gray trace, while road-focused twins add a seventh temporary connection (gray with blue stripe) for immobilizer handshake. Touring editions integrate a CAN bus interface via violet and pink traces; these must be isolated during bench testing to prevent false error codes. Race-prepped variants omit the ground reference entirely, relying instead on chassis return paths–confirm continuity before assuming a circuit fault.

If adapting between chassis, prioritize matching the pulse signal and trigger coil connections first; these dictate timing accuracy and misfires will destroy engine internals within 50 operating hours. Use a 10 kΩ resistor test light for verification–LED probes cannot detect the low-voltage pulse signals accurately. For units lacking clear markings, probe each terminal with a multimeter in diode mode: the magneto source should read ~0.6 V forward bias against ground, while the battery feed registers 12.6 V nominal.

Aftermarket harnesses often default to international orange for the ignition power feed and violet for pulse signals–cross-reference with OEM documentation to avoid destructive timing misalignment. Chinese-sourced replacements frequently invert the trigger coil polarity; correct this by swapping the blue and yellow leads at the module side. Always secure connections with 18–22 AWG soldered joints and heat-shrink insulation; twist-and-tape splices degrade under engine vibrations, causing intermittent misfires.

Post-2018 electric-start models integrate the ignition signals into the starter relay circuitry. Identify the pink trace as the charging coil input–this carries up to 300 VAC during cranking and must be isolated from low-voltage components using a 1 kV-rated relay. Failure to separate these circuits will destroy the entire ignition assembly within minutes.
