How to Build and Analyze an SR Latch Circuit Schematic Step by Step

To construct a functional SR storage element, prioritize a pair of cross-coupled NOR gates as the foundation. This arrangement ensures bistable behavior–critical for retaining binary states–while minimizing signal degradation. Wire the gates so that the output of each feeds directly into one input of the other, forming a closed loop. The remaining inputs serve as control points (Set and Reset), where a logical 1 on the Set terminal forces the output to Q=1, while a 1 on Reset drives Q=0. Avoid applying 1 to both terminals simultaneously, as this creates an undefined state.

For reliable operation, incorporate pull-down resistors (1kΩ to 10kΩ) on the control inputs if using mechanical switches to prevent floating voltages, which can trigger erratic toggling. When prototyping on a breadboard, arrange components to minimize trace lengths between gate outputs and inputs–excessive capacitance or inductance in long wires introduces propagation delays, risking metastability. Test behavior with a push-button for Set/Reset signals; observe how the output holds its state after the input pulse is removed, confirming the memory function.

Alternative schematics replace NOR gates with NAND gates, inverting the logic polarity: here, 0 signals activate Set/Reset, while 1 deactivates them. This variant often integrates better with active-low systems. To visualize signal transitions, probe both Q and Q̅ outputs with an oscilloscope–look for clean, non-glitching edges during state changes. If spikes appear, add small capacitors (10pF to 100pF) across gate inputs and ground to filter noise without compromising response time.

For low-power applications, opt for CMOS NOR gates (e.g., CD4001) over TTL–these draw negligible current when idle. If power constraints exist, consider replacing fixed resistors with MOSFET-based pull-downs to reduce static current consumption. Always verify the propagation delay specified in the gate datasheet; values exceeding 100ns may necessitate slower clocking frequencies in sequential logic designs.

Constructing a Robust SR Flip-Flop Configuration

Begin with two cross-coupled NOR elements connected in a feedback arrangement to form the core bistable component. Ensure the first NOR’s output feeds into the second’s input, and vice versa, to maintain stable states without external triggers.

Apply pull-down resistors (10 kΩ) at both inputs to prevent floating nodes during idle periods. This stabilizes the initial state and reduces susceptibility to interference or false toggling from noise.

For NOR-based designs, use 74HC02 ICs or equivalent CMOS logic gates to minimize power consumption while maintaining response speed. TTL alternatives like 74LS02 may introduce higher quiescent current and lower noise margins.

Integrate debounce capacitors (0.1 µF) at control points if mechanical switches supply set/reset signals. This eliminates contact bounce effects that could otherwise cause unintended state transitions during manual operation.

Verify static functionality by grounding one input while toggling the other. The output should immediately follow the active signal and retain its state when the input returns to low. Monitor voltage levels with an oscilloscope to confirm clean transitions.

Optimize layout by placing components in close proximity to reduce trace inductance, which can induce ringing during high-speed switching. Ground planes beneath critical paths further suppress EMI-induced errors.

For asynchronous applications, include hysteresis via Schmitt-trigger inputs (e.g., 74HC14) if signal edges are slow or noisy. This prevents meta-stability when transitions occur near threshold voltages.

Document every connection with net labels rather than relying solely on visual inspection. Use standardized naming conventions (Q, Q̅, S̅, R̅) to simplify troubleshooting and future modifications.

Basic Components and Symbols for an SR Storage Element

Begin with two NOR gates or NAND gates as the foundation–these define the behavior of the configuration. NOR-based designs create a bistable system where inputs directly control the output state, while NAND variants invert the logic but perform the same core function. Select the gate type based on whether you need active-high or active-low triggering; this decision impacts subsequent wiring and signal interpretation.

Label inputs as Set (S) and Reset (R)–these terms reflect their operational roles rather than electrical properties. The Set line forces the output into a defined state (typically Q=1), while Reset returns it to the opposite condition (Q=0). Ensure clarity in naming conventions during schematic drafting; ambiguity here leads to misinterpretation during prototyping or debugging.

Include feedback loops between gate outputs and inputs–this is non-negotiable. Without these connections, the element loses its ability to retain state. Connect the output of each gate to one input of its counterpart, forming a cross-coupled structure. Verify that no external load excessively degrades signal strength; weak feedback can introduce instability or unpredictable flipping.

Use standard logic symbols for gates, but annotate them with Q and Q̅ labels to indicate primary and complementary outputs. Q̅ provides an inverted version of the stored state, useful for expanding functionality or simplifying downstream logic. Avoid relying solely on generic gate icons; explicit labeling reduces errors during schematic analysis or board layout.

Add pull-up or pull-down resistors if interfacing with mechanical switches or open-collector outputs. This prevents floating inputs, which can cause erratic state changes or undefined behavior. For CMOS implementations, ensure inputs never float even briefly–static charge buildup can inadvertently trigger a flip, corrupting the stored value.

Document the truth table when designing or troubleshooting. List S, R, Q (current), and Q (next) in columns. Highlight the forbidden combination (S=1, R=1 for NOR; S=0, R=0 for NAND) to emphasize where the device behaves unpredictably. This reference prevents oversight during integration into larger designs.

Test prototype behavior with a signal generator or manual switch toggling. Confirm that the output holds its state after Set or Reset pulses are removed. Measure propagation delays–even modest variations between gate paths can introduce metastability in high-speed applications. Adjust gate selection or add buffering if timing consistency becomes critical.

Step-by-Step Wiring of an SR Configuration Using NAND Gates

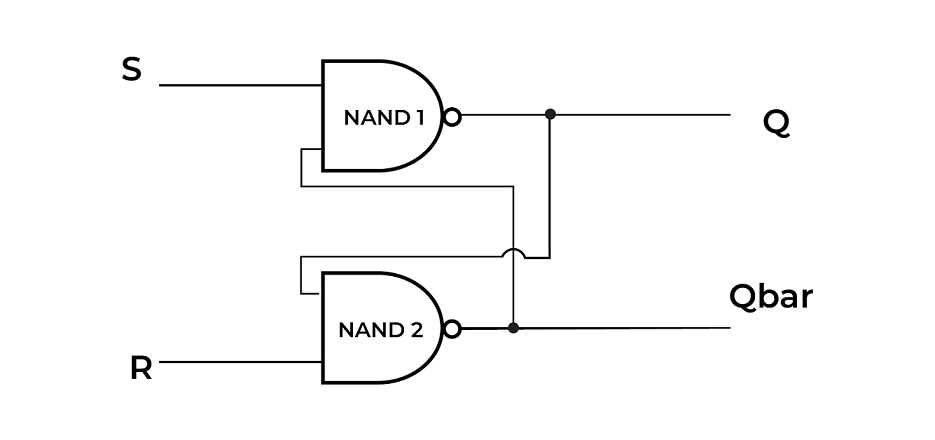

Begin by placing two NAND gates on a breadboard–ensure their inputs and outputs remain accessible for later connections. Connect the output of the first gate (Q) to one input of the second gate, and the output of the second gate (Q̅) to an input of the first. This reciprocal pairing forms the core feedback loop essential for bistable operation.

Component Preparation

• Two 74HC00 NAND gates (quad NAND IC) or equivalent.
• Power supply: 5V DC (regulated).
• Push-button switches for S (Set) and R (Reset) lines.
• 1 kΩ resistors for debouncing and pull-down.
• LEDs with current-limiting resistors (220 Ω) for output states.

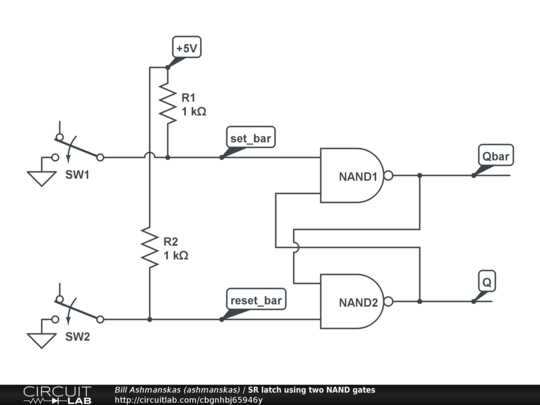

Wire the Set (S) input to the free terminal of the first NAND gate through a debounce resistor. Ground temporarily to verify the LED at Q illuminates–this confirms Set functionality. Repeat for the Reset (R) input on the second gate: grounding R should extinguish Q and light Q̅. Cross-check polarities; reverse LED connections disrupt readings.

1. Apply power; both outputs default to logic HIGH (LEDs off).
2. Press Set momentarily–Q LED activates, Q̅ deactivates.
3. Release Set; outputs retain state.
4. Press Reset–Q deactivates, Q̅ activates.
5. Verify invalid state (both S=R=LOW) yields unpredictable outputs–avoid this.

Test edge cases: simultaneous button presses produce indeterminate results–prioritize sequential inputs for reliable toggling. For noise immunity, shorten wire lengths and add 0.1 µF decoupling capacitors across each IC’s power pins. Monitor logic levels with a multimeter set to DC voltage: Q should toggle between 0V (LOW) and ~4.5V (HIGH).

Common Variations: NOR Gate-Based SR Storage Element

For a reliable bistable configuration using NOR gates, connect the output of one gate to an input of the other. Ensure the feedback loops cross-couple properly: one gate’s output must feed into the second gate’s non-complementary input. Use 74HC02 ICs for 5V logic or CD4001 for wider voltage ranges, as they provide consistent propagation delays under 20ns. Ground unused inputs to prevent floating nodes, which can introduce metastability–verified through SPICE simulations with noise margins above 1.2V for 5V supplies.

Reset-dominant behavior distinguishes this setup from NAND alternatives. Apply a high signal to the S (set) input to force a logic-high output, while a high on R (reset) drives the output low. Conflicting high signals on both inputs produce a temporary instability; outputs will race to the last stable state determined by gate thresholds. To avoid this, implement a 10kΩ pull-down resistor on both inputs if mechanical switches are used, ensuring clean transitions with debounce times under 50ms.

Expand functionality by adding a clocked enable signal between the NOR gates and output stage. A single D-type flip-flop downstream can synchronize outputs, reducing glitches during asynchronous transitions. For power-critical designs, replace standard NOR gates with Schmitt-trigger variants (e.g., 74HC14) to improve edge sharpness and hysteresis, typically 0.4V for 5V systems. Measure setup/hold times–target 5ns minimum for 1MHz operation–to guarantee predictable state changes.
