Huskee Supreme GT 14AZ808K131 Mower Wiring Diagram and Circuit Guide
For immediate troubleshooting, locate the ignition switch terminal labeled “B” (battery) and trace its red wire to the solenoid. Verify continuity at the 10A fuse–corrosion here disrupts power flow to the cutting deck. The alternator output (yellow wire) must connect directly to the voltage regulator; bypassing it risks overcharging the battery.
Check the PTO switch wiring: the white/red wire activates the deck clutch, while black/green grounds the system. A loose connection here causes intermittent engagement. Inspect the safety interlock circuit–purple wires link seat, brake, and blade switches. A break in this loop prevents engine start.
Use a multimeter to test voltage drops across terminals. At full throttle, expect 13.8–14.2V at the battery. Voltages below 12.5V indicate a failing stator or rectifier. Replace the blade fuse (20A) if cutting blades fail to rotate; a blown fuse often signals a shorted clutch coil.
Label each wire before disconnecting–misaligned connections risk damaging the ECM. Reference the color-coded guide: brown for headlights, orange for accessories, blue for reverse lights. Reverse-engineer the circuit from solenoid to starter motor; a faulty starter relay mimics battery failure.

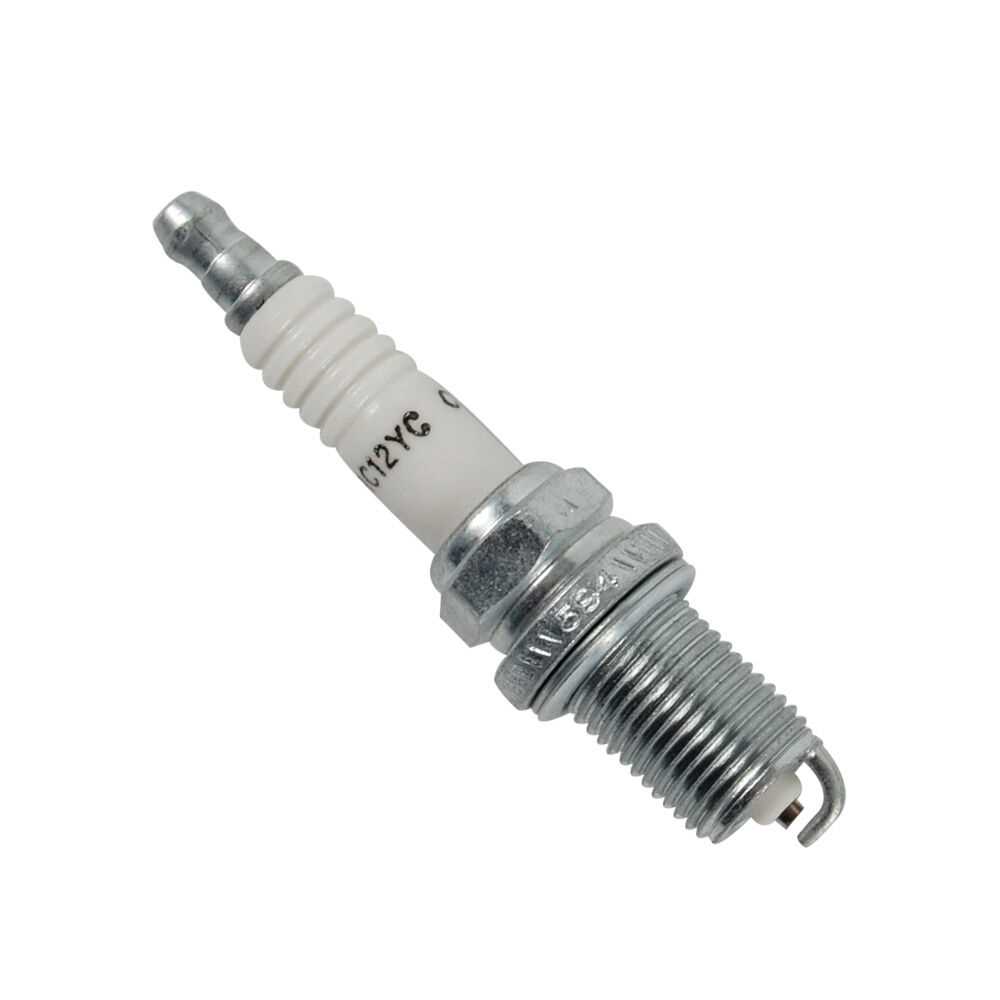

Ground issues manifest as erratic engine behavior. Scrape paint from the chassis at grounding points and secure with star washers. For persistent electrical faults, test individual components in isolation: disconnect the ignition coil, inspect spark plug wires for shorts (resistance should read 5k–10k ohms).
Electrical Layout for GT 14AZ808K131 Riding Cutting Machine
Begin troubleshooting by locating the ignition switch connections on the lower side of the dashboard panel. The primary red wire (14-gauge) branches into three terminals: B (battery), M (magneto), and S (starter solenoid). Verify continuity between B and M with a multimeter; readings should stabilize at 0.2–0.5 ohms. Corrosion on the spade connectors often disrupts current flow–clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
Check the safety interlock loop before proceeding further. The seat switch (normally closed) should show infinite resistance when unoccupied. A faulty switch–common after 500+ hours of operation–can ground the circuit prematurely. Replace it if compression testing reveals inconsistent contact. The brake pedal interlock shares a purple stripe wire with the blade engagement solenoid; test voltage drop with the pedal depressed–values below 11.8V indicate a short in the harness, typically near the right rear wheel well.
Inspect the PTO clutch assembly by tracing the heavy-gauge yellow wire from the dash fuse block. The 20-amp fuse must be intact; frequent blows suggest a seized spindle bearing. Use a clamp meter to measure amperage draw during engagement–normal range is 7–12A. Excessive current draw (above 15A) requires immediate clutch replacement. The blue-striped wire leading to the hour meter should pulse at 12V when the engine runs; absence of signal points to a faulty alternator rectifier.
The ground circuit relies on a single 10-gauge black wire bolted to the transaxle housing. Loose connections here cause erratic electrical behavior, particularly during blade engagement. Remove paint under the grounding lug to ensure direct metal-to-metal contact. For intermittent issues, bypass the circuit temporarily with an external jumper cable; if performance stabilizes, replace the factory bolt with a stainless steel serrated washer to maintain consistent conductivity.
Finding Electrical Linkage Points on the GT Model Tractor
Begin by raising the engine hood–locate the latch near the dashboard, typically anchored with a 10mm bolt. The primary multi-pin linkage sits directly beneath the air filter housing, secured by two plastic clips. Release these clips with a flathead screwdriver, then gently lift the housing to expose the harness inputs.
The ignition system’s plug cluster resides on the right side of the engine block, partially obscured by the fuel line. Follow the red (battery) and yellow (starter solenoid) leads from the solenoid down to their oval 6-pin connector. Press the release tab on the connector’s side–it clicks when disengaged.
| Connector Type | Location | Pin Count | Color Coding |
|---|---|---|---|
| Main engine harness | Under air filter | 12 | Black (ground), red (12V), yellow (solenoid) |
| PTO engagement | Left rear fender, near deck lift lever | 4 | Green (power), white (signal), blue (sensor) |
| Headlight assembly | Front grille, behind left headlight | 3 | Brown (ground), orange (low beam), purple (high beam) |
For the power take-off circuit, trace the wiring loom along the left frame rail toward the rear wheel. The connection point is adjacent to the deck lift lever, shielded by a rubber grommet–remove the grommet to access the 4-pin plug. Check for corrosion: clean terminals with 220-grit sandpaper if oxidation is present.
Blade engagement wiring terminates in a two-prong connector beneath the cutting deck. Disconnect the deck first–support its weight with a jack–then locate the connector near the spindle pulley. Labels on the plug identify “M” (motor) and “S” (safety switch); ensure the female side is fully seated before reattaching the deck.
Dashboard controls connect via a 9-pin socket inside the instrument panel. Remove the faceplate by prying the plastic tabs around its perimeter–use a trim removal tool to avoid breaking clips. The socket mounts vertically; align the keyed edges when reinserting to prevent miswiring.
Ground wires congregate at two points: a single 8mm bolt behind the battery tray (shared with solenoid) and a second beneath the seat mount. Inspect the seat-switch harness–a loose connection here disables engine start. Crimp new terminals if insulation appears cracked or brittle.
Decoding Color Markings in the GT Electrical Blueprint
Begin by isolating the main battery lead–typically a red (R) cable with a minimum 10 AWG cross-section. This conductor connects directly to the ignition switch, but verify the absence of inline fuses before tracing further. Black (BK) wires serve as ground paths; check for dual termination points–one at the engine block, another at the chassis–to prevent voltage drop under load. Blue (BU) strands often denote solenoid control circuits; if resistance exceeds 0.5 ohms between terminals, replace the relay.
- Orange (O): Starter motor engagement–confine continuity checks to the 50-terminal on the solenoid, avoiding accidental shorting to adjacent yellow (Y) wires (PTO clutch power).
- White (W): Charging system regulator input–expect 13.8–14.5V DC at idle; deviations indicate stator failure.
- Brown (BR): Lighting circuits–confirm bulb wattage matches the 1.5 mm² wire gauge; overheating signals wrong bulb selection.
- Gray (GY): Safety interlocks–test switches with a multimeter set to NO/NC positions, ensuring proper sequence (key → brake → seat → PTO).
Critical Junction Analysis
Locate the 6-pin connector near the dash. Pin 1 (R) feeds the ignition coil; Pin 2 (BK) grounds the hour meter. Pin 3 (Y) delivers 12V to the PTO clutch via a 10A fuse–verify the fuse rating before probing. Pin 4 (BU) routes to the brake microswitch; a 0L reading with the pedal depressed suggests a severed line. Pins 5 (O) and 6 (W) split power to the starter relay and charging regulator, respectively. Cross-reference with a torque specification chart (OEM manual p. 47) for terminal tightness: 3.5–4.0 Nm for blade-related connections.
Use a non-contact voltage tester to map parasitic draws exceeding 50 mA overnight. Focus on the green (G) wire–attached to the seat safety switch–if voltage persists after key-off, suspect a faulty diode in the ignition module. For troubleshooting, disconnect each harness segment sequentially, noting that purple (P) wires (if present) often correlate with optional accessories like hour meters. Document findings with timestamped photos of splice points to avoid repeated disassembly.
Step-by-Step Verification of Circuitry Elements via Blueprint
Begin by isolating the power source. Disconnect the battery terminals or remove the ignition key to prevent accidental shorts. Use a multimeter set to DC voltage mode–attach the black probe to the negative terminal and the red probe to the positive. A reading below 12.6V indicates insufficient charge or a defective cell; proceed only if voltage stabilizes above this threshold.
Trace the main fuse block using the technical layout. Remove each fuse individually and check for continuity with the multimeter’s ohmmeter setting. A blown fuse will show infinite resistance. Replace faulty units with identical amperage ratings–never substitute with higher values, as this risks overheating downstream conductors.
Inspecting Switches and Relays
Locate the ignition switch or starter solenoid on the schematic. With the key in the “on” position, test for voltage at the switch output terminal. No voltage suggests a faulty switch or broken trace–follow the path backward to identify the interruption. For relays, swap with a known-good unit of the same type; if the issue resolves, the original relay coil or contacts are compromised.
Examine ground connections next. Scrape corroded terminals down to bare metal and re-secure them with dielectric grease. Use the ohmmeter to confirm resistance below 0.5 ohms between the ground point and the chassis. Higher readings indicate a loose or oxidized link, which can cause intermittent failures in accessories like lights or electric clutches.
Test parasitic loads by disconnecting all accessories and measuring current draw with the ignition off. A draw exceeding 50mA suggests a shorted diode, capacitor, or unintended circuit path–narrow down the fault by disconnecting components sequentially until the current normalizes. Pay special attention to diodes in the charging circuit; reverse-voltage leakage here mimics battery drain.
Validating Safety Interlocks
Verify seat switch operation by sitting in the operator position and checking for continuity between the switch terminals. If resistance remains infinite, the switch is either misadjusted or internally broken. Similarly, test the brake interlock by engaging the pedal and confirming the circuit completes–look for voltage at the solenoid when both switches close.
For electric PTO clutches, measure voltage at the clutch connector with the engagement switch activated. Absence of voltage points to a defective switch, relay, or wiring breach. If voltage is present but the clutch fails to engage, inspect the slip ring and brushes for wear–these components often degrade before electrical faults manifest.
Conclude by reinstalling all components and verifying full system functionality under load. Recheck voltage at critical points under operating conditions; drops greater than 0.5V between the battery and any endpoint indicate excessive resistance, requiring re-crimming of terminals or replacement of undersized conductors.
