Designing and Interpreting HPLC Schematic Diagrams for Analytical Workflows
Begin by identifying the solvent delivery unit–its precision determines retention time consistency. Ensure the pump maintains a steady flow rate between 0.1–10 mL/min for optimal separation; deviations above ±2% distort peak shapes. High-pressure gradients demand degassed mobile phases to prevent bubble formation, which disrupts baseline stability and reduces detector sensitivity.
Position the injector valve immediately downstream of the pump. A 20–100 µL sample loop minimizes carryover while balancing injection volume precision. Flush the loop with 3–5x its volume of mobile phase post-injection to eliminate residual contamination. Stainless steel or PEEK-lined tubing prevents sample adsorption, especially for polar or ionizable analytes.
The analytical column sits at the core–packed beds range from 1.7 µm to 5 µm particle sizes, with sub-2 µm particles requiring pressures up to 15,000 psi to maintain efficient mass transfer. Column temperature control (typically 25–60°C) stabilizes retention times; fluctuations above ±0.5°C skew repeatability by 0.5–1.5% per degree.
Detector selection hinges on analyte properties: UV/Vis for conjugated compounds, fluorescence for derivatized samples, and MS for structural elucidation. For UV detection, a flow cell with 8–12 µL volume balances sensitivity and peak broadening. Post-column tubing should be to prevent extra-column dispersion, which degrades resolution by 10–30% in low-efficiency systems.
Waste solvent disposal must accommodate chemical incompatibilities–acidic effluents corrode metal tubing, while chlorinated solvents attack polymeric seals. Use dedicated collection vessels for hazardous eluents, never redirecting them into communal waste streams. Data acquisition rates of 20–100 Hz ensure accurate peak integration; undersampling introduces quantification errors up to 5–15% for sharp peaks.
Visual Flowchart of High-Performance Liquid Chromatography Systems
Begin by mapping the solvent reservoir as the starting point–ensure stainless steel or PEEK tubing connects it directly to the pump with minimal dead volume (
Key Components to Annotate
- Degasser: Position upstream of the pump; note that in-line vacuum degassers reduce dissolved oxygen better than helium sparging (efficiency >95% vs. 80-85%). Specify membrane type (e.g., PTFE 0.2 µm) and flow rate limits (0.1–5 mL/min).
- Autosampler: Indicate needle wash station (solvents: methanol/water 50:50 v/v) and injection loop volume (typically 20–100 µL). Mark critical path lengths–tubing from injector to column should be <30 cm to avoid band broadening.
- Column Oven: Draw temperature gradient if applicable; note that sub-ambient cooling (5–10°C) enhances reproducibility for labile compounds. Include a thermocouple symbol at the column midpoint for accurate monitoring.
- Detector: UV/Vis flow cell requires <10 µL volume for <2% peak distortion. For fluorescence, label excitation/emission wavelengths (e.g., 254/450 nm for tryptophan). Mass spec interfaces (ESI/APCI) need nitrogen gas flow rates of 5–15 L/min.
Color-code pressurised zones (red) versus ambient (blue) using dashed lines for electrical connections. Add a legend with symbols for frits (column inlet/outlet), filters (0.5 µm inline), and pulse dampeners (for piston pumps). Include a note: “Pump seals require replacement if baseline noise exceeds ±2 mAU at 0.1 mL/min.”

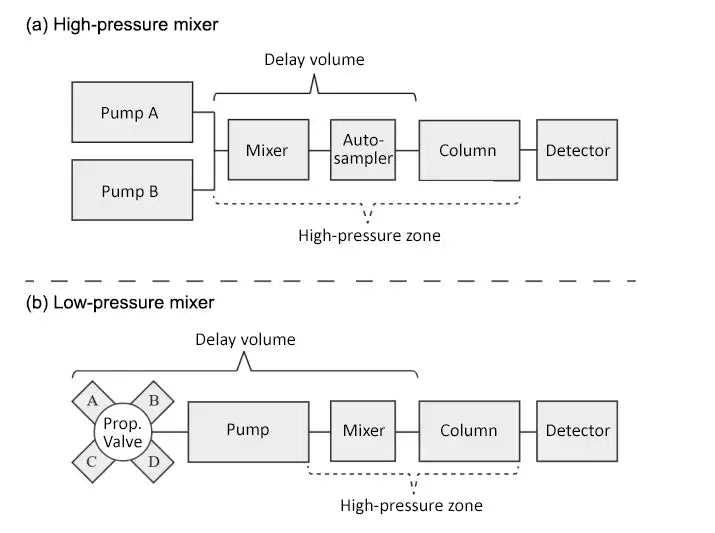

For gradient systems, overlay a timeline at the bottom showing solvent composition changes (e.g., 5–95% acetonitrile over 20 min). Specify dwell volume (usually 0.5–2 mL) and mark when the gradient reaches the detector. If using quaternary pumps, show separate channels for each solvent with mixing valves labeled by delay volume (
End with waste lines–split flows if post-column derivatisation is used, ensuring reaction coils have controlled temperature (±0.1°C). Verify all annotations match the instrument’s manual; discrepancies in tubing ID (e.g., 0.12 mm vs. 0.17 mm) can alter retention times by >5%.
Core Elements of a Liquid Chromatography Setup and Their Operational Roles
Select a pump with a flow precision of ±0.5% or better to maintain consistent analyte separation. Dual-piston reciprocating pumps reduce pulsation, critical for baseline stability in high-sensitivity UV detection. Verify maximum pressure capability–modern systems require 6,000–15,000 psi to support sub-2 µm particle columns, enabling faster run times without sacrificing resolution.
| Component | Optimal Specification | Failure Impact |
|---|---|---|
| Solvent Delivery System | 0.1–5 mL/min, gradient accuracy ≤0.1% RSD | Retention time drift, peak area variability |
| Injector | ≤0.3 µL carryover, PEEK or biocompatible rotor seal | Ghost peaks, sample cross-contamination |
| Analytical Column | 1.7–5 µm particles, 2.1–4.6 mm ID, pH 1–12 range | Broad peaks, reduced theoretical plates |
Prioritize autosamplers with peltier-cooled trays when analyzing temperature-sensitive compounds. Sample loops of 10–100 µL prevent needle seat contamination, while swept-volume injectors eliminate residual sample in the flow path. For bioanalytical workflows, use a 2 µm in-line filter post-injector to capture particulates before they reach the column bed.
Choose detectors based on the analyte’s optical properties: diode-array UV for conjugated pi-systems (λ=200–400 nm), fluorescence for aromatic rings (excitation/emission pair optimization required), or evaporative light scattering for non-UV-absorbing compounds. Maintain flow cell volumes below 10 µL to prevent extracolumn band broadening, especially in microbore applications.
Post-run, implement a column flushing protocol matching the mobile phase storage solvent’s pH to prevent silica dissolution–acetonitrile/water (50:50) for neutral columns, buffered methanol for ion-exchange phases. Replace guard columns every 500 injections or sooner if backpressure exceeds 20% of baseline, avoiding irreversible stationary phase degradation.

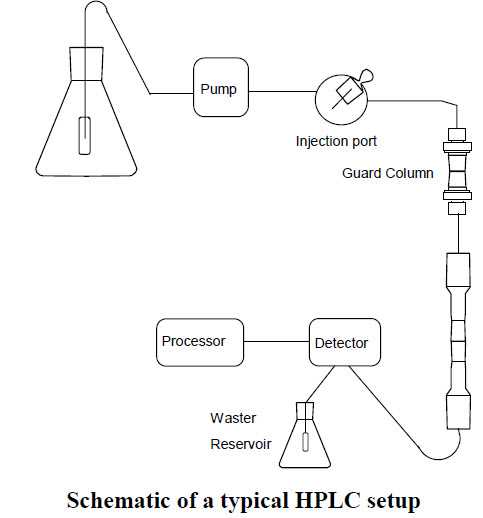

Constructing the Liquid Chromatography Fluid Route: Precise Component Integration
Begin by securing the solvent reservoirs at an elevation at least 30 cm above the pump inlet to ensure gravity assists in maintaining consistent solvent delivery. Use Teflon-coated tubing with internal diameters of 0.5–1.0 mm for reservoir-to-pump connections, cutting each segment exactly 5 cm longer than the required length to allow stress-free installation without kinking. Verify solvent compatibility with tubing materials–PEEK withstands most organics, while stainless steel resists high-pressure polar phases.
Attach the pump head, confirming inlet and outlet ports align with directional flow arrows etched onto the housing. Purge the system with a 50:50 methanol-water mix for 5 minutes at 1 mL/min before connecting analytical tubing to prevent microbubble accumulation. Replace inline filters (0.5 µm pore size) after every 200 running hours or when backpressure spikes exceed 10% of baseline values.

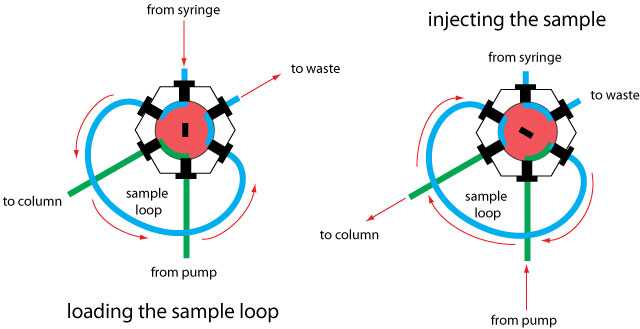

Position the injection valve within 15 cm of the pump outlet to minimize extracolumn dispersion. Load sample loops with volumes precisely matching the method requirements–common 20 µL loops require replacement if peak symmetry deviates ±15% from initial values. Use VICI-type connectors for zero-volume unions between the injector and column to eliminate dead spaces that distort elution profiles.
Select the separation column based on analyte polarity: reversed-phase C18 handles nonpolar solutes, while HILIC suits polar compounds. Install columns vertically with fittings tightened to 1.5 Nm torque using a calibrated wrench–over-tightening crushes ferrule seals. Flush new columns with 5 column volumes of mobile phase before injecting samples to remove residual packing solvents.
Connect the detector downstream using tubing no longer than 30 cm to preserve chromatographic resolution. Set UV detectors to wavelengths 20 nm below analyte absorption maxima for optimal signal-to-noise ratios. Replace deuterium lamps after 2,000 operating hours or when baseline noise exceeds 0.5 mAU. For RI detectors, maintain temperature stability within ±0.01°C to prevent drifts exceeding 2% of full scale.
Route waste lines into dedicated collection vessels, incorporating a backpressure regulator if gradients require post-column splitting. Use polyetheretherketone (PEEK) clamps to secure waste tubing every 20 cm along the bench edge, preventing accidental disconnects during gradient shifts. Label all tubing segments at both ends with solvent identities and connection points using heat-resistant tags.
Test the assembled fluid path by running an isocratic mobile phase at half the intended flow rate for 30 minutes while monitoring pressure fluctuations. Acceptable variance is ≤5% of setpoint; deviations indicate leaks or blockages requiring immediate rectification. Record retention times of a standardized test mix (e.g., methylparaben) before each analytical batch–shifts >0.2 min necessitate column regeneration or replacement.
Document all connections in a logbook, including tubing lengths, internal diameters, and fitting types, to streamline troubleshooting. Update the record after modifications, noting component serial numbers and installation dates. Store spare parts in sealed containers with humidity indicators–ferrule seals degrade when exposed to moisture exceeding 40% RH.
Key Symbols and Notations in Liquid Chromatography Flowcharts
Use consistent symbols to denote pumps in system layouts: a circle with a diagonal arrow indicates a single-piston model, while overlapping circles with identical arrows signify dual-piston types. Label pressure limits directly beneath (e.g., “0–40 MPa”) to avoid confusion during equipment selection. For gradient systems, mark the mixing chamber with a small triangle connecting inlet lines–this differentiates pre-column from post-column blending setups.
Columns require precise notation. Draw a rectangle with slightly rounded corners for standard analytical units, adding internal dimensions (e.g., “2.1×50 mm”) near the outlet. Guard columns appear as a smaller rectangle preceding the main one, often with a dotted outline. Particle size and stationary phase details belong in an adjacent annotation box, not scattered across the layout.
Detector and Injection Port Conventions
UV-vis detectors use a diamond shape with a lambda symbol (λ) for wavelength specification. Diode array variants include a stacked diamond pattern; label detection range in nanometers inside the shape (e.g., “190–800 nm”). Fluorescence detectors follow similar rules but replace the diamond with a tilted square. Injectors, critical for reproducibility, appear as a split circle: the upper half for the needle port, the lower half for the sample loop. Specify loop volume (1–100 µL) in bold text beneath.
Tubing must reflect actual scale. Solid lines denote stainless steel capillaries (0.1–0.25 mm ID), while dashed lines indicate PEEK. Label inner diameter and length at the midpoint of each segment (e.g., “0.12×300 mm”). Avoid 90° bends in schematics–use gentle curves to imply real-world routing constraints. Waste lines appear as double-thick lines terminating in a simple arrowhead outside the main flow path.
Electronic controls integrate as simple rectangles with connection ports along the bottom edge. Power inputs appear as downward triangles, signal outputs as upward triangles. For automated systems, depict valve actuators as small hexagons adjacent to port switches–include timing sequences in milliseconds (e.g., “t=500 ms”) within the hexagon. Keep all digital interfaces color-coded: blue for analog signals, red for high voltage, black for ground.
Fraction collectors use a large open circle subdivided into equal sectors, each annotated with collection volume (e.g., “1 mL/fraction”). Mark temperature-controlled zones with a dashed rounded rectangle enclosing relevant components–label target temperature ranges inside (e.g., “4–40°C ±0.1°C”). Always place symbols for pressure sensors (zigzag line) immediately before and after columns to highlight critical monitoring points.
