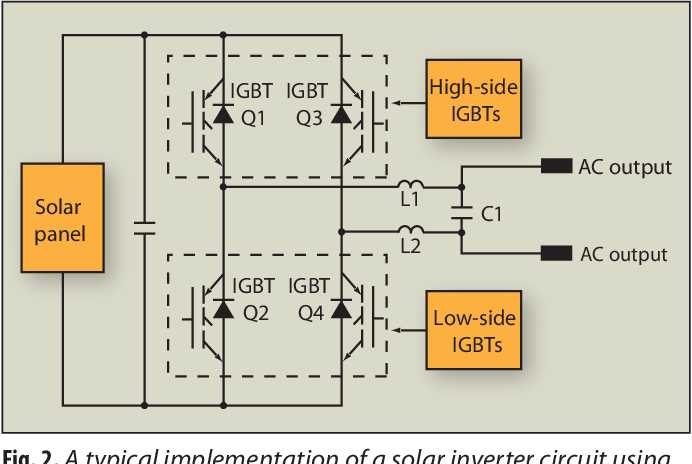

IGBT Inverter Circuit Design and Schematic for Power Conversion

Select a 3-phase bridge configuration with 600V-1200V rated semiconductors for applications requiring 5kW to 50kW output. Ensure gate drivers provide +15V/-8V for optimal switching and include desaturation protection with a 2-5µs delay to prevent overcurrent. Use ceramic capacitors in parallel (100nF per 1kW) to filter high-frequency noise at the DC bus.

A snubber network (RC time constant: 1-5µs) across each switch reduces voltage spikes during commutation. For thermal management, pair each module with a heatsink rated for 0.2°C/W per kW dissipation and forced air cooling (5CFM per 100W). Isolate control signals with optocouplers (CMR: 10kV/µs) to avoid ground loops in noisy environments.

Implement PWM dead-time of 2-4µs to prevent shoot-through in complementary switches. For sensing, use shunt resistors (50mΩ, 1% tolerance) for current feedback and isolated amplifiers (bandwidth: 100kHz) for accurate readings. The DC bus voltage should be regulated at 1.3× the peak AC output voltage to ensure linear modulation.

Validate the layout with thermal imaging (target: <80°C under full load) and oscilloscope (probe <10pF capacitance) to check for <50V/ns dv/dt. For reliability, use conformal coating on exposed traces and high-grade solder (Sn96.5Ag3.5) to prevent whisker growth in high-vibration environments.

Building a High-Power Switching Module Schematic

Select gate resistors between 10Ω and 47Ω for optimal switching performance–values outside this range risk gate ringing or delayed turn-off. Pair each transistor with a dedicated ultrafast diode (e.g., STTH10L06) rated at least 1.5× the module’s blocking voltage; mismatched recovery times introduce cross-conduction spikes.

Place snubber networks (0.1µF ceramic + 22Ω resistor) directly across each device’s collector-emitter terminals to clamp voltage overshoot below 80% of the datasheet limit. Layer copper pours on the PCB’s underside as a thermal pad; use 2oz copper weight for currents exceeding 50A to prevent local hotspots.

Component Layout Optimization

Arrange components in a U-shaped flow: input capacitors at the module’s base, switching elements along the vertical legs, and output filtering near the apex. Maintain ≥5mm clearance between high-voltage traces (600V+) and low-voltage control lines to avoid parasitic coupling. Route gate drive signals perpendicular to power paths to minimize induced noise.

Use Kelvin connections for current sensing–attach separate traces directly to the emitter pad and shunt resistor, avoiding shared return paths that distort readings. Isolate the gate driver’s ground plane from the main power ground with a single-point tie at the DC-link capacitor to prevent ground bounce.

Choose bootstrap capacitors (e.g., 1µF X7R ceramic) with voltage ratings 1.3–1.5× the maximum bus voltage to ensure consistent gate charging during high-frequency operation. Position them within 10mm of the driver IC to reduce loop inductance, critical for switching frequencies above 20kHz.

Protection and Testing Protocols

Integrate desaturation detection on each channel–set the comparator threshold to 7V for silicon-based modules, adjusting for temperature drift via a thermistor network. Include a soft-start sequence: ramp the DC bus voltage linearly over 50ms to limit inrush current during initial charging of bulk capacitors.

Test assembled boards with a 50Ω load bank in pulsed mode (10% duty cycle) at ambient temperature; monitor junction temperature via embedded thermistors during the first 20 minutes of operation. If thermal throttling activates, increase heatsink fin density or add forced convection–natural convection suffices only for continuous loads ≤300W.

Core Elements of a Power Conversion Module

Select switching devices rated 20–30% above expected load currents to prevent thermal runaway–example: for a 50A nominal output, use 65A-rated components. Manufacturers like Infineon and Mitsubishi provide derating curves in datasheets; follow them precisely for long-term stability.

Gate drivers must supply 10–15V peak with rise times under 100ns to ensure clean transitions. Optocouplers like Avago’s ACPL-332J or Silicon Labs’ Si827x series isolate control signals while maintaining timing accuracy. Bypass capacitors (0.1µF ceramic) placed within 5mm of driver ICs eliminate voltage spikes during high-side switching.

DC bus capacitors demand low ESR (equivalent series resistance) to handle ripple currents–Nichicon’s LS series or KEMET’s R53 offer values around 1000µF/400V for 2kW designs. Install snubber networks (0.1µF + 10Ω) across each switching element to clamp voltage overshoot during turn-off, especially at loads above 1kW.

Heat sinks should conduct 0.5°C/W per switch or better; forced air cooling is mandatory for outputs exceeding 3kW. Thermal interface materials like Arctic MX-6 reduce junction-to-case resistance by 20–30%. Monitor thermal pads with negative temperature coefficient (NTC) thermistors to trigger shutdown at 90°C junction temperature.

Pulse-width modulation controllers must operate at 16–20kHz minimum to balance switching losses and audible noise. Microchip’s dsPIC33FJ or TI’s TMS320F28069 deliver dead-time insertion (typically 1–2µs) to prevent shoot-through. Use current-sense amplifiers with bandwidths exceeding 500kHz for accurate protection against overcurrent events.

PCB traces carrying high currents require 2oz copper thickness with width calculated at 0.8A/mm for internal layers and 0.5A/mm for external ones. Star grounding minimizes ground loops; separate analog and power grounds, connecting them at a single point near the DC bus capacitor. Arc-flash hazards are mitigated by creepage distances of 8mm for 400V systems, achieved via slots in the board.

Step-by-Step Assembly of a Single-Phase Power Converter

Begin by selecting a heat-resistant baseplate at least 3mm thick, preferably aluminum 6061, to dissipate thermal load during operation. Cut it to 200x150mm dimensions to accommodate all components without crowding, ensuring 10mm clearance on all sides for wiring and mounting screws.

Mount four high-speed switching modules in a bridge configuration, spacing them 30mm apart along the long edge of the baseplate. Use M4 screws with thermal compound between the module base and the plate, tightened to 1.5Nm torque to prevent thermal resistance buildup. Verify insulation resistance with a 500V megohmmeter before proceeding.

Install a 220μF 450V snap-in capacitor near the bridge input terminals, securing it with a nylon clamp to avoid vibration-induced failures. Connect the positive terminal directly to the DC bus with 10AWG tinned copper wire, twisting pairs to reduce inductance. Keep the negative lead under 5cm to minimize voltage spikes during commutation.

• Connect each switching module gate to a dedicated driver board via shielded 18AWG twisted pair, maintaining isolation with optocouplers rated for 5kV surge protection.
• Route the driver signal cables in separate channels from power leads to prevent cross-talk–use ferrite beads on both ends if cable length exceeds 15cm.
• Solder a 10Ω 1W gate resistor directly onto each module’s gate pad to limit current during turn-on/off transitions.

Control Signal Integration

Assemble a PWM generator board using a 16MHz microcontroller with dead-time insertion set to 2μs to prevent shoot-through. Program the output frequency to 20kHz for optimal efficiency, adjusting the duty cycle dynamically based on load feedback from a Hall-effect sensor rated for 30A continuous current.

Solder a 1N4007 flyback diode directly across the load terminals, oriented to clamp inductive voltage spikes during switching. Use a 10A Schottky diode for the DC bus snubber circuit, placing it within 2cm of the bridge output to suppress ringing. Verify all solder joints with a 10X magnifier for cold joints or bridging.

Install a 5A fuse in series with the DC input, selecting a fast-acting ceramic type to protect against overcurrent during startup transients. Mount a 10-turn 10kΩ potentiometer on the front panel to adjust output voltage smoothly, wiring it to the microcontroller’s analog input with a 100nF decoupling capacitor at the pin.

1. Power the system with a 200W bench supply set to 300V, monitoring ripple with an oscilloscope set to 100mV/div–ensure input ripple stays below 1%.
2. Gradually increase load current while observing thermal rise on the bridge modules–target temperature should stabilize below 80°C under 20A load.
3. Test protective shutdown by shorting the output briefly–verify the microcontroller cuts PWM signals within 5μs to prevent damage.

Determining Optimal Gate Resistance for Semiconductor Switches

Start with the gate charge curve from the device datasheet–specifically the total gate charge (Q_g) at the intended drive voltage. A 400 V MOSFET with Q_g = 120 nC at 15 V requires a resistance that balances switching speed against gate ringing. Use R_g = V_drive / (dQ_g/dt) for initial estimation, where dQ_g/dt ≈ 1–3 A/μs. For a 15 V drive, this yields 5–15 Ω; select 10 Ω as baseline.

Measure gate-source voltage overshoot during turn-off with a 500 MHz scope probe–ringing exceeding 20 % of drive voltage mandates lower resistance. Reduce R_g in 2 Ω increments until overshoot drops below 1.5 V for 1200 V class devices. High-voltage modules often exhibit stray inductance (L_s) of 10–30 nH; account for this by ensuring R_g ≥ 2√(L_s/C_iss). A 20 nH stray path with 5 nF input capacitance needs ≥ 4 Ω minimal resistance.

Thermal Validation

Verify power dissipation in the resistor: P = f × Q_g × V_drive. At 20 kHz, 120 nC, and 15 V, a 10 Ω resistor dissipates 0.36 W–use 1 W metal film. High-switching applications demand thick-film or wirewound types rated for 5× calculated dissipation. Mount resistors ≤ 5 mm from the gate pad to reduce parasitic inductance coupling.

For complementary switching pairs, split R_g into turn-on and turn-off resistances (R_{g_on}, R_{g_off}). Fast turn-on with R_{g_on} ≤ 5 Ω minimizes cross-conduction losses, while R_{g_off} ≥ 2× R_{g_on} suppresses Miller plateau oscillation. Typical split ratios for 600 V modules: 4.7 Ω (on), 10 Ω (off).

Adjust R_g based on thermal cycling data–devices with > 100 K junction-to-case ΔT require ≤ 8 Ω to prevent gate oxide degradation. For SiC counterparts, halve the resistance due to lower Q_g (30–50 nC) and higher dv/dt tolerance (50 V/ns).

Dynamic Characterization

Use double-pulse testing to refine R_g under load. Capture drain-source voltage rise/fall times (t_r, t_f) with varying R_g; optimal range yields t_r/t_f ≤ 1.3. For 1 kW converters, target
