Understanding Industrial Scrubber Schematic Diagrams and Key Components
Begin by selecting a counter-current flow layout for optimal contaminant removal–this arrangement ensures maximum contact between the polluted gas stream and the washing liquid. Use packed bed columns with high-surface-area media (e.g., ceramic saddles or polypropylene rings) for gas-phase reactions. Specify a gas velocity between 1.5–3 m/s to prevent flooding while maintaining droplet entrainment below 0.1 g/nm³.
Integrate a mist eliminator downstream to capture entrained liquid droplets, preferably a chevron-type or mesh pad with an efficiency rating above 99.5%. Position spray nozzles at multiple levels within the tower to distribute scrubbing solution evenly; full-cone nozzles operating at 0.5–1.5 bar provide the best coverage. Ensure the liquid-to-gas ratio (L/G) stays within 0.5–2 L/m³ to balance absorption efficiency and power consumption.

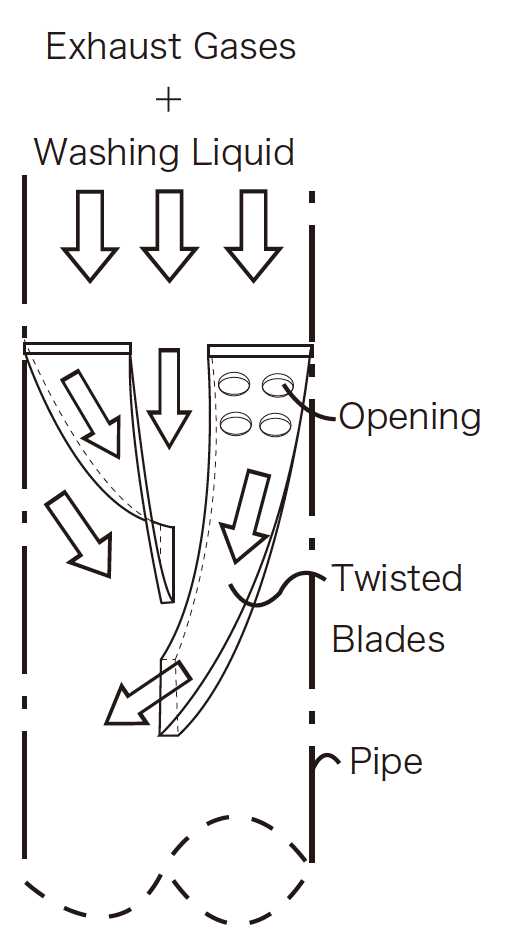

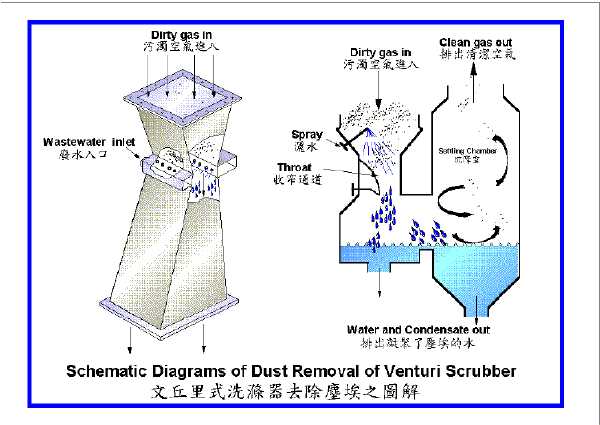

For corrosive gases like SO₂ or HCl, use a circulating loop with pH control–maintain the solution at pH 5.5–7.0 to optimize absorption while minimizing chemical consumption. Include a recirculation pump with a capacity of 2–5 times the inlet gas flow to sustain optimal liquid distribution. If handling particulate matter, add a venturi section upstream with a throat velocity of 60–150 m/s for inertial impaction.
Design the outlet duct with a slight upward slope (5–10°) to promote condensate drainage back into the sump. Install pressure taps at critical points–before and after the packed bed, at the liquid outlet, and upstream of the fan–to monitor fouling or flow irregularities. For systems requiring thermal regulation, embed cooling coils with a 15–25 mm tubing diameter to maintain stable operating temperatures.
Select materials based on temperature and chemical exposure: polypropylene for temperatures below 80°C and stainless steel 316L for higher loads or abrasive streams. Include a by-pass damper for emergency shutoff and a level controller in the sump to prevent pump cavitation. For high-efficiency systems, couple the primary tower with a secondary polishing stage, such as an activated carbon filter or biofilter, to target residual VOCs.
Key Components of Gas Cleaning System Blueprints
Begin by labeling all inlet and outlet streams with precise flow rates, temperatures, and pressures to ensure consistency across design iterations. Use industry-standard symbols for valves, pumps, and nozzles–such as ANSI/ISA-5.1–to reduce ambiguity. For example, a venturi injector should include throat diameter (typically 20–50 mm for industrial applications) and liquid-to-gas ratio (L/G = 0.8–1.5 L/m³), directly annotated next to the component on the layout.
Critical Flow Path Annotations
Detail the gas path with pressure drops at key stages: upstream of the quencher (ΔP = 1–3 kPa), across the absorber (ΔP = 4–8 kPa), and downstream mist eliminator (ΔP = 0.5–1.5 kPa). Include liquid circulation rates in the recirculation loop (e.g., 2–5 m³/h per 1,000 m³/h gas flow) and specify nozzle type–hollow cone for atomization, full cone for uniform coverage. Below is a reference matrix for common absorber configurations:
| Absorber Type | Liquid Loading (L/m³) | Gas Velocity (m/s) | Packing Height (m) |
|---|---|---|---|
| Packed Tower | 0.8–2.0 | 1.5–3.0 | 3–8 |
| Spray Column | 0.2–0.5 | 4–8 | N/A |
| Venturi | 1.0–1.5 | 50–150 | 0.2–0.5 |
Mark utilities–steam for heating (120–150°C), compressed air for atomization (6–8 bar), and water ingress points–with clear piping IDs (DN 25–100) and material grades (e.g., SS316 for corrosive environments). For acid gas removal, isolate pH control loops, indicating alkali dosing points (NaOH 2–10% w/w) and sensor locations (downstream of absorber, upstream of mist eliminator).
Safety and Control Integration
Embed pressure relief valves (set at 110% MAWP) and emergency bypass lines in the visual plan, specifying pipe size (DN 50 minimum) and rupture disk material (e.g., nickel alloy 200 for HF applications). Position gas analyzers (SO₂, NOₓ, O₂) at both inlet and outlet, with sampling probes extending 1/3 into the duct. Include PID loop numbers for actuators (e.g., FCV-101 for liquid flow) and ladder logic tags for interlocks (e.g., “High Level–Shutdown Absorber”).
Key Components Identified in a Wet Gas Cleaning System Flowchart
Begin by verifying the gas inlet duct, ensuring it maintains a velocity between 15–25 m/s to prevent particulate settling. Lower velocities risk fouling; higher ones increase pressure drop excessively. Include a pressure gauge upstream to monitor real-time performance.
Absorption Zone Design
The spray nozzle array must distribute liquid uniformly across the gas stream. Opt for hollow-cone nozzles operating at 2–4 bar for fine droplets (100–300 µm). Position them in staggered formation to eliminate dead zones–spacing should not exceed 1.5 times the diameter of the chamber to ensure full coverage.
The packing material–typically structured plastic or ceramic–enhances mass transfer. Select a specific surface area of 100–250 m²/m³ for acid gas removal. Depth should balance efficiency and pressure loss; 1.5–3 meters is optimal for SO₂ absorption. Include a packing support plate with at least 70% open area to prevent flooding.
The demister downstream captures entrained droplets before exhaust. Mesh-type demisters with a void fraction of 97–99% reduce carryover to under 0.01 g/m³. Install a differential pressure transmitter across the demister to detect fouling–clean when ΔP exceeds 3 mbar.
Liquid Circulation and Treatment
The recirculation pump must handle slurries with solids up to 10% wt. Use a horizontal centrifugal pump with a cantilever design to avoid seal failure. Calculate flow rate based on a liquid-to-gas ratio of 1.5–3 L/m³; lower ratios risk insufficient absorption.
The settling tank downstream separates sludge. Size it for a retention time of 10–15 minutes to allow solids to settle. Include a conical bottom with a slope ≥45° and a sludge discharge valve rated for abrasive materials. Add an overflow weir to maintain consistent liquid level.
Integrate a pH control loop using a dosing pump for neutralizing agents like lime or sodium hydroxide. Target pH 6–8 for optimal absorption; deviations outside this range drastically reduce efficiency. Use redundant sensors to avoid corrosion-related failures in acidic streams.
Step-by-Step Assembly of a Dry Gas Cleaning System Piping Layout
Begin by verifying the structural load-bearing capacity of the installation site. A dry gas cleaning unit with a 1,200 mm diameter vessel requires a minimum floor thickness of 150 mm reinforced concrete for stable mounting. Pre-drill anchor points at 300 mm intervals using M20 expansion bolts, ensuring a torque of 120 Nm to prevent vibrational loosening during operation.
Position the inlet ductwork at a 45-degree angle to the main gas flow path to optimize particulate deflection. Use schedule-40 carbon steel pipes for sections exposed to temperatures above 200°C, transitioning to schedule-10 stainless steel (grade 316) for corrosive byproducts like sulfur oxides. Seal flange connections with 3 mm graphite gaskets, tightening bolts in a cross-pattern sequence to 80 Nm for even pressure distribution.
Critical Component Alignment
- Reagent injection nozzles must be spaced no more than 400 mm apart along the vertical housing to ensure uniform dispersion. Use PID-controlled metering valves (0.5–5 L/min range) for precise dosage.
- Install pressure taps at 1-meter intervals along the ductwork, connecting them to a differential pressure transmitter (4–20 mA output) for real-time monitoring. Calibrate to ±0.1% accuracy.
- Route purge air lines (minimum 7 bar supply) to each nozzle assembly, incorporating check valves with a cracking pressure of 0.2 bar to prevent backflow.
Assemble the hopper discharge system with a twin-screw conveyor for continuous solids removal. Configure the gear motor for 1.5 kW output at 30 RPM, paired with a 5:1 reduction gearbox. Install vibration sensors on the hopper walls, setting thresholds at 0.3 g RMS to detect bridging or blockages. Connect the conveyor’s outlet to a rotary airlock valve (300 mm diameter, 0.75 m³/min capacity) to maintain negative pressure in the system.
For emission control compliance, integrate a continuous emissions monitoring system (CEMS) at the outlet stack. Mount the probe 8 stack diameters downstream of any bends, with a heated sampling line maintained at 180°C to prevent condensation. Use a non-dispersive infrared (NDIR) analyzer for SO₂ detection, calibrated to 0–1,000 ppm with ±2% accuracy. Pair with an opacity monitor (0–100% range) for visual validation.
Insulate all high-temperature sections (>350°C) with 50 mm ceramic fiber blankets (density: 96 kg/m³) to minimize heat loss and thermal stress. Secure insulation with stainless steel bands at 200 mm intervals, overlapping seams by 50 mm to prevent gaps. For ambient temperature regions, use 25 mm elastomeric foam, ensuring vapor barriers on outdoor-exposed surfaces to prevent moisture ingress.
Final System Validation
- Conduct a hydrostatic test at 1.5× design pressure (minimum 3 bar) for 2 hours, monitoring for leaks via ultrasonic detection or soap-bubble method.
- Verify flow rates using a tracer gas test (helium at 5 ppm concentration) to detect shortcuts in the gas path. Target ≤5% variance from theoretical residence time.
- Operate the system at 110% rated capacity for 8 hours, checking for thermal expansion gaps (allow 3 mm per meter of steel ductwork) and adjusting pipe supports accordingly.
