Step-by-Step Guide to Wiring LED Light Strips Safely and Correctly
Begin by mapping out your circuit path before making any cuts. Identify the power source–typically a 12V or 24V DC adapter with sufficient wattage to handle the total load. Measure the tape’s power consumption per meter; common values range from 4.8W to 19.2W. Multiply this by the length to avoid overloading the adapter. A 5-meter ribbon consuming 9.6W per meter needs at least a 50W power supply.
Use a multimeter to verify voltage at the adapter’s output terminals. Connect the positive terminal to the ribbon’s +V pad and the negative to GND. For runs exceeding 5 meters, inject power at both ends to prevent voltage drop. Solder joints must be clean–apply flux before tinning the pads to ensure strong adhesion. Insulate connections with heat-shrink tubing or electrical tape.
For dimming or color control, integrate an inline PWM controller between the adapter and the tape. Select a model with a current rating above the ribbon’s maximum draw. If using multiple segments, wire them in parallel, not series, to maintain consistent brightness. Ground loops can cause flickering; keep ground paths separate where possible.
Test the setup in a low-light environment before permanent installation. Flickering or uneven brightness indicates poor soldering or insufficient power. Check for exposed copper–even a minor short can damage the ribbon or adapter. For outdoor use, seal all connections with silicone conformal coating rated for UV resistance.

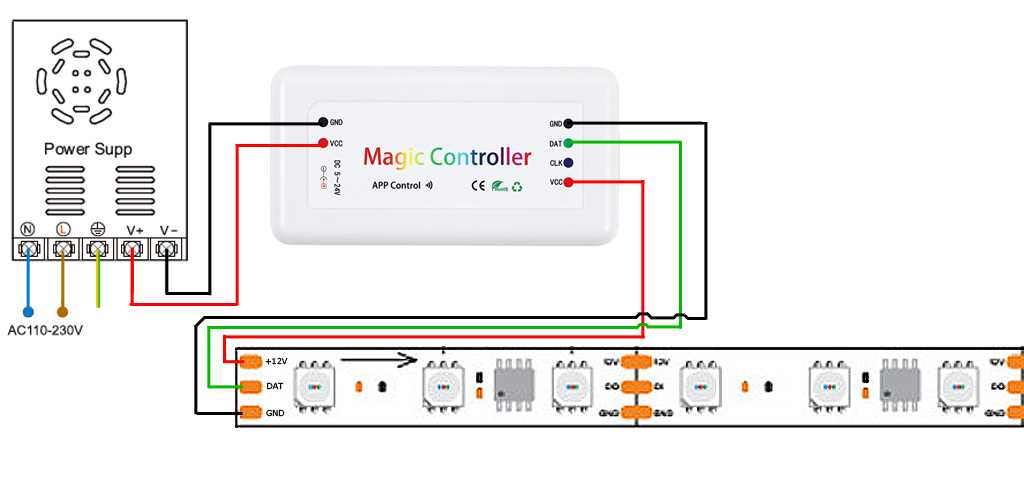

When cutting the ribbon, do so only at marked intervals–usually every 2.5–10 cm. Reuse factory-cut pads for reconnecting; avoid soldering directly to the flexible circuit. For specialized RGB or addressable variants, adhere to the manufacturer’s data protocol (e.g., WS2812B). Incorrect wiring can corrupt the digital signal, causing erratic behavior.
Connecting Flexible Illumination: A Practical Schema
Start by splitting your flexible circuit into functional segments if the total load exceeds 20 watts per meter. Use a 12V power supply for runs under 5 meters; shift to 24V for lengths between 5-15 meters to prevent voltage drop beyond 2%. Mark each cut point precisely on the copper pads–most standard layouts include designated cutting lines spaced every 50mm. Pre-tin the exposed pads with a 60/40 rosin-core solder, ensuring molten alloy fully saturates the conductive surface without bridging neighboring traces. Install a fuse rated at 125% of the load current upstream of the first connection; for a 6-amp circuit, select a 7.5-amp fast-blow fuse.
Component Assembly Order
- Identify input polarity on the supply connector–positive typically aligns with the wider trace or red wire, negative with black or blue.
- Attach a 18AWG silicone-coated wire between the supply and the flexible circuit’s starting point, securing joints with heat-shrink tubing rated for 125°C.
- Route intermediate links through a 20mm x 7mm aluminum channel to diffuse heat–mount channel sections every 1.5 meters for segments operating above 60% brightness.
- Verify continuity with a multimeter set to 200Ω–readings above 0.2Ω indicate corrosion; clean pads with isopropyl alcohol and reflow.
- Apply 3M VHB 4910 adhesive tape to the backside before fixing; pressure-activate for 72 hours at room temperature to achieve full bonding strength.
Core Connection Steps for Monochromatic Flexible Illumination
Begin by ensuring the power supply matches the voltage of your chosen flexible circuit: 12V or 24V. Most compact electronic drivers output 12V–verify this on the product label before proceeding. Connect the positive terminal of the driver directly to the copper pad marked with a “+” on the circuit edge. Secure the negative terminal to the opposing pad, typically labeled with a “-“. Avoid loose fittings; use solder or pre-installed connectors rated for the current draw.
For lengths exceeding 5 meters, inject power at multiple points to prevent voltage drop. Measure resistance across the full run–if it falls below 90% of nominal voltage at any segment, add a second driver mid-span. Place the additional unit no further than 4 meters from the first. Aluminum channels with adhesive backing improve heat dissipation, extending component lifespan by up to 30%.
Polarity errors cause immediate failure. Test conduction with a multimeter before applying full current. Start at 50% capacity to check for excessive heat in solder joints or connectors. If any junction exceeds 60°C within 60 seconds, disconnect and rework the connection–insufficient contact area likely exists. For outdoor setups, use waterproof junction boxes IP65 or higher; condensation inside enclosures shorts circuits unpredictably.
Protection Against Transient Voltages
Surge events degrade silicon-based emitters rapidly. Install a bidirectional transient suppressor diode (TVS) between the driver output and the circuit, rated for 1.5 times the nominal voltage. Alternatively, a polymeric resettable fuse set to 120% of expected amperage prevents permanent damage during short circuits. Avoid glass fuses–they respond too slowly for flexible circuits.
Ground the aluminum channel if using it as a heatsink. Attach a 14 AWG bare copper wire from the channel to the nearest earth point, especially if the driver lacks galvanic isolation. This prevents capacitive coupling from inducing flicker at frequencies above 100Hz. Keep high-frequency PWM dimming controllers at least 30cm away from audio equipment to avoid interference.
Connecting Multicolor Flexible Ribbons with a Smart Driver
Begin by verifying the voltage compatibility between your color-shifting bands and the control unit. Most consumer-grade RGB products operate at 12V or 24V DC, but industrial variants may push 48V. Mismatches cause either dim performance or permanent damage. Use a multimeter to confirm the output of your power supply before making any connections.
Key Connection Steps for Reliable Operation
Attach the common anode/cathode (based on your ribbon’s design) to the corresponding terminal on the driver–typically labeled “+” or “V+”. The remaining three channels (red, green, blue) must connect to the driver’s labeled outputs (often R/G/B). Twist each wire pair before securing with a proper crimp connector or solder joint; exposed copper corrodes quickly. For sections longer than 5 meters, inject power at both ends to prevent voltage drop, which manifests as color inconsistency or dimming at the far end.
If your driver includes a remote or app interface, pair it before finalizing the setup. Test each color channel individually by cycling through the driver’s preset modes or manual controls. A steady glow without flickering indicates correct polarity and secure connections. Avoid placing high-power sections near flammable materials–even low-voltage systems generate heat under prolonged load.
For advanced setups, integrate a MOSFET or repeater between the driver and extended ribbon runs exceeding 15 meters. This maintains signal integrity without overloading the driver’s internal circuitry. Always isolate power lines from signal lines when routing through walls or conduit to prevent interference. Document your layout with photos or schematics; troubleshooting hidden runs later wastes hours.
Choosing the Right Power Source for Flexible Illumination Segments
Select a 12V supply for segments under 5 meters to maintain full brightness without voltage drop. For 5–10 meter runs, switch to 24V to compensate for resistivity in copper traces–this halves current draw at identical wattage, reducing heat buildup in connectors. When exceeding 10 meters, split the run into parallel branches, each powered by a separate 24V/5A source to avoid dimming or flicker. Verify the supply’s wattage by multiplying segment length in meters by watts per meter plus 20% margin; undersized units can fail prematurely under sustained loads.
Current and Voltage Requirements by Segment Length
| Length (m) | Supply Voltage | Minimum Current (A) | Recommended Wattage | Connector Wire Gauge (AWG) |
|---|---|---|---|---|
| 2 | 12V | 1.5 | 24W | 20 |
| 5 | 24V | 1.2 | 36W | 18 |
| 10 | 24V | 2.5 | 72W | 16 |
| 15 | 24V (dual-channel) | 3.0 per branch | 48W per source | 14 |
Use constant-voltage units with built-in overcurrent protection; avoid generic adapters lacking thermal safeguards. For outdoor installations, select IP67-rated supplies with corrosion-resistant terminals. DIN-rail mount options simplify panel integration in commercial settings.
Choosing Between Sequential and Shared Power Paths for Flexible Illuminators
For most residential and commercial setups, shared power paths are the superior choice. They ensure uniform brightness across all components, prevent voltage drop from degrading performance, and simplify troubleshooting if a single segment fails. Sequential connections should be reserved for low-power applications where exact brightness matching is unnecessary.
Voltage requirements dictate the configuration: 12V tapes lose intensity if strung sequentially beyond 5 meters, while 24V variants tolerate up to 10 meters before noticeable dimming occurs. Shared power paths eliminate this limitation entirely, as each segment receives full input voltage directly from the source. Always calculate total current draw–shared paths multiply current requirements, mandating power supplies with sufficient amperage ratings.
- Sequential paths: 3+ segments may require voltage compensation at midpoints.
- Shared paths: Current draw equals sum of all segments.
- Failures in sequential setups affect downstream components.
- Shared setups isolate faults to individual segments.
Resistance in conductors causes voltage drop, particularly problematic in sequential arrangements. Copper wire gauge must be sized appropriately–18 AWG for shared paths up to 30 watts, 16 AWG for higher loads. Sequential paths need thicker conductors to compensate for cumulative resistance. Use this formula to determine voltage drop: Vdrop = (2 × I × L × R) / 1000, where I is current, L is length, and R is wire resistance per meter.
Thermal considerations differ between configurations. Sequential connections concentrate heat at connection points, risking premature failure if not properly heat-sinked. Shared paths distribute thermal load more evenly, though power supply capacity must account for peak currents. Never exceed 80% of a power supply’s rated capacity to ensure longevity and safe operation.
Installation complexity varies significantly. Sequential setups require fewer power feed connections but demand precise soldering or connectors to maintain continuity. Shared setups involve more connections but allow modular expansion–ideal for projects requiring future additions. For shared paths, use a central junction box to distribute power evenly, minimizing the risk of uneven illumination.
Cost and scalability favor shared configurations for installations exceeding three segments. While sequential setups may appear cheaper initially, the need for intermediate power injections or thicker conductors offsets savings. Shared setups scale linearly, with additional segments requiring only extra conductive paths rather than recalculating voltage drops. Always factor in long-term maintenance: shared paths simplify replacements, whereas sequential setups may require disassembling multiple segments to isolate faults.
