Creating a Step-by-Step LED Blink Circuit Schematic Guide for Beginners

Begin with a 5V DC power source–ensure stable voltage to avoid flickering beyond intended intervals. Place a 220Ω current-limiting resistor in series with the semiconductor emitter to prevent thermal runaway; values between 150Ω and 470Ω adjust brightness but maintain steady operation. Connect the positive terminal of the source directly to the resistor, then link the resistor’s output to the anode of the indicator.

Integrate an NPN transistor like the 2N3904 as a switching element. Position the collector to the cathode of the emitter, ground the emitter, and route the base through a 10kΩ resistor to a microcontroller digital pin–Arduino’s D3 or Raspberry Pi’s GPIO17 work reliably. Toggle the pin at 1Hz for visible pulsing; delays under 50ms may appear solid due to persistence of vision.

Add a 100nF decoupling capacitor across power rails near the indicators to suppress voltage spikes from rapid switching. For CMOS-based designs, replace the NPN with a MOSFET (IRFZ44N) if driving multiple emitters–gate resistors of 1kΩ to 10kΩ prevent ringing. Test continuity before powering: a multimeter reading of ~1.8V across a red emitter confirms forward bias.

Optimize layout on perfboard with short traces–inductance in longer wires distorts timing. Use a 555 timer IC for standalone builds; set R1=1MΩ, R2=100kΩ, and C=1µF for a 1-second cycle. Avoid breadboard prototyping for high-current variants–solder joints handle 20mA+ without intermittent failures.

Circuit Layout for an Oscillating Indicator Light

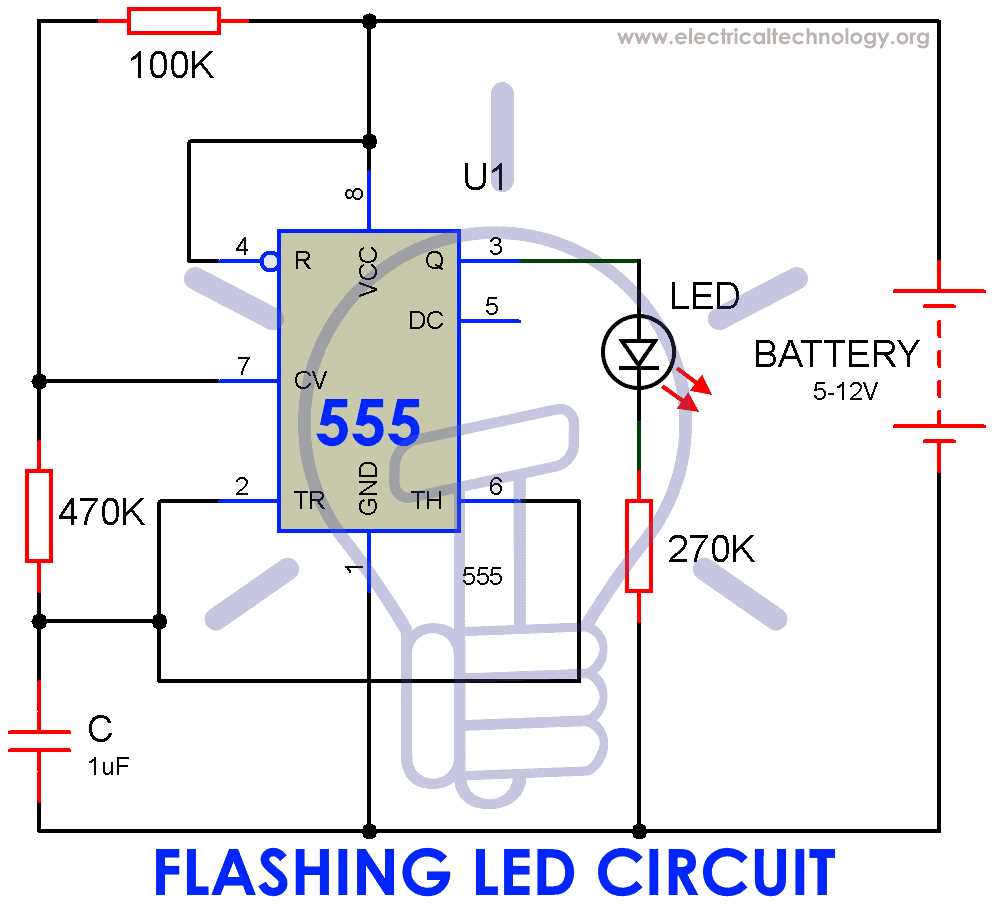

Start with a 555 timer IC in astable mode to create a consistent pulse signal. Connect pin 8 (VCC) to a 5V power supply and pin 1 (GND) directly to ground. Use a 10μF capacitor between pin 2 (trigger) and ground, linking pin 2 to pin 6 (threshold) to simplify the wiring. This configuration eliminates the need for separate capacitor connections and reduces component count.

Add a 1kΩ resistor between pins 7 (discharge) and 8 to ensure proper timing intervals. Pair this with a 10kΩ potentiometer connected to pin 7 and the capacitor’s positive terminal to adjust flash frequency without recalculating resistor values. The potentiometer’s range should allow oscillation rates between 0.5Hz to 5Hz, providing versatility for different applications.

For the illumination element, attach a 220Ω current-limiting resistor in series with a standard 5mm red indicator before connecting it to pin 3 (output). This resistor value balances brightness and longevity for most low-power emitters. Verify polarity before soldering: the anode connects to the resistor, cathode to ground. Misalignment can damage the component.

To stabilize the circuit, place a 0.1μF decoupling capacitor near the timer’s power pins (8 and 1). This prevents voltage spikes from disrupting the timing cycle, especially critical in noisy environments. For battery-powered setups, add a 100μF bulk capacitor across the power rails to maintain consistent voltage during operation.

For extended runtime, consider substituting the 5V source with a 3.7V lithium cell. The following table outlines component adjustments for lower-voltage operation:

Component	Original Value	Adjusted Value
Current-limiting resistor	220Ω	100Ω
Timing capacitor	10μF	22μF
Potentiometer	10kΩ	47kΩ

When prototyping on a breadboard, avoid long jumper wires between the timer and the emitter. Parasitic capacitance in long wires can alter pulse duration unpredictably. Instead, position the resistor and indicator as close to the output pin as possible. For permanent assemblies, use a PCB with minimal trace lengths to minimize interference.

For precise timing calibration, replace the potentiometer with fixed resistors after determining the desired flash rate. Measure the resistance at the potentiometer’s midpoint during operation, then substitute with a resistor of equal value. This ensures consistent performance without manual adjustments. For example, a 4.7kΩ resistor yields approximately 1Hz flashes with a 10μF capacitor.

To expand functionality, connect multiple indicators in parallel to pin 3. Each requires its own current-limiting resistor (values may vary based on color: 150Ω for green, 120Ω for blue). Avoid exceeding the timer’s 200mA output current limit–use a transistor like a 2N2222 if higher current is needed. The transistor’s base connects to pin 3 via a 1kΩ resistor, emitter to ground, and collector to the indicators’ common anode.

Selecting Parts for a Simple Flashing Light Setup

Start with a microcontroller like the ATtiny85–its 8-pin package and built-in oscillator eliminate the need for external clock sources. A 1MHz default speed balances performance and power consumption, ideal for battery-driven setups. Pair it with a 220Ω–470Ω resistor for current limiting; lower values increase brightness but reduce lifespan of standard 5mm indicators. Verify forward voltage (typically 2V–3V for red, 3V–3.5V for green/blue) to avoid overheating.

For timing, rely on internal MCU delays rather than external RC networks. This simplifies assembly and keeps component count below five. If using coin cells, opt for a CR2032 holder rated for 20mA continuous draw–subsequent drops in voltage won’t disrupt the oscillation pattern. Avoid ceramic capacitors under 100nF; their leakage currents skew timing unpredictably.

Wire gauge matters: 22 AWG handles 5V circuits effortlessly, while stranded variants offer flexibility for breadboard testing. If soldering, tin the ends to prevent fraying. Test each connection with a multimeter in continuity mode before applying power–shorts vaporize traces in milliseconds.

Step-by-Step Circuit Assembly Guide for a Flashing Light

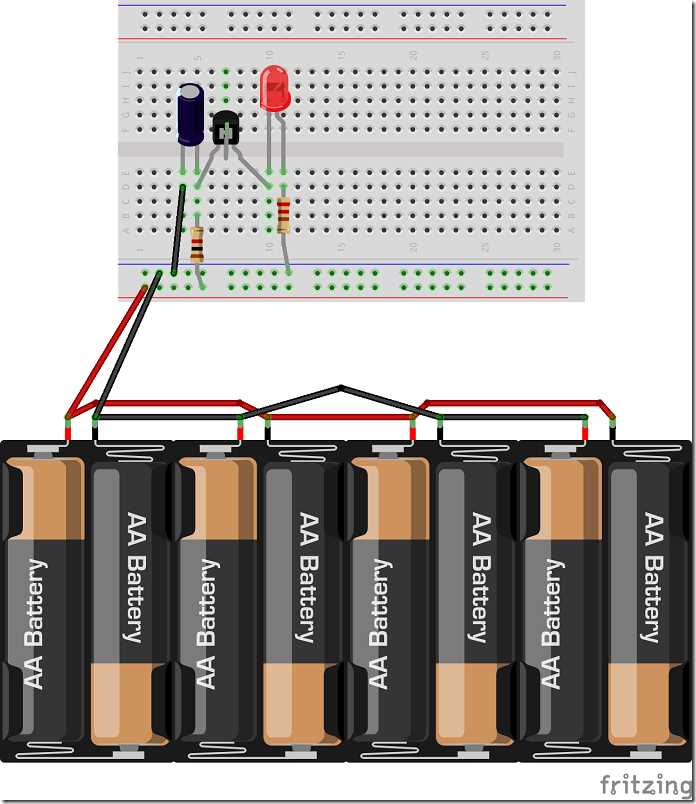

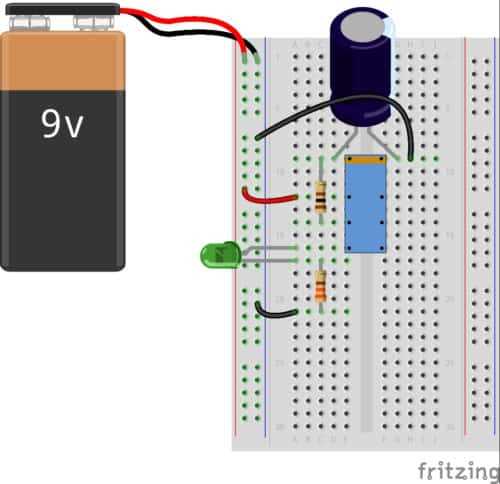

Identify component layout on breadboard rows: place microcontroller’s power pin in column 1, adjacent resistor slot to column 5, and illumination source cathode two rows below. Verify rail alignment before inserting any parts–mix-ups cause short circuits.

Connect supply wires first: red jumper from mainboard’s voltage output (+5V) to breadboard’s topmost red rail. Secure with needle-nose pliers, ensuring no slack. Attach black jumper from GND pin to bottom blue rail–tight bends risk breaking thin copper strands.

Insert current-limiting element before illumination source: 220-ohm axial component straddles gap between column 5 and illumination source’s anode row. Tug gently to confirm mechanical stability–loose contacts create flickering gaps.

Route illumination source between resistor’s free terminal and ground rail: cathode leg touches blue rail, anode merges with resistor. Double-check leg orientation–reversing causes no glow, not damage.

Add timing capacitor: 10µF electrolytic component hooks microcontroller’s timing pin (row 8) and GND rail. Mind polarity–negative stripe aligns with blue rail, positive stripe touches timing pin.

Run control jumper: thin wire links microcontroller’s flashing output (row 6) directly to resistor’s anode side. This completes current path–missing this step leaves circuit dormant.

Verification Sequence

Apply power: monitor illumination cycles–1-second on/off rhythm confirms proper timing. Irregular flashes indicate capacitor leakage or incorrect microcontroller settings; replace electrolytic component if instability persists.

Test rail continuity by touching multimeter probes to red/blue rails simultaneously. Readout below 4.8V signals voltage drop–recheck jumper connections or swap breadboard if internal traces corroded.

Common Timer IC Options and Pin Layouts

For reliable pulse generation in light-flash circuits, prioritize the NE555 in astable mode. Its pinout includes: Pin 1 (GND), Pin 2 (Trigger), Pin 3 (Output), Pin 4 (Reset), Pin 5 (Control), Pin 6 (Threshold), Pin 7 (Discharge), and Pin 8 (VCC). Configure R1 between VCC and Discharge, R2 between Discharge and Threshold, and C from Threshold to GND for adjustable timing. The output swings close to supply voltage, driving low-power indicators directly.

Alternatives include:

• LMC555 (CMOS variant): Lower power draw (10 µA vs. 3 mA), same pinout, but output current limited to 10 mA–ideal for battery-powered setups.
• 74HC14 (hex Schmitt trigger): Simpler but requires external RC network. Pins 1A-6A for inputs, 1Y-6Y outputs; chain two gates for oscillation. VCC (Pin 14), GND (Pin 7).
• CD4060: Integrates oscillator and binary counter. Pin 9 (φI), Pin 10 (φO) form oscillator core; Pin 12-11, 1-7 output divided frequencies (Q4-Q14). Use Pin 12 for enabling.

Choose NE555 for versatility, LMC555 for efficiency, 74HC14 for minimal parts, and CD4060 when frequency division is needed.

Determining Optimal Resistor and Capacitor Values for Custom Flash Timing

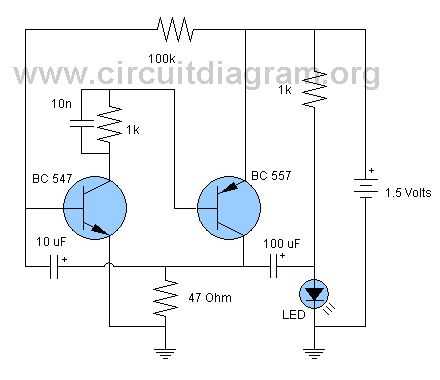

Select a 100kΩ resistor paired with a 10µF capacitor for ~1-second oscillation in a basic RC astable multivibrator circuit. This combination yields an approximate time constant τ=RC=1s, producing near-symmetrical on/off pulses at ~0.7Hz. Adjust values proportionally for faster or slower rates: halve either component for ~2x speed or double for ~0.5x.

For sub-100ms flashes, combine 10kΩ with 10µF (τ=100ms) or 4.7kΩ with 22µF (τ≈100ms). These pairings maintain reliable triggering while preventing excessive current draw through the semiconductor. Verify oscillation stability under expected supply voltage variations (±0.5V tolerance typical for alkaline cells).

Precision timing demands low-leakage parts: film capacitors (polypropylene) and 1% metal-film resistors outperform electrolytics for consistency. Electrolytics introduce ±20% variance due to dielectric absorption; avoid unless pulse repetition accuracy below ±50ms is acceptable. Replace generic carbon-film resistors with wirewound types for high-power strobes (>100mA peak).

Calculate required capacitance using C=(t_desired)/(0.7×R), where t_desired is target half-cycle duration. For 2.5s intervals with R=330kΩ: C=(2.5)/(0.7×330000)≈11µF. Standard E6/E12 values nearest this (10µF) yield ~2.3s, acceptable for most indicators. Non-standard intervals may necessitate trimming R while holding C fixed.

Supply voltage affects flash intensity but minimally alters timing below 9V; RC time constants remain largely invariant across 3-15V for silicon transistors. At

High-brightness emitters (IV>20mA) require derating capacitors 30-50% to prevent thermal runaway in drive transistors. Substitute timing capacitors with tantalum types (low ESR) when duty cycles exceed 50%, but expect 3x cost increase and narrower tolerance bands (±10%). Parallel multiple capacitors if exact values are unattainable: two 4.7µF capacitors replace a single 10µF with superior frequency response.

Simulate transient response before prototyping using SPICE models. Freeware tools like LTspice accept .ASC netlists for RC timing circuits–include transistor model parameters β=200, Vbe(on)=0.65V, and Ib(min)=1mA for conservative results. Ignore simulations predicting

Document final component selections with measured values using a LCR meter. Hand-soldered prototypes typically exhibit +5-15% timing deviations from calculated figures due to stray capacitance (~2-10pF) across breadboard nodes. For ±2% accuracy, adopt SMD 0805 packages with solder-mask-defined footprints and ground plane separation >3mm.
