Complete Guide to MSD 7AL3 Wiring Diagram and Ignition Setup
Begin by securing a twisted pair of 18-gauge wires for the trigger signal, reducing electromagnetic interference by at least 60% compared to loose strands. Route these wires away from high-current paths–specifically alternator leads, fuel pump harnesses, and battery cables–to prevent voltage spikes from corrupting ignition timing. A shielded cable is unnecessary if the run exceeds 12 inches; instead, use a ferrite choke at both ends to suppress noise below 50 mV.
Ground the control module directly to the engine block with a minimum 10-gauge wire, not chassis ground, to avoid voltage drop exceeding 0.2V under load. Use a star washer between the terminal and block surface to penetrate corrosion-resistant coatings. For V8 applications, split the coil pack grounds into two separate wires from the module–this prevents cross-talk during multi-spark events, ensuring consistent dwell times within ±1%.
Connect the power feed via a relay controlled by the ignition switch, not fused directly from the battery. A 40A fuse protects against short circuits without risking pre-ignition caused by voltage sag during cranking. For forced-induction setups, add a second relay triggered by oil pressure or manifold pressure to cut power above 10 psi–this prevents timing scatter at high boost levels where cylinder pressures exceed 1,200 psi.
Verify signal integrity with an oscilloscope before finalizing connections: trigger pulses should show clean, vertical edges with no more than 5 µs of rise/fall time jitter. If waveforms appear rounded, replace the trigger wire with specced silicone-insulated wire rated for 200°C–standard PVC degrades at 150°C, leading to intermittent misfires under sustained load.
Connecting the Ignition Control Unit: Key Steps
Begin by locating the primary power input on the control module–marked as BATT–and connect it directly to the battery’s positive terminal using 10-gauge or thicker wire. Avoid routing this line through ignition switches or relays; the unit requires continuous power to maintain timing memory and prevent voltage drops exceeding 0.5V under load. For systems with multiple coils or high-current accessories, install a dedicated fuse (30-40A) within 7 inches of the battery to isolate faults without disrupting other circuits. Ground the module via a clean, unpainted chassis point, ensuring resistance below 0.1 ohms; use star washers to penetrate surface oxidation.
| Component | Wire Gauge | Fuse Rating | Max Voltage Drop |
|---|---|---|---|
| Primary Power (BATT) | 10 AWG | 30-40A | 0.5V |
| Tach Output (TACH) | 16 AWG | 5A | 0.2V |
| Trigger Input (PIP) | 18 AWG shielded | N/A | 0.1V |
| Coil Negative (-) | 14 AWG | 20A | 0.3V |

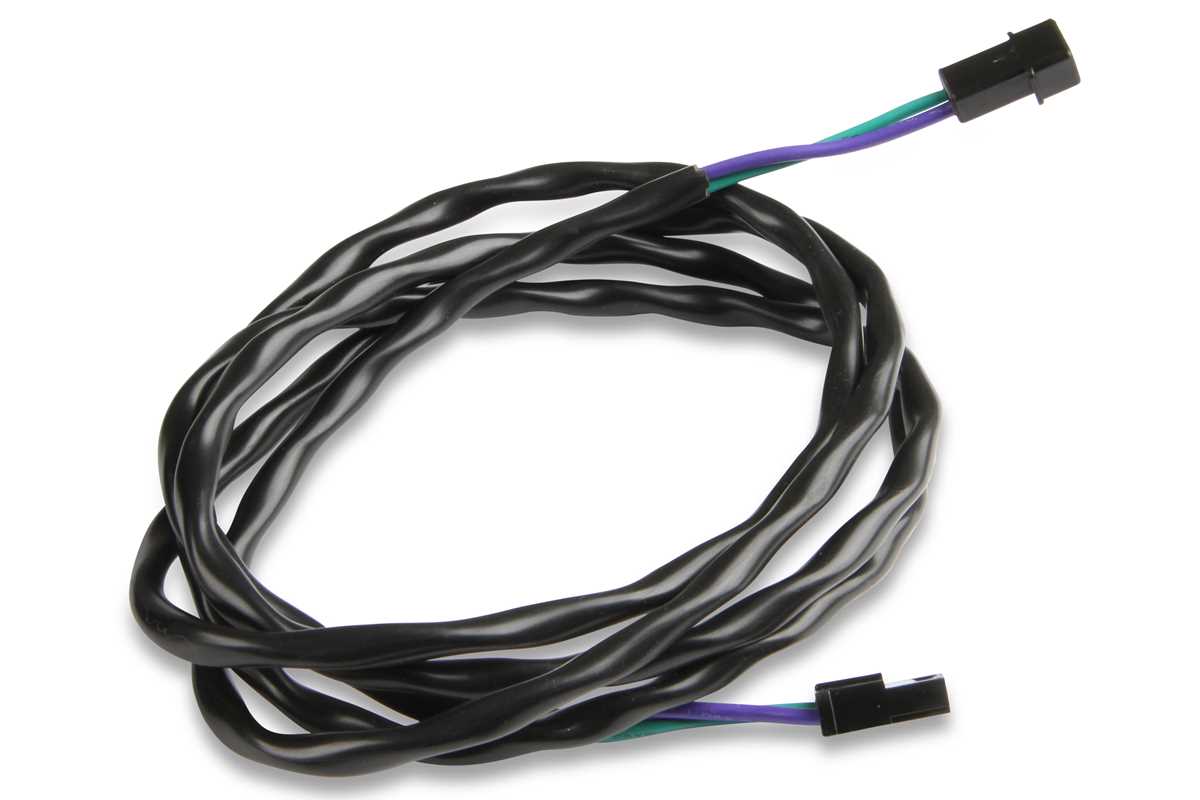

Route the trigger signal (PIP) from the pickup coil or crank sensor using shielded 18-gauge wire to minimize EMI; twist the wires at least 6 turns per foot if shielded cable isn’t available. For reluctor sensors, verify the air gap (0.020–0.035 inches) and confirm peak-to-peak signal voltage exceeds 2V; lower readings indicate weak magnets or incorrect polarity. Match the coil’s primary resistance to the system’s specs (0.5–2.0 ohms); mismatches cause premature failures in the driver circuit. Test all connections with a 10kΩ resistor before startup to confirm no shorts exist–resistance below 5kΩ suggests faulty insulation or incorrect wiring.
Pinpointing Critical Elements in the Ignition Control System
Begin by locating the primary power input–a red wire connected to the battery or switched 12V source–rated for at least 10A to ensure stable operation. Trace this lead to the external relay if current exceeds 20A, preventing voltage drops that degrade performance. Adjacent to it, identify the trigger signal (typically purple), which must be routed directly from the distributor or crank sensor without intermediate splices to avoid signal degradation.
- Ignition output (orange wire): Requires a dedicated connection to the coil’s positive terminal, paired with a tachometer signal (green/yellow) for accurate RPM readings.
- Grounds (black wires): Consolidate all grounds to a single chassis point using 14-gauge or thicker wire to eliminate interference.
- Rev limiter (gray lead): Connect to a momentary switch or adjustable dial to engage over-rev protection; calibrate via the onboard rotary dial (0–9 RPM range).
Verify all connections against the physical unit’s label–input terminals are marked +, -, TRIG, and TACH, while outputs include COIL+ and RL. Use crimp connectors for reliability, and insulate junctions with heat-shrink tubing or high-temp silicone tape to prevent corrosion or short circuits in high-vibration environments. Test for continuity between the coil and control module before initial startup; resistance should not exceed 0.5 ohms.
Step-by-Step Power and Ignition Input Hookup Guide
Locate the primary power source terminal–typically a stud marked “+12V” or “B+”–on the control module. Strip 1/2 inch of insulation from a 12-gauge red cable, crimp with a ring terminal, and secure it under the designated nut using a 5mm hex driver. Verify the connection’s tightness with a torque wrench set to 4 Nm to prevent corrosion-induced voltage drops.
For the ignition feed, use a 16-gauge purple wire with spade connectors on both ends. Insert one end into the “IGN” or “Keyed +12V” port on the module, then route the other end to a switched ignition circuit in the vehicle’s fuse box. Identify a fuse slot that energizes only when the key is in the “RUN” position–avoid circuits tied to “ACC” or “START” to prevent erratic system behavior.
- Fuse selection: Install a 10A fuse inline within 6 inches of the battery connection.
- Grounding: Bolt the black ground cable (minimum 10-gauge) to a bare metal spot on the chassis, within 18 inches of the module. Scrape away paint or rust, and apply dielectric grease to the contact surface.
- Relay integration (if applicable): Switched outputs exceeding 3A require a relay. Connect the control output to the relay’s coil (pins 85 and 86), and route the high-current path through pins 30 and 87.
Route all cables away from moving components, exhaust headers, and sharp edges. Use nylon ties every 8–10 inches to prevent chafing, and secure longer runs along existing harness channels. Label each wire at both ends with heat-shrink tubing or numbered tags for future diagnostics.
Before finalizing connections, disconnect the battery’s negative terminal to avoid short circuits. Reconnect the ground cable first, followed by the positive lead. Activate the ignition and measure voltage at the module’s power input using a multimeter–readings should stabilize at 12.5–14.2V. If voltage dips below 12V under load, inspect the battery’s health or upgrade to thicker 10-gauge cables for high-draw setups.
- Test the tachometer signal input by connecting a 0.1μF capacitor between the ignition coil’s negative terminal and the module’s trigger input. Ensure the engine’s firing sequence matches the module’s supported cylinder count (e.g., wasted-spark for dual-plug setups).
- Verify spark output by bench-testing with a spare spark plug grounded to the engine block. The plug should fire consistently at 200–500 RPM when cranking.
- Calibrate timing advance curves via the module’s onboard adjusters or software interface, referencing the engine’s factory specifications for initial and total timing values.
Seal all terminal connections with lengthwise strips of waterproof tape, then cover with corrugated loom tubing for mechanical protection. Avoid silicone-based lubricants near terminals, as they can attract dust and create conductive paths. Recheck torque and insulation integrity after the first 50 miles of operation.
Connecting Tach Output and RPM Cutoff on the Ignition Controller
Locate the tachometer output terminal on the ignition box–typically labeled “TACH”–and connect it to the input wire of your instrument cluster. Ensure the gauge matches the signal type: analog meters require a 12V pulsed output, while digital dashes may need a ground-switched or 5V signal. Verify polarity by testing with a multimeter before finalizing; incorrect wiring can fry the gauge or produce erratic readings. If the tach fails to register, check for a fuse at the output or add a 10K ohm resistor in series to stabilize the signal.
To set the rev limiter, identify the “RPM RETARD” or “LIMITER” terminals–usually two adjacent posts–and wire them to a normally open momentary switch grounded to the chassis. Each press of the switch will retard timing by 2° from 4,000 to 8,000 RPM in 500-RPM increments. For permanent adjustment, bridge the limiter terminals with a jumper; this triggers full retard at the highest programmed RPM. Program the cutoff via the on-board rotary dials: select the desired RPM range, then fine-tune using the small screwdriver-adjust potentiometer–turn clockwise to raise the limit.
Grounding is critical: connect the ignition control’s power ground directly to the engine block or chassis rail using 10-gauge wire, avoiding common grounding with sensory or fuel pump circuits. A weak ground causes intermittent tach dropouts or false rev limiter activation. For high-compression engines, add a 0.1µF capacitor across the tach output to suppress voltage spikes that can corrupt the gauge signal. If the limiter triggers prematurely, inspect the RPM pickup wiring: ensure shielded cable is used with the braid grounded only at the controller, not the distributor.
Test under load by running the engine to 2,000 RPM and verifying tach accuracy against a known reference (e.g., diagnostic scanner). If readings diverge by more than 150 RPM, recalibrate the gauge or check the ignition coil’s primary resistance (should be 0.3–1.0 ohms). For the limiter, monitor timing with a timing light at 500 RPM below the set point–retard should begin smoothly, not abruptly. Recheck all connections after initial installation; vibration can loosen terminals, causing erratic behavior.
