Understanding Phasor Representation in AC Inductive Circuits Step by Step

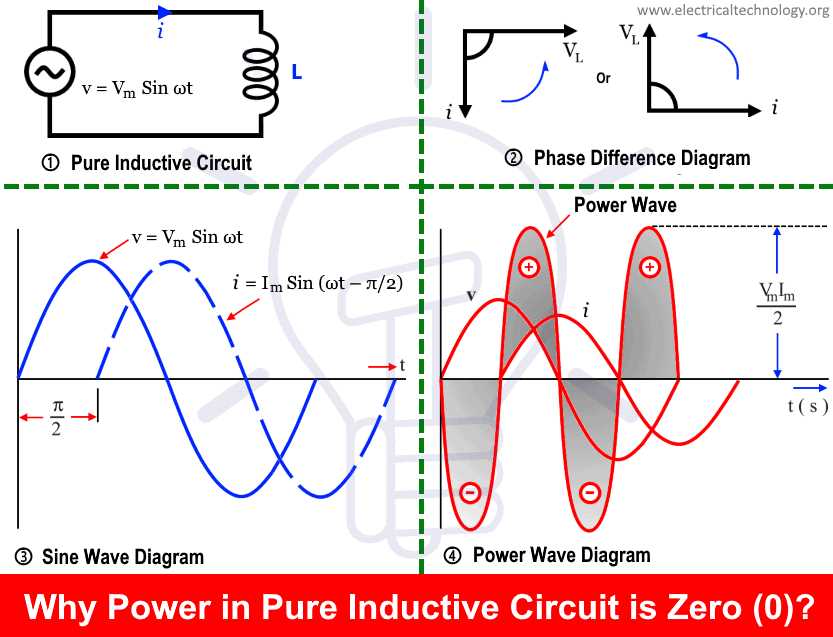

To analyze a coil’s electrical response, sketch the reference vectors with voltage leading the current by 90°. Place the current vector I along the horizontal axis–its magnitude equals the root-mean-square value of the measured current. Draw the voltage vector V vertically upward from the same origin. This perpendicular arrangement directly reflects the phase shift caused by the coil’s stored energy.
Scale the vectors proportionally: if the coil has an impedance of 50 ohms at 50 Hz, a 5 A current produces a 250 V drop across it. Verify with a digital oscilloscope–trace the sine waves; voltage peaks occur a quarter-cycle ahead of current peaks. This graphical approach eliminates abstraction, exposing how reactive components delay energy transfer.
For circuits with resistance, decompose the voltage into resistive (in-phase) and reactive (perpendicular) components. Sum them vectorially using the Pythagorean theorem: V_total = √(V_R² + V_L²). This method predicts voltage drops without solving differential equations, critical when designing filters or tuning resonant systems.
Adjust the angle between I and V as frequency changes. At 100 Hz, the same 50-ohm coil exhibits an impedance of 62.8 ohms–recalculate vectors accordingly. Always cross-check with measured waveforms; discrepancies often reveal parasitic capacitance or core saturation.
Representing Reactive Loads Visually
Begin by sketching the reference axis for voltage (V) horizontally to the right. Current (I) in coils lags behind by 90°, so draw its arrow vertically downward from the origin. For a 10 Ω reactance at 50 Hz, a 0.75 A rms current will generate a 7.5 V rms voltage drop–scale both vectors accordingly to keep proportions accurate.
Adjust magnitudes dynamically: if supply rises to 24 V rms, the drop increases to 18 V rms while the phase angle remains fixed at −90°. Use a protractor to verify angles; even minor deviations distort power calculations. Double-check all measurements against Ohm’s law for reactive elements (V = IXL) before finalizing the plot.
Common Scaling Errors
| Supply Voltage (Vrms) | Reactance XL (Ω) | Current I (Arms) | Voltage Drop VL (Vrms) | Scale Correction Factor |
|---|---|---|---|---|
| 12 | 15 | 0.8 | 12 | 1:1 |
| 24 | 40 | 0.6 | 24 | 1.5:1 |
| 48 | 80 | 0.6 | 48 | 0.75:1 |
Rotate the template 30° counterclockwise when integrating resistive loads; maintain orthogonal separation between active and reactive drops. Label each arrow with numerical values–omitting units invites misinterpretation during troubleshooting. For polyphase systems, replicate the template for each phase, aligning B and C vectors at +120° and −120° from A.
Critical Elements of Vector Representations in Coil-Dominated Systems
Begin by sketching the reference axis for voltage (V) horizontally–this establishes the baseline for all phase relationships. Current lag in coil-driven networks always trails behind voltage by 90°, so plot its vector vertically downward from the reference origin. Ensure active resistance vectors (R) align collinearly with voltage; reactive components (XL) must perpendicularly intersect R to maintain accurate impedance magnitude. Misalignment disrupts true phase displacement calculations.
- Measure instantaneous voltage-current displacement with protractor tools–precision to 0.5° prevents cumulative errors in power factor correction.
- Label every vector with both symbolic notation (V, IL, Z) and numerical values (e.g., 120∠-30°) to eliminate ambiguity in multi-stage analysis.
- Avoid default CAD defaults–manually adjust vector stroke weights: 2pt for principal axes, 1pt for secondary parameters ensures readability in dense plots.
For transient state evaluations, overlay dynamic impedance trajectories by plotting successive voltage-current vectors as concentric arcs radiating from the origin–arc radius equals peak amplitude, angular separation matches frequency-dependent phase shift between steady-state and transient responses. Validate every plotted angle against measured oscilloscope traces; discrepancies exceeding 2° suggest parasitic capacitance interfering with pure inductive behavior.
Building a Vector Representation for Choke Elements: A Practical Guide
Start by sketching the reference axis horizontally–this represents the current waveform at 0° phase shift. For a pure choke, the voltage leads by exactly 90°, so draw a vertical arrow upwards from the origin to depict the voltage vector. Label the current I and voltage VL, ensuring arrow lengths reflect magnitudes (e.g., 5 A current = 5 units; 100 V = 10 units). Use a protractor to confirm the 90° angle between vectors.
- Measure the choke’s impedance (XL = 2πfL) to scale vectors accurately.
- If resistance is present, resolve VL into orthogonal components: vertical (reactive) and horizontal (resistive).
- For series R-L networks, sum resistive and reactive voltage drops geometrically via the Pythagorean theorem.
Rotate the coordinate system counterclockwise if analyzing phase relationships relative to applied voltage. Transform the choke’s voltage-arrow into a rotating snapshot by plotting it from the tip of the current-arrow–this clarifies the leading nature of inductive voltage. Validate with real measurements: oscilloscope traces should align with the vector angles constructed.
Understanding Voltage and Current Timing in Coil-Dominant Systems
Measure current lag behind voltage by 90 degrees in purely coil-based setups to verify ideal reactance behavior. Use an oscilloscope with dual-channel probes: connect one probe across the coil terminals to track voltage, the second in series to capture current via a low-resistance shunt (≤1Ω). The displayed waveforms must show the current peak trailing the voltage peak precisely by a quarter-cycle (π/2 radians). Deviations beyond ±5 degrees indicate parasitic resistance or capacitance requiring circuit refinement.
Calculate inductive reactance (X_L) at the operating frequency using X_L = 2πfL, where f is the applied frequency in hertz and L is the inductance in henries. For a 50 Hz system with a 0.1 H coil, X_L equals 31.4 Ω. This value dictates the voltage-current magnitude relationship via Ohm’s law for AC: V = I × X_L. At 10 A RMS, the coil’s terminal voltage should read 314 V RMS. Mismatches reveal measurement errors or non-linear coil properties.
Compensate for real-world phase shifts caused by winding resistance (R). The total impedance (Z) follows Z = √(R² + X_L²). A 3 Ω winding resistance in the 0.1 H coil reduces the phase angle to θ = arctan(X_L/R) = 84.3°, not 90°. Use a vector analyzer to separate resistive and reactive components; trim winding resistance via thicker wire or cooled operation to approach ideal phase alignment.
Apply this timing analysis to troubleshoot motor drives or transformers. In a 400 V, 50 Hz induction motor, expect stator current to lag voltage by 75-85° due to combined leakage reactance and magnetizing inductance. Record phase angles at no-load and full-load: a 10° reduction under load signals core saturation or rotor slip, requiring torque curve recalibration or core laminations reassessment.
Frequent Errors in Vector Representations for Lagging Power Components
Mixing up current and voltage directions leads to invalid interpretations. Always assign voltage (V) as the reference arrow pointing right–current (I) must lag behind at the calculated phase angle (typically 30°–60° for coils). Reverse this rule, and impedance calculations collapse.
Neglecting scale consistency distorts magnitudes. If 1 cm equals 10 V on one sketch, apply the same ratio to every vector on that plot. Arbitrary lengths misrepresent amplitude relationships, making reactive power appear falsely dominant or negligible.
Angle Precision Missteps
Rounding 45.6° to 45° introduces errors in subsequent power triangle constructions. Use at least one decimal place for angles above 10°–this preserves tangent values critical for volt-ampere-reactive (VAR) estimates within ±2%.
Incorrect angle origins ruin phase tracking. Plotting a 30° lagging I arrow from V’s tail instead of its head displaces the entire system by 30°, falsifying the power factor angle by the same margin. Double-check origin points before finalizing.
Mislabeling Essentials
Swapping real (P) and reactive (Q) axes confuses active versus reactive dominance. Real power vectors align horizontally; reactive ones rise vertically. Transposing labels renders the entire sketch useless for troubleshooting motor inefficiencies.
Omitting polarity dots on winding symbols voids reference direction. A coil without a dot implies current entering at the marked terminal; misplacing it flips the entire vector set by 180°, mandating complete redraws during verification.
