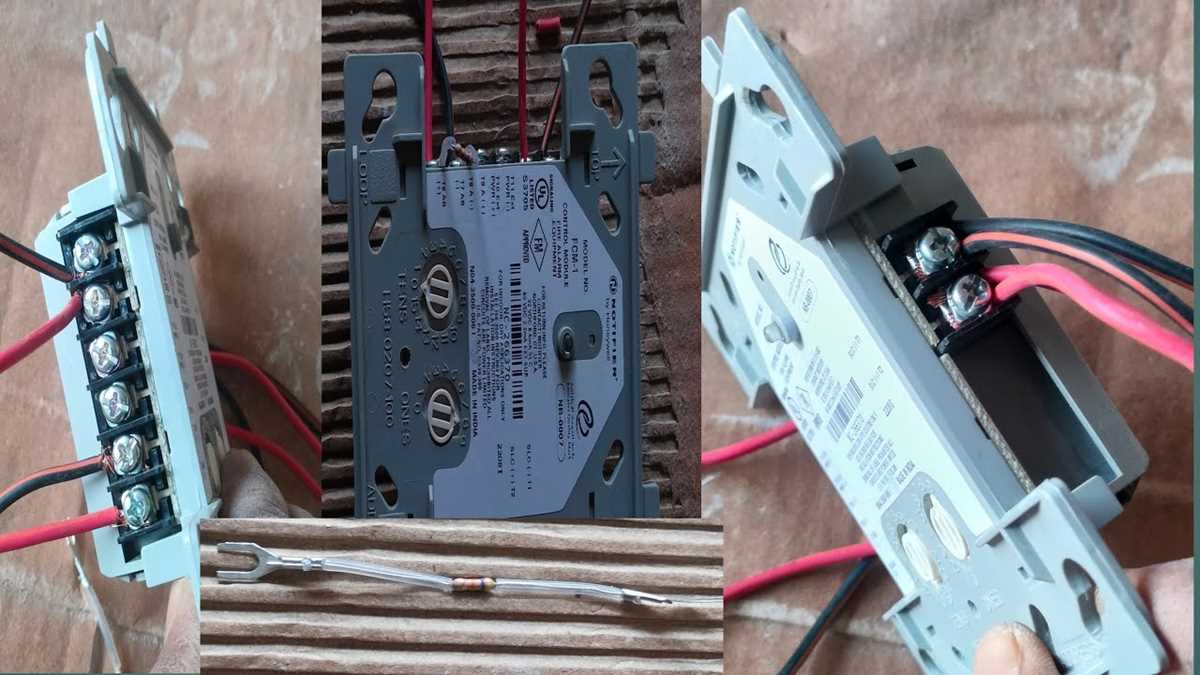

Notifier FRM-1 Fire Alarm Relay Module Wiring Guide and Schematic
Start with power input verification. Ensure the primary supply lines–typically 24V DC from a dedicated circuit–are correctly fused (commonly 4A slow-blow) before connecting to the panel’s main terminals. Reverse polarity protection is absent in most models; cross-check polarity with a multimeter before energizing the system. Ground the chassis to a verified earth point using 12 AWG copper wire, avoiding daisy-chain connections that introduce resistance errors.
Loop circuit wiring demands strict adherence to zone-specific resistance limits. For standard addressable devices, maintain total loop resistance below 40 ohms (measured end-to-end) to prevent supervision faults. Use twisted pair cabling (minimum 18 AWG, solid core) with a shield grounded at a single point–typically at the panel–to minimize electromagnetic interference. Avoid splices; if unavoidable, use crimp connectors rated for 90°C, insulated with heat-shrink tubing.
Initiating device circuits (IDCs) require separate power calculation. Each smoke detector consumes ~40μA in standby; multiply by the total number of devices, then add 20% overhead to determine the required power supply capacity. Violet (NAC+) and brown (NAC-) terminal pairs control notification appliances–restrict current draw to 1.75A per circuit unless using an external power expander. Verify field wiring continuity with a 1kΩ resistor across the appliance circuit to simulate an open circuit during installation.
For serial data interfaces, use RS-485 rated cable (shielded, 22 AWG), limiting run lengths to 4,000 feet without repeaters. Terminate both ends of the bus with a 120Ω resistor to prevent signal reflections. When integrating with building management systems, confirm protocol compatibility (e.g., Modbus RTU, BACnet) and disable unused ports to prevent network congestion. Document all terminal block assignments with indelible labels, including device addresses and zone functions, for future troubleshooting.
Fire Alarm Control Panel Connection Guide for FRM-1 Series
Prioritize verifying the loop voltage before connecting any devices to the addressable circuit. The FRM-1 module operates at 24V DC, but voltage drop over long cable runs (exceeding 1,200 meters) may require intermediate power boosters or thicker gauge wiring–use 1.5 mm² for runs under 600 meters and 2.5 mm² for longer segments. Connect the positive terminal (red wire) to the “L+” bus bar and the negative (black) to “L-” on the control unit, ensuring polarity matches the device labels. Miswiring can trigger false supervisory alerts or disable fault detection.
Device-Specific Termination Details
For heat detectors, splice the zone wire directly to the device’s terminals without intermediate junctions–daisy-chaining reduces signal reliability. Initiating devices like pull stations demand a Class B (Style 4) configuration; terminate the end-of-line resistor (4.7kΩ, 1/2W) across the last device’s contacts. Smoke sensors require separate alignment with the panel’s sensitivity settings (default 2.0% obscuration/meter) via the configurator software–factory defaults may not suit dusty environments. Ground all metal enclosures to a dedicated earth bus using 4 mm² green/yellow wire, never sharing with signal conductors.
Locating Critical Elements in the FRM-1 Integration Blueprint
Trace the power input module first–it anchors the entire setup. The FRM-1’s primary voltage entry point typically includes a dual-terminal block labeled L1 and L2, handling 24VAC or 120VAC depending on regional specifications. Verify the correct voltage rating on the adjacent label; mismatches risk module failure. For redundant power configurations, check the auxiliary input marked AUX PWR, which should mirror the primary source without exceeding 2A.
Isolate the zone wiring clusters next. Each loop circuit connects via dedicated screw terminals (Z1, Z2, etc.), separated by fire-rated barriers on the board. Polarity matters: standard convention wires the initiating device (e.g., smoke detectors) to the + terminal, with the return path on –. For end-of-line resistor integration, locate the jumper pads beneath each zone terminal–bridge them only if supervised monitoring is active, following NFPA 72 guidelines for Class A or B circuits.
Examine the control output grouping. The module allocates discrete relays for alarm verification (AR), trouble indication (TR), and supervisory functions (SUP). Confirm each relay’s coil resistance (nominally 2kΩ for standard models) using a multimeter; deviations suggest degraded contacts or incorrect wiring. Dual-in-line package (DIP) switches adjacent to these relays toggle between Normally Open (NO) and Normally Closed (NC) states–document their positions before adjusting.
- Alarm Relay (AR): Output triggers at +24VDC during active alarms; verify continuity with a load-rated LED or buzzer.
- Trouble Relay (TR):
- Supervisory Relay (SUP): Engages for non-fire events (e.g., valve tamper switches). Check with a 1kΩ end-of-line resistor.
Activates under fault conditions (e.g., open circuits). Test by intentionally disconnecting a zone wire.
Follow the communication bus strip running horizontally along the bottom edge. The FRM-1 interfaces with the central panel via a two-wire RS-485 link (DATA+ and DATA–), terminated with a 120Ω resistor across the farthest nodes. Omit the terminator if the module is the final device in the sequence; incorrect termination introduces signal noise, causing comms dropouts. Label each tap point to avoid misrouting during expansions.
Identify the ground reference plane. A dedicated terminal labeled GND or CHS (chassis) connects to the enclosure’s mounting rail–ensure conductivity with a star washer. Floating grounds create false trouble signals, mimicking ground faults. For isolated installations, bond this point to the building’s grounding electrode system per NEC Article 250.
Scrutinize the LED indicators. The FRM-1 embeds status lights for each zone (Z1–Z8), power (PWR), and system health (CPU). Interpret flashing patterns immediately: steady on = normal; slow blink = active alarm; rapid flash = wiring fault. Cross-reference flashes with the installation manual–manufacturers encode fault types differently (e.g., 3 flashes = short circuit, 5 = open loop).
Prioritize auxiliary device connections last. Analog input (4-20mA) and dry-contact interfaces reside on a secondary terminal strip. For current-loop sensors (e.g., pressure monitors), wire the positive to AI+ and return to AI–, keeping leads under 100 feet to avoid signal attenuation. Dry contacts must meet Class 2 power limitations (≤30VDC, ≤5A); exceedances require interposing relays.
Step-by-Step SLC Loop Integration for Fire Alarm Systems
Begin by verifying the circuit’s power supply voltage matches the device specifications–typically 24VDC for most modern panels. Use a precision multimeter to confirm stability at the source terminals, ensuring fluctuations do not exceed ±2%. Identify the loop’s Class A or Class B configuration from the control unit documentation, as this dictates the redundancy and fault tolerance approach.
Label each device on the loop with unique identifiers–e.g., “SLC-DEV-01″–to avoid misalignment during troubleshooting. For Class A loops, wire devices in a closed loop, connecting the return path to the panel’s “return” terminal. Class B loops terminate at the last device, so verify the end-of-line resistor (EOLR) values (commonly 4.7kΩ for 24VDC) are installed per manufacturer guidelines.
Critical Connection Sequence
| Step | Action | Tools/Notes |
|---|---|---|
| 1 | Strip 6mm of insulation from both conductor ends using wire strippers calibrated for 18-22 AWG copper. | Avoid nicking strands; verify strip gauge with a caliper if uncertain. |
| 2 | Insert the positive (+) conductor into the module’s “IN+” terminal, securing with a torque screwdriver set to 0.5Nm. | Loose connections cause resistive faults; recheck torque after 24 hours. |
| 3 | Route the negative (-) conductor to the next device’s “OUT-” terminal, maintaining polarity consistency. | Use color-coded sleeves (red for +, black for –) to prevent reversal errors. |
| 4 | For Class A, daisy-chain the return path back to the panel’s “RET+” and “RET-” terminals. | Confirm continuity with a megohmmeter before energizing the loop. |
Isolate each segment with a 1μF noise-suppression capacitor across the power input terminals of sensitive modules (e.g., addressable detectors). This reduces false activations from electromagnetic interference, especially in high-noise environments like industrial facilities. Ground shields at one end only–typically the panel–to prevent ground loops, which introduce signal degradation.
Program the control unit’s loop parameters after physical connections are secured. Set device types (e.g., smoke, heat, manual call point) and address ranges in the configuration software, ensuring no overlaps or gaps in numbering. For Class A loops, enable the “fault supervision” feature to monitor open-circuit conditions, which activates alerts if the return path is compromised.
Stress-test the installation by simulating faults: disconnect a single device and verify the panel identifies the location within 10 seconds. For Class B loops, lift the EOLR and confirm the “trouble” LED illuminates. Document the loop’s baseline voltage drop (target:
Seal all terminal blocks with silicone-based conformal coating to prevent corrosion, particularly in humid or coastal areas. Label the cable jacket every 2 meters with device addresses and loop numbers, using UV-resistant tags. Store physical schematics in a fireproof cabinet and back up digital copies to an air-gapped server for redundancy.
