How to Wire a Western 6 Pin Controller Complete Connection Guide
For proper attachment of a standard 6-point plow interface, segment the harness into two functional zones: power delivery and signal routing. The first two terminals carry the primary current–12V from the vehicle battery–so use 8-gauge wire minimum, protected by a 20A fuse within 18 cm of the battery post. Failure to do so risks overheating the harness under load.
Terminals three and four serve as the actuator toggle pair, requiring direct linkage to the solenoid valves. Polarity is fixed; reversing these leads will force the plow into unintended movements. Insert a diode across these connections to suppress voltage spikes exceeding 40V, common during solenoid cycling.
Terminals five and six handle the lighting synchronization: white for headlights, amber for indicators. Route both through 3-amp inline fuses, splitting at the first junction box inside the cab. Skip any relay bridging unless integrating LED modules rated below 200 mA, as standard halogen setups draw sufficient current through direct connection.
Secure every splice with solder and adhesive-lined shrink tubing–not quick disconnects–since vibration easily fractures unsecured joints after 50 operating hours. Ground near the battery negative, avoiding chassis points shared with high-current accessories like winches.
Label each circuit segment immediately after assembly; miswiring in this setup leads to solenoid burnouts in under 30 seconds. Keep multimeter probes on each terminal during initial testing–voltage readings should drop no lower than 11.8V under full load.
Connecting a 6-Contact Plug Harness: Key Steps
Begin by matching the harness connector to the power unit’s socket–align the tabs and notches precisely to avoid forced insertion. Incorrect alignment risks damaging terminal contacts or shorting circuits.
Identify each lead using a multimeter: power (12V+), ground (–), solenoid output (A), battery charge (B+), brake light feed (SA), and auxiliary (AU). Use the following color codes as reference:
- Red: 12V+ (ignition-switched)
- Black: Ground return
- Blue: Solenoid trigger
- White: Battery positive
- Green: Stop lamp activation
- Yellow: Optional accessory input
Secure connections with heat-shrink tubing or dielectric grease to prevent corrosion–and never rely on twist-and-tape methods. Loose strands cause intermittent failures under vibration.
Test continuity before finalizing installation: probe each terminal while cycling the actuator manually. A zero-ohm reading confirms a valid link; any resistance signals a faulty contact requiring re-crimping.
For trailer-mounted setups, split the harness at the junction box. Route the red lead through a breaker or fused holder (typically 20A) and ground directly to the chassis near the mounting plate–not through the frame rails.
Troubleshooting Erratic Operation
- Flickering solenoid: verify white lead voltage holds 12.6V during operation; replace weak auxiliary battery if it drops below 12.2V.
- Unresponsive actuator: check blue lead continuity from the switch to the motor assembly–disconnect the unit first to isolate upstream faults.
- Brake lights not triggering: confirm the green lead connects to a dedicated 30A circuit in the tow vehicle’s fuse panel, bypassing trailer wiring adapters.
Finalize by zip-tying excess cable away from moving parts–especially the pivot arm–and water-seal the connector housing with non-conductive silicone. Re-test under load before road use.

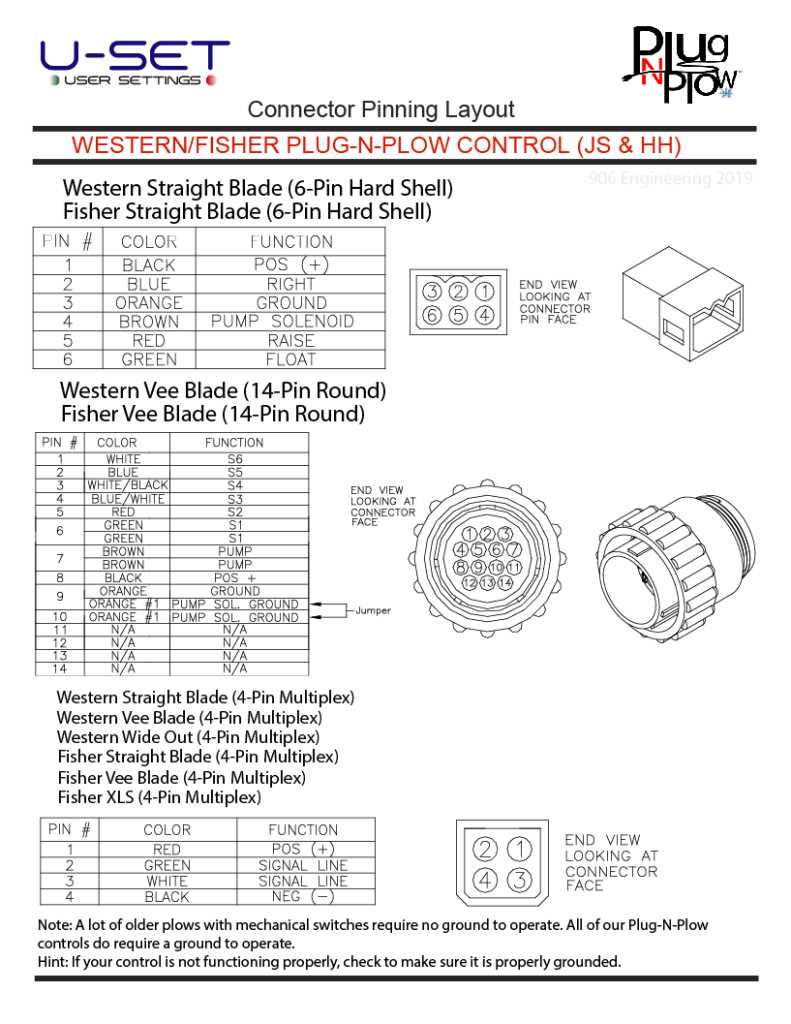

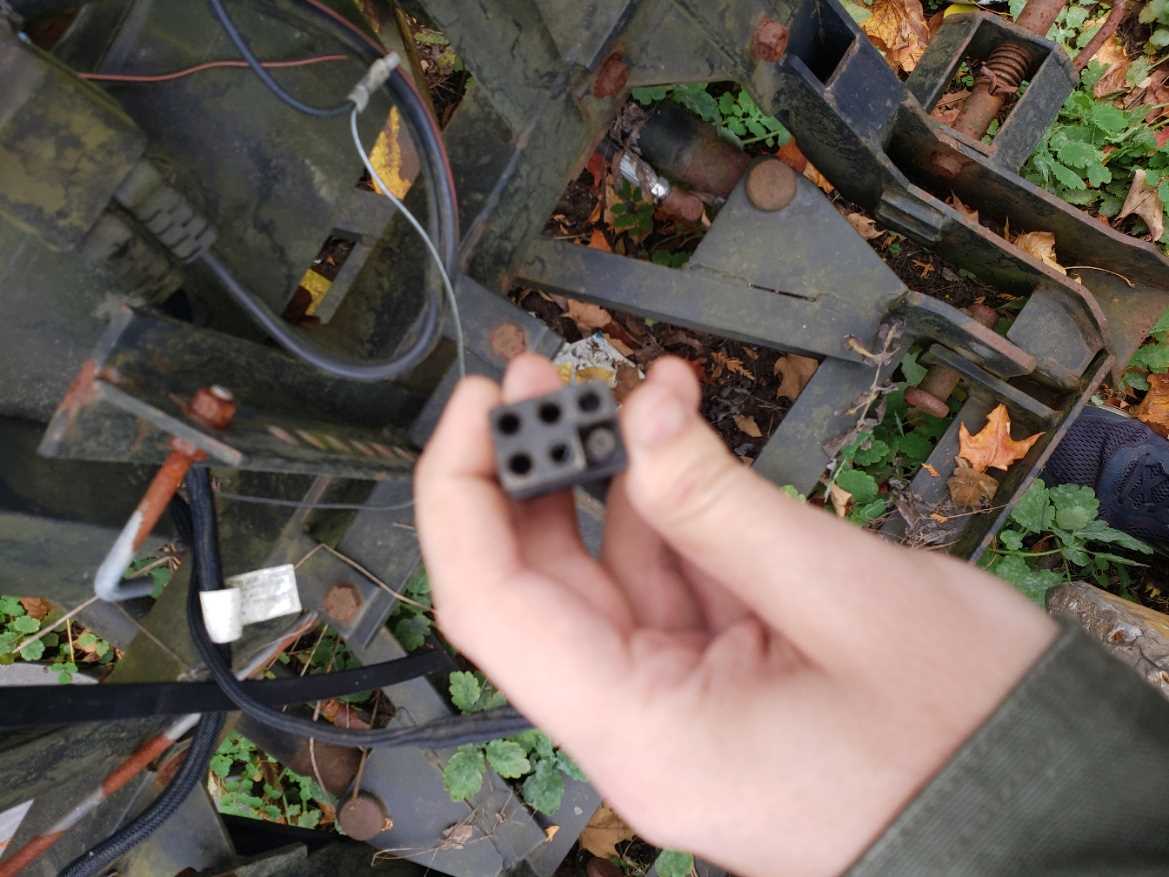

Understanding the Terminal Layout on a 6-Contact Harness Connector
Start by examining the connector housing–most units arrange contacts in two vertical rows of three. The top-left slot typically carries the primary voltage feed, often marked with a red or yellow conductor. Verify this with a multimeter set to DC voltage; expect 12V when the ignition is active. Avoid relying solely on color coding, as aftermarket harnesses may deviate from OEM standards.
Adjacent to the power input, the top-right terminal usually serves as the ground. A black or brown wire commonly terminates here, dropping to 0V when tested against the chassis. Confirm continuity by probing between this contact and any unpainted metal surface on the implement–resistance should read near zero. If values exceed 0.5 ohms, clean both connection points with a wire brush to remove corrosion.
The middle-left position frequently handles the signal output. This conductor–often blue, green, or white–transmits operational data to the control module. With the system powered, oscilloscope readings should show a pulsed waveform between 0V and 5V. If the trace remains flat, inspect the connected sensor for proper mounting and alignment.
Directly opposite, the middle-right slot may function as a secondary ground or auxiliary input, depending on the equipment model. Some configurations route a temperature sensor lead here, requiring a different diagnostic approach: measure resistance while gently heating the sensor–values should drop predictably. If readings stay static, replace the sensor.
At the bottom, expect two dedicated outputs for feedback and safety. The left typically monitors implement position via a potentiometer or rotary encoder, while the right can interface with lift or tilt actuators. Check resistance across both contacts; fluctuations should align with physical movement. For hydraulic setups, ensure fluid levels are topped to prevent signal distortion from air pockets.
Label each contact immediately after verification. Use a fine-tip permanent marker to avoid confusion during reinstallation. Miswiring these outputs can trigger false error codes or unintended implement movement. Secure wires with zip ties every 6 inches to prevent chafing, especially near pivot points.
For troubleshooting, keep a reference chart of expected voltages and resistances specific to your implement’s manual. Digital storage scopes capture intermittent faults better than basic meters–record waveforms during operation for later analysis. If deviations persist, replace the connector entirely rather than repairing individual terminals, as internal corrosion beneath the insulating sleeve often goes unnoticed.
Step-by-Step Motor and Power Connection Guide
Start by identifying the power input terminals on your device–typically marked “V+” and “GND” for the main supply. Use a multimeter to confirm voltage levels before making any links; most setups require 12V or 24V DC input. Connect the positive wire from your battery or power source directly to the “V+” terminal, ensuring a secure crimp or solder joint to prevent voltage drops.
Locate the motor output contacts–often labeled “A+”, “A-“, “B+”, and “B-“–and match them to your motor’s phase wires. For brushed motors, connect “A+” and “A-” to the motor’s terminals; for brushless configurations, attach all four outputs to the corresponding stator coils. Verify polarity with the manufacturer’s specs to avoid reverse rotation or damage.
Ground the system by attaching the negative wire from the power source to the “GND” terminal. Avoid daisy-chaining grounds–use a single, thick wire (14-12 AWG) to reduce resistance. If the setup includes multiple components (e.g., sensors or relays), route their grounds to a common star point near the power source to minimize interference.
Handling High-Current Pathways
For motors drawing over 10A, use heavy-duty cables (10 AWG or thicker) for all power-carrying links. Crimp terminals with heat-shrink insulation to prevent short circuits. If the run exceeds 1 meter, consider adding a relay or solid-state switch to avoid voltage sag under load.
Test motor operation with a low-voltage bench supply before connecting the full system. Observe rotation direction and current draw–normal values should align with the motor’s datasheet. If current spikes above specifications, check for binding in the mechanical assembly or incorrect phase wire pairing.
Secure all connections with strain relief–zip ties or adhesive-lined clamps prevent vibration from loosening joints. Label each wire at both ends for troubleshooting; use color-coded sleeves if the original wiring lacks distinction. For outdoor or high-moisture environments, apply dielectric grease to terminals before final assembly.
If incorporating a speed governor or limit switches, wire them in series with the motor’s positive input. These devices typically break the circuit when activated; ensure their contacts are rated for the motor’s peak current. For failsafe operation, add a fuse (matching the motor’s surge rating) directly to the power source’s positive line.
Final Verification and Safety Checks
After completing all links, perform a continuity test with the power disconnected. Measure resistance between phases–open circuits indicate loose contacts, while near-zero readings suggest a short. Reconnect power and monitor for unusual heat, smoke, or erratic operation; disconnect immediately if anomalies occur and recheck each step.
Troubleshooting Common Connection Errors with a Multimeter
Set the multimeter to continuity mode (usually marked with a diode symbol) to verify signal paths between terminals. Probe the contact pairs while gently flexing the harness–intermittent shorts often reveal themselves as audible beeps that fade in and out. If continuity fails, check for oxidized terminals; clean with a fine-grit abrasive and retest. For DC voltage checks, connect the black lead to a known ground (bare metal chassis or negative terminal) and the red lead to the suspected line. A reading below 4.5V indicates a voltage drop–common culprits include corroded joints, undersized conductors, or loose crimp connections. Replace damaged sections with 18 AWG wire minimum, ensuring strands are fully inserted into terminals before crimping.
| Symptom | Test Method | Expected Outcome | Corrective Action |
|---|---|---|---|
| No power at device | DC voltage at input | 11.5–12.6V | Trace circuit back, inspect fuses and splices |
| Intermittent signal | Continuity while wiggling harness | Steady beep | Locate break, solder and heat-shrink repair |
| Erratic readings | Resistance across switch contacts | 0–2 ohms when closed | Clean or replace faulty switch |
Always confirm the meter’s batteries before testing; weak cells can produce false negatives in high-resistance circuits.
