Step-by-Step Guide to RV AC Electrical Wiring Schematics

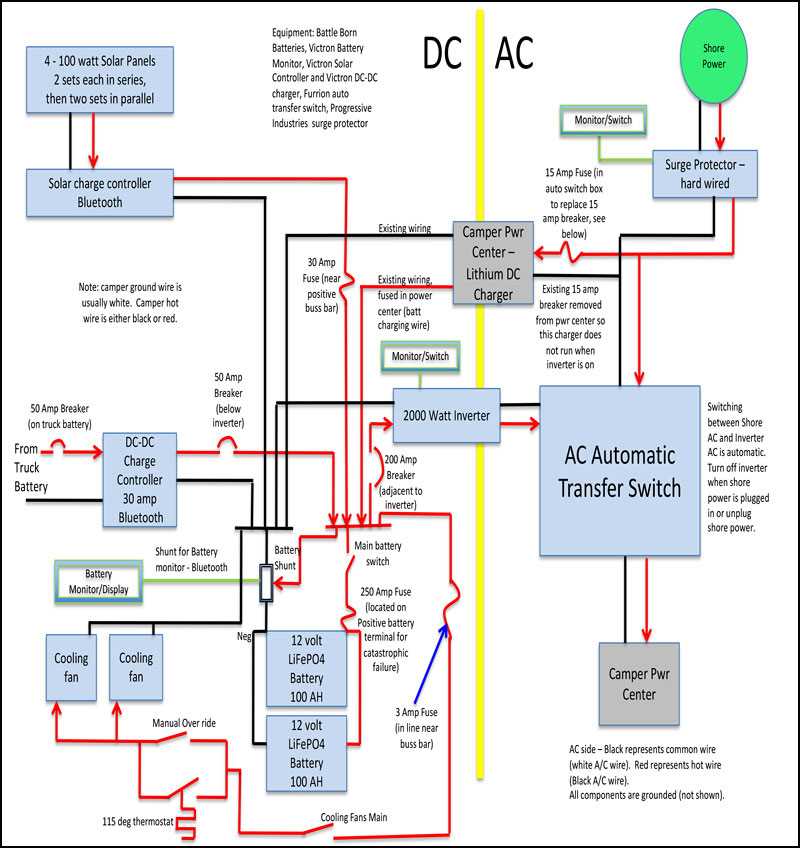

Install a dedicated 30-amp shore power inlet with a 4-prong twist-lock connector (NEMA TT-30P) for consistent voltage delivery. Avoid using household plugs–voltage drop risks damaging appliances. Route cables through a marine-grade circuit breaker panel rated for 125% of expected load (e.g., 37.5A for a 30A system). Include a surge protector between the inlet and panel to block transient spikes.
Split the 12V DC system into two separate busses: one for critical loads (lights, furnace, water pump) and another for non-essential devices (USB chargers, stereo). Use 10-gauge AWG copper conductors for high-drain circuits (e.g., 12V fridge) and 16-gauge for low-current paths. Ground all 12V circuits to a single chassis point near the battery bank to prevent interference.
Label every fuse, terminal, and connection with heat-shrink tubing or durable wire markers. Color-code conductors: red for positive, black for negative, yellow for solar input, and green/bare for grounding. Replace any aluiminum wiring with copper–corrosion at connections causes resistive heat buildup.
Prioritize battery bank placement within 3 meters of the conversion equipment to minimize voltage loss. Use tinned marine cable if routing near moisture-prone areas (e.g., under the floor). Test all connections with a multimeter before finalizing–verify 12.6V at battery terminals and 120V AC at outlets under load.
RV Air Conditioning Electrical Layout: Hands-On Installation Guide
Connect the AC unit directly to a dedicated 30-amp circuit breaker using 10 AWG copper conductors for runs under 50 feet. For longer distances, upgrade to 8 AWG to prevent voltage drop exceeding 3%–critical for compressor longevity. Label both hot and neutral lines at the breaker panel and unit terminal block to eliminate reverse polarity errors during maintenance.
Install a hard-start capacitor on the compressor if voltage sag occurs during startup. Models like the Supco SPP6 reduce inrush current by up to 40%, extending relay life. Place it within 12 inches of the compressor terminals, securing leads with heat-shrink tubing to prevent arcing. Avoid generic capacitors; verify microfarad ratings against the manufacturer’s specs–most RV units require 25–35 μF.
| Wire Gauge | Max Distance (ft) | Voltage Drop (%) |
|---|---|---|
| 10 AWG | 50 | 2.8 |
| 8 AWG | 80 | 1.9 |
| 6 AWG | 120 | 1.2 |
Use a non-contact voltage tester before touching terminals–even “disconnected” circuits can retain charge. Shore power hookups must include a 30-amp RV outlet with NEC-compliant GFCI protection; adapter cords without surge suppression risk tripping the breaker under load. For lithium battery setups, pair the AC unit with a 2000W inverter rated for 3x the unit’s running amps (e.g., 24,000 BTU requires 12–15A, so opt for 3000W continuous).
Ground the system to the chassis using a 6 AWG bare copper wire bonded at two points: the AC unit’s grounding lug and the RV’s frame rail. Avoid relying on the shore power ground alone; corrosion-resistant clamps (e.g., tin-plated) prevent resistance buildup. Test grounding continuity with a multimeter–values above 0.1 ohms indicate a failed connection requiring immediate rework.
Route all conductors through sealed conduit where exposed to weather–flexible liquid-tight tubing (LTF) rated for outdoor use prevents moisture ingress. Secure cables every 18 inches with UV-resistant zip ties; avoid drilling through structural ribs unless absolutely necessary. When running wires alongside propane lines, maintain a minimum 6-inch separation and use grommets at penetration points to prevent chafing.
For soft-start kits like the EasyStart 364, follow the programming sequence exactly: connect the red lead to the run capacitor, white to the common terminal, and black to the start capacitor. Incorrect wiring voids the warranty and can damage the compressor’s internal windings. After installation, monitor startup current for 48 hours–values above 50A indicate a faulty setup.
Inspect terminal connections annually for oxidation, particularly on aluminum circuits. Apply anti-oxidant paste (e.g., NOALOX) to all contact surfaces, including breaker screws and outlet contacts. Replace corroded fittings immediately–impedance from degradation can cause overheating, reducing cooling efficiency by 15–20% and increasing energy consumption.
Basic Components of an RV AC Electrical System
Start by equipping your setup with a 30-amp or 50-amp power inlet, depending on your RV’s capacity. A 30-amp inlet supports a single air conditioner and basic appliances, while a 50-amp inlet handles dual AC units and larger loads. Ensure the inlet is rated for marine-grade durability to resist corrosion from road salt and moisture. Install a matching plug on your shore power cable–never substitute incompatible connectors, as mismatches risk overheating and fire hazards.
The power converter serves as the system’s backbone, transforming 120V AC from shore power into 12V DC for lights, pumps, and other low-voltage devices. Opt for a converter with multi-stage charging to prolong battery life by adjusting voltage based on charge state. Avoid cheap models lacking temperature compensation; these overcharge in heat or undercharge in cold, degrading batteries quickly. Verify the converter’s amp rating matches your RV’s total load (e.g., 55 amps for a mid-sized rig with moderate appliances).
Key Protective Devices
Install a surge protector between the shore power source and your RV to safeguard against voltage spikes. Choose a hardwired unit with 3,800+ joules of protection for reliable defense against transient surges. Pair it with a polarity tester to detect miswired pedestals–a common issue at campgrounds that can damage sensitive electronics. For RVs with generators, add a transfer switch to seamlessly alternate between shore power and generator output without manual intervention.
- Main breaker panel: Houses circuit breakers sized for each appliance (e.g., 20 amps for AC, 15 amps for outlets). Use a sub-panel if adding solar or lithium batteries to isolate high-draw circuits.
- Inverter: Converts 12V DC battery power into 120V AC for small appliances. Select an inverter with pure sine wave output to avoid damaging laptops or medical devices. Size it to handle at least 1.5x your peak load (e.g., 2,000 watts for microwave + coffee maker).
- Battery bank: Use deep-cycle AGM or lithium batteries for longevity. Calculate capacity in amp-hours (Ah)–a 200Ah bank supports a 12V fridge (~50Ah/day) for 3–4 days without recharging.
Label every wire in your setup with heat-shrink tubing or printed tags, noting voltage (12V/120V) and destination (e.g., “AC #1 – Roof Unit”). Use color-coded cables–red for positive, black for negative, and white for neutral–to prevent misconnections. For 120V circuits, employ 10 AWG copper wire (minimum 75°C rating) for AC runs; thinner gauges overheat under load. Terminate connections with crimp lugs and dielectric grease to prevent oxidation. Periodically inspect all junctions for loose terminals–a leading cause of voltage drops and failure.
Step-by-Step Connection Setup for an RV Air Conditioner
Begin by locating the power source panel inside your RV. Identify the 30-amp or 50-amp breaker dedicated to the climate control system–most models require a double-pole breaker for proper voltage distribution. Verify the circuit’s compatibility with the unit’s voltage rating (typically 115V or 230V) using a multimeter; deviations beyond 10% indicate potential issues with the supply.
Disconnect power at the main breaker before handling any connections. Strip ½ inch of insulation from each conductor using wire strippers, ensuring no stray strands remain. For a 115V system, connect the black (hot) wire to the breaker’s terminal, the white (neutral) to the bus bar, and the green or bare (ground) to the grounding bar. For 230V, use two hot wires (often red and black) connected to separate breaker poles, with neutral and ground routed as above.
Key Safety Measures
- Use heat-shrink tubing or electrical tape to insulate all terminal connections, preventing accidental shorts.
- Secure all wires with strain relief clamps where they enter the unit housing to avoid tension on the joints.
- Label each conductor at both ends–this simplifies troubleshooting later.
- Avoid daisy-chaining the climate unit to other appliances; dedicate the circuit to prevent overloads.
Mount the indoor control module following the manufacturer’s spacing guidelines–typically 3 to 5 feet above the floor on an interior wall. Run the low-voltage thermostat cable (usually 18-gauge, 3 or 4 conductors) from the unit to the control panel, ensuring no sharp bends or pinches. Connect the wires to the labeled terminals on both the unit and the thermostat, matching colors precisely. Misalignment here causes erratic operation or failure to start.
Test the system in stages. Restore power and verify voltage at the unit’s terminals matches specifications. Set the thermostat to cool mode and observe the compressor’s activation–it should engage within 30 seconds. Monitor the current draw with a clamp meter; a 13,500 BTU unit typically pulls 12–15 amps under normal load. Check for unusual noises or vibrations, which indicate loose components or refrigerant issues. If the unit trips the breaker repeatedly, reduce other loads on the circuit or inspect for wiring faults.
Finalize the installation by sealing all wall penetrations with fire-rated caulk to maintain insulation integrity. Secure any loose components in the unit’s housing, such as capacitors or relays, to prevent vibration-induced failures. Record the setup details–breaker size, wire gauge, and thermostat model–for future reference. Periodically inspect connections for corrosion, especially in humid or coastal environments, as this is a common failure point.
